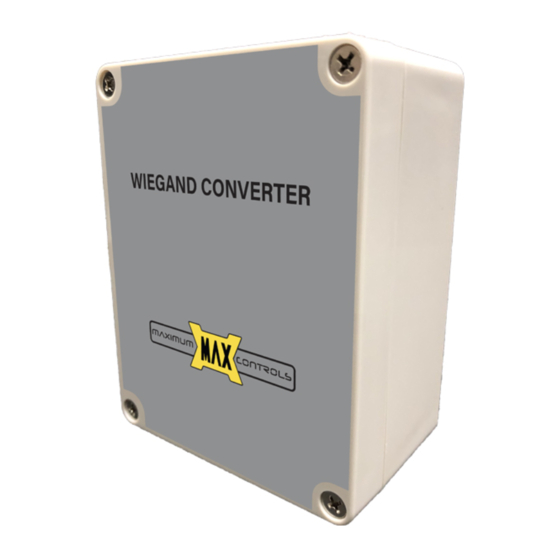

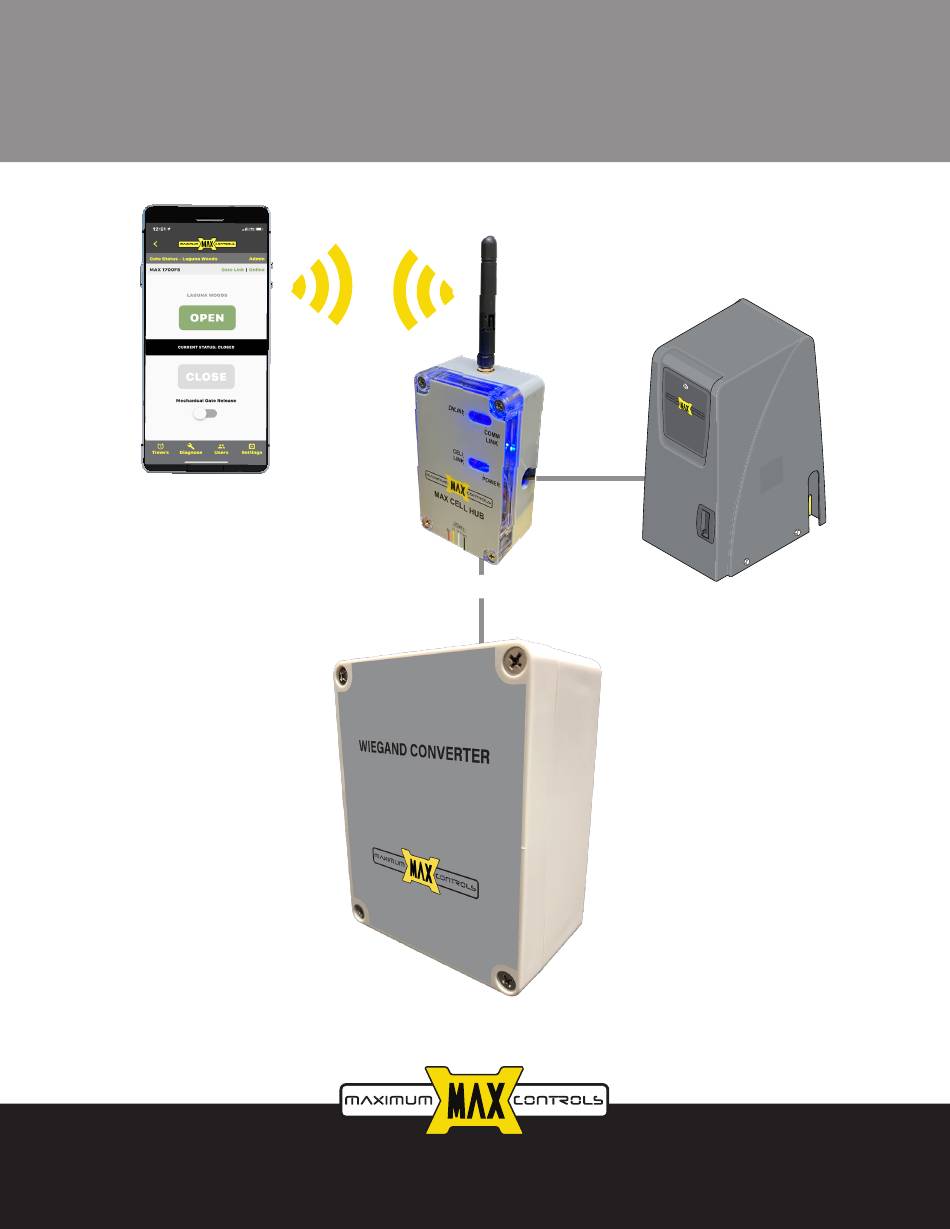

- Page 1 QUICK INSTALLATION GUIDE MAX WIEGAND CONVERTER RESIDENTIAL / COMMERCIAL APPLICATION Max Cloud App Max Cell Hub Max Operator ONLINE COMM LINK CELL LINK POWER Max Wiegand Converter MAX CELL HUB RS485 (-) (+) GND MAX.US.COM 12-21-20 _Rev 2.9 www.max.us.com...
- Page 2 RELAY PORT RS-485 POWER IN: 12 VDC / VAC • Control access point with COMM PORT dedicated relay • To connect to Max Cell Hub Max Wiegand Converter requires a Max Cell Hub. Both work exclusively with Max Gate Operators...
- Page 3 PEDESTRIAN DOOR APPLICATION PEDESTRIAN DOOR www.max.us.com USING WIEGAND CONVERTER www.max.us.com Max Wiegand Converter Wiring Wiegand device Connect wiegand device as shown Card Reader Max Card Reader Wiring Power Input Connect 12VDC, 1A +12V power transformer to Power Input port of...
- Page 4 PEDESTRIAN DOOR PEDESTRIAN DOOR APPLICATION www.max.us.com USING WIEGAND CONVERTER www.max.us.com EXIT PUSH BUTTON Select "Access PT#" using rotary switch Select #1-14: to open gate using Keypad relay Wiring Exit Push Button Install request to Exit Push Button as shown SOLENOID LOCK Wiring Solenoid Lock Install Solenoid Lock as is shown...
- Page 5 Wiring Hub to Wiegand Converter MAX CELL HUB Connect RS-485 port of Max Cell Hub to RS485 (-) (+) GND RS-485 port of Max Wiegand Converter (+) to (+) (-) to (-) GND to GND MAX OPERATOR 12-21-20 _Rev 2.9...
- Page 6 PEDESTRIAN DOOR PEDESTRIAN DOOR APPLICATION www.max.us.com USING WIRELESS MAX WIEGAND CONVERTER Up to 1 mile range www.max.us.com direct line of site SLAVE Wireless Max Wiegand Converter Slide switch to WIRELESS MASTER Wireless Max on Slave Wiegand Converter Card Reader Slide switch...
- Page 7 ENTRY GATE APPLICATION ENTRY GATE APPLICATION Transponder www.max.us.com USING WIRELESS MAX WIEGAND CONVERTER USING WIRELESS MAX WIEGAND CONVERTER Up to 1 mile range www.max.us.com direct line of site SLAVE Wireless Max Wiegand Converter Slide switch to WIRELESS MASTER on Slave...
- Page 8 PROGRAM WIEGAND KEYCODES www.max.us.com WITH RESTRICTIVE TIME ZONES www.max.us.com Press Users icon in the main menu Then Press Add a User in the following menu User Name Enter Name of your visitor Rose Program Wiegand Keycode Facility Wiegand Keycode 12345 Enter Facility and Wiegand Keycode for the transmitter, keyfob or tag...
- Page 9 PROGRAM WIEGAND KEYCODES WITH RESTRICTIVE TIME ZONES www.max.us.com www.max.us.com Assign a timer for wiegand keycode (OPTIONAL) Timer Choose one of six timer schedules If you choose No Timer wiegand Keycode has no time restriction Watch video tutorials from Max Cloud App, just go to the home screen Applying restrictive time period to keycodes improves the security to...
- Page 10 RS485 (-) (+) GND Max Hub can support up to 16 access points using Max Keypads and/or Max Wiegand Converter Units • Wiegand Keycodes with optional time zone restrictions • Keypad Keycodes with optional time zone restrictions • Virtual Transmitters (App Users) with optional time restrictions •...
