User's Manual
PL-10600
Networking Appliance
1U Rack-mount Intel® 915GME/910GMLE Network Appliance
with 8 x GbE, 1 x FE, CF, SATA, LCM
User's Manual
Version 1.0
sales@win-ent.com
+1 (978) 688-2000
WIN Enterprises, Inc.
1
Apr., 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-10600 and is the answer not in the manual?

Questions and answers

Related Manuals for Win PL-10600

Summary of Contents for Win PL-10600

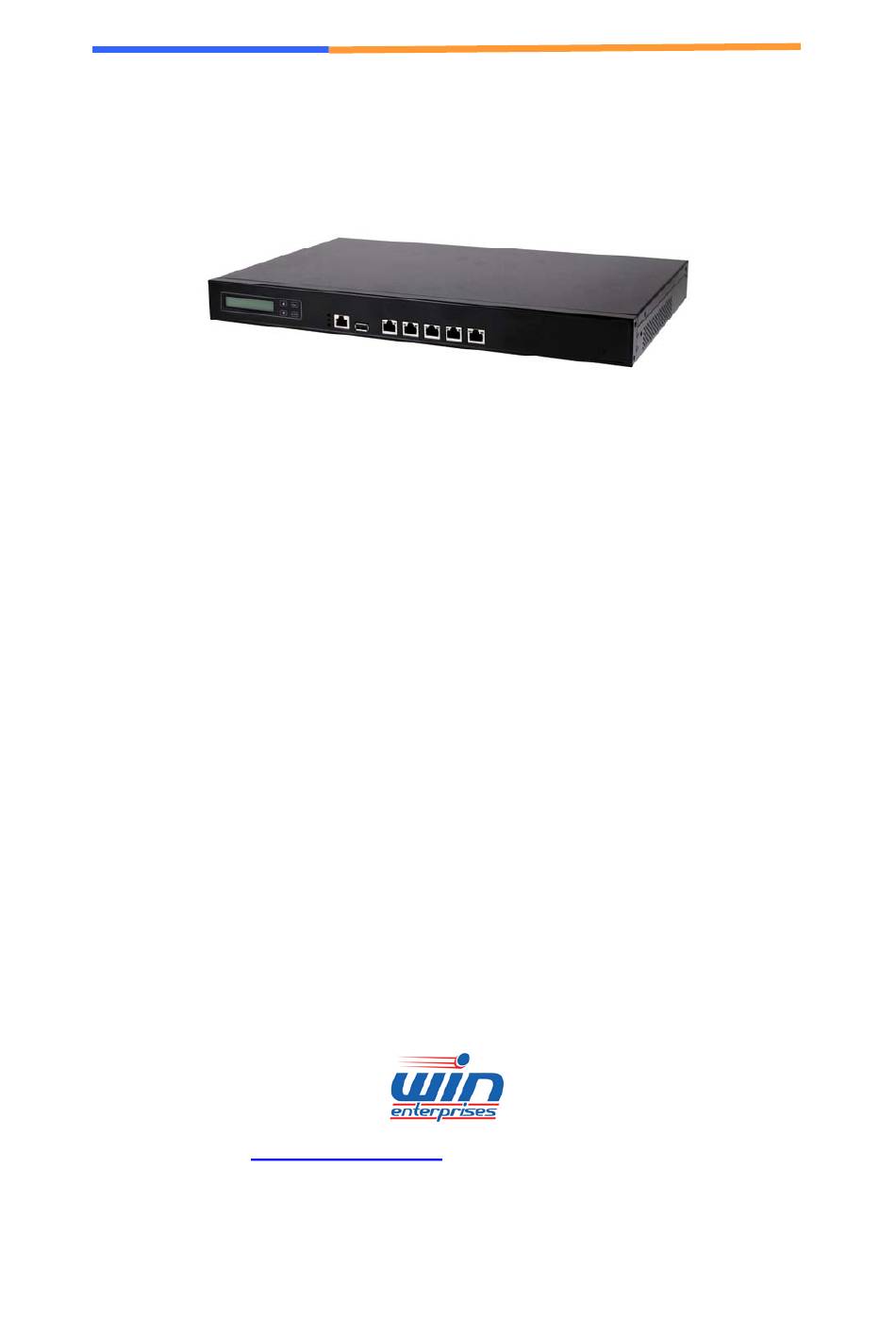

  • Page 1 User’s Manual PL-10600 Networking Appliance 1U Rack-mount Intel® 915GME/910GMLE Network Appliance with 8 x GbE, 1 x FE, CF, SATA, LCM User’s Manual Version 1.0 sales@win-ent.com +1 (978) 688-2000 WIN Enterprises, Inc. Apr., 2009...
  • Page 2 For more information on PL-10600 or other WIN products, please visit our website http://www.win-ent.com For technical supports or free catalog, please send your inquiry to consultants@win-ent.com...

  • Page 3: Table Of Contents

    Chapter 5. Utility & Driver Installation ...............48 5.1 Operating System Support ................48 5.2 System Driver Installation ................48 5.3 LAN Driver Installation...................49 Appendix A: Programming the Watchdog Timer ..........50 Appendix B: System Resources................53 Appendix C: Cable Development Kit..............57 WIN Enterprises, Inc. Apr., 2009...

  • Page 4: Chapter 1. General Information

    User’s Manual Chapter 1. General Information 1.1 Introduction The PL-10600 is a 1U rack-mounted hardware platform designed for network service applications. Built with Intel Embedded IA components warranteed for longevity, the PL-10600 supports Intel® Celeron M processor with the Intel 915GME/910GMLE chipset and ICH6-M I/O controller.

  • Page 5: Ordering Information

    55cm(W) x 40cm(D) x 20cm(H) Certification CE/FCC 1.3 Ordering Information We offer some accessories for PL-10600 appliance for customer need. PL-10600A-A 1U Rackmount Intel® 915GME Network System, support Socket 479 CPU, 8x GbE, 1x FE, CF, SATA, PCI-E x8, LCM PL-10600B-060-A 1U Rackmount Intel®...

  • Page 6: Packaging

    PL-10600. Keep the box and carton when you probably ship or store PL-10600 in near future. After you unpack the goods, inspect and make sure the packaging is intact. Do not plug the power adapter to the appliance of PL-10600 if it appears damaged.

  • Page 7: System Layout

    User’s Manual 1.6 System Layout PL-10600 Front Side USB 2.0 16x2 LCM & 4 RJ45 10/100 4 GbE 4 GbE Copper buttons keypad Console port Copper (optional module) Power supply CF socket DDR2 SO-DIMM PCI-E slot & Expansion Module (optional) WIN Enterprises, Inc.

  • Page 8: Board Dimensions

    User’s Manual 1.7 Board Dimensions WIN Enterprises, Inc. Apr., 2009...

  • Page 9: Chapter 2. Connector/Jumper Configuration

    User’s Manual Chapter 2. Connector/Jumper Configuration 2.1 Connector/Jumper Location and Definition WIN Enterprises, Inc. Apr., 2009...
  • Page 10 CN26 PCI-Ex8 Connector (2P or 4P) (CB-7968A Only) SATA HDD Power CF Socket Connector Connectors Location: Jumper Description Jumper Description Default (1-2) FSB 400 MHz (OPEN) Clear CMOS (2-3) FSB 533 MHz (CLOSE) (CB-7968A Only) WIN Enterprises, Inc. Apr., 2009...

  • Page 11: Connector And Jumper Setting

    CN2/3/4/5/6: LAN RJ-45 Connector Define Chassis Ground Chassis Ground Chassis Ground Chassis Ground D2: Speed indicated LED 1 Gbps GREEN 100 Mbps YELLOW D1 :Link/Activity LED Link GREEN Activity BLINKING CN7: Reset Pin Header Define Reset # WIN Enterprises, Inc. Apr., 2009...
  • Page 12 CN8: SATA Connector Signal Ground Ground Ground CN10: LPC Connector Define Define +3.3V AD 0 AD 1 AD 2 AD 3 Frame# PCIRST# CLOCK Ground Ground CN12: LCM Control Pin Header Define ACK# BUSY SLCT Ground WIN Enterprises, Inc. Apr., 2009...
  • Page 13 NONE INIT# SLIN# BLN & BLP: Backlight control via GPIO24 CN14: COM1 Connector (RJ45) Define CTS# DTR# TXD# GPIO Ground RXD# DSR# RTS# CN15: COM2 pin header Define Define DCD# DSR# RXD# RTS# TXD# CTS# WIN Enterprises, Inc. Apr., 2009...
  • Page 14 User’s Manual DTR# RI#2 Ground CN16/17/18: FAN Connector Define Ground +12V Speed Detect CN19: PS/2 KB/MS Connector Define Define KCLK MCLK KDAT MDAT Reserved Not used CN20: USB Connector (Port 0) Define USBVCC USBN0 USBP0 WIN Enterprises, Inc. Apr., 2009...
  • Page 15 Ground Ground Ground HSYNC VSYNC CN25: Power Connector (2P or 4P) 4P connector 2P connector Signal Ground Ground +12V +12V CN26: PCI-E x8 Connector (WIN proprietary connector) Define Define +12V +12V +12V +12V +12V SMCLK +3.3V SMDAT +3.3V WIN Enterprises, Inc.
  • Page 16 PE_RESET# Power good TXP0 CLK# TXN0 RXP0 RXN0 TXP1 TXN1 RXP1 RXN1 TXP2 TXN2 RXP2 RXN2 TXP3 TXN3 RXP3 BY PASS RXN3 GPIO33 GPIO34 TXP4 None TXN4 RXP4 RXN4 TXP5 TXN5 RXP5 RXN5 TXP6 TXN6 WIN Enterprises, Inc. Apr., 2009...
  • Page 17 TXP7 TXN7 RXP7 GPI13 RXN7 PW1: SATA HDD Power Connector Signal +12V Jumper Setting JP1: Clear CMOS Setting Normal (Default) Clear CMOS JP2: FSB CLOCK Select (for CB-7968A only) Setting 400MHz OPEN (Default) CLOSE 533MHz WIN Enterprises, Inc. Apr., 2009...

  • Page 18: Compactflash Tm Card Socket Pin Define

    33 NC DREG 14 Ground 34 IOR DACK 15 Ground 35 IOW 16 Ground 36 WE 17 Ground 37 RDY/BSY Ground 18 A02 38 VCC Ground 19 A01 39 SCSE Ground 20 A00 40 NC Ground WIN Enterprises, Inc. Apr., 2009...

  • Page 19: Chapter 3. Optional Gbe Module & Riser Card Setting

    User’s Manual Chapter 3. Optional GbE Module & Riser Card Setting The PL-10600 can offer various GbE module combinations to match various applications and market demand. 3.1 R-137: Ethernet module with four GbE Copper R-137A is a four GbE Copper module and designed reserved one pair bypass function for Option.

  • Page 20: Chapter 4. Bios Setup

    User’s Manual Chapter 4. BIOS Setup The ROM chip of your PL-10600 board is configured with a customized Basic Input/Output System (BIOS) from AMI BIOS. The BIOS is a set of permanently recorded program routines that give the system its fundamental operational characteristics.

  • Page 21: Entering The Cmos Setup Program

    1. Turn on or reboot the system. After the BIOS performs a series of diagnostic checks, the following message appears: “Press DEL to enter SETUP” 2. Press the <DEL> key to enter CMOS Setup program. The main menu appears: WIN Enterprises, Inc. Apr., 2009...

  • Page 22: Menu Options

    Boot: For changing the system boot configurations. Security: Use this menu to set User and Supervisor Passwords. Chipset: For changing the chipset settings. Power: For changing the power management settings. Exit: For selecting the exit options and loading default settings. WIN Enterprises, Inc. Apr., 2009...

  • Page 23: Advanced Menu

    2. Use the arrow keys to move between fields. Modify the selected field using the PgUP/PgDN/+/- keys. Some fields let you enter numeric values directly. 3. After you have finished with the Advanced setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. Apr., 2009...
  • Page 24 This sub menu shows the CPU-related information which is automatically detected by BIOS. 4.4.2 IDE Configuration This sub menu allow you to set or change the configurations for the IDE devices installed in the system. WIN Enterprises, Inc. Apr., 2009...
  • Page 25 This information is auto-detected by BIOS and is not user-configurable. It will show "Not Detected” if no IDE device is installed in the system. * IDE Master Type: [Auto] Selects the type of IDE device. Setting to Auto allows automatic selection of the appropriate IDE device type. WIN Enterprises, Inc. Apr., 2009...
  • Page 26 SMART protocol to monitor your hard disk status. 32Bit Data Transfer: [Enabled] Enables or disables 32-bit data transfer. If the host controller does not support 32-bit data transfer, this menu must be set to [Disabled]. WIN Enterprises, Inc. Apr., 2009...
  • Page 27 Selects the Parallel Port base addresses. Parallel Port Mode: [Normal] Selects the Parallel Port mode. Parallel Port IRQ: [IRQ7] Selects the Parallel Port IRQ. Watch Dog Timer Select: [Disabled] Enables or disables the WatchDog Time-out. WIN Enterprises, Inc. Apr., 2009...
  • Page 28 User’s Manual 4.4.4 Hardware Health Configuration This screen shows you the CPU core voltage, System voltage, System temperature and CPU temperature. 4.4.5 ACPI Configuration This sub menu is used to change the settings for the ACPI. WIN Enterprises, Inc. Apr., 2009...
  • Page 29 This sub menu configures additional ACPI options. It contains below sub-menus: ACPI 2.0 Features: [No] This item allows you to enable or disable RSPD pointers to 64-bit Fixed System Description Tables. ACPI APIC support: [Enabled] This item allows you to enable or disable APIC features. WIN Enterprises, Inc. Apr., 2009...
  • Page 30 User’s Manual Chipset ACPI Configuration: This sub menu configures the south bridge ACPI configuration. It contains below sub-menus: 4.4.6 Event Log Configuration This sub menu allows you to view the event logging details. WIN Enterprises, Inc. Apr., 2009...
  • Page 31 User’s Manual 4.4.7 MPS Configuration This sub menu allows you to select MPS Revision. 4.4.8 PCI Express Configuration This sub menu allows you to enable or disable the PCI Express link power state. WIN Enterprises, Inc. Apr., 2009...
  • Page 32 [Always]: The console redirection is always active. [Boot Loader]: The console redirection is active during POST and Boot Loader. [Disabled]: Turns off the console redirection after POST. Terminal Type: [ANSI] This item allows you to select the target terminal type. WIN Enterprises, Inc. Apr., 2009...
  • Page 33 Enables support for legacy USB. AUTO option disables legacy support if no USB devices are connected. USB 2.0 Controller Mode: [HiSpeed] This item allows you to configure the USB 2.0 controller in HiSpeed(480Mbps) or FullSpeed(12Mbps). WIN Enterprises, Inc. Apr., 2009...

  • Page 34: Pcipnp Menu

    This item allows you to select the value in units of PCI clocks for the PCI device latency timer register. This setting controls how many PCI clocks each PCI device can hold the bus before another PCI device takes over. WIN Enterprises, Inc. Apr., 2009...
  • Page 35 Reserved Memory Size: [32K] This is to set the size of memory block to be reserved for legacy USB devices. Reserved Memory Address: [C0000] This item allows you to select the reserved memory address for legacy ISA devices. WIN Enterprises, Inc. Apr., 2009...

  • Page 36: Boot Menu

    PnUP/PgDN Keys. For information on the various options, press <F1> key . 3. After you have finished with the Boot setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. Apr., 2009...
  • Page 37 Allows you to select the Power-on state for the Num-Lock. Wait For ‘F1’ If Error: [Enabled] Waits for F1 key to be pressed if error occurs. Hit ‘DEL’ Message Display: [Enabled] Displays “Press DEL to run Setup” in POST. WIN Enterprises, Inc. Apr., 2009...
  • Page 38 1st Boot Device: [HDD: SM-TRANSCEND] This item allows you to set the boot priority. Specifies the boot sequence from the available devices. A device enclosed in parenthesis has been disabled in the corresponding type menu. WIN Enterprises, Inc. Apr., 2009...
  • Page 39 User’s Manual 4.6.3 Hard Disk Drives 1st Drive: [HDD: SM-TRANSCEND] This item is used to specify the boot sequence from available devices. WIN Enterprises, Inc. Apr., 2009...

  • Page 40: Security Menu

    This item allows you to set or change the user password. The User Password item on top of the screen shows the default Not Installed. After you have set a password, this item shows Installed. WIN Enterprises, Inc. Apr., 2009...

  • Page 41: Chipset Menu

    2. Move between items and select values by using the arrow keys. Modify the selected field the PgUP/PgDN keys. For information on the various options, press <F1> key. After you have finished with the Chipset Setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. Apr., 2009...
  • Page 42 Boots Graphic Adapter Priority: [PEG/PCI] This item shows the primary graphic adapter. Internal Graphics Mode Select : [Enabled, 8MB] Select the amount of system memory used by the internal graphics device. Aperture Size Select: [256MB] WIN Enterprises, Inc. Apr., 2009...
  • Page 43 PCI Express Port 1: [Enable] PCI Express Port 2: [Enable] PCI Express Port 3: [Enable] PCI Express Port 4: [Enable] BIOS Flash Protect: [Enabled] This item allows you to enable or disable the write BIOS protect. WIN Enterprises, Inc. Apr., 2009...

  • Page 44: Power Menu

    Management) feature. Power Savings Under AC: [Disabled] This item allows you to enable or disable the Power Savings Under AC. Power Savings Level: [Disabled] This item allows you to enable or disable the Power Savings Level. WIN Enterprises, Inc. Apr., 2009...
  • Page 45 When setting to [Enabled], this setting allows your system to be awakened from the power saving modes through any event on PCI PME. RI Resume: [Disabled] Allows you to enable or disable the RI (Ring Indicator) Resume.. WIN Enterprises, Inc. Apr., 2009...

  • Page 46: Exit Menu

    Save changes of values to CMOS and exit the CMOS setup program. F10 key can be used for this operation. Discard Changes and Exit: Discard all CMOS changes and exit the CMOS setup program. ESC key can be used for this operation. WIN Enterprises, Inc. Apr., 2009...
  • Page 47 Load Failsafe Defaults: This item allows you to load failsafe defaults for each of the parameters on the Setup menus, which will provide the most stable performance settings. F8 key can be used for this operation. WIN Enterprises, Inc. Apr., 2009...

  • Page 48: Chapter 5. Utility & Driver Installation

    OS version. Version DOS 6.22 Windows® Windows® XP Professional SP2/SP3 Linux® Kernel 2.6.21.1.3794. Fedora Core 7 5.2 System Driver Installation PL-10600 offers the system driver in the setup CD. Please install the driver following the procedures. WIN Enterprises, Inc. Apr., 2009...

  • Page 49: Lan Driver Installation

    User’s Manual 5.3 LAN Driver Installation PL-10600 offers the LAN driver in the setup CD. Please click the Autorun file and install the driver following the procedures. 1. Insert the setup CD of PL-10600 into your CD-ROM drive. 2. Choose the Drivers file to click the Autorun icon.

  • Page 50: Appendix A: Programming The Watchdog Timer

    User’s Manual Appendix A: Programming the Watchdog Timer The PL-10600 provides a watchdog timer that resets the CPU or enable LAN by-pass mode. This function ensures greater system reliability in industrial stand-alone and unmanned environments. In order to enable the watchdog timer, you have to output the value of the watchdog timer interval to the controller.
  • Page 51 MOV DX,2EH ;Set timer interval value to xx seconds O 2E F6 MOV AL,F6H O 2F XX OUT DX,AL O 2E AA MOV DX,2FH MOV AL,XXH ; Timer interval *** see note *** OUT DX,AL MOV DX,2EH MOV AL,AAH OUT DX,AL WIN Enterprises, Inc. Apr., 2009...
  • Page 52 2. Run Program 2 (load the timer interval of 1EH, 30 seconds) 3. Run your Application Program #1 (Be sure your Application Program will finish within 30 seconds) 4. Run Program 3 (Load the timer interval of 00H, and disable the watchdog timer function) WIN Enterprises, Inc. Apr., 2009...

  • Page 53: Appendix B: System Resources

    Appendix B: System Resources Interrupt Controller The PL-10600 is a fully PC compatible appliance. If you would like to use extra add-on cards, please make sure that the IRQs do not conflict. Any remaining IRQs then may be assigned to this PCI Bus. You are able to use Microsoft’s Diagnostic (MDS.EXE) utility included in Windows directory to...
  • Page 54 User’s Manual Memory Map The following table indicates memory of PL-10600. The address ranges specify the runtime code length. Memory below 1MB (1MB ~ 640KB) Address Range Type Owner A0000 ~ AFFFF VGA Adapter B0000 ~ BFFFF VGA Adapter C0000 ~ C79FF...
  • Page 55 FDD Controller 3F8 ~ 3FF COM1 480 ~ 48F MB Resource 4D0 ~ 4D1 MB Resource CF8 ~ CFF MB Resource 4000 ~ 407F MB Resource 4080 ~ 40FF MB Resource 5000 ~ 501F MB Resource WIN Enterprises, Inc. Apr., 2009...
  • Page 56 User’s Manual 6000 ~ 607F MB Resource D000 ~ D00E IDE Controller D400 ~ D41E USB Controller D800 ~ D81E USB Controller DC00~ DCFE Multimedia Audio EC00~ E002 Multimedia Audio E400 ~ E402 Multimedia Audio WIN Enterprises, Inc. Apr., 2009...

  • Page 57: Appendix C: Cable Development Kit

    User’s Manual Appendix C: Cable Development Kit The PL-10600 offers some cables for development use. DK002 Item & Description Part No. Ethernet Cat.5 Cable 2M/ RoHS CB-EC5200-00 Cross Over 2M Color/ RoHS CB-CO5202/4-00 RJ45 to DB9 2M Cable/ RoHS CB -RJDB91-00...
