User's Manual
User's Manual
Version 0.1
Networking Appliance
PL-80350 (Prototype): 1U Rack-Mount Intel® Atom Pineview Network
System, 6 GbE, SATA, CF, mini-PCI, PCI, and bypass
consultants@win-ent.com
+ 1 (978) 688-2000
WIN Enterprises, Inc.
1
JUL., 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-80350 and is the answer not in the manual?

Questions and answers

Related Manuals for Win PL-80350

Summary of Contents for Win PL-80350

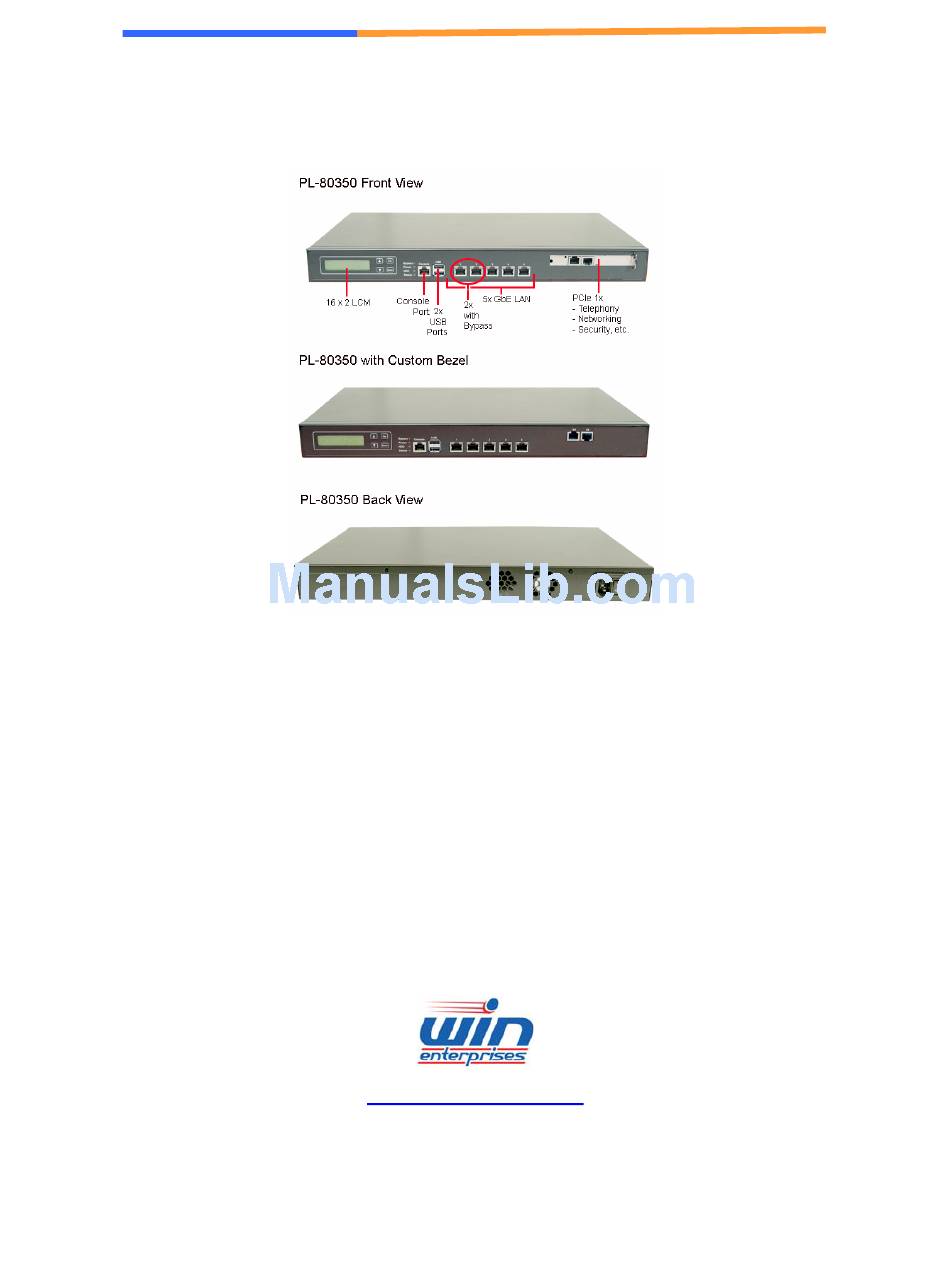

  • Page 1 User’s Manual User’s Manual Version 0.1 Networking Appliance PL-80350 (Prototype): 1U Rack-Mount Intel® Atom Pineview Network System, 6 GbE, SATA, CF, mini-PCI, PCI, and bypass consultants@win-ent.com + 1 (978) 688-2000 WIN Enterprises, Inc. JUL., 2011...
  • Page 2 For more information on PL-80350 or other WIN Enterprises products, please visit our website http://www.win-ent.com For technical supports or free catalog, please send your inquiry to sales@win-ent.com...

  • Page 3: Table Of Contents

    5.2 System Driver Installation ................51 5.3 LAN Driver Installation...................51 Appendix A: Programming the Watchdog Timer ..........52 Appendix B: LAN Bypass Function ..............55 Appendix C: System Resources................56 Appendix D: Cable Development Kit..............60 Appendix E: Prototype PL-80350 Assembly Instructions ........61 WIN Enterprises, Inc. JUL., 2011...

  • Page 4: Chapter 1. General Information

    4GB. In order to provide the best network performance and best utilization, powerful storage interfaces include one 3.5" SATA HDD and CompactFlash™. PL-80350 affords six GbE Copper with bypass function or 5 GbE Copper with bypass function and PCIe x1 expansion to the front bezel. The front panel also has two USB 2.0 ports, one RJ-45 console port and LED indicators that...

  • Page 5: Specifications

    0 ~ 40°C ( 32 ~ 104°F ) Temperature Storage -20 ~ 75°C (-4 ~ 167°F) Temperature Humidity 10 ~ 85% relative humidity, non-operating, non-condensing Weight 1pc/CTN, 4.5kgs, 59cm (W) x 43.2cm (D) x 16cm (H) WIN Enterprises, Inc. JUL., 2011...

  • Page 6: Ordering Information

    PL-80350. Keep the box and carton if you plan to ship or store PL-80350 in near future. After you unpack the goods, inspect and make sure the packaging is intact. Do not plug the power adapter to the appliance of PL-80350 if you find it appears damaged.

  • Page 7: Precautions

    User’s Manual Note: Keep the PL-80350 in the original packaging until you start installation. 1.5 Precautions Please make sure you properly ground yourself before handling the PL-80350 appliance or other system components. Electrostatic discharge can be easily damage the PL-80350 appliance.

  • Page 8: System Layout

    User’s Manual 1.6 System Layout (Internal) WIN Enterprises, Inc. JUL., 2011...

  • Page 9: Board Dimensions

    User’s Manual 1.7 Board Dimensions Pictures Pending WIN Enterprises, Inc. JUL., 2011...

  • Page 10: Chapter 2. Connector/Jumper Configuration

    CN25 COM1 CONNECTOR CN24 LAN CONNECTOR HDD POWER PCIe SLOT RESET/GPI BUTTON CLEAR CMOS SELECT CF SLOT WATCHDOG/BYPASS SELECT RESET/GPI SELECT BYPASS 2.2 Connector and Jumper Settings CN1/CN12: CPU/System FAN Define Ground +12V Speed Detect WIN Enterprises, Inc. JUL., 2011...
  • Page 11 User’s Manual CN3: COM2 pin header Define Define DCD# DSR# RXD# RTS# TXD# CTS# DTR# RI#2 Ground CN4/CN5: SATA Connector Signal Ground Ground Ground CN6: PS/2 KB/MS Pin Header Define Define KCLK MCLK KDAT MDAT WIN Enterprises, Inc. JUL., 2011...
  • Page 12 USB2N- USB1P USB2P Ground Ground Ground CN18/CN20：+12V Power Connector(8Pin) Define Define Ground +12V Ground +12V Ground +12V Ground +12V CN11: VGA pin header Define Define GREEN BLUE Reserved RED RTN GREEN RTN BLUE RTN Reserved WIN Enterprises, Inc. JUL., 2011...
  • Page 13 User’s Manual HSYNC VSYNC Reserved CN14: LCM KEYPAD Pin Header Define ACK# BUSY SLCT Ground CN15: LCM Pin Header Define Define Ground AFD# INIT# SLIN# CN17:POWER pin header Define Define +12V WIN Enterprises, Inc. JUL., 2011...
  • Page 14 Define Chassis Ground Chassis Ground Chassis Ground Chassis Ground D2: Speed indicated LED 1 Gbps GREEN 100 Mbps YELLOW D1 :Link/Activity LED Link GREEN Activity BLINKING CN18: USB Connector Define Define DATA0- DATA0+ DATA1- DATA1+ WIN Enterprises, Inc. JUL., 2011...
  • Page 15 User’s Manual PW1: HDD POWER Define +12V Jumper Settings JP2: Clear CMOS Setting Normal (Default) Clear CMOS JP4: Select Watch Dog/Bypass Setting Watch Dog Bypass JP5: Select Bypass Setting Bypass Enable Bypass Disable WIN Enterprises, Inc. JUL., 2011...

  • Page 16: Compactflash Tm Card Socket Pin Define

    33 NC DREG 14 Ground 34 IOR DACK 15 Ground 35 IOW 16 Ground 36 WE 17 Ground 37 RDY/BSY Ground 18 A02 38 VCC Ground 19 A01 39 SCSE Ground 20 A00 40 NC Ground WIN Enterprises, Inc. JUL., 2011...

  • Page 17: Chapter 4. Bios Setup

    User’s Manual Chapter 3. BIOS Setup The ROM chip of your PL-80350 board is configured with a customized Basic Input/Output System (BIOS) from AMI BIOS. The BIOS is a set of permanently recorded program routines that give the system its fundamental operational characteristics.

  • Page 18: Entering The Cmos Setup Program

    1. Turn on or reboot the system. After the BIOS performs a series of diagnostic checks, the following message appears: “Press DEL to enter SETUP” 2. Press the <DEL> key to enter CMOS Setup program. The main menu appears: WIN Enterprises, Inc. JUL., 2011...
  • Page 19 In the main menu, press F10 (“Save Changes and Exit”) to save your changes and reboot the system. Choosing “Discard Changes and Exit” ignores your changes and exits the program. Pressing <ESC> anywhere in the program returns you to the main menu. WIN Enterprises, Inc. JUL., 2011...

  • Page 20: Menu Options

    The Advanced menu items allow you to change the settings for the CPU and other system devices. Use the Advanced Setup option as follows: 1. Choose “Advanced” from the main menu. The following screen appears: WIN Enterprises, Inc. JUL., 2011...
  • Page 21 2. Use the arrow keys to move between fields. Modify the selected field using the PgUP/PgDN/+/- keys. Some fields let you enter numeric values directly. 3. After you have finished with the Advanced setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. JUL., 2011...
  • Page 22 Intel® SpeedStep® is Intel’s new power saving technology. Processor can switch between multiple frequency and voltage points to enable power savings. Intel® C-STATE tech: [Disabled] This item allows you to enable or disable the Intel® C-STATE tech. WIN Enterprises, Inc. JUL., 2011...
  • Page 23 This information is auto-detected by BIOS and is not user-configurable. It will show "Not Detected” if no IDE device is installed in the system. Hard Disk Write protect: [Disabled] This menu allows you to enable or disable the hard disk write protect. WIN Enterprises, Inc. JUL., 2011...
  • Page 24 Block (Multi-Sector Transfer): [Auto] Enables or disables the Block (Multi-Sectors Transfer). When set to Auto, the data transfer from and to the device occurs multiple sectors at a time if the device supports WIN Enterprises, Inc. JUL., 2011...
  • Page 25 Enables or disables 32-bit data transfer. If the host controller does not support 32-bit data transfer, this menu must be set to [Disabled]. 3.4.3 Super IO Configuration Serial Port1 Address: [3F8/IRQ4] Selects the Serial Port1 base addresses and IRQ. WIN Enterprises, Inc. JUL., 2011...
  • Page 26 WatchDog time mode: [Second] Selects the WatchDog time mode. WatchDog Time-out: [000] Set the time-out value. 3.4.4 Hardware Health Configuration This screen shows you the CPU core voltage, System voltage, System temperature and CPU temperature. WIN Enterprises, Inc. JUL., 2011...
  • Page 27 This sub menu is used to change the settings for the ACPI. ACPI Aware O/S: Enables or disables ACPI support for Operating System. 3.4.6 AHCI Configuration This sub menu is used to change the settings for the AHCI. WIN Enterprises, Inc. JUL., 2011...
  • Page 28 Select the type of device connected to the system. S.M.A.R.T.: [Enabled] This item allows you to enable or disable S.M.A.R.T. S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology). It allows system to use the SMART protocol to monitor your hard disk status. WIN Enterprises, Inc. JUL., 2011...
  • Page 29 User’s Manual 3.4.7 ASF Configuration This sub menu allows you to enable or disable the ASF support. 3.4.8 MPS Configuration This sub menu allows you to select MPS Revision. WIN Enterprises, Inc. JUL., 2011...
  • Page 30 User’s Manual 3.4.9 PCI Express Configuration This sub menu allows you to enable or disable the PCI Express L0s and L1 link power states. WIN Enterprises, Inc. JUL., 2011...
  • Page 31 This item allows you to set Redirection configuration after BIOS POST. [Always]: The console redirection is always active. [Boot Loader]: The console redirection is active during POST and Boot Loader. [Disabled]: Turns off the console redirection after POST. WIN Enterprises, Inc. JUL., 2011...
  • Page 32 This item allows you to enable emulation of I/O ports 64h and 60h so that there is full PS/2 legacy support for USB keyboards and mice. It is also useful in providing USB keyboard and mouse support in Windows NT which does not natively support USB. WIN Enterprises, Inc. JUL., 2011...
  • Page 33 This item allows you to configure the USB 2.0 controller in HiSpeed (480Mbps) or FullSpeed (12Mbps). BIOS EHCI Hand-Off: [Enabled] This is a work around for OS’s without EHCI hand-off support. The EHCI ownership change should claim by EHCI driver. > USB Mass Storage Device Configuration WIN Enterprises, Inc. JUL., 2011...

  • Page 34: Pcipnp Menu

    3.5 PCIPnP Menu The PCIPnP menu items allow you to change the settings for the advanced PCI/PnP. Use the PCIPnP Setup option as follows: 1. Choose “PCIPnP” from the main menu. The following screen appears: WIN Enterprises, Inc. JUL., 2011...
  • Page 35 Some PCI IDE cards may require this to be set to the PCI slot number that is holding the card. IRQ 3/4/5/7/9/10/11/14/15: [Available] Available: the specified IRQ is available for use by PCI/PnP devices. Reserved: the specified IRQ is reserved for use by legacy ISA devices. WIN Enterprises, Inc. JUL., 2011...
  • Page 36 Reserved Memory Size: [Disabled] This item allows you to select the reserved memory for legacy ISA devices. 3. After you have finished with the PCIPnP Setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. JUL., 2011...

  • Page 37: Boot Menu

    2. Move between items and select values by using the arrow keys. Modify the selected fields using the PnUP/PgDN Keys. For information on the various options, press <F1> key. 3. After you have finished with the Boot setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. JUL., 2011...
  • Page 38 Allows you to select the Power-on state for the Num-Lock. PS/2 Mouse Support: [Auto] Allows you to select support for PS/2 mouse. Wait For ‘F1’ If Error: [Enabled] Waits for F1 key to be pressed if error occurs. WIN Enterprises, Inc. JUL., 2011...
  • Page 39 1st Boot Device: [USB: Generic] This item allows you to set the boot priority. Specifies the boot sequence for the available devices. A device enclosed in parenthesis has been disabled in the corresponding type menu. WIN Enterprises, Inc. JUL., 2011...
  • Page 40 User’s Manual 3.6.3 Removable Drives 1st/2nd/3rd/4th Drive: [USB: Generic] This item is used to specify the boot sequence for available devices. WIN Enterprises, Inc. JUL., 2011...

  • Page 41: Security Menu

    This item allows you to set or change the user password. The User Password item on top of the screen shows the default Not Installed. After you have set a password, this item shows Installed. WIN Enterprises, Inc. JUL., 2011...
  • Page 42 This item allows you to enable or disable the boot sector virus protection. If enabled, AMI BIOS will issue a warning when a virus or program attempts to write to the hard disk’s boot sector or attempts to execute disk format command. WIN Enterprises, Inc. JUL., 2011...

  • Page 43: Chipset Menu

    2. Move between items and select values by using the arrow keys. Modify the selected field the PgUP/PgDN keys. For information on the various options, press <F1> key. After you have finished with the Chipset Setup, press the <ESC> key to return to the main menu. WIN Enterprises, Inc. JUL., 2011...
  • Page 44 Initiate Graphic Adapter: [PEG/PCI] This item shows the primary graphic adapter. Internal Graphics Mode Select: [Enabled, 8MB] This item allows you to configure the internal graphics mode and memory size. PEG Port Configuration > Video Function Configuration WIN Enterprises, Inc. JUL., 2011...
  • Page 45 DVMT/FIXED Memory: [256MB] This item allows you to adjust the shared memory size. Boot Display Device: [CRT] This item allows you to configure the Boot Display Device. WIN Enterprises, Inc. JUL., 2011...
  • Page 46 User’s Manual 3.8.2 South Bridge Configuration USB Functions: [4 USB Ports] This item allows you to setup the USB ports. USB 2.0 Controller: [Enabled] This item allows you to enable or disable the USB 2.0 controller. WIN Enterprises, Inc. JUL., 2011...
  • Page 47 This item allows you to enable or disable the LAN bypass function when Power Off. LAN Bypass When Power On: [Disabled] This item allows you to enable or disable the LAN bypass function when Power On. WIN Enterprises, Inc. JUL., 2011...

  • Page 48: Exit Menu

    3. Please press the <ESC> key to return the main menu after finishing with the Exit Options. Save Changes and Exit: Save changes of values to CMOS and exit the CMOS setup program. F10 key can be used for this operation. WIN Enterprises, Inc. JUL., 2011...
  • Page 49 Load Failsafe Defaults: This item allows you to load failsafe defaults for each of the parameters on the Setup menus, which will provide the most stable performance settings. F8 key can be used for this operation. WIN Enterprises, Inc. JUL., 2011...

  • Page 50: Chapter 5. Utility & Driver Installation

    Install the GbE modules properly before installing the OS, driver or other software. 4.1 Operation System Support PL-80350 can support Windows® and Linux® operating systems as follows. Before installation, please check your OS version. If your OS is not in the following list, upgrade your OS version.

  • Page 51: System Driver Installation

    PL-80350 offers the system driver in the setup CD. Install the driver following these procedures. 4.3 LAN Driver Installation PL-80350 offers the LAN driver in the setup CD. Click the Autorun file and install the driver following these procedures. 1. Insert the setup CD of PL-80350 into your CD-ROM drive.

  • Page 52: Appendix A: Programming The Watchdog Timer

    User’s Manual Appendix A: Programming the Watchdog Timer The PL-80350 provides a watchdog timer that resets the CPU or enables LAN bypass mode. This function ensures greater system reliability in industrial stand-alone and unmanned environments. In order to enable the watchdog timer, you have to output the value of the watchdog timer interval to the controller.
  • Page 53 MOV DX,2EH ;Set timer interval value to xx seconds O 2E F6 MOV AL,F6H O 2F XX OUT DX,AL O 2E AA MOV DX,2FH MOV AL,XXH ; Timer interval *** see note *** OUT DX,AL MOV DX,2EH MOV AL,AAH OUT DX,AL WIN Enterprises, Inc. JUL., 2011...
  • Page 54 2. Run Program 2 (load the timer interval of 1EH, 30 seconds) 3. Run your Application Program #1 (Be sure your Application Program will finish within 30 seconds) 4. Run Program 3 (Load the timer interval of 00H and disable the watchdog timer function) WIN Enterprises, Inc. JUL., 2011...

  • Page 55: Appendix B: Lan Bypass Function

    LAN 1 & 2: GPIO20 Normal state: Bypass state: MOV DX, 050CH MOV DX, 050CH IN EAX, DX IN EAX, DX AND EAX, 0FFEFFFFFH AND EAX, 0FFEFFFFFH OUT DX, EAX OR EAX, 00100000H OUT DX, EAX WIN Enterprises, Inc. JUL., 2011...

  • Page 56: Appendix C: System Resources

    Appendix C: System Resources Interrupt Controller: The PL-80350 is a fully PC compatible appliance. If you would like to use extra add-on cards, please make sure that the IRQs do not conflict. Any remaining IRQs then may be assigned to this PCI Bus. You are able to use Microsoft’s Diagnostic (MDS.EXE) utility included in Windows directory to...
  • Page 57 User’s Manual Memory Map: The following table indicates memory of PL-80350. The address ranges specify the runtime code length. Memory below 1MB (1MB ~ 640KB) Address Range Type Owner A0000 ~ AFFFF VGA Adapter B0000 ~ BFFFF VGA Adapter C0000 ~ CD9FF...
  • Page 58 800 ~ 87F Motherboard Resource 8F0 ~ 8FF Motherboard Resource A00 ~ A0F Motherboard Resource CF8 ~ CFF Motherboard Resource 7880 ~ 7886 VGA Adapter 7C00 ~ 7C1E USB Controller 8000 ~ 801E USB Controller WIN Enterprises, Inc. JUL., 2011...
  • Page 59 9000 ~ 9FFF PCI-PCI Bridge A000 ~ AFFF PCI-PCI Bridge B000 ~ BFFF PCI-PCI Bridge C000 ~ CFFF PCI-PCI Bridge D000 ~ DFFF PCI-PCI Bridge E000 ~ EFFF PCI-PCI Bridge FFA0 ~ FFAE IDE Controller WIN Enterprises, Inc. JUL., 2011...

  • Page 60: Appendix D: Cable Development Kit

    User’s Manual Appendix D: Cable Development Kit The PL-80350 offers some cables for development use. DK001 Item & Description Part No. Ethernet Cat.5 Cable 2M/ RoHS CB-EC5200-00 Cross Over 2M Color/ RoHS CB-CO5202/4-00 RJ45 to DB9 2M Cable/ RoHS CB-RJDB91-00...

  • Page 61: Appendix E: Prototype Pl-80350 Assembly Instructions

    User’s Manual Appendix E: Prototype PL-80350 Assembly Instructions Revision 1.0 July 26 2011 Todd Sirois Technical Project Manager WIN Enterprises. WIN Enterprises, Inc. JUL., 2011...
  • Page 62 User’s Manual The enclosed KIT-630-AB is a prototype of what will ultimately be offered as the production model PL-80350. The final product version will be identical to the prototype, but with mechanical improvements made for manufacturing and card installation. What follows are basic instructions on how to carefully install a PCIe card in the prototype.
  • Page 63 3.) Pictured below is the 630-AB with its bezel off and cover open. Yellow call-outs identify the major components: 4.) Install PCIe card as shown. Be sure tab of PCIe Card’s I/O plate sits in the recessed front of the PCIe Riser Card bracket. WIN Enterprises, Inc. JUL., 2011...
  • Page 64 PCIe Card’s I/O bracket through the front of the bezel. In addition, look at the notch cut into the bezel making sure the PCIe riser card fits cleanly through. Secure the card with the supplied silver screw. WIN Enterprises, Inc. JUL., 2011...
  • Page 65 The current assembly is rigid enough for testing with cover on, but the dual-screw method will provided greater stability. 2.) The PCIe Riser Card will fit cleanly under the bezel and removes the need for the cut notch. WIN Enterprises, Inc. JUL., 2011...
  • Page 66 4.) A professional overlay will be made purpose-built for the unit. 5.) The LCD Module and Keypad will remain as options on the production model. These were removed in this prototype. consultants@win-ent.com WIN Enterprises, Inc. JUL., 2011...
