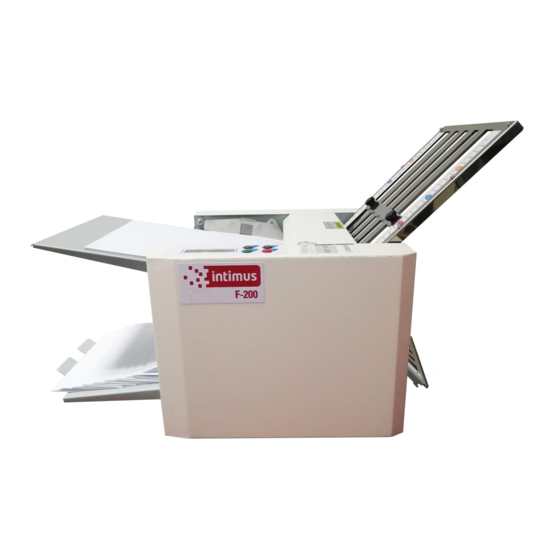

- Page 1 F-200 Folder Operating instructions intimus International GmbH, Bergheimer Straße 6-12, 88677 Markdorf / Germany Tel.: ++49 (0)7544 / 60-0 --- E-mail: sales.de@intimus.com --- www.intimus.com 95515 1 12/18...
-
Page 2: Table Of Contents
Safety precautions Thank you for using intimus folder. Please read these operating instructions before putting the machine into operation and observe the safety precautions. 1. Safety precautions ………………………………………… 2. Installation ………………………………………… 3. Names and Functions ………………………………………… 4. Describing Control Panel ……………………………………... -
Page 3: Safety Precautions
Safety precautions Please read these operating instructions before putting the machine into operation and observe the safety precautions. Children must not operate the machine! Do not reach into the machine! - Page 4 Safety precautions Long hair can become entangled in cutting head! Take care of ties and other loose pieces of clothing! Remove any paper clips!
- Page 5 Safety precautions Components which may endanger the operator are covered! Connect the power cord to a single phase socket 110 V / 10 A. Disconnect from the mains if not usedfor a long period.
-
Page 6: Installation
Installation Attach the second folding plate： Move the lock lever of the second folding plate to the position of "UNLOCK". Insert the folding plate to the machine along the slider. Move the lock lever to the position of "LOCK". Second folding plate Lock lever Slider First folding plate... -
Page 7: Names And Functions
Names and Functions... - Page 8 Names and Functions Name Function First folding plate Guide plate for deciding a paper folding position. First folding is made using this plate. Top cover Prevents the user from touching the moving parts. Control panel Used when operating machine. Error messages are also displayed on the LCD display.
- Page 9 Names and Functions Name Function Power switch Turns on and off the power. Second folding plate Guide plate for deciding a paper folding position. Second folding is made using this plate. This plate is not used when folding paper into two.
-
Page 10: Describing Control Panel
Describing Control Panel Name Function Counter/LCD display Counts up the number of folded paper or displays the status of the machine. Count button Enter the required number. C (clear) button When the machine is stopped with paper on the paper feed table, pressing the button for more than two seconds makes the counted number return to "0."... -
Page 11: Handling Paper
Handling Paper Make sure that the printing ink on the paper has dried completely prior to use. Do not fold curled, creased or folded paper Remove all paper clips. Fan paper well prior to use. -
Page 12: Basic Operation
BASIC OPERATION Standard Paper： There are six types of standard paper sizes; A4, B5, A5, B6, A6, and B7. Paper Size Long×WIde(mm) Paper Size Long×WIde(mm) 297×210 257×182 210×148 182×128 148×105 128× 91 Paper Size Stacking Direction ○ ○ ○ ○ ○ ○ ×... - Page 13 BASIC OPERATION Standard Folding： There are four types of standard folding modes: single fold, double fold, letter fold and accordion fold. Paper is folded as shown below when the paper is placed on the paper feed table with its print side facing upward. Letter Accordion Double...
- Page 14 BASIC OPERATION Insert the power cord in the wall socket and turn on the power. Press “ I ” to turn on the power. Press “O" to turn off the power. Power switch move the side guides to fit the paper width.
- Page 15 BASIC OPERATION Check the finish of test folding. Check for folding misalignment using the second test folded sample. If folding misalignments occur, refer to P19. After completing adjustments, press the C (clear) button for more than two seconds to clear the counter to "0."...
- Page 16 BASIC OPERATION Press the Start button to start folding operations. Press the Stop button to interrupt or stop the operations. Pressing the Start button again will resume operations. When there is no paper on the paper feed table, the machine will stop automatically and the counted number and "NO PAPER"...
-
Page 17: Folding Operation
FOLDING OPERATION First folding plate adjust: Knob nut Move the knob nut of the first folding plates to the mark of a folding pattern you desire. First folding plate Rulers guide line Release/ Locking... - Page 18 FOLDING OPERATION adjust: Second plate Move the knob unt of the second Knob nut folding plates to the mark of a folding pattern you desire. Second folding plate Folding method: Insert from this side. Folding method:Insert from this side.
- Page 19 FOLDING OPERATION Move the stacker rollers to the appropriate position referring to the table of stacker rollers position attached control panel section. Stacker rollers...
-
Page 20: Correcting Folding
CORRECTING FOLDING Paper feeding direction Correcting Folding Misalignment along Vertical Length of Paper： When folded paper is misaligned along the verticallength as shown in the figure, turn the fine adjustment knob to correct the misalignment. Misalignment to be corrected Adjusting Fine Adjustment Knob of the First Folding Plate First folding plate Folding Style Fold Surface A... - Page 21 CORRECTING FOLDING First folding plate Folding Style Fold Surface A Adjustment Fine adjustment knob When A is longer Inward moving When A is shorter Outward moving Double fold When A is longer Inward moving When A is shorter Outward moving Letter fold When A is longer Inward moving...
- Page 22 CORRECTING FOLDING Adjusting Fine Adjustment Knob of the Second Folding Plate Second folding plate Folding Style Fold Surface B Adjustment Fine adjustment knob Single fold The second folding plate is not used in single folding. When B is longer Inward moving When B is shorter Outward moving Double fold...
- Page 23 CORRECTING FOLDING Second folding plate Folding Style Fold Surface B Adjustment Fine adjustment knob When B is longer Outward moving Accordion When B is shorter Inward moving fold...
- Page 24 CORRECTING FOLDING Paper feeding direction Correcting Folding Misalignment along Sides of Paper： When folded paper is misaligned along the sides of paper as shown in the figure, turn the slant correction knob to correct the misalignment.
- Page 25 Troubleshooting Correcting Deformed Folding Check the following when deformed folding occurs： 1. Fan the paper well before stacking. 2. Check if the folding plates have been installed properly. 3. Spray a commercially-available air duster on the rubber roll because the static electricity l d i d f Removing Jammed Paper When paper jam has occurred, "PAPER ERR"...
-
Page 26: Troubleshooting
Troubleshooting A．When Paper Has Jammed Near the Paper Feed Ring Pull the jammed paper towards you. PULL B．When Paper Has Slipped at the Paper Feed Section If mis-feed frequently occurs using thick paper, set the paper feed pressure adjustment knob to “Thick paper.”... - Page 27 Troubleshooting C．When Paper Has Coiled Around the Rubber Roll Turn off the machine before following the procedures below! Open the top cover. Pull the coiled paper towards you to remove it. If you cannot remove the paper easily, turn the roll backward with both hands and PULL pull the paper.
- Page 28 Troubleshooting E．When Paper Has Jammed at the Second Folding Plate Turn off the machine before following the procedures below! 1. Remove the Second folding plate from the machine. 2. Open the top cover. 3. Pull the jammed paper towards you. 4.
- Page 29 Troubleshooting Error Messages Message Cause Solution When the power is turned Stack paper on the paper on, there is no paper on the feed table. NO PAPER paper feed table. After paper is fed and Stack paper on the paper NO PAPER/**** folded, there is no paper left feed table.
- Page 30 Troubleshooting When trouble has occurred, find the symptom from the table below and solve the trouble according to the solution. If you cannot solve the trouble, contact your dealer. Symptom Cause Solution The power cord is not inserted to Insert the power cord to the wall the wall socket.
- Page 31 Troubleshooting Symptom Cause Solution The paper is not paper folding plate Install the paper folding plate folded notinstalled properly. properly. proper folding position. Static electricity has occurred in Spray a commercially-available the paper. air duster on the rubber roll because the static electricity paper feed pressure...
- Page 32 Troubleshooting Symptom Cause Solution The paper feed pressure Set the paper feed pressure adjustment knob is set to “Thin adjustment knob to “Thick paper.” paper.” Static electricity has occurred in Clean it with alcohol. the paper. The sheets of paper are sticking Fan the paper well.
- Page 33 Troubleshooting Symptom Cause Solution Adjust the position of the The stacker rollers position is not stacker rollers. correct. Paper jams The paper is curled. Straighten the paper curl. frequently. Static electricity has occurred in Spray a commercially-available the paper. air duster on the rubber roll because the static electricity Paper slips in the After a paper type was changed,...
- Page 34 Troubleshooting Symptom Cause Solution Paper jam at the paper outside Use paper that meets rubber roll when specifications. specifications. thick paper Widen the space using the cross folded thick The space inside the internal paper folded knob unt of the second paper conveyance passage is folding plate.
-
Page 35: Maintenance And Cleaning
Maintenance and cleaning The adherence of paper dust and printing ink on the rubber rolls and paper feed rings may cause problems such as paper feed errors and folding misalignment. Adherence of paper dust near sensors will also cause misdetection. Clean the machine once a week. We recommend that you use a commercially-available air duster for office equipment to clean sensors. - Page 36 Maintenance and cleaning While rotating the rubber roll, clean off the dirt with a cloth Rubber roll moistened with alcohol. Clean the ejection gate sensor. Ejection gate sensor...
- Page 37 Maintenance and cleaning The folding roller and the separator Paper feed ring are wearing parts and must be exchanged when they are worn. Paper separator...
-
Page 38: Specification
Specification Model SF-12M Type desktop Paper size that can be folded 50~220 W）×80~297 L） Rough paper, fine quality paper, recycled Paper quality paper Paper thickness 35gsm~120gsm Procesing speed 120 /min（A4） Folding mode Loading capacity of paper feed table 300 sheets （64gsm） Paper feed Feed roller automatic paper separation method... - Page 39 Specification Manual setting 5 steps Stacker roller no paper, mis-feed, paper jam, motor Detection function overload Power supply AC110V 130V 60Hz ～ Power Consumption 0.4W Dimensions In use 670(W1)×360(D)×425(H1) In storage 330(W2)×360(D)×280(H2) Weight 17.5Kg...
-
Page 40: Environmental
Environmental Power request ● Please install the machine where power cord can reach Power should be around 220V,50Hz ● ● Power cord,Plug or Outlet should be 10A available. ● When in working, make sure total Power Consumption is within the capacity ●... - Page 41 Max package Level ● Avoid Chemicals ● Avoid Salt ● Avoid Water intimus International GmbH Bergheimer Straße 6 - 12 88677 Markdorf / Germany Tel.: ++49 (0)7544 / 60-0 Fax.: ++49 (0)7544 / 60-248 E-mail: sales.de@intimus.com www.intimus.com 95515 1 12/18...
