Operation & Maintenance
Manual
ATTENTION
Unsafe use of this machine may cause serious injury
or death. Operators and maintenance personnel
must read this manual before operating or
maintaining this machine.
This manual should be kept inside the cab for
reference and periodically reviewed by all personnel
who will come into contact with the machine.

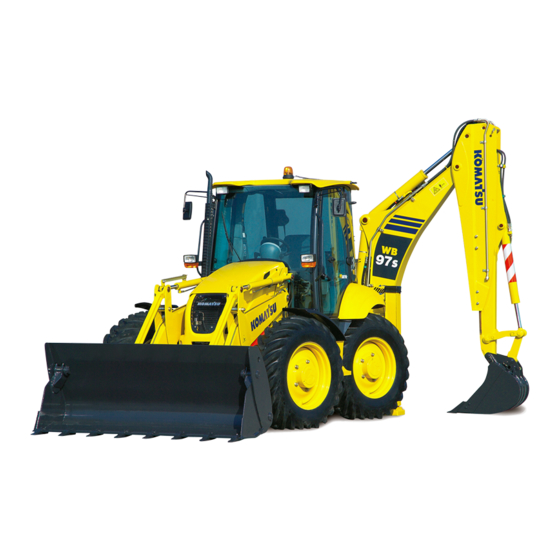

WB97S
BACKHOE-LOADER
SERIAL NUMBER
WB97S-5 F50003
https://tractormanualz.com
WEAM007600
-5
and up

Advertisement

Table of Contents
loading

Related Manuals for Komatsu Utility WB97S-5

Summary of Contents for Komatsu Utility WB97S-5

  • Page 1 Operation & Maintenance WEAM007600 Manual WB97S BACKHOE-LOADER SERIAL NUMBER WB97S-5 F50003 and up ATTENTION Unsafe use of this machine may cause serious injury or death. Operators and maintenance personnel must read this manual before operating or maintaining this machine. This manual should be kept inside the cab for reference and periodically reviewed by all personnel who will come into contact with the machine.
  • Page 2 https://tractormanualz.com...

  • Page 3: Foreword 1.1 Foreword

    Komatsu Dealers have gathered a considerable amount of experience over years of work in close contact with the users. If more information is needed, do not hesitate to contact your Komatsu Dealer: he always knows how to get the best performance from the machine, he can recommend the equipment that is most suitable for specific needs and can provide the technical assistance necessary for any change that may be required to conform the machine to the safety standards and traffic rules.

  • Page 4: Information On Safety

    This word is used to indicate a useful piece of information. Komatsu cannot reasonably predict every circumstance that might involve a potential hazard during the operation or maintenance of the machine; for this reason, the safety messages included in this manual and applied onto the machine may not include all possible safety precautions.
  • Page 5 WARNING It is strictly forbidden to modify the setting of the hydraulic system safety valves; Komatsu cannot be held liable for any personal injury, or damage to property or the machine, if this has been tampered with by modifying the standard setting of the hydraulic system.

  • Page 6: Introduction

    INTRODUCTION 1.3 INTRODUCTION 1.3.1 INTENDED USES The Komatsu BACKHOE LOADERS described in this manual have been designed and constructed to be used mainly with the following functions: LOADER EXCAVATOR Through the installation of optional equipment, the machine can also be used for the following applications:...

  • Page 7: Main Characteristics

    INTRODUCTION 1.3.3 MAIN CHARACTERISTICS Simple and easy operation. Servo-assisted steering with priority hydraulic system. Three steering modes selected by means of microswitches in pairs. - Two-wheel steering (2WS) - Four-wheel steering (4WS ROUND) - Four-wheel steering (4WS CRAB) Gearshift with electronic gear selection through solenoid-operated actuators and hydraulic converter; reverse gear and speed change with controls on a single lever.

  • Page 8: Product Identification

    PRODUCT IDENTIFICATION 1.4 PRODUCT IDENTIFICATION The Komatsu backhoe loader and its main components are identified by serial numbers stamped on the identification plates. The serial number and the identification numbers of the components are the only numbers that must be indicated to the Dealer when requiring assistance and ordering spare parts.

  • Page 9: Machine Identification Plate And Product Identification Number (Pin)

    WEIGHT REAR AXLE FROM Product Identification Number - Massa rimorchiabile: non atto MATRICOLA SERIAL NUMBER ANNO POTENZA MOTORE MANUFACTURED BY KOMATSU UTILITY EUROPE S.p.A. 36025 NOVENTA VIC. (VI) -ITALY 37A-98-11840 RKA16060 TYPE HOMOLOGATION NUMBER FROM TOTAL MASS WEIGHT WEIGHT FRONT AXLE...

  • Page 10: Engine Serial Number And Exhaust Gas Emission Plate

    PRODUCT IDENTIFICATION 1.4.4 ENGINE SERIAL NUMBER AND EXHAUST GAS EMISSION PLATE The identification plate (1) is fixed above the engine head and indicates the engine model, total displacement and serial number. The identification plate (2) is fixed to the left side of the engine block, bears the Manufacturer’s mark and contains the following data: 1 - Engine type...

  • Page 11: Rear Axle Serial Number

    PRODUCT IDENTIFICATION 1.4.6 REAR AXLE SERIAL NUMBER The serial number is stamped on the plate positioned on the left side of the axle body. RKAB5990 1.4.7 TRANSMISSION SERIAL NUMBER The transmission serial number is stamped on the plate postioned on the right side of the transmission case. RKAB2750 1.4.8 CAB SERIAL NUMBER The cab serial number is stamped on the plate postioned on the...

  • Page 12: Serial Numbers And Dealer's Address

    PRODUCT IDENTIFICATION 1.4.9 SERIAL NUMBERS AND DEALER’S ADDRESS Machine no. Mod. Product identification number (PIN) Engine no. Front axle no. Rear axle no. Transmission no. Cab no. Dealer: Address: Tel. Contact person: NOTES: https://tractormanualz.com...

  • Page 13: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS FOREWORD FOREWORD............................INFORMATION ON SAFETY ........................ INTRODUCTION ........................... 1.3.1 INTENDED USES ........................1.3.2 IMPROPER OR UNAUTHORIZED USE .................. 1.3.3 MAIN CHARACTERISTICS...................... 1.3.4 RUNNING-IN ..........................PRODUCT IDENTIFICATION ....................... 1.4.1 MACHINE IDENTIFICATION NUMBER (PIN) ................. 1.4.2 MACHINE IDENTIFICATION PLATE AND PRODUCT IDENTIFICATION NUMBER (PIN) (alternatively for some markets) ....................
  • Page 14 TABLE OF CONTENTS PRECAUTIONS TO BE TAKEN DURING WORK ................2.4.1 WHEN STARTING THE ENGINE..................... 2.4.2 RULES FOR TRAVELLING ON ROADS.................. 2.4.3 HAND SIGNALS ........................2.4.4 CHECKS FOR TRAVELLING IN REVERSE ................2.4.5 MOVING THE MACHINE ......................2.4.6 WORKING ON SLOPES ......................2.4.7 PREVENTING ELECTROCUTION ..................
  • Page 15 TABLE OF CONTENTS DESCRIPTION AND USE OF THE MACHINE SAFETY LOCKS ........................... 3.1.1 FRONT LOADER LOCKS ......................3.1.2 BACKHOE LOCKS........................GENERAL VIEWS..........................3.2.1 FRONT GENERAL VIEW ......................3.2.2 BACKHOE GENERAL VIEW....................3.2.3 CAB INSIDE GENERAL VIEW....................INSTRUMENTS AND CONTROLS ....................... 3.3.1 FRONT INSTRUMENTS ......................
  • Page 16 TABLE OF CONTENTS STOPPING THE ENGINE ........................TRANSPORTING THE MACHINE ON OTHER VEHICLES ..............3.9.1 LOADING AND UNLOADING THE MACHINE................. 3.9.2 TRANSPORT..........................3.10 PRECAUTIONS TO BE TAKEN IN THE COLD SEASON ..............3.10.1 FUEL AND LUBRICANTS ......................3.10.2 COOLANT ..........................3.10.3 BATTERY ..........................
  • Page 17 TABLE OF CONTENTS FUEL, COOLANT AND LUBRICANTS....................4.3.1 LUBRICATION WITH GREASE ....................4.3.2 HOMOLOGATED SYNTHETIC BIODEGRADABLE LUBRICANTS “HEES” ......DRIVING TORQUES ..........................4.4.1 STANDARD DRIVING TORQUES FOR SCREWS AND NUTS ..........4.4.2 SPECIFIC DRIVING TORQUES FOR SCREWS AND NUTS ..........4.4.3 STANDARD DRIVING TORQUES FOR HOSES WITH ORFS..........
  • Page 18 TABLE OF CONTENTS 4.8.6 MAINTENANCE EVERY 50 HOURS OF OPERATION ............4.8.6.a CHECKING THE HYDRAULIC OIL LEVEL ............4.8.6.b CHECKING THE FLUID LEVEL IN THE RADIATOR ..........4.8.6.c CHECKING THE BRAKING SYSTEM OIL LEVEL ..........4.8.6.d LUBRICATING THE PROPELLER SHAFTS ............4.8.6.e LUBRICATING THE FRONT AXLE JOINTS AND CENTRAL COUPLING AND THE REAR AXLE JOINTS ................
  • Page 19 TABLE OF CONTENTS TECHNICAL SPECIFICATIONS TECHNICAL DATA ..........................5.1.1 STANDARD OVERALL DIMENSIONS ..................5.1.1.1 OVERALL DIMENSIONS WITH STANDARD ARM ..........5.1.1.2 OVERALL DIMENSIONS WITH TELESCOPIC ARM ..........5.1.2 TECHNICAL CHARACTERISTICS ..................5.1.3 LIFTING CAPACITIES ......................5.1.3.1 SYMBOL TABLE ..................... 5.1.3.2 LIFTING CAPACITIES (STANDARD ARM) ............
  • Page 20 TABLE OF CONTENTS APPLICATION OF THE OFFSET DEVICE ................... 6.7.1 DESCRIPTION AND CONTROL ....................6.7.2 MAINTENANCE........................CONFIGURATION FOR THE USE OF OPTIONAL EQUIPMENT WITH UNIDIRECTIONAL OIL FLOW265 6.8.1 DESCRIPTION AND CONTROL ....................6.8.2 INSTALLING AND CONNECTING THE EQUIPMENT ............6.8.3 MAINTENANCE........................

  • Page 21: Safety And Accident Prevention

    SAFETY AND ACCIDENT PREVENTION https://tractormanualz.com...

  • Page 22: Safety, Noise And Vibration Plates

    Do not use fuel, petrol or solvents. If the plates are damaged, ask for new ones to Komatsu or to your Komatsu Dealer. In case of replacement of a component provided with a safety plate, make sure that this plate is applied also on the new piece.
  • Page 23 SAFETY, NOISE AND VIBRATION PLATES RKA16730 42N-93-11320 42N-93-11310 RKAB4740 https://tractormanualz.com...

  • Page 24: Pictograms And Relevant Meanings

    SAFETY, NOISE AND VIBRATION PLATES 2.1.2 PICTOGRAMS AND RELEVANT MEANINGS The warning and danger signs applied onto the machine are accompanied by or illustrated through pictograms. The personnel in charge with handling and maintenance operations must know the symbols contained in the pictograms perfectly;...
  • Page 25 SAFETY, NOISE AND VIBRATION PLATES CONSULT THE MANUAL Carefully read the contents of the manual before using the machine or performing maintenance operations. 42N-93-11130 RKA14730 RISK OF CRUSHING Do not touch or stand near moving parts, since your hands may be crushed or cut off.
  • Page 26 SAFETY, NOISE AND VIBRATION PLATES LOCK THE LOADER CONTROL When it is necessary to travel on roads, lock the loader control lever before starting. PRIMA DI PARTIRE PER IL TRASFERIMENTO SU STRADA BLOCCARE LA LEVA COMANDO PALA! 42N-93-12460 RKA14770 CONNECT THE BRAKE PEDALS When the machine travels on roads, the brake pedals must be connected with the apposite pin.
  • Page 27 SAFETY, NOISE AND VIBRATION PLATES HYDRAULIC OIL FILTER 37A-98-12310 RKA14820 REFUELLING 37A-98-12240 RKA14830 FUEL FILTER 37A-98-12250 RKA14840 ENGINE LUBRICATING OIL FILTER 37A-98-12230 RKA14850 ENGINE AIR SUCTION FILTER 37A-98-12260 RKA14860 ENGINE COOLANT 37A-98-12340 RKA14870 https://tractormanualz.com...
  • Page 28 SAFETY, NOISE AND VIBRATION PLATES COOLANT PRESSURE 37A-98-12270 RKA14880 TRANSMISSION OIL LEVEL 395-93-11440 RKA14590 TRANSMISSION OIL FILTER 395-93-11420 RKA14580 POWER OUTLET 12 V 42N-93-11270 RKA14890 BOOM LOCK 42N-93-11320 RKA14900 SWING LOCK 42N-93-11310 RKA14910 https://tractormanualz.com...
  • Page 29 SAFETY, NOISE AND VIBRATION PLATES ANCHORAGE POINT 42N-93-11360 RKA14920 EMERGENCY EXIT 42N-93-11260 RKA14930 BRAKE OIL RKA14940 DO NOT LIFT MORE THAN 1000 kg SWL 1000 Kg RKA14950 https://tractormanualz.com...

  • Page 30: Position Of The Noise Plates On Machines With Cab

    Do not use fuel, petrol or solvents. If the plates are damaged, ask for new ones to Komatsu or to your Komatsu Dealer. In case of replacement of a component provided with a noise plate, make sure that this plate is applied also on the new piece.

  • Page 31: Vibrations To Which The Operator Is Subjected

    SAFETY, NOISE AND VIBRATION PLATES 2.1.4 VIBRATIONS TO WHICH THE OPERATOR IS SUBJECTED According to the results of the tests carried out to determine the vibrations transmitted to the operator by the machine, the upper limbs are subjected to vibrations lower than 2.5 m/sq.sec., while the seated part of the body is subjected to vibrations lower than 0.5 m/sq.sec.

  • Page 32: General Precautions

    GENERAL PRECAUTIONS 2.2 GENERAL PRECAUTIONS 2.2.1 GENERAL SAFETY RULES Only trained and authorized personnel can use the machine and perform maintenance operations. Follow all the safety rules, precautions and instructions when using the machine or performing maintenance operations. When working with other operators or when the work site is often occupied by other operators, make sure that everyone knows and understands all the signs described above and, in any case, that everyone works in such a way as to be able to see the machine and to be visible to the operator.

  • Page 33: Unauthorized Modifications

    2.2.4 UNAUTHORIZED MODIFICATIONS Any modification made to the machine without the authorization of Komatsu can involve hazards. Before making a modification, consult your Komatsu Dealer. Komatsu declines any responsibility for injury or damage caused by unauthorized modifications. 2.2.5 LEAVING THE OPERATOR’S SEAT When leaving the operator’s seat, even if for a short time, make...

  • Page 34: Getting On And Off The Machine

    GENERAL PRECAUTIONS 2.2.6 GETTING ON AND OFF THE MACHINE Do not jump on or off the machine, both when it is at rest and when it is moving. Always use the handles and the safety ladders to get on or off the machine, and be very careful.

  • Page 35: Preventing Fires Due To Fuel And Oil

    GENERAL PRECAUTIONS 2.2.8 PREVENTING FIRES DUE TO FUEL AND OIL Fuel, oil and some types of antifreeze can be easily ignited if they get in contact with a flame. Fuel is flammable and therefore very dangerous. Keep any naked flame away from flammable fluids. Stop the engine and do not smoke when refuelling.

  • Page 36: Preventing Damage Due To Asbestos Powder

    GENERAL PRECAUTIONS 2.2.10 PREVENTING DAMAGE DUE TO ASBESTOS POWDER Asbestos powder can be hazardous to your health if it is inhaled. If the material to be handled contains asbestos fibres, it is compulsory to make sure that all the laws and safety regulations in this regard are respected.

  • Page 37: Fire Extinguishers And First Aid Kit

    If the cab is inadvertently hit or the machine overturns during work, the cab may be damaged with consequent reduction of its stiffness and of the safety that must be guaranteed to the operator (ROPS/FOPS). Contact Komatsu or your Komatsu Dealer to have the cab structure and resistance checked in case of impact or damage.

  • Page 38: Precautions To Be Taken Before Starting The Engine

    Check the safety belt and change it if it is broken or damaged. Replace any component only with homologated parts available at Komatsu or its Dealers. Make always sure that the lock of the right door, which is considered the emergency door, is open.

  • Page 39: Room Ventilation

    PRECAUTIONS TO BE TAKEN BEFORE STARTING THE ENGINE 2.3.4 ROOM VENTILATION Before starting the machine in confined or poorly ventilated places, provide for proper ventilation or connect the engine exhaust pipe to a suction duct. The engine exhaust gases can be deadly.

  • Page 40: Precautions To Be Taken During Work

    PRECAUTIONS TO BE TAKEN DURING WORK 2.4 PRECAUTIONS TO BE TAKEN DURING WORK 2.4.1 WHEN STARTING THE ENGINE Before getting on the machine, walk around it and check for people and objects that might be in the way. Do not start the engine if warning plates have been attached to the steering wheel or the control levers. When starting the engine, sound the horn as an alert signal.

  • Page 41: Hand Signals

    PRECAUTIONS TO BE TAKEN DURING WORK 2.4.3 HAND SIGNALS WARNING When it is necessary to position loads, make excavations or move the machine with a reduced field of vision, the operator must be helped by another person (signalman) who should stand on the ground and give signals to indicate the manoeuvres to be carried out according to the specific instructions provided for by the relevant regulations.
  • Page 42 PRECAUTIONS TO BE TAKEN DURING WORK 3 - MOVE THE LOAD AWAY IN HORIZONTAL DIRECTION One arm outstretched and hand in vertical position with the palm facing towards the load to be moved away: move the hand in the direction of the movement to be carried out. RKA15160 4 - BRING THE LOAD NEARER IN HORIZONTAL DIRECTION One arm outstretched and hand in vertical position with the...
  • Page 43 PRECAUTIONS TO BE TAKEN DURING WORK 9 - FOLD THE ARM With both fists clenched, point the thumbs inwards. RKA15220 10 - EXTEND THE ARM With both fists clenched, point the thumbs outwards. RKA15230 11 - FOLD THE BUCKET Keep one hand still and closed. Rotate the other hand vertically with the forefinger pointing towards the closed hand.
  • Page 44 PRECAUTIONS TO BE TAKEN DURING WORK 15 - TRAVEL STRAIGHT AHEAD Rotate the fists vertically indicating the turning direction of the wheels. RKA15280 16 - TRAVEL STRAIGHT AHEAD Rotate the fists vertically indicating the turning direction of the wheels. RKA15290 17 - DISTANCE TO BE COVERED Hands raised and palms facing inwards: move the hands laterally indicating the distance to be covered.
  • Page 45 PRECAUTIONS TO BE TAKEN DURING WORK 21 - Stop the engine Pass thumb or forefinger across the throat. RKA15340 22 - RETRACT THE TELESCOPIC ARM One forearm lifted forwards and clenched fingers: point the thumb in the direction of the movement to be carried out. RKA15350 23 - EXTEND THE TELESCOPIC ARM One forearm lifted forwards and clenched fingers: point the...

  • Page 46: Checks For Travelling In Reverse

    PRECAUTIONS TO BE TAKEN DURING WORK 2.4.4 CHECKS FOR TRAVELLING IN REVERSE When operating in areas that may be hazardous or where visibility is poor, designate a person to direct the movements of the machine and traffic on the work site. Before moving the machine, sound the horn to warn the persons standing or working in the area.

  • Page 47: Working On Slopes

    PRECAUTIONS TO BE TAKEN DURING WORK 2.4.6 WORKING ON SLOPES Operations on slopes and on river or lake banks with damp ground may result in the tipping over or slipping of the machine. Do not work with the bucket downward with respect to the tractor.

  • Page 48: Preventing Electrocution

    PRECAUTIONS TO BE TAKEN DURING WORK 2.4.7 PREVENTING ELECTROCUTION Digging operations near overhead electric lines are extremely dangerous and they may also cause death due to electrocution; for this reason, when working near overhead electrical lines, always respect the minimum safety distances prescribed by the competent authorities and by the accident-prevention rules in force.

  • Page 49: Visibility

    PRECAUTIONS TO BE TAKEN DURING WORK 2.4.8 VISIBILITY Switch on the headlights or the work lights as soon as visibility decreases. If visibility decreases due to mist, smoke or heavy rain, stop the machine in a safe position and wait for the weather to improve until visibility becomes acceptable.

  • Page 50: Parking The Machine

    PRECAUTIONS TO BE TAKEN DURING WORK 2.4.12 PARKING THE MACHINE Park the machine on firm and level ground. If this is not possible and it is necessary to park on a slope, position the machine with the front bucket directed downwards and carry out the following operations: 1 - While keeping the machine stopped with the brakes, apply the parking brake.

  • Page 51: Transporting The Machine On Other Vehicles

    TRANSPORTING THE MACHINE ON OTHER VEHICLES 2.5 TRANSPORTING THE MACHINE ON OTHER VEHICLES 2.5.1 LOADING AND UNLOADING THE MACHINE Loading and unloading the machine on-off a motor vehicle Ramps always involves potential hazards. Proceed with extreme care. The loading and unloading of the machine on-off the means of transport must be carried out on a flat surface and at a safety distance from the edges of ditches or from the road side.

  • Page 52: Battery

    BATTERY 2.6 BATTERY 2.6.1 PREVENTING RISKS THAT MAY BE DUE TO THE BATTERY Electrolytic batteries contain sulphuric acid, which can cause burns. It can also corrode clothing and make holes in it. In case of contact with battery acid, immediately wash the involved part with plenty of water.

  • Page 53: Precautions For Emergency Recovery

    PRECAUTIONS FOR EMERGENCY RECOVERY 2.7 PRECAUTIONS FOR EMERGENCY RECOVERY The draw hooks must be used only for the first aid and not for towing the machine. Before moving the machine, make sure that the gearshift lever is in neutral and disengage the four-wheel drive. Incorrect manoeuvres may cause serious damage, injury and even death.

  • Page 54: Precautions To Be Taken During Maintenance

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8 PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.1 WARNING PLATES Before starting any maintenance operation, position the machine on firm and level ground, engage the safety locks of the equipment and of the controls, stop the engine and apply the parking brake.

  • Page 55: Personnel

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.3 PERSONNEL Any maintenance operation must be carried out exclusively by authorized and duly trained personnel; specific and personal protection measures must be adopted when grinding, welding and when using sledges or heavy hammers. When assembling the equipment or cylinder connection pins, use wooden, plastic or in any case not excessively hard tools to check the centering of the holes.

  • Page 56: Keeping The Machine Clean

    60 cm, in order to avoid damaging the warning plates and the pictograms. If the plates are damaged, request Komatsu or your Komatsu Dealer to send you spare plates and change them. Water into the electric system provokes the oxidation of the contacts and may hinder the start of the machine or even make it start suddenly and abruptly.

  • Page 57: Stop The Engine Before Carrying Out Any Maintenance Operation Or Inspection

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.9 STOP THE ENGINE BEFORE CARRYING OUT ANY MAINTENANCE OPERATION OR INSPECTION Stop the machine only on firm and level ground and stop the engine before carrying out any maintenance operation or inspection. If it is necessary to have the engine running during maintenance, engage the safety LOCKS of the equipment control levers, apply the parking brake and carry out any maintenance operation with the help of another person;...

  • Page 58: Rules To Be Followed During Fuel Or Oil Topping Up

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.10 RULES TO BE FOLLOWED DURING FUEL OR OIL TOPPING UP Spilled fuel or oil make the ground slippery and may cause accidents; clean any dirty area carefully and without delay. Always tighten the fuel tank and hydraulic oil tank safety caps securely.

  • Page 59: Precautions To Be Taken When Handling The Battery And The Alternator

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.13 PRECAUTIONS TO BE TAKEN WHEN REMOVAL HANDLING THE BATTERY AND THE ALTERNATOR When repairing the electrical system, disconnect the battery in order to stop the flow of current. IMPORTANT Disconnect first the negative cable (–) and then the positive cable (+).

  • Page 60: Handling High-Pressure Pipes

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.15 HANDLING HIGH-PRESSURE PIPES Do not bend high-pressure pipes or rub them with sharp or abrasive objects. Do not use any bent or cracked pipes or hoses that were previously rejected because of leaks or fastening defects, since they may burst during use.

  • Page 61: Hydraulic Accumulator

    RKA12540 do not hit or press the accumulator; when disposing of the accumulator, take care to release the gas it contains. Have this operation carried out only by a Komatsu Dealer. 2.8.19 COOLING FAN AND FAN BELT Be careful to the revolving parts and do not allow anyone to get too close to these components, since clothes or parts of the body may get caught into them.

  • Page 62: Precautions Concerning Technopolymers And Elastomers

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.21 PRECAUTIONS CONCERNING TECHNOPOLYMERS AND ELASTOMERS DANGER Some components of the machine contain polymers and elastomers (Viton sealing rings, Teflon rings, piston seals made of fluoroelastomers, electric cable insulating materials, etc.). At room temperature and up to approximately 200°C these materials can be handled without taking any precautions, since they are completely inert.

  • Page 63: Precautions For The Installation Of The Exhaust System Tailpipe

    PRECAUTIONS TO BE TAKEN DURING MAINTENANCE 2.8.23 PRECAUTIONS FOR THE INSTALLATION OF THE EXHAUST SYSTEM TAILPIPE When the machine is stopped at the end of work, the exhaust pipe (1) and the tailpipe (2) are very hot. In these conditions, if any maintenance operation has to be carried out, the operator runs the risk of being burned or injured.
  • Page 64 THIS PAGE WAS INTENTIONALLY LEFT EMPTY https://tractormanualz.com...
