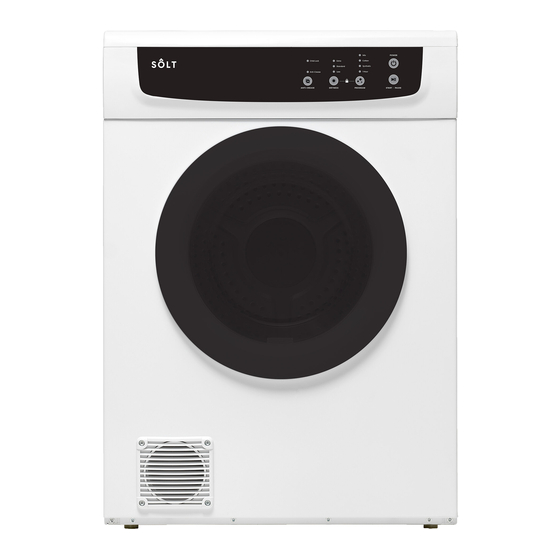

- Page 1 MODEL GGSVD7 User Manual Vented Dryer...
- Page 2 Welcome Congratulations on purchasing your new Vented Dryer! The Sôlt brand is proudly distributed within Australia by Residentia Group Pty Ltd. Please refer to the warranty card at the rear of this manual Residentia Group — for information regarding your product’s parts and labour Head Office.
-
Page 3: Table Of Contents
2 Welcome Contents 4 Safety Instructions 4 Technical Specifications 8 Your Vented Dryer 9 Control Panel 10 Before First Use 11 Accessory Kit Contents 12 Installation Instructions 14 Operating Your Vented Dryer 18 Cleaning and Maintenance 19 Troubleshooting 21 Purchase Details 22 Warranty Information... -
Page 4: Safety Instructions
Safety Instructions GENERAL SAFETY INSTRUCTIONS DRYER SAFETY WARNING! Failure to follow these safety instructions could damage the clothes dryer or your clothes. You may then not be covered by warranty for this damage. Only plug this appliance directly into an AC power supply which is properly earthed and had the correct voltage. Refer to the appliance rating plate (located on the rear of your clothes dryer) for the voltage information. - Page 5 Safety Instructions (Continued) FIRE HAZARDS Some fabrics are not suitable for tumble drying. The following MUST NOT be placed in your dryer due to the risk of a fire or an explosion: • Item(s) that have been spotted or soaked with vegetable oil, cooking oil, suntan oil, linseed oil, salad oil, lubrication oil or grease.
- Page 6 Safety Instructions (Continued) To remove the lint filter, open the dryer door and simply lift the plastic filter out from its housing. You can click the lint filter open to allow easy access to remove the lint. Ensure that the plastic filter is clicked closed again before replacing into your clothes dryer.
-
Page 7: Technical Specifications
Safety Instructions (Continued) Caution! Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or product. Note We strongly advise against the use of fabric conditioners of the sheet type that are added to the clothes in the drum. -
Page 8: Your Vented Dryer
Your Vented Dryer Figure 3- A diagram showing the main components of your vented dryer. 1. Top-board 2. Control Panel 3. Door 4. Front Panel 5. Side panel 6. Filter 8. Power plug 7. Flex tube (only to rear vent) 7. -
Page 9: Control Panel
Control Panel Your vented clothes dryer’s controls explained. Figure 4- The control panel for your vented dryer Power button. 2. Start or Pause drying program. 3. Drying program selector (1 Hour, Synthetic, Cotton, Mixed Items) 4. Dryness level selector (Light, Standard, Extra Dry). 5. -
Page 10: Before First Use
Before First Use Step 1. Power source and grounding The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. Your clothes dryer should be on a dedicated power socket for both convenience and safety. - Page 11 Accessory Kit Components PART NAME IMAGE/DIAGRAM Dryness Program Anti-Cr ease Play/Pause Extra Standard Cotton Synthetic Light 1 Hour Figure 5- Contents of the Accessory Kit included with your vented dryer for wall hanging installation.
-
Page 12: Installation Instructions
Installation Instructions POWER SOURCE AND GROUNDING It’s recommended to use the dryer on its own dedicated power outlet for both convenience and safety. The power outlet must be grounded. Important! If the power cord is damaged, it must be replaced by your local distributor or one of its authorised service representatives. - Page 13 Installation Instructions (Continued) Figure 6 - Positioning the horizontal and vertical screw position templates. Figure 7 - Positioning of the hanging brackets and the Left & Right support brackets. Figure 8- Final wall hanging installation of the dryer, sitting correctly on the hanging and support brackets.
-
Page 14: Operating Your Vented Dryer
Operating Your Vented Dryer QUICK START Ensure the dryer is switched on at the power outlet and add your wet clothes into the tumble drum. 2. Press the “Power” button to switch the dryer on. 3. Press the “Program” button to select your desired drying program. The LED light will indicate which program you select. - Page 15 Operating Your Vented Dryer (Continued) DETAILED OPERATION Step 1: Preparation before drying • Clothes should be washed before use within the dryer. • Always ensure the same types of clothes are dried together. • Try to sort your clothes to be dried into load that take a similar time to dry (for example heavier items separate from light items).
- Page 16 Operating Your Vented Dryer (Continued) PROGRAM FUNCTIONS Note: Maximum capacity for loads is based on the clothing when dry. Tip! At the completion of a drying program, the clothes dryer will circulate cold air. This ensures that your clothing is left at a temperature and that your clothes aren’t damaged.
- Page 17 Operating Your Vented Dryer (Continued) GENERAL HINTS • Never tumble dry the following: Delicate items such as net curtains, woollen, silk, fabric with metal trim, nylon tights, bulky materials such as blankets, eiderdown, sleeping bags, feather quilts and any item containing rubber foam or materials similar to foam rubber.
-
Page 18: Cleaning And Maintenance
Cleaning and Maintenance By ensuring proper cleaning and maintenance of your Esatto Vented Dryer, you can ensure that it will have a long and fault free operation. WARNING! To avoid an electric shock, always unplug your dryer before cleaning. CLEANING THE FILTER •... -
Page 19: Troubleshooting
Troubleshooting BASIC TROUBLESHOOTING Check the points listed here before you call for help, and make sure that you have followed the Important safety Instructions within this manual. PROBLEM POSSIBLE CAUSES My dryer will not start - Plug is not firmly in its power socket, or the power outlet is not switched - You have blown or tripped a fuse. - Page 20 Troubleshooting (Continued) POSSIBLE FAILURES Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out a service technician. Before contacting your local Customer Care team, please check possible cause of malfunction and solution listed below. Once the problem has been eliminated, press the Start/Pause button to restart the program.
-
Page 21: Purchase Details
Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. -
Page 22: Warranty Information
Warranty Information AUSTRALIAN WARRANTY TERMS & CONDITIONS 1. IN THIS WARRANTY APPLIANCES (a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; (b) ‘ACL’ means Trade Practices Amendment (Australian This document sets out the terms and conditions of the Consumer Law) Act (No.2) 2010;... - Page 23 Warranty Information (Continued) 5. You will bear the cost of transportation, travel and 9. To the extent permitted by law, Residentia Group delivery of the Appliance to and from Residentia Group or excludes all warranties and liabilities (other than as its ASR.
- Page 24 An initiative by Residentia Group T. 1300 11 4357 E. support@residentiagroup.com.au www.solt.house...
