Smart Generators Motorhead SG12003 Operating Instructions Manual

Smart Generators Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect
yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage!
Retain instructions for future reference.

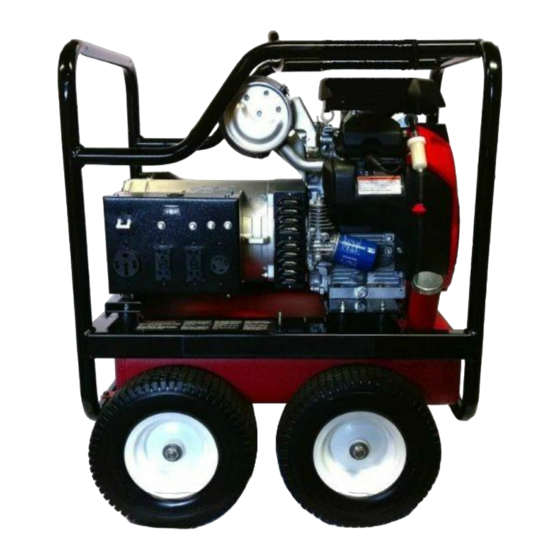

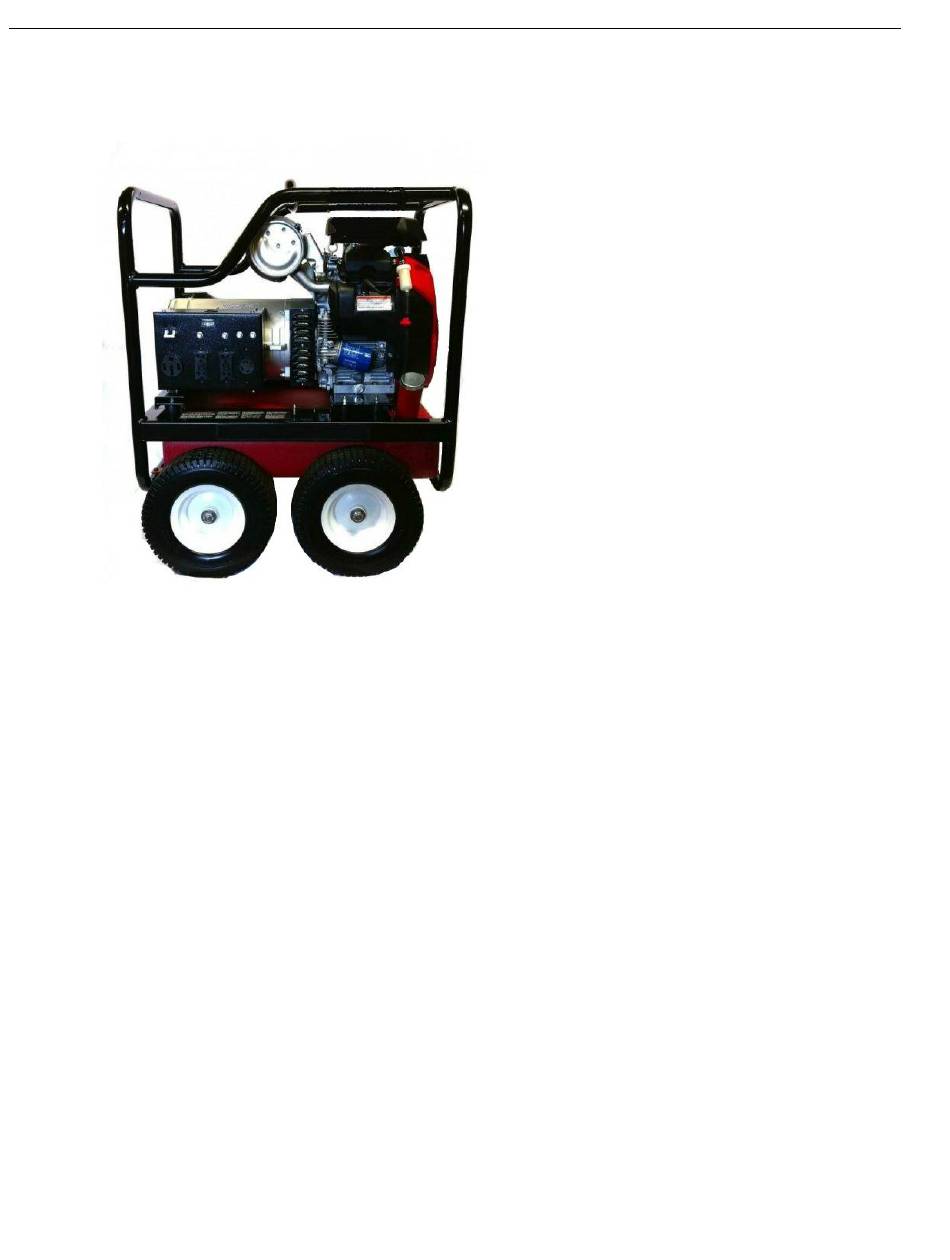

The Motorhead® Gasoline Generator
Unpacking
When unpacking the unit, carefully
inspect for signs of obvious or
concealed freight damage. If damage
does exist, file a claim with the
transportation company immediately.
Be sure that all damaged parts are
replaced and that the mechanical and
electrical problems are corrected prior
to operation of the unit.
Specifications
Engine.......................Honda GX630
Watts (AC) Rated...........12000 watts
Watts (AC) Max.............20000 watts
Rated Voltage (AC)...........120V/240V
Max. Amperage...................166/83 A
Cont. Amperage..................100/50 A
Frequency................................60 Hz
Fuel Tank Capacity................13.2 gal
Run Time (Gasoline)...............8.0 hrs
Weight........................420 pounds
Dimensions (in)
31.5" x 24" (30" with wheels) x 37.5"
General Safety Information
READ OPERATING INSTRUCTIONS
Always become familiar with all the
instructions and warnings before
operating any generator
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of injury, read
this operator's manual completely
before using. When using this
product, the following basic
precautions should always be
followed:
1. Read all the instructions before
using the product.
2. Do not allow children or untrained
persons to operate the generator.
3. Do not operate the generator when
fatigued or under the influence of
drugs or chemicals. Stay alert. Watch
what you are doing.
4. Follow the maintenance instructions
specified in this manual.
5. Be sure the switch on electric
power tools is in the "OFF" position
1
SG12003
before plugging them into the
generator.
6. Keep the immediate area free of all
bystanders.
7. Be sure each person who operates
this generator is properly instructed in
its safe operation.
8. Do not operate the generator or any
electrical tool in any area where water
or similar materials constitute an
electrical hazard to the operator. Do
not operate on wet surfaces, in rain or
in snow.
9. Always be sure that the generator
is on secure footing so that it cannot
slide or shift around, endangering
workers.
10. Avoid contacting the hot exhaust
manifold, muffler or cylinder(s).
Keep clear of all rotating parts.
11. Unless the tool or appliance
is double insulated, it must be
grounded through a properly
grounded receptacle. (See Preparing
the Generator, Grounding
Instructions). Tools and appliances
which have 3 prong plugs must be
plugged into extension cords and
electrical receptacles with 3 holes.
Before operating any electrical item,
be sure it is in good repair.
12. Beware of using this equipment
in confined spaces. Confined
spaces, without sufficient fresh air
ventilation,can contain dangerous
gases. Running gasoline engines in
such environments can lead to deadly
explosions and/or asphyxiation.
13. Use extreme caution when lifting
this generator. Do not use dolly
handles to lift this generator, use
only designated lifting hook to lift
this generator. This generator is
