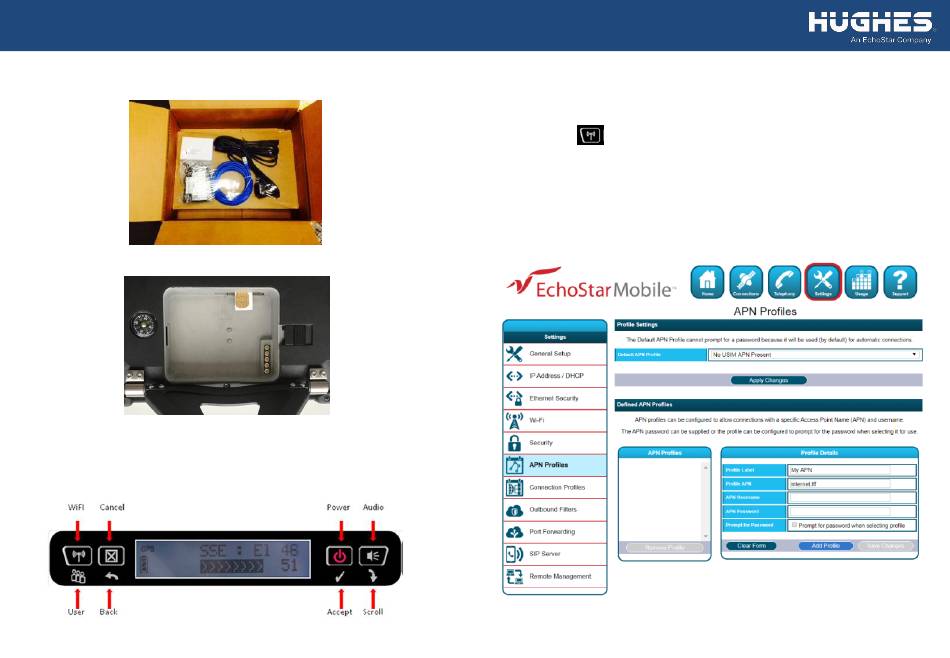

EchoStar Hughes 4200 Quick Start Manual

1. Unpack the box. Remove the accessories panel on top, then without tearing the
plastic over the UT, lift it out of the box, unfold the flaps, and slide it out of the
sleeve.
2. Insert the SIM card supplied by your service provider.
3. Install the battery and completely charge it with the AC/DC adapter before using
the terminal.
4. Power on the UT by long pressing the Power button (>2 seconds).
Button function, long press (>2 sec)
Button function, short press (<2 sec)
Hughes 4200 Quick Start Guide
5. Connect an Ethernet cable from your computer to the UT. Open a web browser and
6. You now need to define an APN Profile in order to be connected to the Network.
enter the address 192.168.128.100 to access the home page of the UT Web User
Interface.
Note: you can connect via Wi-Fi instead of Ethernet. Long press (>2 seconds) the
Wi-Fi button on the UT. Once the icon shows solid on the LCD, you can
connect to the UT. (It is strongly suggested to establish a secure password through
the Settings Page of the UT Web User Interface).
Enter the APN details (at least Profile Label and Profile APN) in the Settings Page.
Press the "Add Profile" button in order to save the Profile.
3004181-0001 Rev.B
