AI-Link WF-M620-RSD2 Quick Start Manual

Ieee 802.11a/b/g/n 1t1r iot module
Hide thumbs

Advertisement

Quick Links

Download this manual

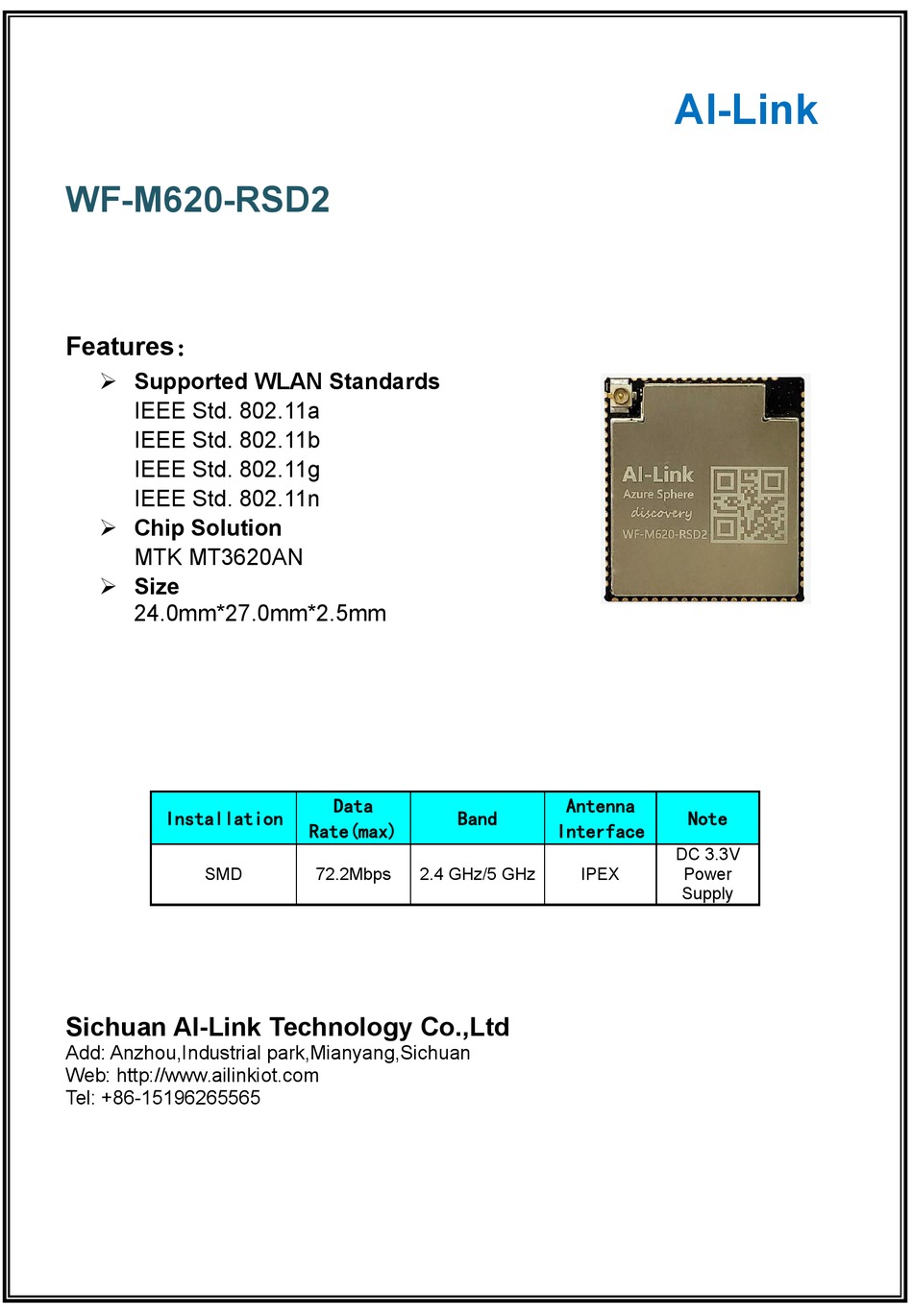

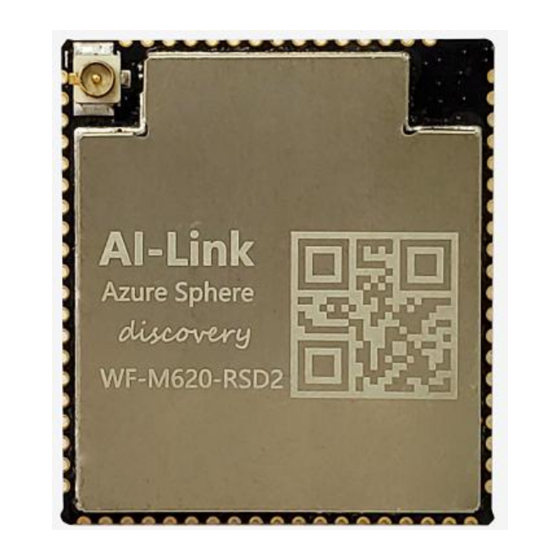

WF-M620-RSD2
Features：
 Supported WLAN Standards
IEEE Std. 802.11a
IEEE Std. 802.11b
IEEE Std. 802.11g
IEEE Std. 802.11n
 Chip Solution
MTK MT3620AN
 Size
24.0mm*27.0mm*2.5mm
Installation
SMD
Sichuan AI-Link Technology Co.,Ltd
Add: Anzhou,Industrial park,Mianyang,Sichuan
Web: http://www.ailinkiot.com
Tel: +86-15196265565
Data
Band
Rate(max)
72.2Mbps
2.4 GHz/5 GHz
AI-Link
Antenna
Note
Interface
DC 3.3V
IPEX
Power
Supply

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF-M620-RSD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AI-Link WF-M620-RSD2

Summary of Contents for AI-Link WF-M620-RSD2

  • Page 1 IEEE Std. 802.11g IEEE Std. 802.11n  Chip Solution MTK MT3620AN  Size 24.0mm*27.0mm*2.5mm Data Antenna Installation Band Note Rate(max) Interface DC 3.3V 72.2Mbps 2.4 GHz/5 GHz IPEX Power Supply Sichuan AI-Link Technology Co.,Ltd Add: Anzhou,Industrial park,Mianyang,Sichuan Web: http://www.ailinkiot.com Tel: +86-15196265565...
  • Page 2 We accept the specification after Confirmed Customer name Customer signature Confirmation Date Please feed back this paper and first paper after your signature by the address,thanks! ADD： Anzhou,Industrial park,Mianyang,Sichuan Factory： Sichuan AI-Link Technology Co.,Ltd. Approved Checked Designed Product WiFi Module...
  • Page 3 WF-M620-RSD2 IEEE 802.11a/b/g/n 1T1R IoT Module Record of Modification Date of Main content of Reason of Serial number of Confirm modification modification modification modification Draft 20200530 Feng Jie v1.0 Sichuan AI-Link Technology Co., Ltd. page 3 of 16...

  • Page 4: Brief Description

    IEEE 802.11a/b/g/n 1T1R IoT Module 1. Brief Description The WF-M620-RSD2 IoT module is based on the MediaTek MT3620AN,a highly integrated single chip,tricore WIFI MCU designed to meet the requirements of modern robust internet-connected devices.It leverages the Microsoft Azure Sphere security architecture to provide an unprecedented level of security to connected device manufacturers.For the...
  • Page 5 WF-M620-RSD2 IEEE 802.11a/b/g/n 1T1R IoT Module 2. Mechanical Specification(units:mm) 2.1 Mechanical Outline Top View Side View Bottom View 2.2 Pin Definition Figure 2.2 Pin assignment Sichuan AI-Link Technology Co., Ltd. page 5 of 16...
  • Page 6 SWD is used for programming and ARM SWD data SWD_DIO debugging the 2X Cortex-M4 on ARM SWD clock SWD_CLK MT3620.A single SWD channel is ARM SWO debug output shared between two Cortex-M4. Sichuan AI-Link Technology Co., Ltd. page 6 of 16...
  • Page 7 2.5V.If the ADC pin is not configured for ADC operation,then 3.3V input is ok. 3.WF-M620-RSD2 RTC functionality is enabled, the AVDD_3V3_RTC must be always powered, or the MT3620 will hang up during the system boot procedure.

  • Page 8: Top View

    Typ. Max. Unit 5 Minimum Input Level Sensitivity(each chain) 1) 1Mbps (FER ≦8%) 2) 2Mbps (FER ≦8%) 3) 5.5Mbps (FER ≦8%) 4) 11Mbps (FER ≦8%) 6 Maximum Input Level (FER ≦8%) Sichuan AI-Link Technology Co., Ltd. page 8 of 16...
  • Page 9 2) 9Mbps (PER ≦10%) 3) 12Mbps (PER ≦10%) 4) 18Mbps (PER ≦10%) 5) 24Mbps (PER ≦10%) 6) 36Mbps (PER ≦10%) 7) 48Mbps (PER ≦10%) 8) 54Mbps (PER ≦10%) 6 Maximum Input Level (PER ≦10%) Sichuan AI-Link Technology Co., Ltd. page 9 of 16...
  • Page 10 2) MCS1 (PER ≦10%) 3) MCS2 (PER ≦10%) 4) MCS3 (PER ≦10%) 5) MCS4 (PER ≦10%) 6) MCS5 (PER ≦10%) 7) MCS6 (PER ≦10%) 8) MCS7 (PER ≦10%) 7. Maximum Input Level (PER ≦10%) Sichuan AI-Link Technology Co., Ltd. page 10 of 16...
  • Page 11 2) 9Mbps (PER ≦10%) 3) 12Mbps (PER ≦10%) 4) 18Mbps (PER ≦10%) 5) 24Mbps (PER ≦10%) 6) 36Mbps (PER ≦10%) 7) 48Mbps (PER ≦10%) 8) 54Mbps (PER ≦10%) 6 Maximum Input Level (PER ≦10%) Sichuan AI-Link Technology Co., Ltd. page 11 of 16...
  • Page 12 2) MCS1 (PER ≦10%) 3) MCS2 (PER ≦10%) 4) MCS3 (PER ≦10%) 5) MCS4 (PER ≦10%) 6) MCS5 (PER ≦10%) 7) MCS6 (PER ≦10%) 8) MCS7 (PER ≦10%) 7. Maximum Input Level (PER ≦10%) Sichuan AI-Link Technology Co., Ltd. page 12 of 16...
  • Page 13 WF-M620-RSD2 IEEE 802.11a/b/g/n 1T1R IoT Module 4. Refelow Standard Condition 5. Key Materials Item Category Description Notes 165-QFN MT3620AN Sunlord JUI7.820.0713 FR-4,4LAY IQPCB SHPCB 26MHz,2520,11pF± 10ppm,-20~75℃; Crystal Hosonic Oscillator 32.768KHZ,2012,11p F±20ppm,-40~85℃; Sichuan AI-Link Technology Co., Ltd. page 13 of 16...

  • Page 14: Conditions Of Use

    6. External Antenna Specification ITEM Category Part No. External Dipole Antenna XBLAN2450B-64DBGM-1 Antenna 7. Product Label&Label Location 8. Conditions of use Please keep the antenna away from metal and horn interference sources. Sichuan AI-Link Technology Co., Ltd. page 14 of 16...
  • Page 15 —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Sichuan AI-Link Technology Co., Ltd. page 15 of 16...
  • Page 16 à antenne (s) détachable (s), le gain d'antenne maximal autorisé pour les dispositifs de la bande 5725-5850 MHz doit être tel que l'équipement soit toujours conforme à la norme e.i.r.p. les limites, le cas échéant; et Sichuan AI-Link Technology Co., Ltd. page 16 of 16...
