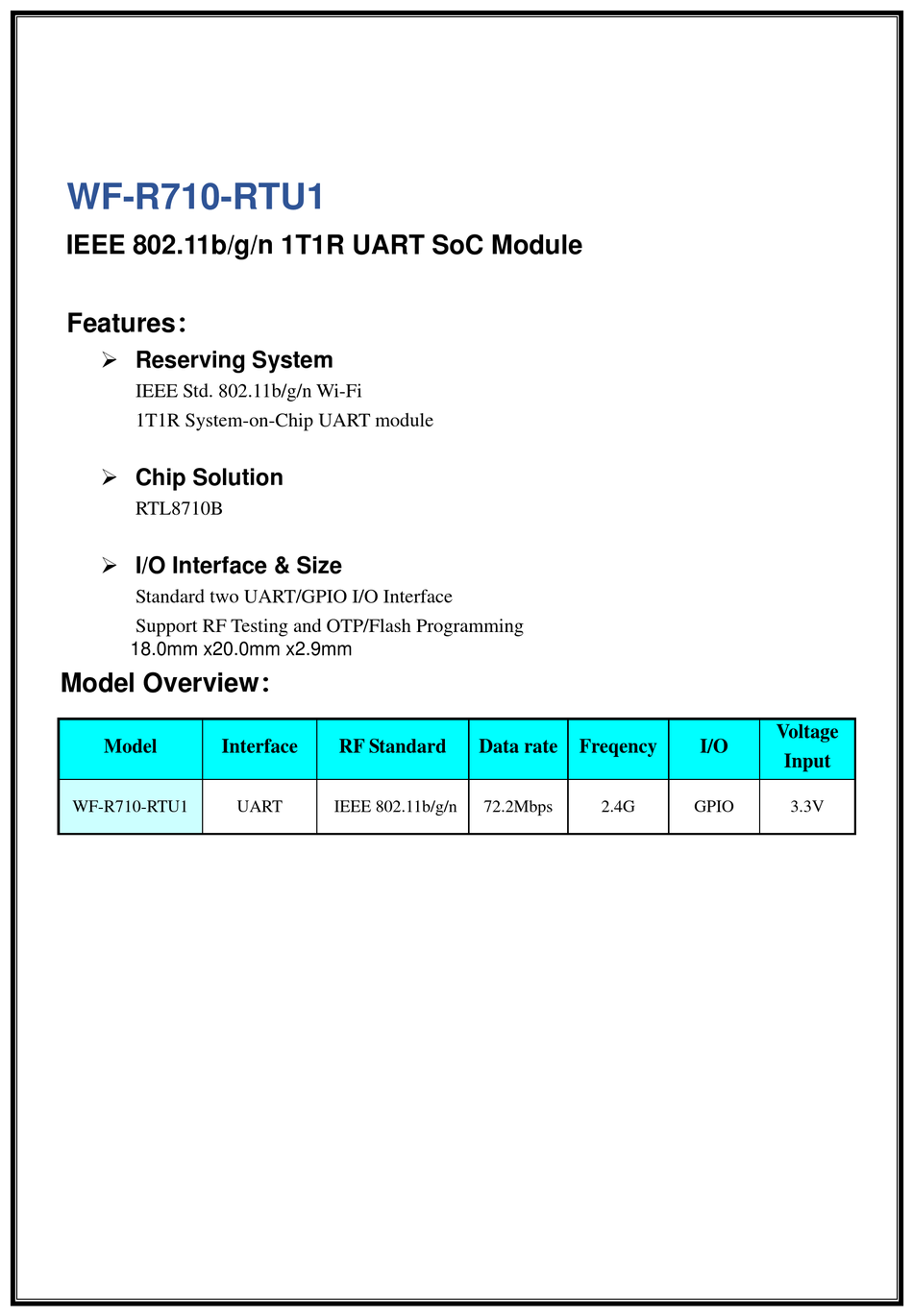

WF-R710-RTU1
IEEE 802.11b/g/n 1T1R UART SoC Module
Features：
Reserving System
IEEE Std. 802.11b/g/n Wi-Fi
1T1R System-on-Chip UART module
Chip Solution
RTL8710B
I/O Interface & Size
Standard two UART/GPIO I/O Interface
Support RF Testing and OTP/Flash Programming
18.0mm x20.0mm x2.9mm
Model Overview：
Model
Interface
WF-R710-RTU1
RF Standard
UART
IEEE 802.11b/g/n
Data rate
Freqency
72.2Mbps
2.4G
Voltage
I/O
Input
GPIO
3.3V
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AI-Link WF-R710-RTU1
Summary of Contents for AI-Link WF-R710-RTU1
- Page 1 WF-R710-RTU1 IEEE 802.11b/g/n 1T1R UART SoC Module Features： Reserving System IEEE Std. 802.11b/g/n Wi-Fi 1T1R System-on-Chip UART module Chip Solution RTL8710B I/O Interface & Size Standard two UART/GPIO I/O Interface Support RF Testing and OTP/Flash Programming 18.0mm x20.0mm x2.9mm Model Overview：...
- Page 2 IEEE 802.11 b/g/n 1T1R UART SoC Module 1. Introduction WF-R710-RTU1 SoC module designed base on RTL8710B chip solution, The SOC module is a highly intelligent platform for the Internet of Everything that contains a low-power Wi-Fi connectivity solution on one package. It includes a number of TCP/IP based connectivity protocols along with SSL, enabling a low-cost, low-complexity system to obtain full-featured internet connectivity and reliable information exchange.
-
Page 3: System Functions
20MHz bandwidth transmission HW acceleration WPA,WPA2, WPS2.0 Form factor Maximum 9 GPIO pins PCB Stack 2-layers design (1+/-0.15mm) Module Dimension Typical，18.0mm x20.0mm x2.9mm Operation Temperature -20℃ to +85℃ Storage Temperature -40℃ to +125℃ Sichuan AI-Link Technology Co.,Ltd. page 3 of 11... -
Page 4: Mechanical Specification
Pins sequence and distribution list as follows Define Description 3.3V 供电 PWM0 IO14 PWM1 IO15 PWM2 IO12 PWM3 PWM4 IO18 UART0_RXD,SPI1_CLK,SPI0_SCL,I2C1_SCL,TIMER4_TRIG IO23 UART0_TXD,SPI1_MOSI,SPI0_MOSI,I2C1_SDA, PWM0 IO19 UART0_CTS,SPI1_CS,SPI0_CS,I2C0_SDA, TIMER5_TRIG IO22 UART0_RTS,SPI1_MISO,SPI0_MISO,I2C0_SCL,PWM5 IO30 UART1_LOG_TXD IO29 UART1_LOG_RXD Sichuan AI-Link Technology Co.,Ltd. page 4 of 11... -
Page 5: Electrical Specification
Min. Typ. Max. Unit 5. Minimum Input Level Sensitivity(each chain) 1) 1Mbps (FER ≦8%) 2) 2Mbps (FER ≦8%) 3) 5.5Mbps (FER ≦8%) 4) 11Mbps (FER ≦8%) 6. Maximum Input Level (FER ≦8%) Sichuan AI-Link Technology Co.,Ltd. page 5 of 11... - Page 6 3) 12Mbps (PER ≦10%) 4) 18Mbps (PER ≦10%) 5) 24Mbps (PER ≦10%) 6) 36Mbps (PER ≦10%) 7) 48Mbps (PER ≦10%) 8) 54Mbps (PER ≦10%) 6. Maximum Input Level (PER ≦10%) 1) IEEE802.11g Sichuan AI-Link Technology Co.,Ltd. page 6 of 11...
- Page 7 3) MCS2 (PER ≦10%) 4) MCS3 (PER ≦10%) 5) MCS4 (PER ≦10%) 6) MCS5 (PER ≦10%) 7) MCS6 (PER ≦10%) 8) MCS7 (PER ≦10%) 6. Maximum Input Level (PER ≦10%) 1) IEEE802.11n HT20 @ 2.4G Sichuan AI-Link Technology Co.,Ltd. page 7 of 11...
- Page 8 FCC rules that apply to the host not covered by the modular transmitter grant of certification. Sichuan AI-Link Technology Co.,Ltd. page...
- Page 9 (including the transmitter) and obtaining a separate FCC authorization. 6）Antennas Antenna Specification are as follows: Type: FPC Antenna Gain: 1 dBi Sichuan AI-Link Technology Co.,Ltd. page 9 of 11...
- Page 10 Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Sichuan AI-Link Technology Co.,Ltd. page 10 of 11...
-
Page 11: Important Notes
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Sichuan AI-Link Technology Co.,Ltd. page 11 of 11...
