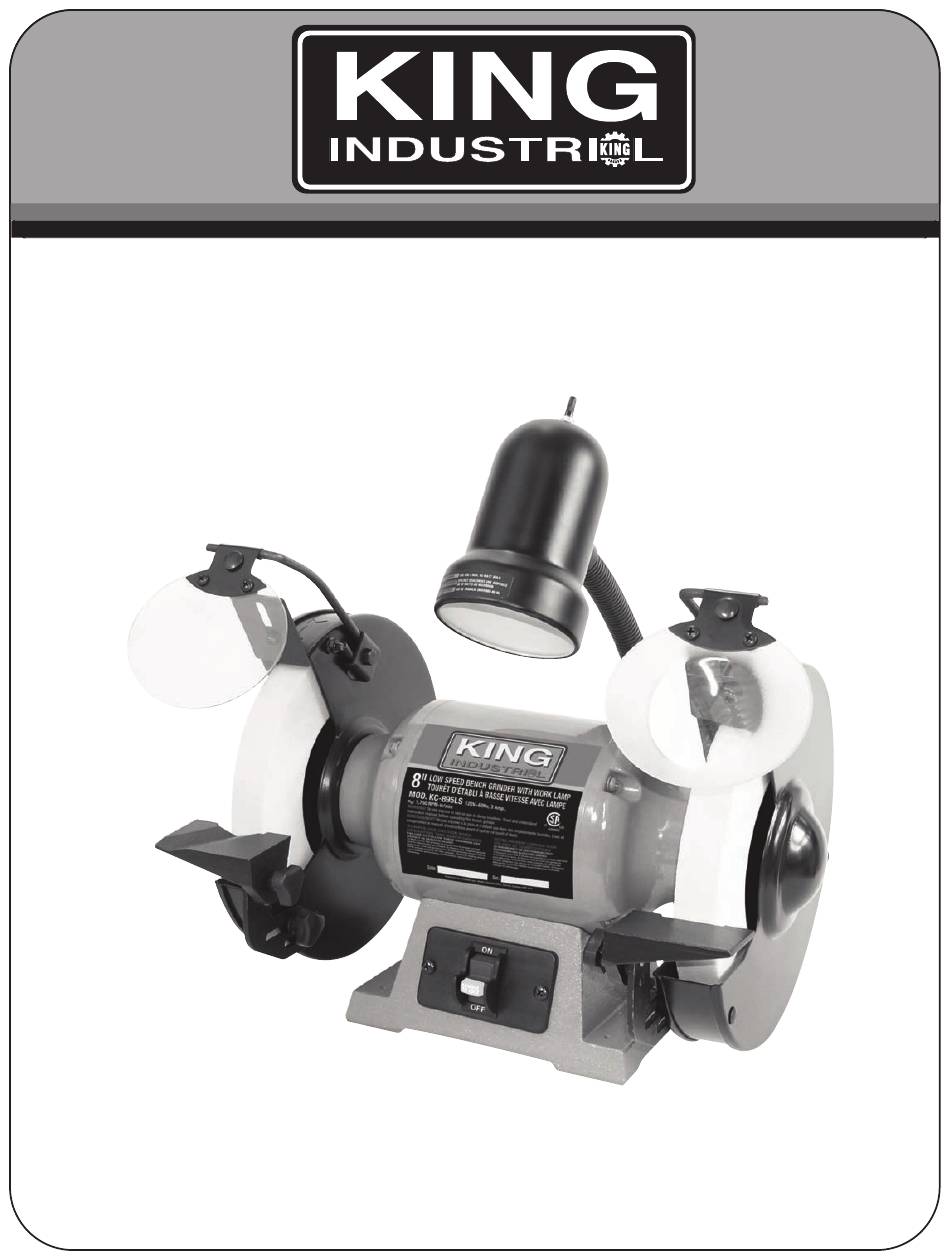

- Page 1 8” LOW SPEED bEnch grinDEr WiTh LAMP 09/2016 inSTrUcTiOn MAnUAL MODEL: KC-895LS COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WArrAnTy inFOrMATiOn 2-yEAr king cAnADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS 8” BENCH GRINDER FOR COMMERCIAL USE. PrOOF OF PUrchASE Please keep your dated proof of purchase for warranty and servicing purposes. rEPLAcEMEnT PArTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LiMiTED TOOL WArrAnTy King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions For Power Tools
gEnErAL SAFETy inSTrUcTiOnS FOr POWEr TOOLS 1. knOW yOUr TOOL 13. DOn’T OVErrEAch. Read and understand the owners manual and labels affixed to Keep proper footing and balance at all times. the tool. Learn its application and limitations as well as its spe- 14. -
Page 4: Specific Safety Instructions
SPEciFic SAFETy inSTrUcTiOnS FOr yOUr bEnch grinDEr 1. EyE PrOTEcTiOn. 11. TOOL rEST POSiTiOn. Grinding ejects small particles at a high rate of speed. ALWAYS If the tool rest is too far away from the wheel, the workpiece may wear safety glasses when using this machine. be pulled down, causing loss of control and pulling your hand into the grinding wheel. -
Page 5: Electrical Information
ELEcTricAL inFOrMATiOn WArning! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SE- RIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWEr SUPPLy PrOPErLy grOUnDED OUTLET WArning: YOUR BENCH GRINDER MUST BE CONNECTED TO A 110V-... -
Page 6: Getting To Know
5) 8” Grinding wheel (60 grit) 13) 8” Grinding wheel (120 grit) 6) Grinding wheel guard 14) Diamond wheel dressing tool 7) Tool rest Specifications MODEL KC-895LS Wheel size 8” x 1” Arbor size 5/8” Motor 1/2 HP, 3 Amp. - Page 7 ASSEMbLy installing spark guards to wheel guards 1. Install the spark guard (A) Fig.4 to the front surface of the wheel guard (B) using a pan head screw, spring washer and washer (C). Repeat for the other side. 2. Adjust both spark guards (A) Fig.4 until they are 1/16” away from the grinding wheel (D).
-
Page 8: Assembly And Operation
ASSEMbLy & OPErATiOn Mounting the bench grinder This bench grinder comes with 2 mounting holes in its base. For safety reasons it is highly recommended to secure the bench grinder onto a solid work surface, or stand. (Mounting hardware and stand not included.) Operating the bench grinder The bench grinder is designed for hand held grinding, sharpening, and cleaning operations. -
Page 9: Maintenance And Troubleshooting
MAinTEnAncE & TrOUbLEShOOTing changing grinding wheels WArning: To avoid injury from accidental starting, always turn the switch off, and unplug the machine from the power source before changing grinding wheels. NOTE: Inspect new grinding wheels for cracks or other visible signs of damage. Discard the grinding wheel immediately if any damage is found.
