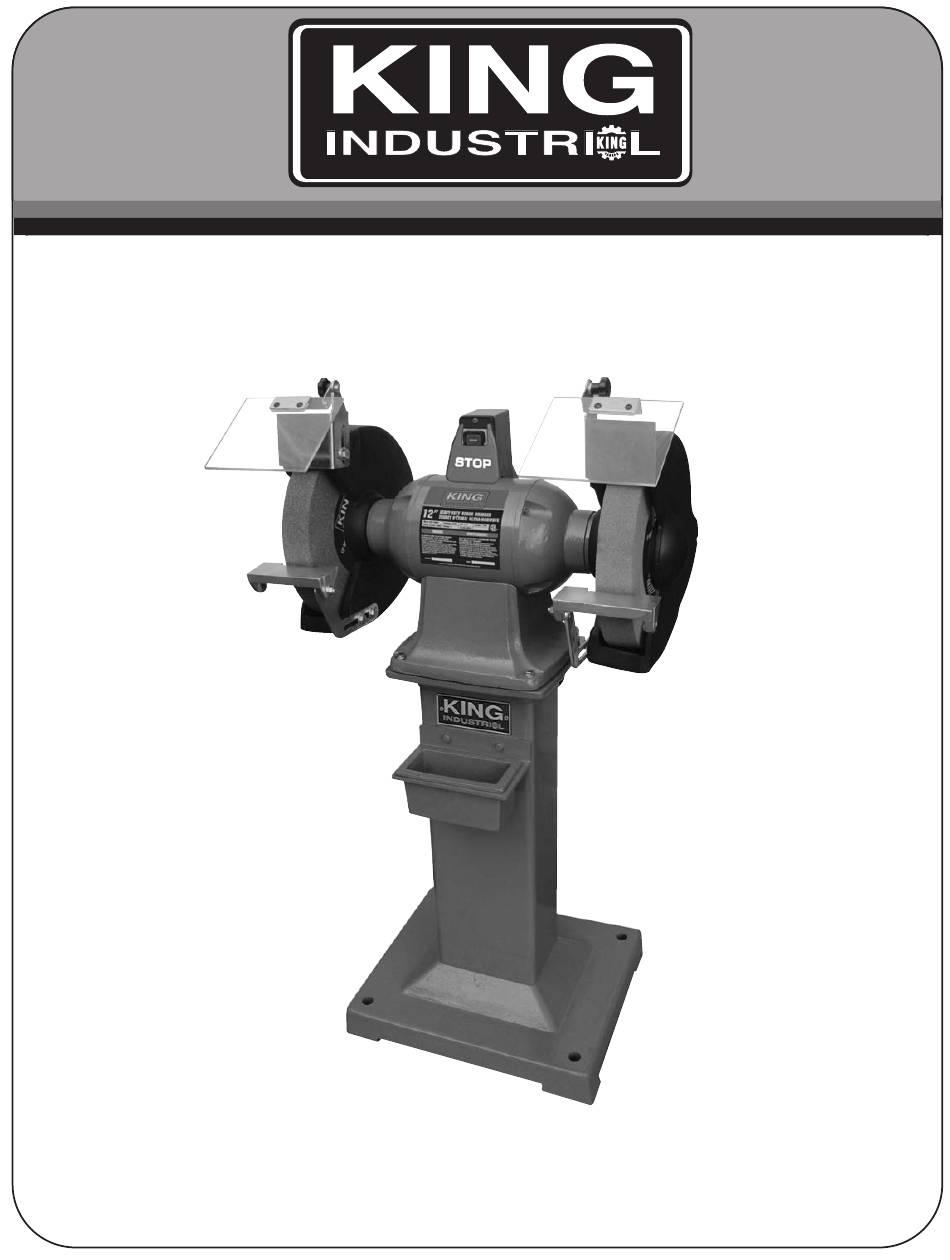

- Page 1 01/2013 12” HEAVY-DUTY BENCH GRINDER WITH FLOOR STAND MODEL: KC-1295 INSTRUCTION MANUAL COPYRIGHT © 2012 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR COMMERCIAL USE. FOR THIS 12” HEAVY-DUTY BENCH GRINDER PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 13. DON’T OVERREACH. Read and understand the owners manual and labels affixed to Keep proper footing and balance at all times. the tool. Learn its application and limitations as well as its 14. - Page 4 SPECIFIC SAFETY INSTRUCTIONS FOR YOUR BENCH GRINDER 1. EYE PROTECTION. 12. CRACKED WHEEL. Grinding ejects small particles at a high rate of speed. ALWAYS Cracked wheels may break and fly apart during operation. wear safety glasses when using this machine. Replace cracked wheels immediately! 2.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE BENCH GRINDER DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! GENERAL INFORMATION- 220V single phase operation This bench grinder comes with a 1.5 HP 220V single phase motor. PROPERLY GROUNDED OUTLET WARNING: YOUR BENCH GRINDER MUST BE CONNECTED TO A 220V-240V, 1 PHASE ELECTRICAL SUPPLY. -
Page 6: Specifications
10. Grinding wheel guard cover. Remove this cover to gain access to the grinding wheel. 11. Grinding wheel (60 Grit).Used to remove light material from workpiece. SPECIFICATIONS Model ......................................KC-1295 Wheel size ....................................12” x 2” Arbor size ......................................1-1/4 Motor ..................................1.5 HP/CV, 10 Amp. RPM........................................1,800 Voltage ..................................220V, 1 phase, 60 Hz... - Page 7 ASSEMBLY Installing spark guards to wheel guards 1. Install the spark guard (A) Fig.4 to the inside surface of the wheel guard (B) using a washer and hex. bolt (C). Repeat for the other side. 2. Adjust both spark guards (A) until they are 1/16” from the grinding wheels (D).
- Page 8 ASSEMBLY Installing the grinder assembly onto the stand Note: To avoid tipping over or sliding during operations, the bench grinder should be secured to the supplied stand. 1. The grinder base comes with 4 mounting holes in its base, position the grinder onto the top flat surface of the stand (A) Fig.8 and secure the grinder to the stand using hex.
-
Page 9: Operation & Troubleshooting
OPERATION & TROUBLESHOOTING Operating the bench grinder The bench grinder is designed for hand held grinding, sharpening, and cleaning operations. ALWAYS WEAR EYE PROTECTION! Hot sparks are produced during grinding operations. 1. The power switch must be in the "OFF" position. 2.
