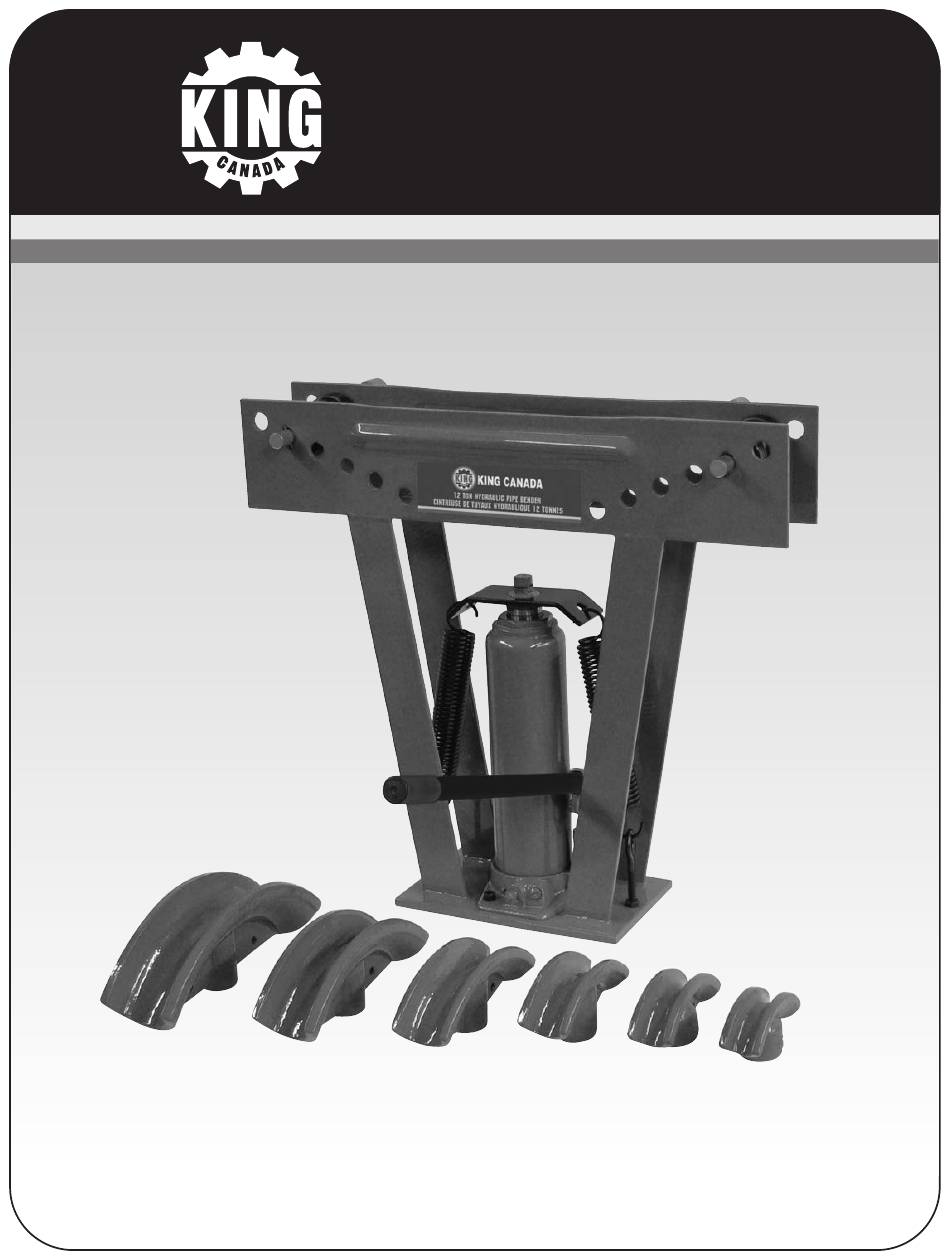

- Page 1 KING CANADA 12 TON HYDRAULIC PIPE BENDER MODEL: KPB-12T INSTRUCTION MANUAL COPYRIGHT © 2010 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. - Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS GENERAL SAFETY RULES 1. KNOW YOUR TOOL 8. DON’T OVERREACH. Read and understand the owners manual and labels affixed to Keep proper footing and balance at all times. 9. MAINTAIN TOOL WITH CARE. the tool. Learn its application and limitations as well as its specific potential hazards.
- Page 4 15. Hydraulic pump handle 8. Hydraulic pump 16. Hydraulic pump release valve 9. Ram 17. Roller support bar locking pins 18. Oil fill plug MODEL KPB-12T Maximum capacity 12 Ton Stroke 9-1/2” 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2” Dies Minimum length of pipe 13”...
-
Page 5: Operation
OPERATION SETTING UP AND OPERATING PIPE BENDER This pipe bender is designed to bend water pipes and heavy gauge galvanized pipes. If you need to bend conduits or thin walled pipes, fill the pipe with sand or similar material and cap both ends before bending, this will limit kinks and creases. -
Page 6: Operation And Maintenance
5) Pump the jack to its maximum extension (fully extended), then retract the ram to expel air in the jack. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
