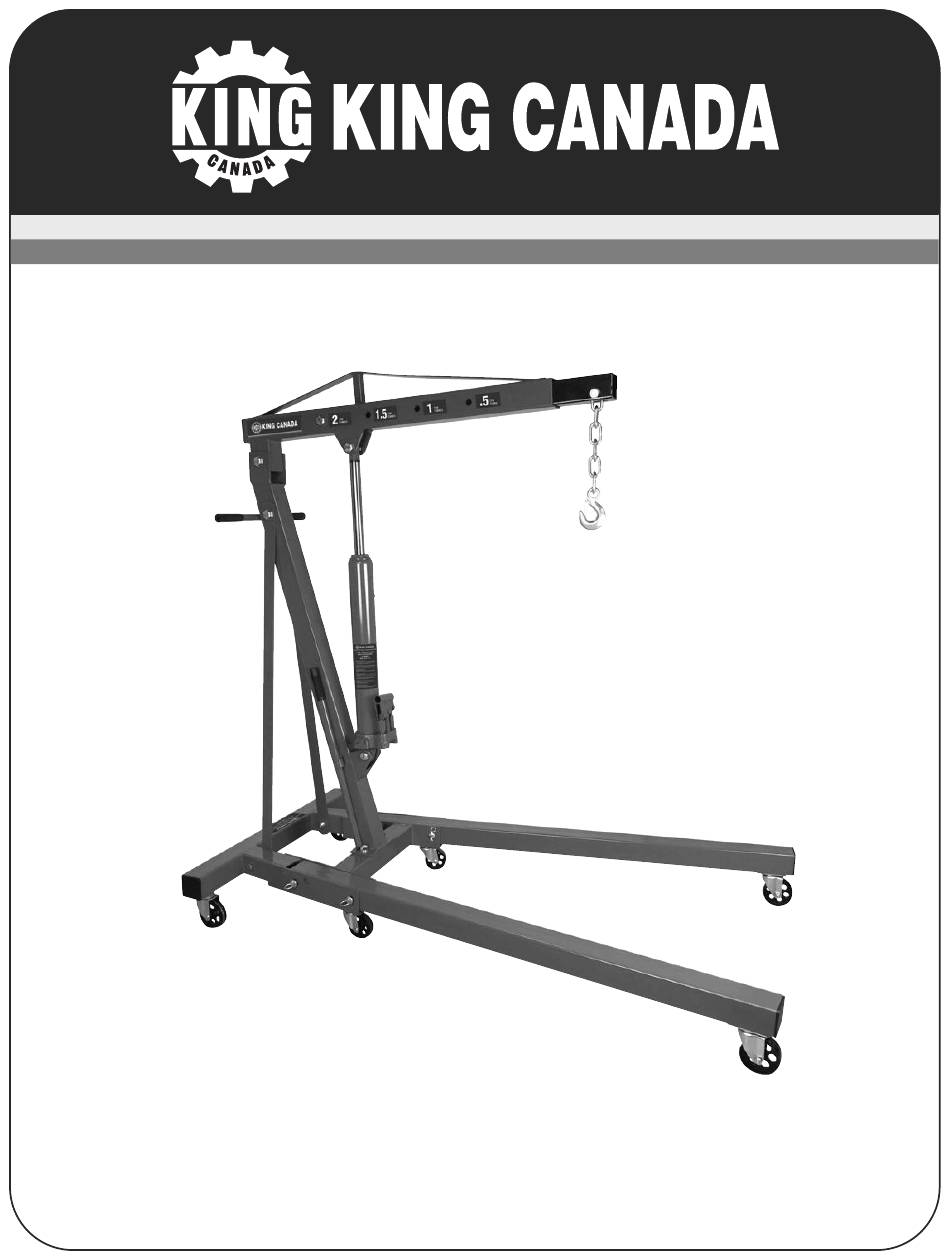

- Page 1 2 TON FOLDING SHOP CRANE INSTRUCTION MANUAL MODEL: KFC-2TC COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable.
- Page 3 SPECIFIC SAFETY INSTRUCTIONS FOR SHOP CRANES WARNING! 1. Study and understand all operating instructions before operating crane. 2. Do not exceed the rated capacity of the crane. Position 1 (.5 ton), position 2 (1 ton), position 3 (1.5 tons), position 4 (2 tons). 3.
- Page 4 SHOP CRANE CAPACITIES BOOM OVERALL BASE BASE LENGTH WHEEL CAPACITY BOOM REACH CHAIN (TONS) HEIGHT LENGTH HEIGHT LENGTH WIDTH INSIDE DIAMETER SIZE WEIGHT (OUTSIDE) LEGS (LBS) 0” 61” 64-1/2” 20-5/8” 36” 48” 48” 59” 36” 42-1/2” 3/8 x 12 3-1/2” 205 lbs.
- Page 5 ASSEMBLY, OPERATION & MAINTENANCE ASSEMBLY Note: Refer to parts diagram for index numbers found in parenthesis (#): 1. Install two large wheels (#1) to the front legs (#11) and two large wheels (#1) to the frame base (#4) using four hex. bolts (#3) and hex. nuts (#2) for each wheel.
