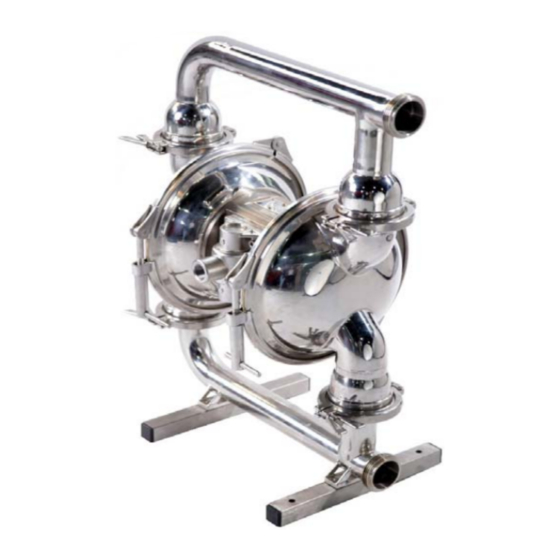

Blagdon Pump B5005 Series Service & Operating Manual

Air operated double diaphragm pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

S S E E R R V V I I C C E E & & O O P P E E R R A A T T I I N N G G M M A A N N U U A A L L
AIR OPERATED DOUBLE DIAPHRAGM PUMP
N N 5 5 0 0 & & X X 5 5 0 0
Hygienic B5005 Series
Hygienic B5002 Series
This pump is Atex approved for use
in potentially explosive atmospheres
Group II category 2

Table of Contents

HG-CF-1100 Rev. G - 11.01.10
HG-CF-1100 Rev. D - 09.02.11
b50_x50_hygienic_manual-rev0220
Lube Free
Lube Free
2
3
3
4
4
5
5
6
7
7
8
8
8
8
9
10
11
12
II 2 GD c
Page 1
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B5005 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Blagdon Pump B5005 Series

Summary of Contents for Blagdon Pump B5005 Series

  • Page 1: Table Of Contents

    S S E E R R V V I I C C E E & & O O P P E E R R A A T T I I N N G G M M A A N N U U A A L L AIR OPERATED DOUBLE DIAPHRAGM PUMP N N 5 5 0 0 & & X X 5 5 0 0 Hygienic B5005 Series Hygienic B5002 Series Lube Free...

  • Page 2: Service / Maintenance Log, Recycling

    Service / Maintenance Log Date Details Completed RECYCLING Many components of BLAGDON air operated double diaphragm pumps are made of recyclable materials. We encourage pump users to recycle worn out parts and pumps whenever possible, after any hazardous pumped fluids are thoroughly flushed. Contact Information Contact Phone / Fax No.

  • Page 3: Dimensions

    G G A A D D r r a a w w i i n n g g & & P P e e r r f f o o r r m m a a n n c c e e C C u u r r v v e e General Assembly :- B50 / X50 Hygienic pump, all dimensions +/- 3mm B50 Hygienic Pump Performance Curve, based on water at ambient temperature HG-CF-1100 Rev.

  • Page 4: Technical Data & Temperature Limitations

    TECHNICAL DATA FLUID CONNECTIONS CAPACITY MAX SOLIDS MAX DISCHARGE HEAD DISPLACEMENT/STROKE 2” RJT Male 0 - 476 Litres/Minute 6 MM 88 Meters 1.9 Litres (0 - 105 Gallons/Minute) (1/4”) (289 ft) (0.42 UK Gallons) MAX. WORKING PRESSURE AIR INLET TEMPERATURE LIMITS PUMP WEIGHTS :- 8.6 Bar (125 psi) 3/4”...

  • Page 5: Principle Of Pump Operation

    This causes the diaphragms, which are body. This simultaneously sends inlet pressure Your BLAGDON PUMP is a high connected by a common shaft secured by plates to the opposite chamber.

  • Page 6: Important Warnings & Safety Information

    Important Warnings and Safety Information IMPORTANT Read these safety warnings and instructions in this manual completely, before installation and start-up of the pump. It is the responsibility of the purchaser to retain this manual for reference. This manual must be kept with, and supplied with the pump at all times.

  • Page 7: Troubleshooting

    TROUBLE SHOOTING GUIDE NOTE :- Check all solutions before dismantling the pump. PROBLEM CAUSE SOLUTION Pump will not start Air valve assembly malfunction/Seizure Check carrier for freedom of movement. - Clean, oil & replace. Obstructed fluid line. Clean line or increase line size. Obstructed diaphragm chamber.

  • Page 8: Warranty

    re-torque in accordance to the settings IMPORTANT! shown in the parts list. Holding one of the frontplates in a vice, Read these instructions (‘soft jaws’ should be fitted), or with an c o m p l e t e l y , b e f o r e In the event of a complete air-side adjustable spanner, loosen and remove...

  • Page 9: Exhaust Safety

    EXHAUST SAFETY WHEN PUMPING HAZARDOUS LIQUIDS WARNING! In the event of diaphragm rupture, pumped material may enter the air end of the pump, and be discharged into the atmosphere. If pumping a product which is hazardous or toxic, the air exhaust must be piped to an appropriate area for safe disposition. Flooded Suction Installation Submerged Installation Suction Lift Installation...

  • Page 10: Parts List

    HG-CF-1100 Rev. G - 11.01.10 Page 10 HG-CF-1100 Rev. D - 09.02.11 Page 10 b50_x50_hygienic_manual-rev0220...

  • Page 11: Assembly Drawing

    HG-CF-1100 Rev. G - 11.01.10 Page 11 HG-CF-1100 Rev. D - 09.02.11 Page 11 b50_x50_hygienic_manual-rev0220...

  • Page 12: Declaration Of Conformity

    IDEX Pump Technologies (Ireland) Ltd., A Unit of IDEX Corporation, R79, Shannon, Co Clare, IRELAND. TEL. : +353 61 471933 FAX. : +353 61 475046 Web Site : www.blagdonpump.com E-Mail 2006/42/EC Date : December 01 2009 Des Monaghan, Production & Technical Manager HG-CF-223 (REV 5) HG-CF-1100 Rev.
