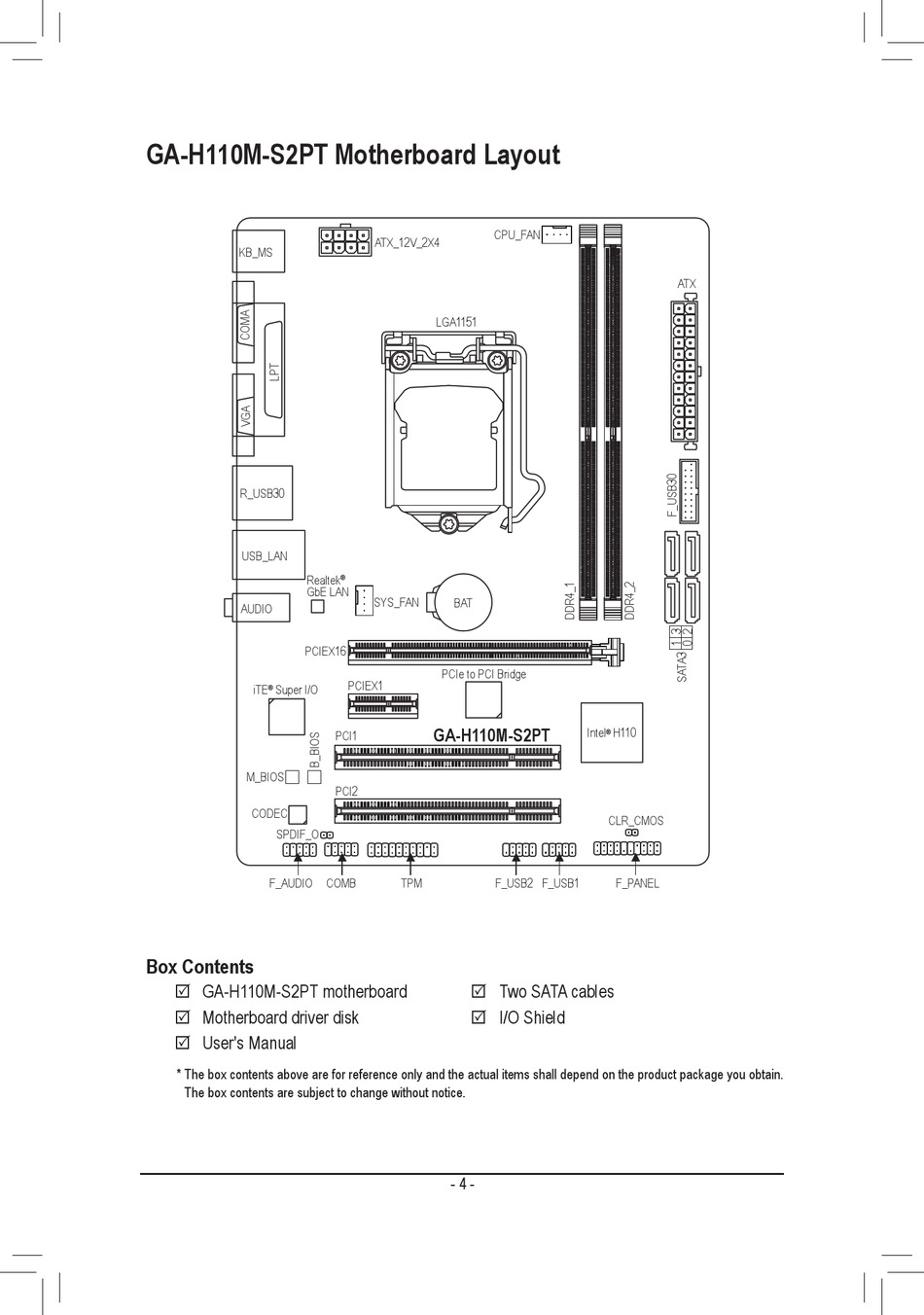

GA-H110M-S2PT Motherboard Layout

KB_MS
R_USB30
USB_LAN
Realtek
GbE LAN
AUDIO
PCIEX16
iTE Super I/O
®
M_BIOS
CODEC
SPDIF_O
F_AUDIO
Box Contents
5 GA-H110M-S2PT motherboard
5 Motherboard driver disk
5 User's Manual
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
CPU_FAN
ATX_12V_2X4
LGA1151
®
SYS_FAN BAT
PCIe to PCI Bridge
PCIEX1
GA-H110M-S2PT
PCI1
PCI2
COMB TPM F_USB2
5 Two SATA cables
5 I/O Shield
- 4 -
ATX
Intel H110
®
CLR_CMOS
F_USB1 F_PANEL
