GA-H110M-Gaming 3
User's Manual
Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-H110M-Gaming 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gigabyte GA-H110M-Gaming 3

  • Page 1 GA-H110M-Gaming 3 User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.
  • Page 3: Table Of Contents

    Table of Contents GA-H110M-Gaming 3 Motherboard Layout ..............4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. 10 Internal Connectors ..................
  • Page 4: Ga-H110M-Gaming 3 Motherboard Layout

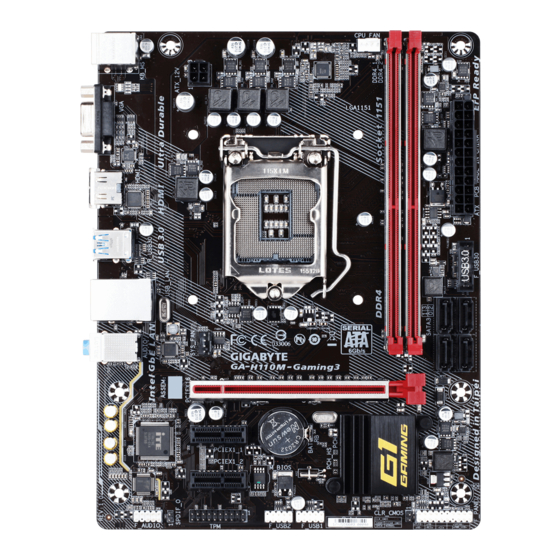

    GA-H110M-Gaming 3 Motherboard Layout CPU_FAN KB_MS ATX_12V LGA1151 R_USB30 GA-H110M-Gaming 3 USB_LAN Intel ® SYS_FAN AUDIO PCIEX16 SATA3 PCIEX1_1 ® Super I/O Intel H110 ® PCIEX1_2 CODEC M_BIOS F_PANEL F_AUDIO F_USB2 F_USB1 SPDIF_O CLR_CMOS Box Contents 5 GA-H110M-Gaming 3 motherboard...
  • Page 5: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...
  • Page 6: 1-2 Product Specifications

    Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Š Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor-Intel HD Graphics support: ®...
  • Page 7 Internal 1 x 24-pin ATX main power connector Š Connectors 1 x 4-pin ATX 12V power connector Š 4 x SATA 6Gb/s connectors Š 1 x CPU fan header Š 1 x system fan header Š 1 x front panel header Š...
  • Page 8 Micro ATX Form Factor; 22.6cm x 17.4cm Š * G IGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Please visit GIGABYTE's website for support lists of CPU, memory modules, and SSDs. Please visit the Support\Utility List page on GIGABYTE's website to download the latest version of apps. - 8 -...
  • Page 9: Installing The Cpu

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
  • Page 10: Installing An Expansion Card

    The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as following: Channel A: DDR4_1 Channel B: DDR4_2 Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one memory module is installed.
  • Page 11 Mic In (Pink) The Mic in jack. To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Please visit GIGABYTE's website for more software information. • When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard. • When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.
  • Page 12: Internal Connectors

    Internal Connectors ATX_12V F_PANEL F_AUDIO CPU_FAN SPDIF_O SYS_FAN SATA3 0/1/2/3 CLR_CMOS F_USB30 F_USB1/F_USB2 Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 13 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 14 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. Pin No. Definition SATA3 To enable hot-plugging for the SATA ports, refer to Chapter 2, "BIOS Setup," "Peripherals\SATA Configuration," for more information.
  • Page 15 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...
  • Page 16 10) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display to the graphics card and have digital audio output from the HDMI display at the same time.
  • Page 17 13) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.
  • Page 18: Chapter 2 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.
  • Page 19 M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and CPU voltage, etc. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components.
  • Page 20 & Uncore Frequency Displays the current CPU Uncore frequency. & CPU Flex Ratio Override Enables or disables the CPU Flex Ratio. The maximum CPU clock ratio will be based on the CPU Flex Ratio Settings value if CPU Clock Ratio is set to Auto. (Default: Disabled) &...
  • Page 21 & C8 State Support (Note) Allows you to determine whether to let the CPU enter C8 mode in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption. The C8 state is a more enhanced power-saving state than C6/C7.
  • Page 22 & Memory Boot Mode (Note) Provides memory detection and training methods. Auto Lets the BIOS automatically configure this setting. (Default) S kip memory detection and training in some specific criteria for faster memory Enable Fast Boot boot. Disable Fast Boot Detect and train memory at every single boot. & Memory Enhancement Settings Provides several memory performance enhancement settings: Normal (basic performance), Relax OC, Enhanced Stability, and Enhanced Performance.
  • Page 23 & VAXG Loadline Calibration Allows you to configure Load-Line Calibration for the CPU VAXG voltage. Selecting a higher level keeps the CPU VAXG voltage more consistent with what is set in BIOS under heavy load. Auto lets the BIOS automatically configure this setting and sets the voltage following Intel's specifications. (Default: Auto) ` CPU Core Voltage Control This section provides CPU voltage control options. ` DRAM Voltage Control This section provides memory voltage control options.
  • Page 24 & Fan Speed (CPU_FAN, SYS_FAN Connectors) Displays current CPU/system fan fan speeds. & CPU/System Temperature Warning Sets the warning threshold for CPU/system temperature. When temperature exceeds the threshold, BIOS will emit warning sound. Options are: Disabled (default), 60 C/140 F, 70 C/158 F, 80 C/176...
  • Page 25: System

    System This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...
  • Page 26: Bios

    System program. (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed.
  • Page 27 & SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast.
  • Page 28 & Storage Boot Option Control Allows you to select whether to enable the UEFI or legacy option ROM for the storage device controller. Disables option ROM. Disabled Legacy Only Enables legacy option ROM only. (Default) UEFI Only Enables UEFI option ROM only. This item is configurable only when CSM Support is set to Enabled.
  • Page 29: Peripherals

    Peripherals & Intel Platform Trust Technology (PTT) Enables or disables Intel PTT Technology. (Default: Disabled) ® & Ambient LED Enables or disables the onboard audio LED. (Default: On) & Legacy USB Support Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled) &...
  • Page 30 ` Trusted Computing 2.0 This sub-menu appears only when Intel Platform Trust Technology is set to Enabled. & Security Device Support Enables or disables Trusted Platform Module (TPM). (Default: Enabled) & Pending operation To clear TPM related settings, set this item to TPM Clear. (Default: None) &...
  • Page 31: Chipset

    Chipset & VT-d (Note) Enables or disables Intel Virtualization Technology for Directed I/O. (Default: Disabled) ® & Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) & DVMT Pre-Allocated Allows you to set the onboard graphics memory size. Options are: 32M~512M. (Default: 64M) &...
  • Page 32: Power

    Power & Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) & PEG ASPM Allows you to configure the ASPM mode for the device connected to the CPU PEG bus. This item is configurable only when Platform Power Management is set to Enabled. (Default: Enabled) &...
  • Page 33 & Power On Password Set the password when Power On By Keyboard is set to Password. Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to accept. To turn on the system, enter the password and press <Enter>. Note: To cancel the password, press <Enter>...
  • Page 34: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...
  • Page 35: Chapter 3 Appendix

    You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. Please visit GIGABYTE's website for more software information. Please visit GIGABYTE's website for details on configuring the audio software. - 35 -...
  • Page 36: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 37 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 38: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: http://esupport.gigabyte.com...
