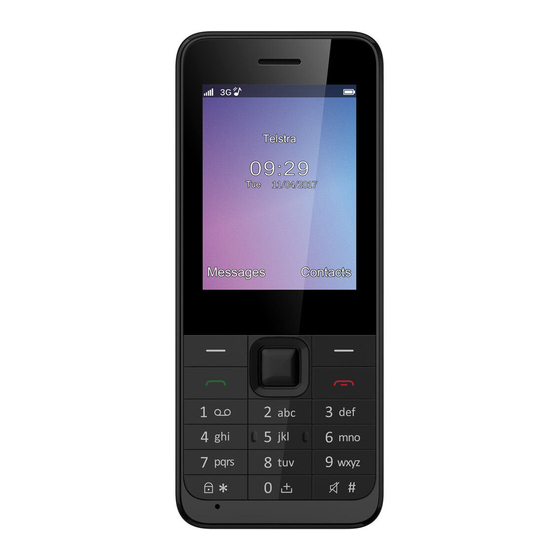

Telstra F327S
3G MOBILE PHONE
USER MANUAL
Search 'ZTE Australia' on Facebook , Google+ and Twitter to keep in touch.
©
2017 Version 1.0
April 2017
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Telstra F327S and is the answer not in the manual?

Questions and answers

Summary of Contents for Zte Telstra F327S

  • Page 1 Telstra F327S 3G MOBILE PHONE USER MANUAL Search ‘ZTE Australia’ on Facebook , Google+ and Twitter to keep in touch. © 2017 Version 1.0 April 2017...
  • Page 2: What's Inside

    WHAT’S INSIDE 03 Getting Started 06 Get to know your mobile phone 13 Calls 17 Contacts 19 Messaging 25 Settings 26 Media Player 27 Email 29 Quick Reference Features 33 Troubleshooting, Technical and Warranty 37 Technical Specifications 40 Extra bits you should know This phone is suitable for use on the Telstra network.
  • Page 3: Getting Started

    GETTING STARTED 1. REMOVE THE BACK COVER • Use the thumb catch at the bottom left on the back to open the battery cover.
  • Page 4 2. INSERT THE SIM CARD (STANDARD SIZE) Insert the SIM card with the gold contacts facing down and the slanted edge • on the top left as shown: This phone uses a Standard sized or 2FF SIM Card. •...
  • Page 5: Insert The Battery

    3. INSERT THE BATTERY • Press the battery down flush into the case lining up the gold contacts and pins. • Replace the battery cover and press gently to close the case. • Press and hold the Red power key to power your device on and off. 4.
  • Page 6 GET TO KNOW YOUR MOBILE PHONE...
  • Page 7: Unlock The Screen

    UNLOCK THE SCREEN • To unlock, press the power key to wake up the screen • Press and hold the Key to Unlock (Long press *) • To lock the screen press and hold the • Go to Menu > Settings > Phone Settings > Display > Screen auto lock to change the timer or switch this on or off.
  • Page 8: Navigation Keys

    NAVIGATION KEYS • From the Home screen press the navigation keys to launch the default shortcuts: Camera Alarms Messages Volume Down Volume Up Images • During a Call the left and right navigation keys will adjust the in call volume •...
  • Page 9 MENU QUICK REFERENCE GUIDE Menu 1 Contacts Messages Calls E-mail Browser Settings – see below Camera Media FM Radio Images Recorder Files Menu 2 Bluetooth Calendar Alarm World Clock Notes Calculator Tasks Convert Torch Stopwatch...
  • Page 10: Settings Menu

    SETTINGS MENU...
  • Page 11: Key Functions

    KEY FUNCTIONS Indicator Description Power Key – hold down to power On and Off Press to End a Call. Press to Exit a menu and return to the idle screen Call Key - After entering a number press to make the call Press to access the call logs Press twice for last number redial.
  • Page 12: Status Icons

    STATUS ICONS Alarm is set Network signal level Bluetooth On No Network Connected to 3G Missed Call Connected to 2G Received SMS HSDPA Data Received MMS EDGE Data Outgoing Message Battery level Screen is locked Vibrate then ring Roaming Ring only Speaker is muted Vibrate only Active Call...
  • Page 13 CALLS There are 3 ways you can make a call on your phone: 1. Enter the number on the keypad, if you know the number 2. Select the left soft key to access Contacts, select the number then press OK or the Green key to call directly 3.
  • Page 14: How To Answer An Incoming Call

    HOW TO ANSWER AN INCOMING CALL There are two ways to answer an incoming call: • Press the green key answer the call • Press the red key or Reject to end the call. Handy Hint: If you would like to silence an incoming call without rejecting it, press the down arrow on the navigation keypad or the right soft key for Silence.
  • Page 15 CALL FEATURE SUMMARY The table below is a quick summary of call features Function Description Menu Selection Call Barring Restrict various categories of Menu > Settings > Call incoming or outgoing calls. settings > Call barring Call Divert Forward incoming calls to Menu >...
  • Page 16 Menu > Contacts > Set Speed Dial Set your Contacts to be called Options > Phonebook directly from the idle screen. settings > Speed dial Long-press the number to dial. Speakerphone Use hands-free or in loud During a call press the speaker mode.
  • Page 17 CONTACTS There are some numbers that you may want to call again and again so it makes sense to add these to your Contacts. You can then access these numbers quickly and easily and add special features such as Speed Dialling, a dedicated Ringtone or a Photo. Function Description Menu Selection...
  • Page 18 Delete a Select the Contact then Menu > Contacts > Contact press Options Options > Delete Enter a new Save a number you have Enter the number > Contact just dialled as to a contact Options > Save to Phonebook > Follow the prompts Search your Search Contacts to find a...
  • Page 19 MESSAGING You can stay connected by using your mobile to send messages, multimedia messages and emails to your family and friends. Important Note: If your text message exceeds 160 characters you will be charged for multiple text messages. Letters, symbols and spaces count as characters. HOW TO CREATE A TEXT MESSAGE (SMS) •...
  • Page 20 HOW TO ADD A CONTACT TO A TEXT MESSAGE (SMS) • Press the Left Soft Key as the shortcut for Messages (SMS) or select Menu > SMS > Write Message • Enter the phone number directly or press OK key to select a contact manually from your Contacts •...
  • Page 21 Handy Hint: Press the # key to change between predictive text (Smart Abc) and standard typing modes. In Multi-tap modes (Abc/ABC) if the next letter is on the same key, wait until the cursor appears or press the Right arrow. HOW TO TYPE USING THE KEYPAD (abc, Abc &...
  • Page 22: How To Send A Multimedia Message (Mms)

    • Press the 1 key for common punctuation marks • Press the * key for special characters • Long press the key to enter the corresponding number. Important Note: € \ │ Each time one of these symbols is used 2 standard [ ] { } SMS characters are transmitted.
  • Page 23 Sending a MMS is similar to a text message. The main difference is adding media. This can be done by selecting Options > Insert > Choose from My Pictures, Take picture etc… Use a Multimedia Messages to send attachments such as pictures, music or video files.
  • Page 24: How To Receive A Multimedia Message (Mms)

    HOW TO RECEIVE A MULTIMEDIA MESSAGE (MMS) When a new MMS has arrived you see a pop up notification on the main screen. • Press OK key to View • Press Retrieve to download the message attachment • When the attachment has downloaded if you would like to save the attachment press the Left Soft Key for Options •...
  • Page 25: Basic Settings

    BASIC SETTINGS SET THE TIME AND DATE The time and date is set automatically from the network. It takes a few seconds to update when the phone is first switched on. Handy Hint: Select Menu > Settings > Phone Settings> Time and date to change manually CHANGE THE RINGTONE To personalise your ringtone follow these few simple steps: •...
  • Page 26 ADJUST RINGTONE VOLUME Change the default volume for any of the profiles • Select Menu > Settings > Profiles • Press left soft key Options > Customise the current profile • Scroll down to Ring volume • Press left and right keys to set the volume •...
  • Page 27: How To Receive An Email

    Important Note: You may need additional information from your Internet Service Provider (ISP) if registering an email provided by your ISP or other email service provider that is not in the list. HOW TO SEND AN EMAIL • Menu > Email > Select Email Account > Write Email •...
  • Page 28: Media Player

    HOW TO SET UP AUTOMATIC RETRIEVAL • Menu > Email > Select email account > Options > Edit > Advanced Settings > Account settings > Check interval • Set your required time interval to check the server for new Email messages. MEDIA PLAYER •...
  • Page 29 QUICK REFERENCE FEATURES Function Description Menu Selection Alarms Set and edit Alarms Menu > Alarm > Edit. Press the right soft key Back Function Go back one screen Set the backlighting Menu > Settings > Phone Backlighting duration settings > Display> LCD backlight Connect to Bluetooth Menu (scroll right) >...
  • Page 30 Delete Text Press the Clear key Clear key for delete, in any text (Right soft key) mode. Rotate, add effects etc Edit Images Menu > Images > Options > Edit View and manage your File Manager Menu > Files files Menu >...
  • Page 31 Message Tone Change the incoming Menu > Profiles > Options > message tone Customise > Message > Options > Save Media Play your audio files Menu > Media PC Connection Connect your phone to Connect your phone to a PC a PC to browse photos then select Mass Storage to and other files...
  • Page 32 Silent mode Silence the incoming Menu > Profiles > Silent ring and all other sounds Speakerphone Use hands-free or loud During a call (or call set-up) speaker mode. press the right soft key (H-free) for Speaker Stopwatch Activate the Stopwatch Menu >...
  • Page 33: Troubleshooting, Technical And Warranty Information

    TROUBLESHOOTING, TECHNICAL AND WARRANTY INFORMATION TROUBLESHOOTING AND FAQ’S Please check the manual thoroughly before contacting Telstra. Symptom Solution How do I reset to Menu > Settings > Restore factory settings > 0000 factory defaults? How do I find the Menu > Messages > Message Settings > Text SMS Service Centre message >...
  • Page 34 Symptom Solution How do I change the Menu > Settings > Connectivity > Data accounts. Use Options > Restore default to set back to Telstra How do I enable data Menu > Settings > Connectivity > Data roaming roaming Menu > Browser > Internet service > Settings > How do I clear my Browser options >...
  • Page 35 Symptom Solution MMS messages Your phone may not be setup with correct network cannot be sent or settings, contact Telstra to setup. This type of content received. may be restricted by your service. How do I change to Press the # key to bring up the available text formats, Predictive Text? select S Abc for smart text.
  • Page 36: Error Messages

    Symptom Solution Menu > Messages > Write message How do I write an From the phone number field press the down arrow SMS? to move into the text area. Use predictive text or abc mode to type words using the keypad The handset switches The handset is charging in the off state.
  • Page 37: Technical Specifications

    TECHNICAL SPECIFICATIONS Network Compatibility 3G UMTS 850 with 7.2Mbps data Dimensions L×W×H Approx 119.5mm x 50mm x 14.1mm Weight Approx 86g (Including standard battery) Features MP4 video, MP3 audio, 80KPixel rear camera, USB, 2.4” 65K colour TFT display with 240 x 320 pixels, MMS, Email, Calendar, Speakerphone, Voice Recorder, 3.5mm audio jack, CTM, approx 43MB user memory, Bluetooth 2.0...
  • Page 38: Support Information

    SUPPORT INFORMATION • For Warranty Service directions please consult Telstra. You can also contact ZTE through Facebook for support and troubleshooting assistance. • All calls for PIN number enquiries, Network problems, Web Access, Account and Billing Information, (U)SIM card registration and other general enquiries should be directed to your Service Provider.
  • Page 39: Warranty Information

    WARRANTY INFORMATION The warranty does not apply to defects or errors in the product caused by: Normal wear and tear Misuse including mishandling, physical damage, improper installation – including battery, and unauthorized disassembly of the product Water, exposure to solvents or any other liquid damage Any unauthorised repair or modification Power surges, lightning, fire, flood or other natural events Use of the product with unauthorized third party products such as...
  • Page 40: Extra Bits You Should Know

    EXTRA BITS YOU SHOULD KNOW SAFETY AND GENERAL INFORMATION The handset contains delicate electronic circuitry, magnets and battery systems. Treat it with care and pay attention to the following points: • • Handle the handset with care. Do Keep the handset, battery, charger not drop or throw the handset.
  • Page 41 • objects such as coins or keys to Do not put the battery in your come into contact with the battery mouth. • terminals. Only use original replacement • Do not dispose of batteries in a batteries. • fire. Do not attempt to dismantle the •...
  • Page 42 • before use. Take care when the phone is in • Do not use the handset while your pocket. Sitting down may driving or operating other damage the handset. • machinery. It is normal for the handset to • Do not use the handset where become warm while the battery is being charged.
  • Page 43 • or solvents. Your device is locked to the Telstra • If you have an alarm or calendar network. Contact Telstra to obtain event set the handset switches on the unlock code and instructions. at the prescribed time.
  • Page 44: Warnings And Safety Notices

    LIMITATION OF LIABILITY ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using this product, whether or not ZTE had been advised, knew or should have known the possibility of such damages.
  • Page 45: Rf Safety Information

    RF SAFETY INFORMATION The handset has an internal antenna located at the top of the phone. For optimum performance with minimum power consumption do not cover the antenna area with your hand. Hold the handset between thumb and finger in the middle of the device.
