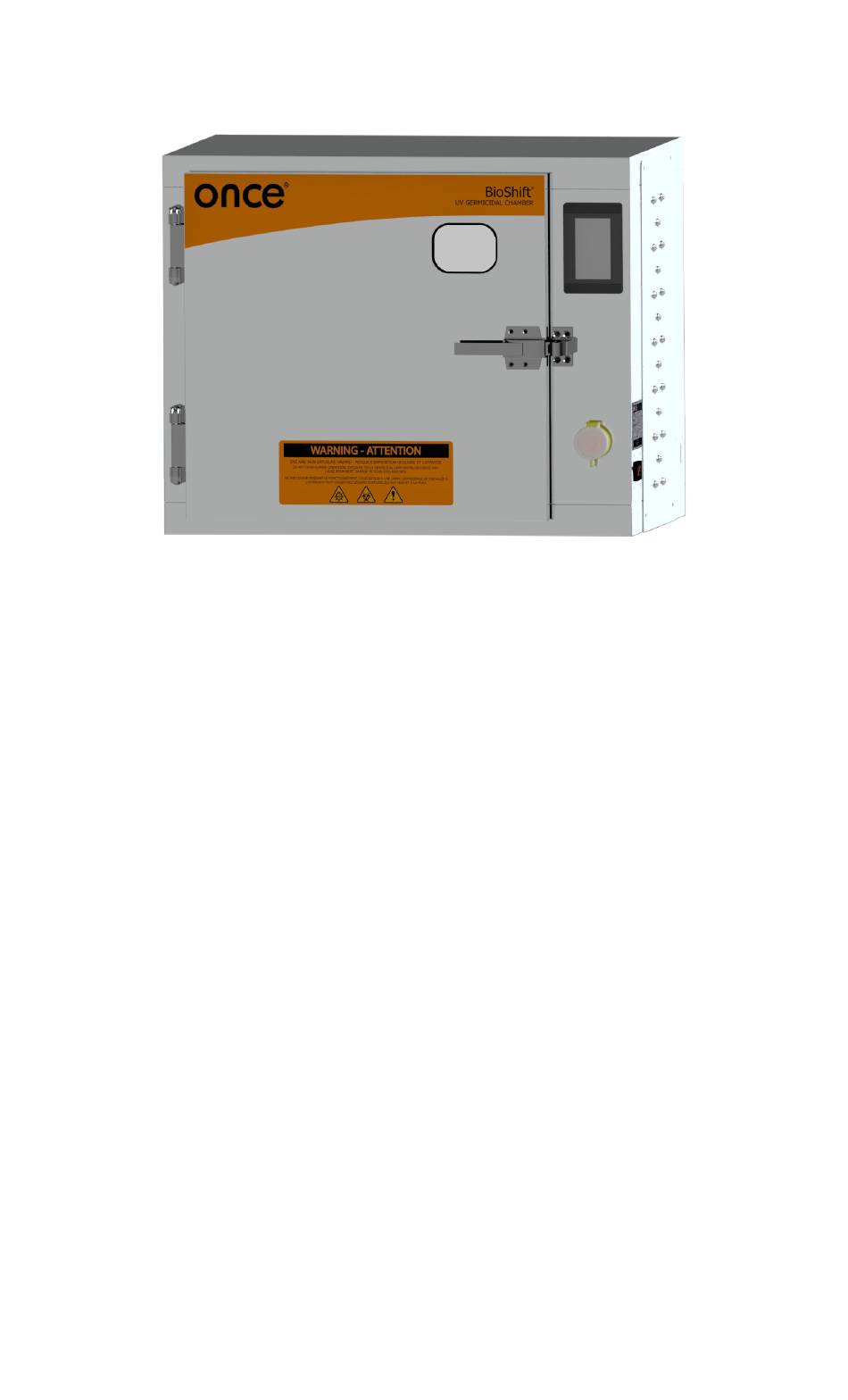

BioShift
Pass-Through UV-C
®
Chamber - Small
Instruction Manual
This manual provides BioShift
Pass-Through Chamber user
®
guidelines and additional operation instructions for agricultural/industrial use.
For Service or Parts Call Your
Sales Representative or Contact us at:
T +1 (763) 381-5621
F +1 (763) 381-5698
E info@once.group
www.once.group
Once Inc., a Signify company
15255 23rd Ave. N.
Plymouth, MN 55447
United States of America
Advertisement
Table of Contents
Related Manuals for Once BioShift
Summary of Contents for Once BioShift
- Page 1 BioShift Pass-Through UV-C ® Chamber - Small Instruction Manual This manual provides BioShift Pass-Through Chamber user ® guidelines and additional operation instructions for agricultural/industrial use. For Service or Parts Call Your Sales Representative or Contact us at: T +1 (763) 381-5621 F +1 (763) 381-5698 E info@once.group...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..............................2 Features ............................. 2 Specifications ............................. 3 Safety ................................. 4-5 Installation ..............................6 Touchscreen Display ..........................7-9 Home Screen Components ....................7 Maintenance Screen Components .................. 8 Settings Screen Components .................... 9 Programming ............................10 Cycle Time ..........................10 Sleep Timer .......................... -
Page 3: Introduction
UV-C radiation. Thus, the BioShift Pass-Through UV-C Chamber should be used ®... -
Page 4: Specifications
SPECIFICATIONS Dimensions Outside 29.5” wide x 23” deep x 23.6” high (750 x 584 x 600 mm) Weight 110 lbs (50 kg) Functional Operating Power / Current 80W / 667 mA Standby Power / Current 7W / 100 mA Input Voltage 110-125VAC, 50/60 Hz (voltage fluctuation ±10%) Power Connection Connect to branch circuit rated 20A max... -
Page 5: Safety
UV-C lamp without proper eye protection. The chamber windows provide a safe way to view inside chamber without the risk of UV-C expsosure. Ozone may be formed near UV-C lamps. Excessive ozone exposure can cause eye irritation and discomfort in the respiratory tract. Operate the BioShift Pass-Through ®... - Page 6 EMERGENCY STOP is pressed. Clean Side Door Once cycle time is complete, the clean side door can be opened once. If the dirty side door has been opened, the clean side door will not open unless another cycle is complete. The BioShift chamber WILL NOT resume operation after re-closing.
-
Page 7: Installation
Using screws or nails (not provided), attach removed panels to support beams. Use as many screws or nails needed to ensure panel is securely held to beams. Using two people, carefully slide BioShift chamber into place and secure panel to ®... -
Page 8: Touchscreen Display
TOUCHSCREEN DISPLAY The touchscreen display is located on the clean side of the BioShift chamber. ® Home Screen Components (1) Disinfection Time Display (2) Chamber Start / Stop (3) Chamber Status (4) Settings (5) Maintenance... -
Page 9: Maintenance Screen Components
TOUCHSCREEN DISPLAY Located under the Maintenance button. Maintenance Screen Components (1) View Lamp Life Remaining (2) Reset Lamp Life (3) View Lamp Replacement Info (4) Run 100mJ/cm Dose Test (5) Run 250mJ/cm Dose Test (6) Run 1000mJ/cm Dose Test... -
Page 10: Settings Screen Components
TOUCHSCREEN DISPLAY Located under the Home screen Settings button. Settings Screen Components (1) View Set Lamp Cycle (2) Set Lamp Cycle (3) Set Sleep Time (4) Expired Lamp Life (5) Contact ONCE ®... -
Page 11: Programming
Choose the Set Cycle button. Note: The time is set by arrowing up or down. The format is automatically programmed in MM:SS. • Once desired lamp life cycle has been chosen, select the check mark to set. PROGRAMMING ITEMS TO NOTE: •... -
Page 12: Maintenance
MAINTENANCE Alert Notifications / Errors An alert symbol will appear in the upper left corner of Maintenance button when the following occurs: • UV-C lamps have reached maximum cycle / hours. • Replacement bulbs have been installed and Lamp Life needs to be reset Simply follow the red exclamation point to the source of the issue. -
Page 13: Check Lamp Life
Maintenance menu (see Maintenance Screen Components). Order Replacement Lamps and Ballasts The information required for ordering new lamps include the lamp part number and ONCE contact information. This information can be found from the Maintenance screen ® under Lamp Replacement Info. -
Page 14: Reset Lamp Life
UVC Dose Verification It is imporatant to regularly verify the UVC dose output of the BioShift unit to ensure proper disinfection. Every 50 cycles or once per month, whichever comes first, the operater shall verify that the UVC dose exceeds a minimum of 100 mJ/cm in a short programmed test cycle. -
Page 15: Operating
Press Start button. When a cycle is started the timer (located on the clean side controller) will count down. The chamber will turn OFF automatically after programmed time (recommended 5 minutes). If BioShift chamber is kept between 45°F (7 °C) to 65°F (18 °C) temperatures, a ®... -
Page 16: Warranty
For additional warranty terms and the Limited Warranty, please see the following page. For any inquiry regarding instrument operation, service, parts - contact your sales representative or email us at info@once.group with “BioShift UV-C Chamber” in the Subject line. - Page 17 OU UNE CÉCITÉ PERMANENTE. LORS DE L’UTILISATION DE CETTE MACHINE, TOUJOURS SUIVRE LES PROCÉDURES APPROPRIÉES. Le caisson UV-C passer à travers BioShift est garanti contre les défauts de matériaux et de fabrication pendant deux ans. Si des défauts surviennent dans le caisson pendant cette période de garantie, ONCE réparera ou remplacera les pièces défectueuses...
- Page 18 • If a Product fails to operate in accordance with this warranty, ONCE, at its discretion, will repair or replace the Product or the defective part thereof or reimburse warranty holder for the purchase subject to the terms and conditions set forth below.
- Page 19 • With respect to products sold to the Purchaser by ONCE but not bearing the ONCE name or sub-brands, ONCE makes no warranty of any kind, express or implied, including,...
- Page 20 This BioShift Chamber has not been approved and/or certified as a medical device anywhere in the world. As such, the BioShift Chamber cannot be used to disinfect (the surfaces of ) medical devices such as, without limitation, surgical respirators, surgical masks and/or other medical device-grade PPE.
- Page 21 À la demande de ONCE, les produits non conformes ou défectueux deviendront la propriété de ONCE dès qu’ils auront été remplacés. • ONCE se réserve le droit de prendre la décision finale sur la validité de toute demande de garantie. Termes et conditions supplémentaires •...
- Page 22 • ONCE ne sera en aucun cas tenu responsable des coûts ou des dépenses de retrait ou de réinstallation, y compris, sans s’y limiter, des coûts ou des frais de main-d’œuvre, des frais d’expédition et de manutention, ou des frais de retour.
- Page 23 Cette chambre BioShift n’a été approuvée et / ou certifiée comme dispositif médical nulle part dans le monde. En tant que telle, la chambre BioShift ne peut pas être utilisée pour désinfecter (les surfaces de) dispositifs médicaux tels que, sans limitation, les respirateurs chirurgicaux, les masques chirurgicaux et / ou tout autre EPI de qualité...
-
Page 24: Contact Information
BioShift Pass-Through UV-C ® Chamber - Small For more information and references visit us online at www.once.group/biosecurity Manual valid for all 24-0200 models For Service or Parts Call Your Sales Representative or Contact us at: T +1 (763) 381-5621 F +1 (763) 381-5698 E info@once.group...
