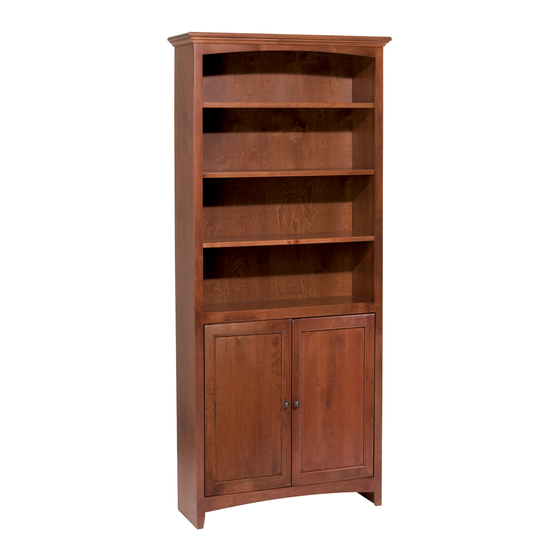

24"- 36"W AUF McKenzie Alder Bookcase
with Doors: 72" + 84"H
Ready to Finish
24" Wide
Model #
30" Wide
Model #
36" Wide
Model #
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
24" x 84"
24" x 72"
1525AUFa
1527AUFa
30" x 84"
30" x 72"
1535AUFa 1537AUFa
36" x 84"
36" x 72"
1545AUFa 1547AUFa
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• This assembly requires two people.
• For
normal household use only. Not recommended for commercial use.
• Do not climb, sit or stand on this piece of furniture.
• Do not overload the shelves.
• Unload items before you move this unit.
• Before you load or move this unit, tighten all screws and supports.
• For maximum stability, attach unit to the wall using the enclosed
hardware as per instructions and supports.
• Before
you begin your project, completely read the Assembly Instructions
and Finishing Hints.
• Periodically inspect your furniture for any loose glue joints, screws or
any other problem that might affect the stability of your furniture.
Tighten or repair as needed.
Serious or fatal crushing injuries can occur from furniture tip-over. Use of
tip-over restraints may only reduce but not eliminate the risk of tip-over.
To help prevent tip-over:
•
Place heaviest items in the bottom shelves.
•
Unless specifically designed to accommodate, do not set TVs or other
heavy objects on top of this product.
•
Never allow children to climb or hang on drawers, doors or shelves.
•
Never open more than one drawer at a time.
Warning: At least one tipping restraint kit was included with your piece of
Whittier Wood Furniture. When you receive your furniture, be sure to find
and properly install the tipping restraint(s). If you cannot locate the
restraint(s), please contact us immediately for replacement.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
WARNING
4 /17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood Furniture 1525AUFa
Summary of Contents for Whittier Wood Furniture 1525AUFa
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 AUF McKenzie Alder Bookcase with Doors — Parts List Before you bein to assemble this unit, identify each part and make sure the quantities received match what is on this list. If you need to replace a part, please refer to the following list for the part name and letter code. Quantity (by Model #) Part Description...
- Page 3 AUF McKenzie Alder Bookcase with Doors Assembly Instructions Tools Required: Phillips Screwdriver, Pencil, Rubber Mallet or Padded Hammer Fig. 1 1525AUF Shown Fig. 1a To install the adjustable shelves: Determine where you want to place the Adjustable Shelves (A). Insert the Shelf Brackets (B) into the four holes with the flat side down and install the shelf.
- Page 4 Before you begin this assembly, identify each part and make sure the quantities received match what is on this list. If you need to replace a part, contact Whittier Wood Furniture customer service and refer to the following list for its name and letter code.
- Page 5 Move the item back into position against the wall and reach underneath the bookcase to grasp the loop in the free end of the strap. Pull the free end of the strap until portion between the Cam Buckle (A) and the bottom of the item is tight. See Figures 5 and 5a. If you need to move the bookcase reach beneath and locate the buckle which connects the two sections of the strap and depress the release lever, then pull on the section of strap that is between the buckle and the bottom of the furniture until there is enough slack to allow you to pull the item away from the wall.
- Page 6 Whittier Finishing Hints instructions call for a slow drying glue. Carefully read the Checklist of materials □ □ □ label and instructions of the glue manufacturer. Your unit Rubber gloves Tack cloth #220 & #320 may not need glue. □ □...
- Page 7 Whittier Finishing Hints Preparing the surface apply additional coats. Lightly sand and wipe surface with a lint-free rag or tack cloth between coats. 1. Sand each piece with #220 grit sandpaper. Sand with the grain of the wood on flat surfaces and opposite the 4.
