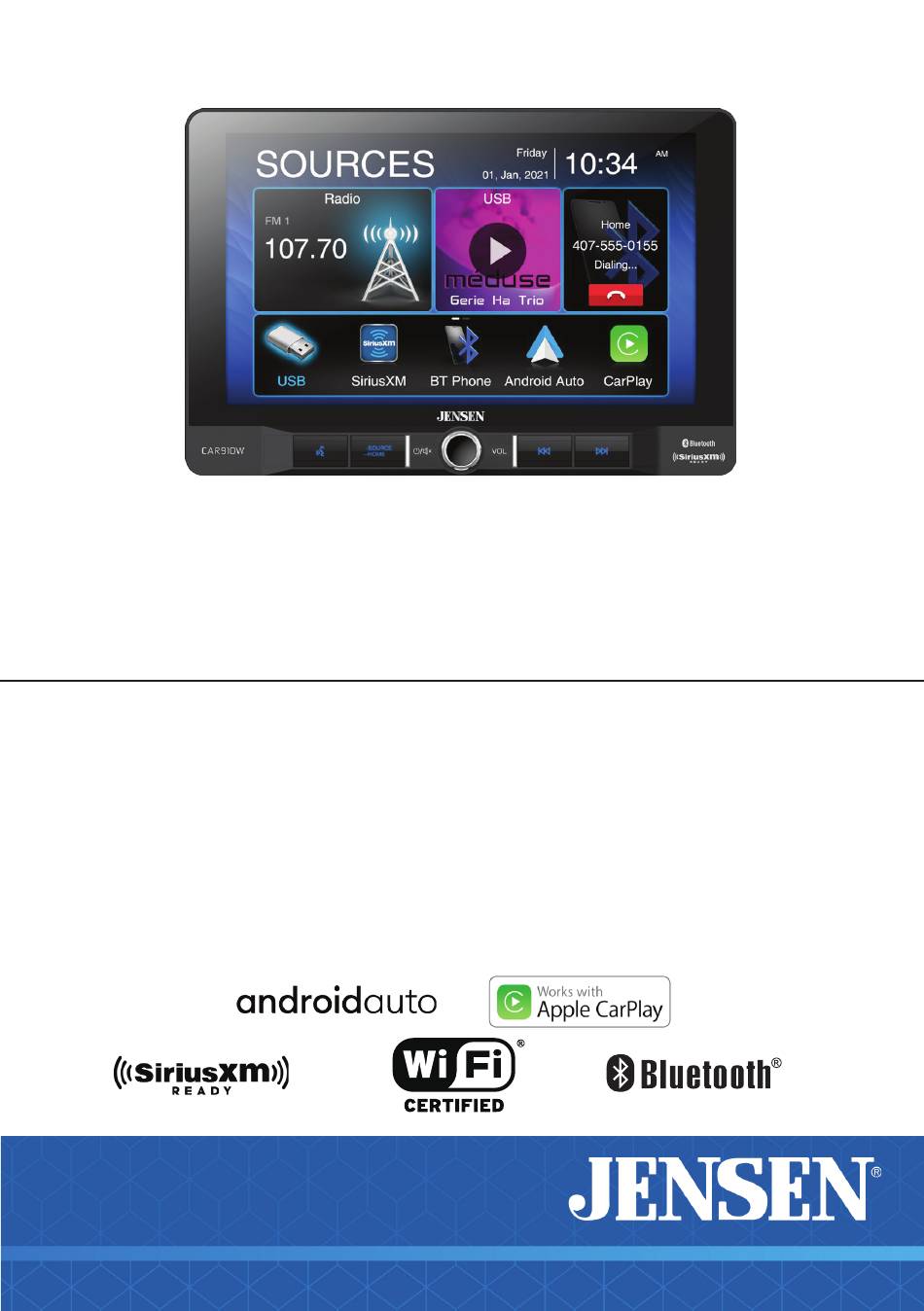

- Page 1 CAR910W 9” CAPACITIVE TOUCH SCREEN 1 DIN MULTIMEDIA MECHLESS RECEIVER AM-FM USB Media Player Rear Camera Input INSTALLATION & OWNER’S MANUAL...
- Page 2 • Use only the provided hardware and wire harness. • If you experience problems during installation, consult your nearest JENSEN deale . • If the unit malfunctions, reset the unit as described. If the problem still persists consult your nearest JENSEN dealer or call tech assistance @ 1-888-921-4088.
-
Page 3: Table Of Contents
CAR910W Table of Contents Page Warning Statement .......... - Page 4 CAR910W WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
-
Page 5: Fcc Compliance
CAR910W FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Preparation/Mounting
CAR910W Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 7: Sereen Rotation
CAR910W Sereen Rotation Screen angle can pivot side to side Screen height adjusts up to 1.5“ down Screen depth can be adjusted from 0” to 0.5“ to Screen tilts forward and back 1“ forward... -
Page 8: Wiring Diagram
CAR910W Wiring Diagram - Inputs/Outputs CarPlay and Android Auto 20PIN 18PIN Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector. -
Page 9: Control Locations
CAR910W Control Locations The radio display features the following functions and displays: VOICE ACTIVATION BUTTON SOURCE/HOME POWER/VOLUME/MUTE PREVIOUS BUTTON NEXT BUTTON RESET / USB PORT... -
Page 10: General Operation
CAR910W General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume. - Page 11 CAR910W General Operation From the Main Menu screen, select Setup to access the Setting menu and Setup Menu select from eight categories represented by the icons on the top of the screen: General, Audio, Display, Others. Select the category, and adjust any of the available options using the touch screen.
-
Page 12: Audio Operation
CAR910W Audio Operation From the Main Menu screen, Press the Equalizer icon on the main menu Equalizer Menu screen to adjust Fader and Balance controls, Equalizer (8-Band Tone Control and 8 Presets EQ Settings). Time Alignment Menu Surround Presets Time Delay Setting... -
Page 13: Am/Fm Tuner Operation
CAR910W AM/FM Tuner Operation Radio Operation From the main menu, touch Radio icon on the screen to select AM/ FM tuner mode. Press icon to return to Main Menu screen. Main Menu Display status of various tuning functions including Auto. -
Page 14: Usb Operation
CAR910W USB Operation From the main menu, touch the USB icon on the main screen. Press icon to return to Main Menu screen. Main Menu Displays source currently playing. Current Mode Indicator List Press icon to access a list of all files and folders on the device. -
Page 15: Media Compatibility
CAR910W Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3/.flac/ogg/.MP4/.Xvid File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz... - Page 16 CAR910W Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
-
Page 17: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "CAR910W". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. - Page 18 CAR910W Bluetooth Operation Bluetooth Music Press MUSIC to transfer audio between the unit and mobile phone. Setup Press "SETUP" to access Bluetooth settings. Call Dial a number and touch the Phone icon to call. Phone Keypad Use the keypad to dial a phone number.
-
Page 19: Siriusxm ® Satellite Radio Operation
CAR910W SiriusXM Satellite Radio Operation ® SiriusXM ® Radio Only SiriusXM ® Satellite Radio brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. - Page 20 CAR910W SiriusXM Satellite Radio Operation ® Main Menu Press icon to return to Main Menu screen. Band Touch to select a band of preset channels. Three bands are available:SXM1, SXM2, and SXM3. Each band can store up to six pre- set channels.
- Page 21 CAR910W SiriusXM Satellite Radio Operation ® Additional Options Press to display/adjust the options Mode, Tune Scan and Go to Live: Additional Options Mode - Press to access and adjust the following options: • Parental Code - When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels.
- Page 22 CAR910W SiriusXM Satellite Radio Operation ® Press and hold any preset button (1-6) to save the current station as Preset Buttons a preset. Press the desired preset button to begin playback of the corresponding preset channel. Direct Press to display screen for direct channel access. Press the desired channel number, then press Enter.
-
Page 23: Siriusxm ® Radio Advisory Messages
CAR910W SiriusXM Radio Advisory Messages ® SiriusXM ® Recommendation Advisory Message 1. The radio has detected a fault with the SiriusXM ® antenna. The antenna cable may be either disconnected or damaged. 2. Verify that the antenna cable is connected to the SiriusXM ®... - Page 24 CAR910W Apple CarPlay Operation Apple CarPlay™ is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
-
Page 25: Apple Carplay
CAR910W Apple CarPlay Operation When the CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands. At any time during CarPlay operation, you can press this button momentarily to return to the main CarPlay menu screen. -
Page 26: Android Auto
CAR910W Android Auto™ Operation Android Auto™ brings the most useful apps to your phone screen or your compatible car display, in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls and text messages, and music. - Page 27 CAR910W Android Auto™ Operation Using Android Auto™ The Android Auto™ home screen displays personalized information, like time to your destination, reminders, recent calls incoming messages, the song you're listening to, and Google Now cards. When the Android Auto™ menu is displayed, you can say "OK Google" or select the microphone in the upper right corner to talk to Google.
-
Page 28: Auxiliary Inputs/Rear Camera Operation
CAR910W Rear RCA Input A/V IN Connect an optional audio/video source into the RCA (rear) input. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). Rear Camera Operation - (Optional) Using Rear Camera Connect an optional rear camera to the Camera Input (Black RCA connector). -
Page 29: Swc Input Operation
The built-in SWC Interface is compatible with 3rd party steering wheel control modules. Either the PAC SWI series or Axxess ASWC-1 are recommended. These adapters must be used in order for the CAR910W to be compatible with any steering wheel controls. The following controls are available for most vehicles. -
Page 30: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Name... -
Page 31: Specifications
CAR910W Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0... -
Page 32: Warranty
4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized JENSEN dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •... - Page 33 Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
