IQConference Cam
CV810
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV810 and is the answer not in the manual?

Questions and answers

Related Manuals for IQ CV810

Summary of Contents for IQ CV810

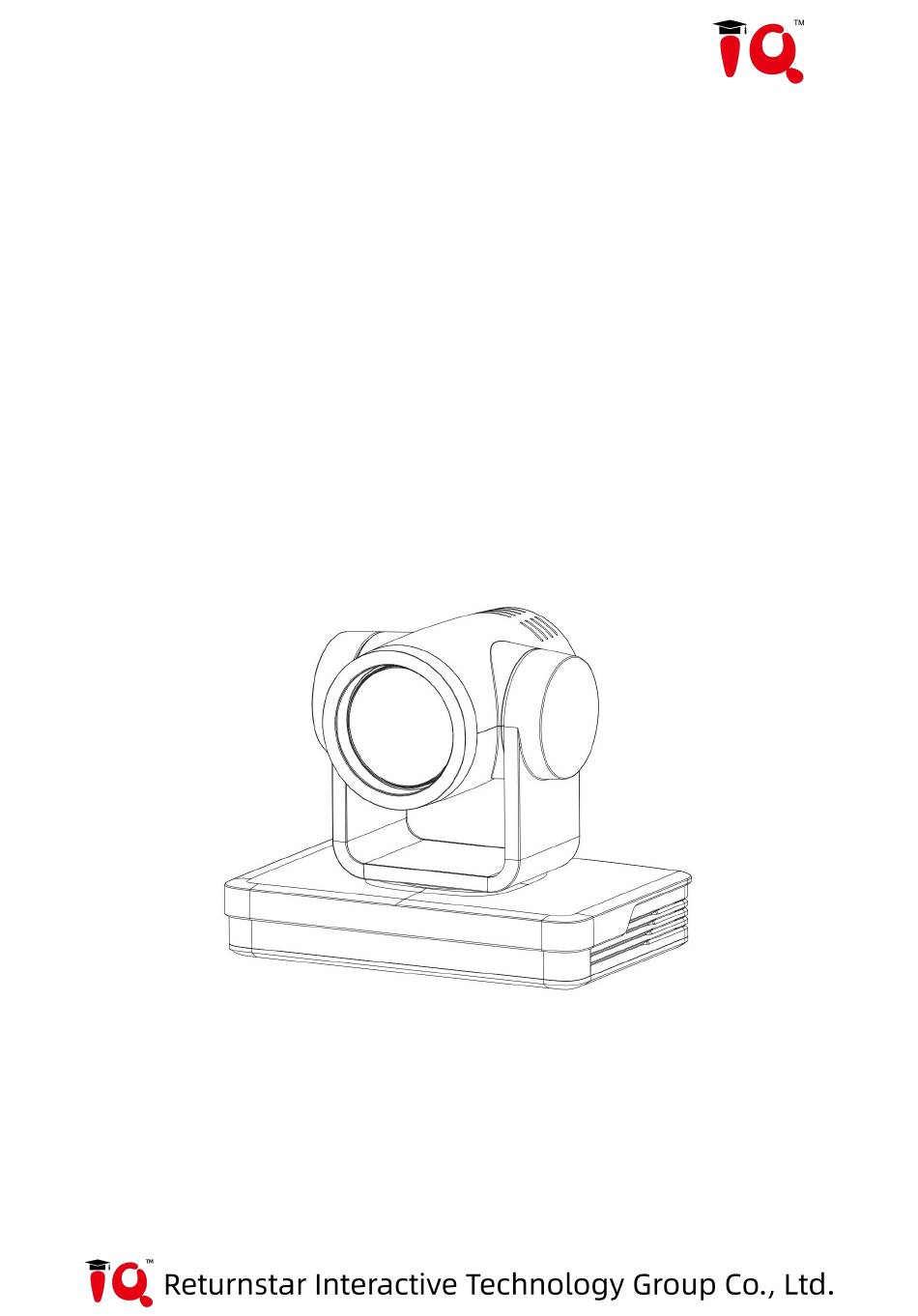

  • Page 1 IQConference Cam CV810 User Manual...
  • Page 2 Warning Improper operations may damage the product structure and result in mechanical failure. Please note the following tips. Do not move the camera by grabbing the head. Move the camera by holding the bottom with one or both hands. Please do not rotate the lens and holder manually no matter the camera is power on or off;...
  • Page 3 Attentions This manual introduces functions, installations and operations for this PTZ camera in details. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.

  • Page 4: Table Of Contents

    Content 1. Camera Installation..............................3 1.1 Camera Introduction............................3 1.2 Interfaces and Connection...........................4 1.3 Mounting Brackets...............................4 2. Product Overview..............................8 2.1 Dimension................................8 2.2 Accessory................................8 2.3 RS-232 Interface..............................9 2.4 Rotary DIP Switch............................10 2.5 Main Features..............................11 2.6 Technical Parameter............................11 3. Remote Control................................14 3.1 Match Code for Wireless Remote Control......................

  • Page 5: Camera Installation

    1.Camera Installation 1.1Camera Introduction Figure 1.1 Product Interface 13.RS422/RS485 Interface Camera Lens Power Switch 2.Camera Base 14.Audio Input Interface（LINE-IN） DC12V Input Power Supply Socket 3.Indicator Light 9.LAN Port 15.USB3.0 Interface 16.HDMI Output Interface Infrared Receiver Rotary DIP Switch 11.RS232 Control Interface(input) Tripod Screw Hole 12.RS232 Control Interface(output) Tripod Screw Hole...

  • Page 6: Interfaces And Connection

    1.2 Interfaces and Connection Figure 1.3 Wiring Diagram 1) After power on and self-warming, the camera will automatically return to the preset 0 position if it’s pre-set. 2) The default address for the IR remote control is 1#. If the menu restored to factory defaults, the remote control default address will restore to 1#.
  • Page 8 2）Ceiling Mounting...

  • Page 10: Product Overview

    2. Product Overview 2.1 Dimension 2.2 Accessory Please check below standard and optional accessories when unpacking the box. Standard Accessory Optional Accessory Power Adapter Infrared Remote Control RS232 Cable Wireless Remote Control User Manual Ceiling Mount USB3.0 Cable Wall Mount...

  • Page 11: Rs-232 Interface

    2.3 RS-232 Interface 1）RS-232 Interface Definition Connection to PC or Camera Controller Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2）Mini-DIN8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground...

  • Page 12: Rotary Dip Switch

    Ring Indicator 4）VISCA networking as shown below Camera cascade connection Camera 1 Camera 2 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN Note: Camera has RS232 input and output interfaces, which can be cascaded according to the above methods 2.4 Rotary DIP Switch Dial-up video format...

  • Page 13: Main Features

    2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available. Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine,  Unified Communication, Emergency command and control systems, etc. 2.7 Technical Parameter Model CV810 Camera Parameter Optical Zoom Parallel：6.55°（N）～69.4°（W） View Angle Vertical：3.66°（N）～42.8°（W） F1.6 ～ F2.8±5% Sensor 1/2.8 inch SONY CMOS sensor...
  • Page 14 HDMI video format 4KP60,4KP50,4KP30,4KP25,1080P60,1080P50,1080I60,1080I50, 1080P30,1080P25,720P60,720P50 USB3.0 interface video format YUY2/NV12: 1920×1080P30,1280×720P30,960×540P30,640×360P30, 640×480P30,320×176P30 Video Format MJPEG/H.264/H.265: 3840×2160P30,1920×1080P30,1280×720P30, 1024×576P30,960×540P30,800×448P30,640×360P30,640×480P30,320×176P30 USB3.0 is compatible with USB2.0 video format YUY2/NV12: 640×360P30,640×480P30,320×176P30 MJPEG/H.264/H.265: 3840×2160P30,1920×1080P30,1280×720P30, 1024×576P30,960×540P30,800×448P30,640×360P30,640×480P30,320×176P30 Minimum 0.05Lux(F1.8, AGC ON) Illumination 2D﹠3D DNR White Balance Auto / Manual/ One Push/ Specify color temperature Focus Auto/Manual/One Push Focus Exposure Mode...
  • Page 15 Protocol Power Interface HEC3800 outlet (DC12V) Supply Adapter AC110V-AC220V to DC12V/2.5A Input Voltage DC12V±10% Input Current <1A Power <12W Consumption PTZ Parameter Pan Rotation -170°～+170° Tilt Rotation -30°～+90° Pan Control 0.1°/s～100°/s Speed Tilt Control 0.1°/s～45°/s Speed Preset Speed Pan: 100°/s, Tilt: 45°/s Preset Number 255 presets (10 presets via remote control) Other Parameter...

  • Page 16: Remote Control

    3. Remote Control Remote control instructions: remote control is divided into two types: infrared remote control and wireless remote control. Please read the following contents according to the actual remote control type. 3.1 Match Code for Wireless Remote Control One to One Code Matching: Press the "set"...
  • Page 17 1. Standby Key The camera enters standby mode if long press 3s on standby key; Long press 3s again on the standby key, the camera will self-check again and return to HOME position (If preset 0 position is set, the camera will return to preset 0 position). 2.
  • Page 18 Set Preset: press 【SET PRESET】 button, and then press the number key 0-9 to set preset positions. Note: 10 presets via remote control. Call Preset: Press a number key 0-9 directly to call a preset position. Clear Preset: press 【CLEAR PRESET】 button, and then press the number key 0-9 to clear preset positions.

  • Page 19: Menu Introduction

    9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【9】: Flip switch 6) 【*】+【#】+Auto: Enter aging mode 7) 【#】+【*】+Auto: Exit aging mode 8) 【*】+【#】+Manual: Restore the default user name, password, and IP address 9) 【#】...

  • Page 21: Network Configuration

    4. Network Configuration 4.1 Network Connection Direct connection: Connect the camera and computer by network connecting cable. Internet connection mode: Connect the camera to Internet by Router or Switcher and user can login the device by browser web page. Note: Please do not put the power cable and network cable in places where can be easily touched, to prevent video unstable signal transmission due to poor contact of cables.

  • Page 22: Ie Login

    4.2 IE Login 1）Web Client Login Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as below picture. User can login as administrator and normal user. If login as administrator (Default User name/Password: admin), users can preview, playback, configuration and cancel in the Web Client;...

  • Page 23: Streaming

    3) Web page login After installing the plug, enter user name and password, click and Sign (initial default user name and password: "admin", users can change the user name and password on their own after entering) into the Web client management interface.

  • Page 24: Software Upgrading

    The default IP address of the camera is 192.168.5.163. The way to obtain the RTSP video stream is as below rtsp://192.168.5.163:554/live/av0（av0 main stream） rtsp://192.168.5.163:554/live/av1（av1 sub stream） The default IP address of the camera is 192.168.5.163. the way to obtain RTMP video stream is as below rtmp://192.168.5.163:1935/live/av0（av0 main stream）...
  • Page 25 3) Click "browse" to select .mrg update file, then click upgrade button to finish software upgrading. 4) Camera reboot after completion of firmware update. It prompts with "successful upgrade". Log in to check the firmware version to make sure software upgrade successful. Then click "restore factory default", reboot and restore parameters to factory default (default IP 192.168.5.163, user name: admin;...

  • Page 26: Serial Port Communication And Control

    5. Serial Port Communication and Control The camera could be controlled through RS232/RS485 interface; RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. After power on, the camera first goes left, then back to the middle position. Self-test is finished after the zoom moved to the farthest and then back to the nearest position.
  • Page 27 Command Function Command packet Note Stop 8x 01 04 08 00 FF Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far(Variable) 8x 01 04 08 2p FF p = 0(low) - F(high) Near (Variable) 8x 01 04 08 3p FF CAM _Focus Direct...
  • Page 28 Command Function Command packet Note 8x 01 04 0C 02 FF Down 8x 01 04 0C 03 FF Gain Limit 8x 01 04 2C 0p FF p: Gain Positon Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down...

  • Page 29: Visca Protocol Inquiry Command

    Command Function Command packet Note 8x 01 04 06 06 02 FF Turn on the menu screen SYS_Menu 8x 01 04 06 06 03 FF Turn off the menu screen 8x 01 06 08 02 FF IR_Receive IR(remote commander)receive On/Off 8x 01 06 08 03 FF 8x 01 7D 01 03 00 00 FF IR(remote commander)receive message via...
  • Page 30 y0 50 01 FF High CAM_AFSensitivityInq 8x 09 04 58 FF y0 50 02 FF Normal y0 50 03 FF y0 01 04 AA 00 FF y0 01 04 AA 01 FF Center CAM_AFZoneInq 8x 09 04 AA FF y0 01 04 AA 02 FF Bottom y0 01 04 AA 03 FF y0 50 pq FF...

  • Page 31: Pelco-D Protocol Command List

    y0 50 01 FF ab cd : vender ID ( 0220 ) y0 50 ab cd mn pq : model ID CAM_VersionInq 8x 09 00 02 FF mn pq rs tu vw FF rs tu : ARM Version vw : reserve P: 0~E Video format 0:4KP60...

  • Page 32: Pelco-P Protocol Command List

    5.5 Pelco-P Protocol Command List Byte Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right...

  • Page 33: Maintenance And Troubleshooting

    6. Maintenance and Troubleshooting 6.1 Camera Maintenance 1) Please power off the camera and disconnect the power adapter and socket, if it’s not used for a long run. 2) Use soft cloth or tissue to clean the camera cover. 3) Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecting the video quality.
  • Page 34 b. Check whether the network cable is connected properly. (Ethernet port yellow light flashes to indicate normal network cable connection) c. Check whether your computer is added the segment and the segment is consistent with the IP address of the camera.
