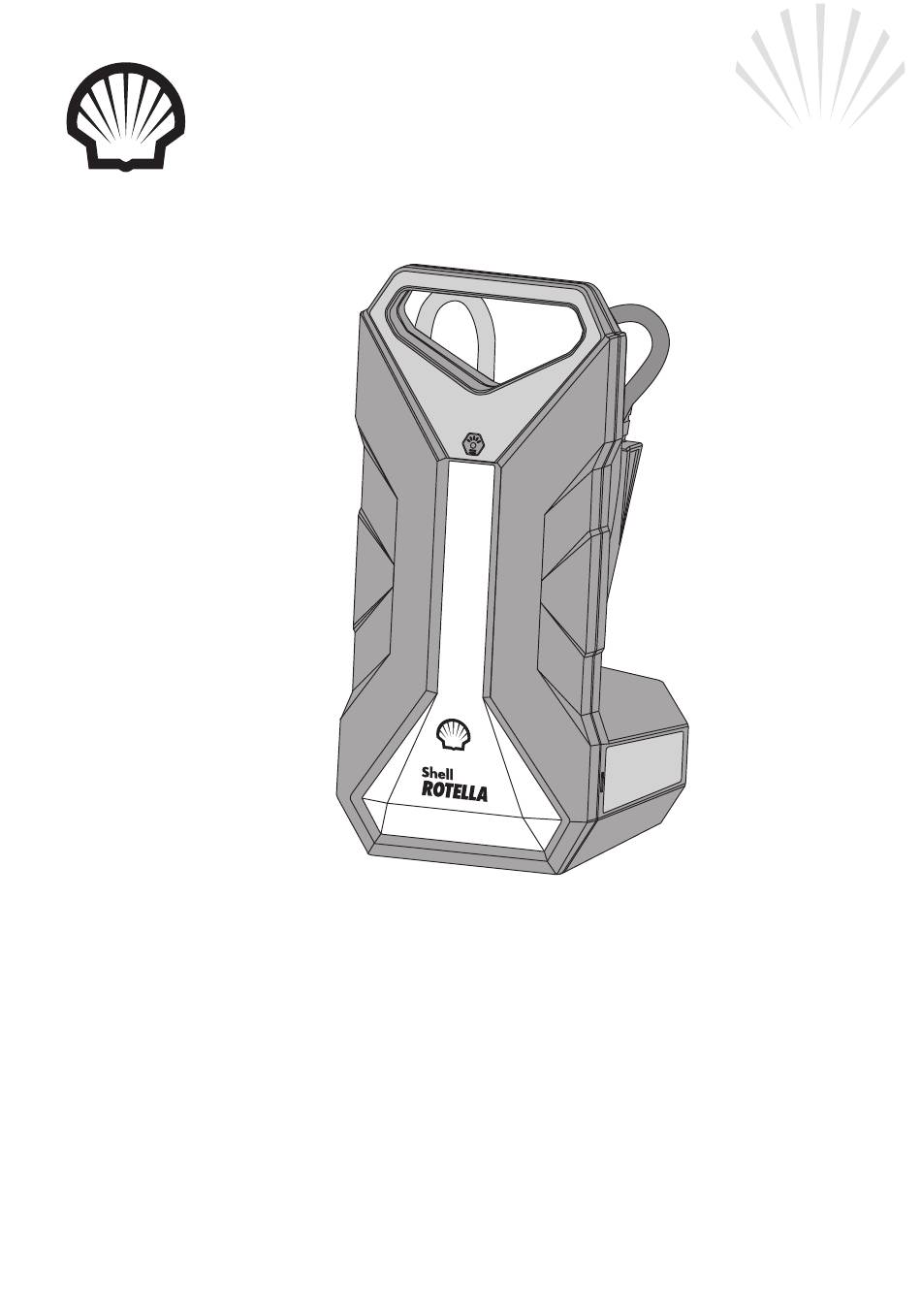

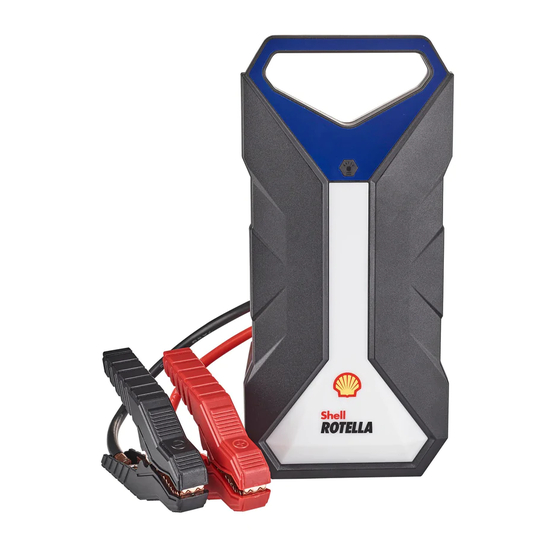

- Page 1 ITM. / ART. 1593176 Jump Starter Portable Power SH924 User Guide...
-
Page 2: For Your Safety
For Your Safety Thank you for choosing this Shell product. Please read the following instructions and keep them for future reference. This instruction manual contains important information on safe operation and use. To ensure long life and performance reliability, please operate and maintain as per the instructions on this sheet. -
Page 3: Package Includes
Package Includes • 1 x Jump Starter • 1 x AC/DC Adaptor •1 x USB A to Micro USB Cable • 1 x User Guide • 1 x Product Warranty Registration Product Features • Designed for vehicles with 11.0 L gasoline and 8.0 L diesel engines •... - Page 4 Operating Instructions IMPORTANT! CHARGE IMMEDIATELY AFTER PURCHASE, AFTER EACH USE AND EVERY THREE MONTHS, OR WHEN THE BATTERY LEVEL FALLS BELOW 50%, TO PROLONG THE INTERNAL BATTERY LIFE. Charging the Jump Starter 1. Connect the DC Terminal of the included adaptor to the input port of the jump starter.
- Page 5 Note: Required capacity to jump start a vehicle LED Battery Battery Capacity Indications Level Indicator Best condition to jump start 75% - 100% a vehicle The minimum capacity 50% - 75% required to jump start a vehicle 25% - 50% Recharge the jump starter before use 0% - 25%...
-
Page 6: Troubleshooting Table
Troubleshooting Table Jumper Cable Indicator LED Light Cause Solutions (front) Green Solid Jump start the vehicle Low battery Please charge the Flashing protection jump starter The car battery voltage is higher than the voltage of the Reverse charge starting power supply. Flashing Flashing protection Please check the voltage of... -
Page 7: Charging Portable Devices
Charging Portable Devices 1. Connect your portable device with one end of the included USB cable, and insert the other end to the output port of the jump starter. 2. Press the power switch to turn on the jump starter and start charging. Charging will begin as soon as the jump starter turns on. -
Page 8: Using The Led Light
Using the LED Light 1. To switch on the LED light, press and hold on the ON/OFF switch for 2 seconds. 2. Press the ON/OFF switch to toggle through 3 lighting modes: White Floodlight Red Alert Strobe 3. Press and hold ON/OFF switch for 2 seconds under any lighting mode to turn off the LED light. -
Page 9: Specifications
Specifications Jump Starter Start Voltage: 12V Start Current: 1000A Peak Current: 2000A Input: 18V USB Output: 5V 2.1A Battery Type: Lithium-Polymer Battery Capacity: 24000mAh, 88.8Wh Operating Temperature: - 20ºC ~ 60ºC Storage Temperature: - 20ºC ~ 40ºC Charging Temperature: 0ºC ~ 45ºC Dimensions: 4.72 x 5.24 x 10.24 inches/120 x 133 x 260 mm Weight: 3.66 lb/1660 g (without adapter and USB cable) Adapter... -
Page 10: Safety Instructions
• Use the accessories that are provided in the package. Shell is not responsible for any damage or injury when using accessories that are not provided by us. -
Page 11: Personal Precautions
Personal Precautions • Wear adequate eye protection and protective clothing when working near a vehicle battery. • Do not smoke or allow a spark or flame near the battery or engine. • Remove all metal objects such as rings, bracelets, and watches. •... - Page 12 Cautions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 13 ALLOWED BY SUCH LAWS. This Limited Warranty is made solely for the benefit of the original purchas- er of the Product from Shell or its approved reseller or distributor and is not assignable or transferable. To make a warranty claim, the purchaser must: (1) request and obtain a return merchandise authorization ("RMA")
- Page 14 (c) are/were modified without the express written consent of Shell; (d) have been disassembled, altered or repaired by anyone other than Shell; (e) had defects which were reported after the Warranty Period. THIS LIMITED WARRANTY DOES NOT COVER: (1) normal wear and tear;...
-
Page 15: Jump Starter
Jump Starter Portable Power SH924 SH SH924 IM ENG D10043R3 Printed in China...
