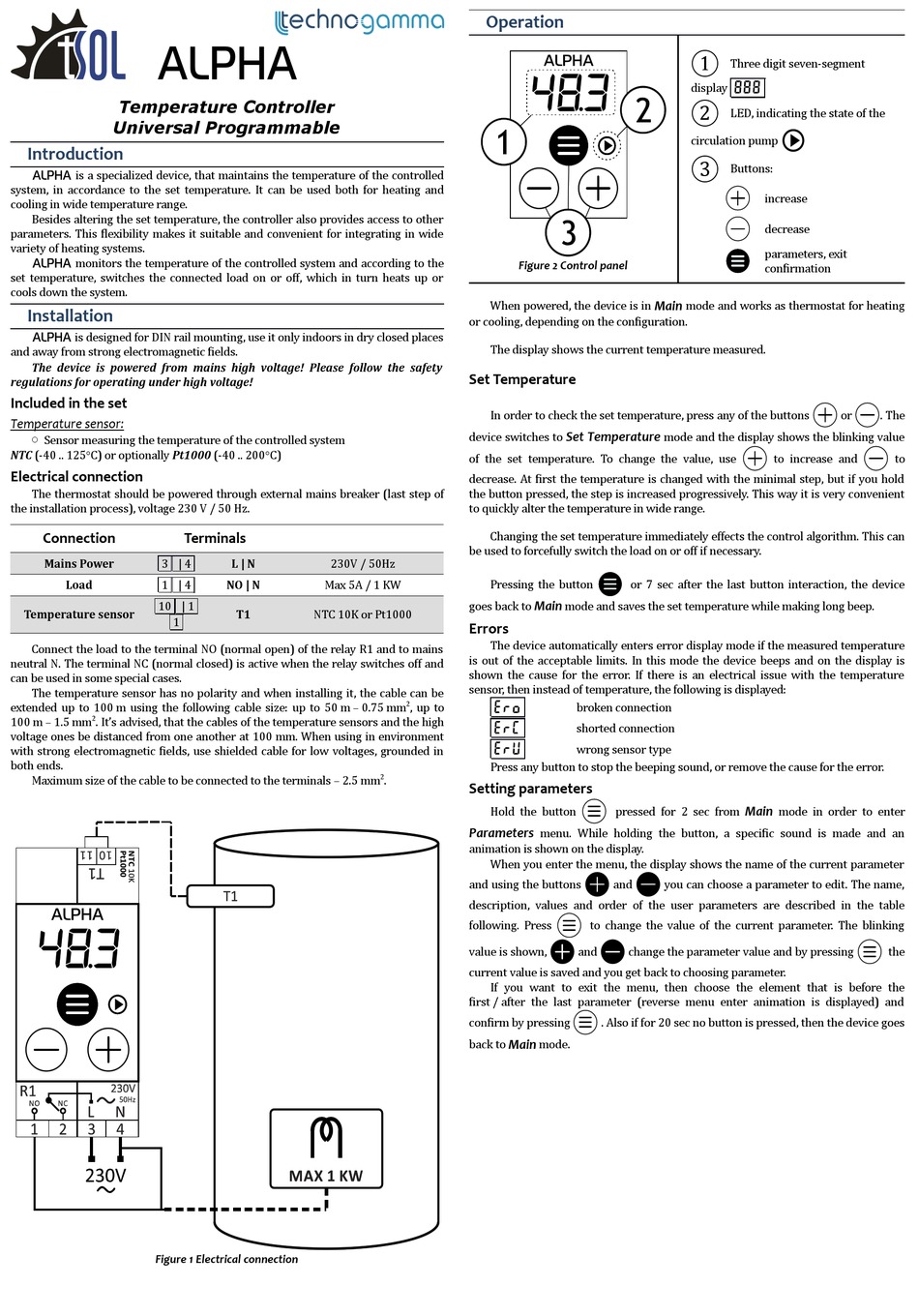

Technogamma ALPHA Quick Start Manual

Temperature Controller
Universal Programmable
Introduction
is a specialized device, that maintains the temperature of the controlled
system, in accordance to the set temperature. It can be used both for heating and
cooling in wide temperature range.
Besides altering the set temperature, the controller also provides access to other
parameters. This flexibility makes it suitable and convenient for integrating in wide
variety of heating systems.
monitors the temperature of the controlled system and according to the
set temperature, switches the connected load on or off, which in turn heats up or
cools down the system.
Installation
is designed for DIN rail mounting, use it only indoors in dry closed places
and away from strong electromagnetic fields.
The device is powered from mains high voltage! Please follow the safety
regulations for operating under high voltage!
Included in the set
Temperature sensor :
o Sensor measuring the temperature of the controlled system
NTC (-40 .. 125С) or op ) or optionally Pt1000 (-40 .. 200С) or op )
Electrical connection
The thermostat should be powered through external mains breaker (last step of
the installation process), voltage 230 V / 50 Hz.
Connection
3 | 4
Mains Power
1 | 4
Load
10 | 1
Temperature sensor
1
Connect the load to the terminal NO (normal open) of the relay R1 and to mains
neutral N. The terminal NC (normal closed) is active when the relay switches off and
can be used in some special cases.
The temperature sensor has no polarity and when installing it, the cable can be
extended up to 100 m using the following cable size: up to 50 m – 0.75 mm
100 m – 1.5 mm 2 . It's advised, that the cables of the temperature sensors and the high
voltage ones be distanced from one another at 100 mm. When using in environment
with strong electromagnetic fields, use shielded cable for low voltages, grounded in
both ends.
Maximum size of the cable to be connected to the terminals – 2.5 mm
Figure 1 Electrical connection
Terminals
230V / 50Hz
L | N
Max 5A / 1 KW
NO | N
NTC 10K or Pt1000
Т1
Operation
Figure 2 Control panel
When powered, the device is in
or cooling, depending on the configuration.
The display shows the current temperature measured.
Set Temperature
In order to check the set temperature, press any of the buttons
device switches to
of the set temperature. To change the value, use
decrease. At first the temperature is changed with the minimal step, but if you hold
the button pressed, the step is increased progressively. This way it is very convenient
to quickly alter the temperature in wide range.
Changing the set temperature immediately effects the control algorithm. This can
be used to forcefully switch the load on or off if necessary.
Pressing the button
goes back to
Main
Errors
The device automatically enters error display mode if the measured temperature
is out of the acceptable limits. In this mode the device beeps and on the display is
shown the cause for the error. If there is an electrical issue with the temperature
sensor, then instead of temperature, the following is displayed:
2 , up to Ero
ErC
ErU
Press any button to stop the beeping sound, or remove the cause for the error.
2
.
Setting parameters
Hold the button
menu. While holding the button, a specific sound is made and an
Parameters
animation is shown on the display.
When you enter the menu, the display shows the name of the current parameter
and using the buttons
description, values and order of the user parameters are described in the table
following. Press
value is shown,
current value is saved and you get back to choosing parameter.
If you want to exit the menu, then choose the element that is before the
first / after the last parameter (reverse menu enter animation is displayed) and
confirm by pressing
back to mode.
Main
①
Three digit seven-segment
888
display
②
LED, indicating the state of the
circulation pump
③
Buttons:
mode and works as thermostat for heating
Main
mode and the display shows the blinking value
Set Temperature
or 7 sec after the last button interaction, the device
mode and saves the set temperature while making long beep.
broken connection
shorted connection
wrong sensor type
pressed for 2 sec from
and you can choose a parameter to edit. The name,
to change the value of the current parameter. The blinking
and change the parameter value and by pressing
. Also if for 20 sec no button is pressed, then the device goes
increase
decrease
parameters, exit
confirmation
or . The
to increase and to
mode in order to enter
Main
the
