- Page 1 YPS5-14H Portable Air Conditioner User’s Manual Thanks for choosing this high quality portable air conditioner. Please read the Manual carefully before operation. In case of any problem, please contact professional maintenance personnel in time.
-
Page 2: Table Of Contents
CONTENT User Knowledge ........1 Matters Needing Attention .........3 Important Safety Tips ..........6 Special Warning Product Introduction .......7 Main Parts and Components ....8 Control Panel and Remote Controller Product Operation ........9 Placement and Installation ..........14 Operation Method Clean and Maintenance ..........15 Drainage Method ..........15 Maintenance... -
Page 3: User Knowledge
USER KNOWLEDGE The meaning of this user manual is shown bellow. Please prohibit such operation for your health and safety with your family. For the sake of health and safety of your family, you must do the following. MATTERS NEEDING ATTENTION This machine is for indoor use only This machine is for household use Please place it in dry environment. - Page 4 Do not operate the unit with wet hands Please wipe the machine with a soft or in a humid environment. cloth. Do not use wax, thinner or irritant detergent. For your health, please don not drink Please clean the filter regularly and condensed water discharged from recommend cleaning once every machine.
-
Page 5: Important Safety Tips
IMPORTANT SAFETY TIPS Do not damage or use damaged or Please not use damaged power unknown type of power cord. Please cord or power cord plug, do not ensure that the voltage used meets the insert power cord into loose socket. requirements before use. - Page 6 Do not control the opening and closing Please turn off the machine before you state of the machine by plugging the pulling the plug. power plug. Do not share a power outlet with multiple Please keep the machine away from the high-power electrical appliances.
- Page 7 Don’t insert your fingers or any hard Do not let water enter the electrical object to wind guide bar of the air outlet. part of the machine. If water enters the machine, shut it down If you need to wipe, clean, move the immediately and pull out the plug, then machine or replace the machine parts, contact the professional maintenance...
-
Page 8: Special Warning
SPECIAL WARNING Place the A/C on even ground and The A/C should be at least 19.7in. away install it vertically, so as to ensure from surrounding objects. Keep air inlet normal operation of the compressor. and outlet smooth. Don’t use spraying agent and other solvent Don’t use the A/C beside gasoline or or flammable substances near the A/C;... -
Page 9: Product Introduction

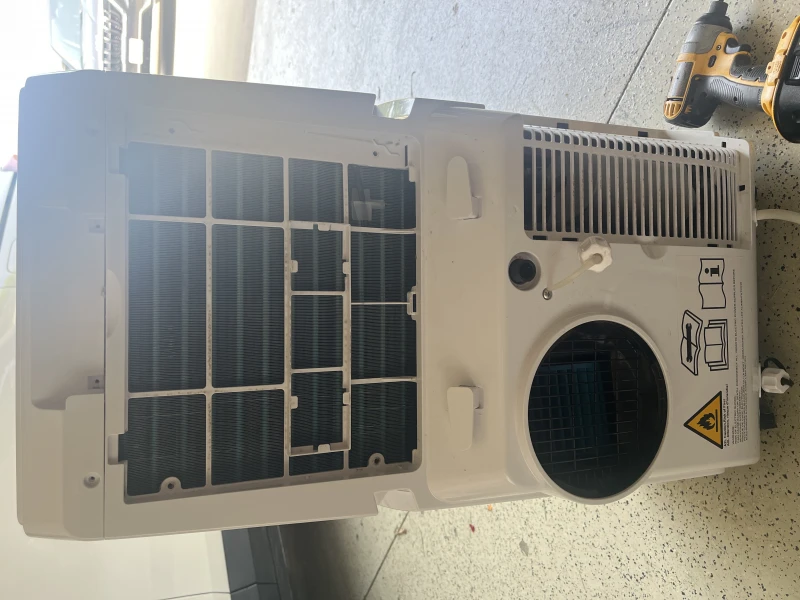

PRODUCT INTRODUCTION MAIN PARTS COMPONENTS Handle Air inlet (Down) Control Panel Air outlet louver Castor Remote controller Air outlet(Up) Hot air outlet Drainage nozzle Air outlet grille Exhaust duct assembly Window sealing plate assembly... -
Page 10: Control Panel And Remote Controller
CONTROL PANEL AND REMOTE CONTROLLER Cool High Mode Timer Heat Power key Press the key to turn ON/OFF the A/C. Speed key Press the key to choose high/middle/low speed. Temperature/ time adjusting key Press the key at cooling mode or heating mode to increase/reduce the setting temperature;... -
Page 11: Product Operation
PRODUCT OPERATION PLANCEMENT AND INSTALLATION Placement Place the machine on the horizontal floor near the window. In order to maintain good air circulation 19.7in. and make the machine get the best performance, there should be at least space around it. BEST INSTALLATION 50cm（19.7inch）... - Page 12 Step 1: Measure window size; Adjust the length of the window sealing plate to make it fit with the size of the window. When the length of the window seal plate is fixed, the length of the sealing plate is fixed by hand pull button. Locking opening Step 2:...
- Page 13 Small gap First insert Step 4: Clip the exhaust pipe assembly (exhaust port end) into the window seal panel assembly and screw it up. Overall effect diagram after assembly...
- Page 14 Incorrect installation It’s important to keep the exhaust duct smooth. Incorrect installation will affect work of the A/C. Prevent the exhaust duct from sharp bending. Ensure air can flow smoothly in the duct. Warning The exhaust duct is designed especially for this model. Don’t replace or lengthen it; otherwise, it will result in failure.
- Page 15 Warning: Do not use batteries if there is any leakage. Chemicals in batteries may cause burns or other health hazards. If the liquid flows to the skin or clothes carelessly, please wash them with clean water immediately; if you eat it carelessly, rinse your mouth with clear water immediately, and then go to the hospital for further examination.
-
Page 16: Operation Method
OPERATION METHOD Cool mode · When the A/C enters cooling mode automatically or cooling mode is selected after power ON, the cooling indicator lamp lights up. 。 。 Press Up/Down key to adjust setting temperature (60 F ~ 86 ) . ·... -
Page 17: Clean And Maintenance Drainage Method
Timer mode In standby state, press the Timer key to set ON time. Press Up and Down keys to set · ON time (1~24H), and the timer indicator lamp lights up. · In ON state, pressure the timer key to set OFF time. Press Up and Down keys to set OFF time (1~24H), and the timer indicator lamp lights up. - Page 18 FILTER SCREEN It is suggested to clean the filter every two weeks. If the indoor air quality is poor, the cleaning frequency should be improved appropriately. Because the filter screen is blocked by dust, it will reduce the efficiency of air conditioning. The specific cleaning steps are as follows: According to the direction of the chart, the lower intake grille is first taken out and the filter screen is removed.
- Page 19 SEASONAL CLEANING If the A/C will not be used for a long time, Please follow these steps to maintain it： Pull out the water plug to drain. Run the A/C in fan mode for 2H till the inside is dry. Turn off the A/C and unplug.
-
Page 20: Common Failures And Diagnosis
COMMON FAILURES AND DIAGNOSIS INTELLIGENT ERROR DETECTION Error-detecting code Multi-functional defection Error of the coil ’ s temperature sensor Error of indoor temperature sensor Anti-freezing protection: temperature of the coil is too low and the 。 whole A/C is off. When temperature excesses 46 F ,the protection is released and previous working state is recovered. -
Page 21: Machine Parts Parameters
MACHINE PARTS PARAMETERS FUSE PARAMETERS Specification: Φ5×20mm 250VAC Voltage: 3.15A Current: MACHINE DIMENSIONS The above technical parameters are subject to change without notice. - Page 22 Additional warning for appliance with R32 refrigerant gas (refer to the rating plate for the type of refrigerant gas used) CAUTION ON FIRE READ THE MAUAL CAREFULLY BEFORE USING THE APPLIANCE R32 refrigerant gas complies with European environmental directives. This appliance contains approximately 11.3 Oz refrigerant gas Appliance shall be installed, operated and stored in a room with a floor area larger than 4m .
