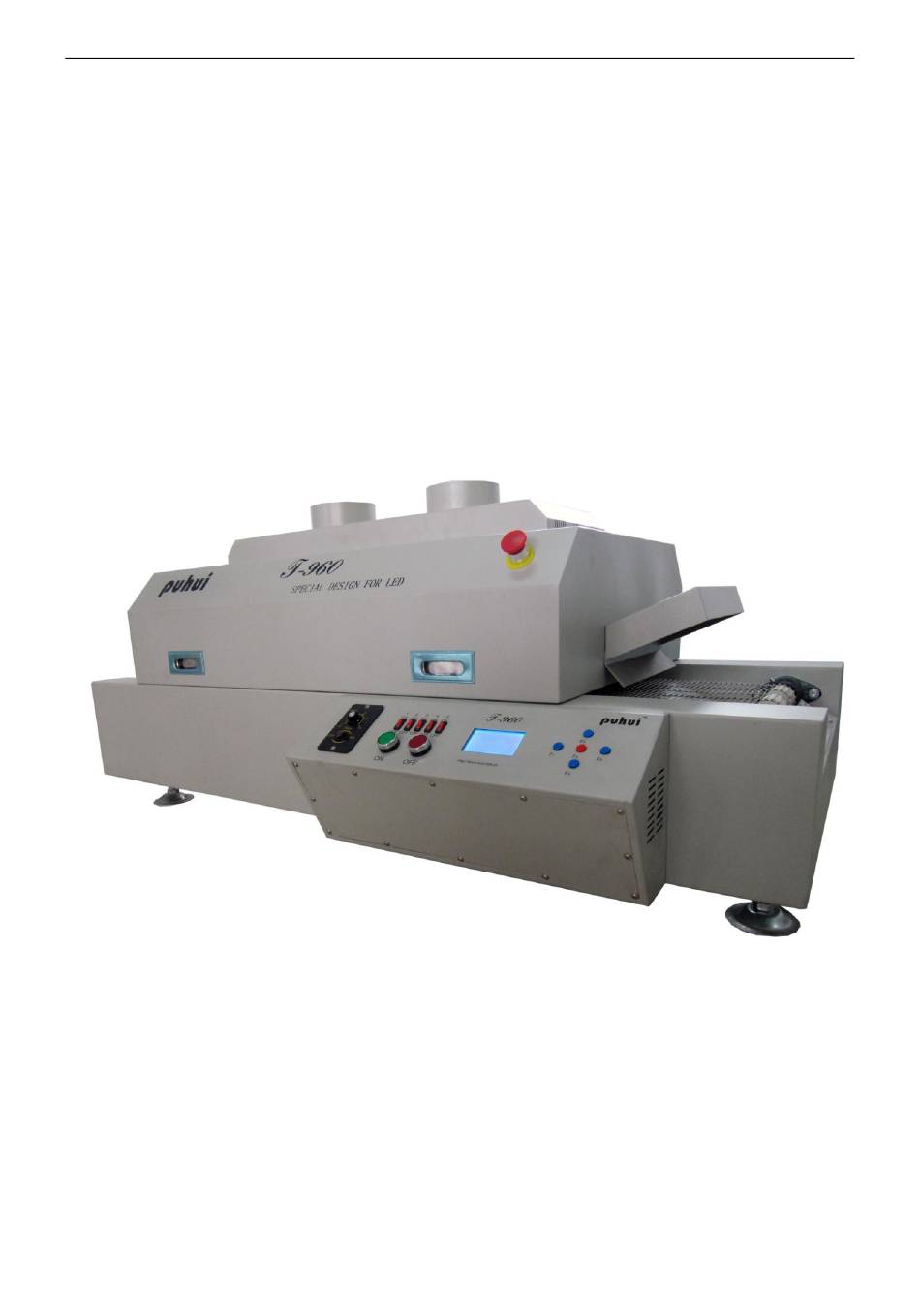

- Page 1 LED New Light Source Reflow Oven T-960 LED New Light Source Reflow Oven Model: T-960...
- Page 2 LED New Light Source Reflow Oven T-960 Features: 1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.
-
Page 3: Technical Parameters
PC, can watch the whole repairing process very clearly. 11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960 to be easily bench positioned, transported or stored. -
Page 4: Description Of The Main Parts
LED New Light Source Reflow Oven T-960 Temperature control range Room temperature～300℃ Temperature control mode PID closed-loop control Temperature control accuracy ±1℃ PCB temperature distribution deviation ±2℃ Overall dimensions 1450×630×470 Machine weight 160KGS Main parts Complete machine Power line User manual Description of the main parts 1. - Page 5 LED New Light Source Reflow Oven T-960 3. The instruction of the connecting line L1、L2、L3- Firewire N-Zero wire PE- Earth wire (380V lines connection) (220V lines connection) Operating Instructions 1. Enter into the setting interface when starts the machine. Press F2 button to select the wave, press F1 to select the point, press F3/F4 to set the corresponding temperature zone up and down, press F5 goes to the heating interface.
- Page 6 LED New Light Source Reflow Oven T-960 Wave one and two: use the same with soldering the less lead paste, like 85Sn/15Pb 70Sn/30Pb Wave three and four: use the same with soldering the more lead paste, like 63Sn/37Pb 60Sn/40Pb. Wave five and six: use the same with soldering high-melting-point lead-free paste, like Sn/Ag3.5；Sn/Cu.75 Sn/Ag4.0/Cu.5 Sn95.5/Ag3.8/Cu0.7...
- Page 7 LED New Light Source Reflow Oven T-960 solder paste will evaporate. At the same time, the flux can wet the pad and the component tip and foot. The solder paste melts, caves in and covers the pad, leading to the pad and component pins insulate the oxygen. PCB board goes into heat preservation area.
- Page 8 LED New Light Source Reflow Oven T-960 paste, choose and set different waves. In addition, the temperature wave has related to the PCB, the density and size of components. Generally lead-free welding temperature should be higher 40℃ than melting point.
-
Page 9: Equipment Installation
LED New Light Source Reflow Oven T-960 temperature fine-turning. 6. The heat temperature wave is adjustable according to the PCB board. You can adjust the transmission belt speed to adjust the temperature. Reduce the belt spend can increase the product heat temperature. On the contrary, you can reduce the product heat temperature. -
Page 10: Daily Maintenance
LED New Light Source Reflow Oven T-960 sides till it is completely horizontal. 4. Caution: The working environment should be clean. So the welder quality is good. 4.1. Do not use and store the machine out of door, high temperature and humid 4.2. - Page 11 LED New Light Source Reflow Oven T-960 2. Check the fan shaft sleeve is in good condition. 3. Check the fan and the electro-motor have abnormal sound. 4. Be sure the fan does work flexibly. 5. Check the air hole if there are abnormal materials.
