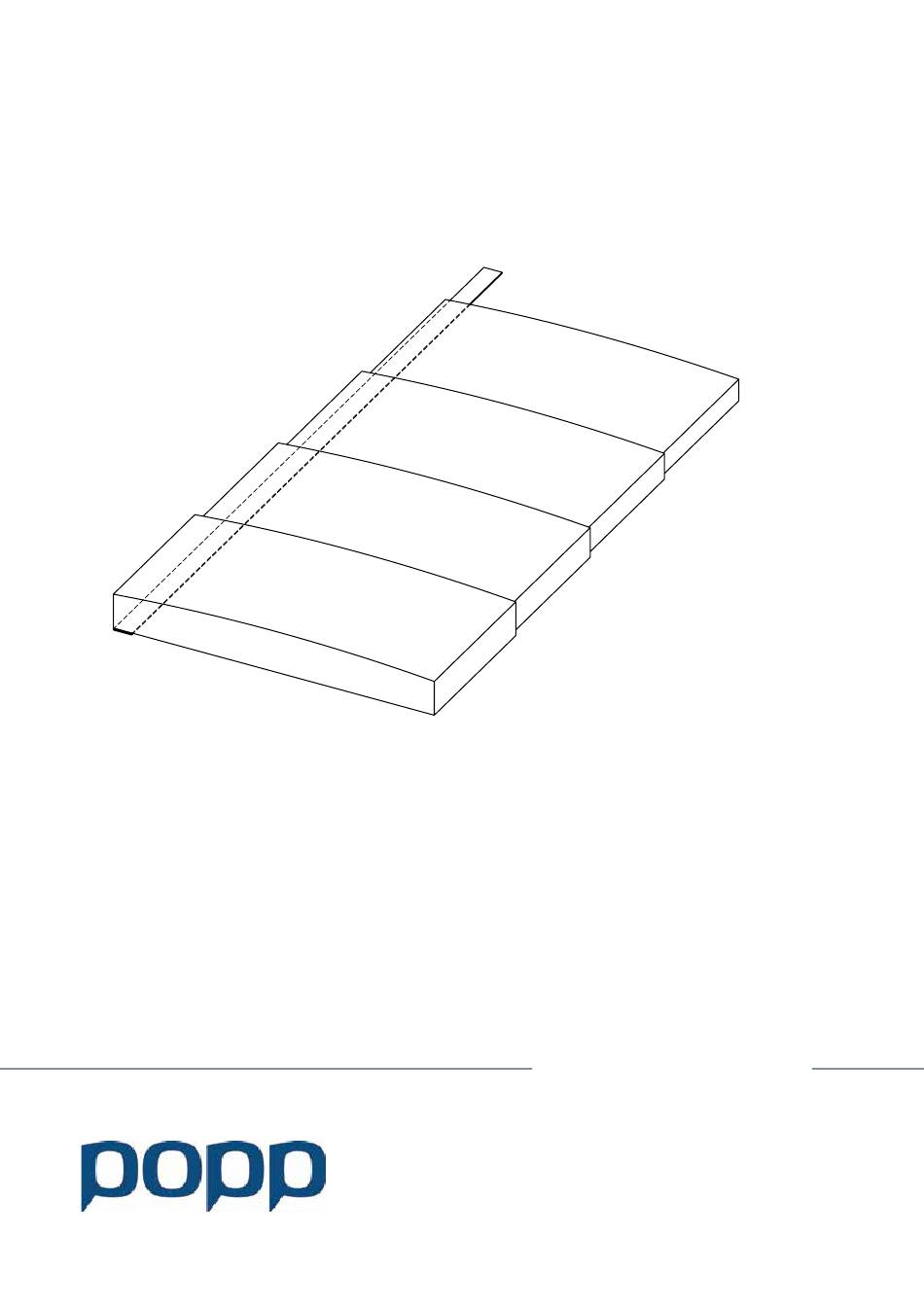

- Page 1 Selekt INSTALLATION MANUAL FOR POOL COVER one side rail left MODEL SELEKT - RAIL LEFT Manual Installation of Pool Enclosure Selekt one side rail left l i n e L I V I N G...
- Page 2 COVER POSITION COVER POSITION SEGMENT RAIL POOL Y 1 = Y 2 l i n e L I V I N G 2/10...
- Page 3 RAILS POSITION RAILS POSITION LEFT POOL 3/10 l i n e L I V I N G...
-
Page 4: Rail Mounting
RAIL MOUNTING RAIL MOUNTING 6100 8800 Ø4,2mm 6160 8480 8030 Ø8mm PARTS: 8800 - Ø4x10 8480 - Ø5x60 6100 - Ø4/12 8030 - Ø8x60 6160 - Ø12 4/10 l i n e L I V I N G... - Page 5 INSTALLATION OF SEGMENTS INSTALLATION OF SEGMENTS 5/10 l i n e L I V I N G...
- Page 6 INSTALLATION OF LOCKING BOLT INSTALLATION OF LOCKING BOLT O 1 : 2 1210 (1230) 1211 1 mm PARTS: 1210 1230 1211_M12x1,5 l i n e L I V I N G 6/10...
- Page 7 INSTALLATION OF FIXING PYRAMID WITHOUT HELPING TOOL INSTALLATION OF FIXING PYRAMID WITHOUT HELPING TOOL DRILL Ø 5,2mm DRILL Ø 4,2mm 8800 1265 PARTS: 8800_Ø 4,0 x 10 1265 l i n e L I V I N G 7/10...
- Page 8 INSTALLATION OF FIXING PYRAMID - OPTION INSTALLATION OF FIXING PYRAMID DRILL Ø 5,2mm DRILL Ø 4,2mm 8800 1265 PARTS: 8800_Ø 4,0 x 10 0105 1265 l i n e L I V I N G...
- Page 9 PLACING OF STOP ELEMENTS FOR SEGMENTS PLACING OF STOP ELEMENTS FOR SEGMENTS 8840 Ø3,2mm 1200 PARTS: 1200 8840 - Ø3 x 10 l i n e L I V I N G 9/10...
- Page 10 PLACING OF BLIND PLUG OF RAIL PLACING OF BLIND PLUG OF RAIL 6320 (6330) PARTS: 6320 6330 l i n e L I V I N G 10/10...
