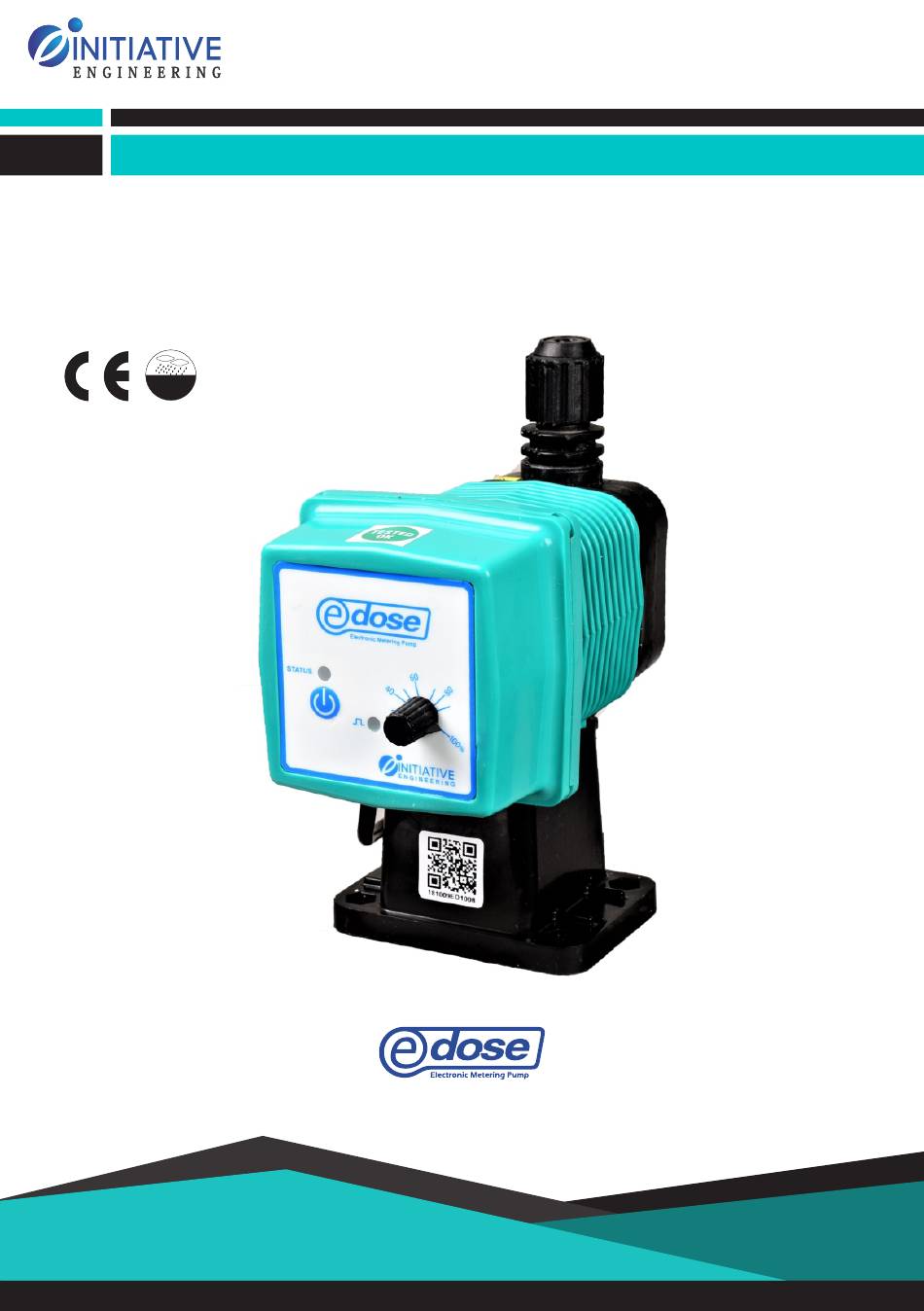

- Page 1 FORMAT NO- IE/00/15(2) REV. DATE 01-08-19 REV. NO. 00 OPERATION AND MAINTENANCE MANUAL IP 65 IP 65 www.initiativeengineering.com...
-
Page 2: Scope Of Supply
FEATURES Auto rese ng thermal fuse. Ÿ Double ball NRV with PTFE seal. Ÿ Splash proof enclosure. Ÿ Built in air release valve (ARV). Ÿ PTFE diaphragm for longer life. Ÿ Adjustable frequency (up to 400 spm) with a frequency knob. Ÿ... -
Page 3: Specifications
SPECIFICATIONS Dosing Turn Down Ratio 10:1 Maximum Dosing Capacity 2.06 3.43 Minimum Dosing Capacity 0.16 0.26 Maximum Kg/cm² Operating Pressure Maximum Stroke strokes/min. Frequency Mechanical Stroke Volume 0.28 Data Accuracy of ±2 Repeatability Maximum Suction Lift During meter Operation Min. / Max. Liquid ⁰C 5 to 50 Temperature... -
Page 4: Installation
INSTALLATION (1) Always wear protec ve clothing, face shield, safety glasses and gloves when working on or near your metering pump. Addi onal precau ons should be taken depending on the solu on being pumped. (2) Pump is to be protected from sun and rain. If outdoor installa on is unavoidable, provide a canopy over the pump. - Page 5 MOUNTING SET-UP SCHEMATIC MAIN LINE INJECTION VALVE CHEMICAL TANK STARTUP Connect the mains supply. Turn the frequency knob fully in clockwise direc on to 100 (max. frequency se ng of the pump). Switch on the mains bu on and press the on-off key of the pump to start the pump. Open the ARV (Air Release Valve) by approximately three-five turns.
- Page 6 DOSING HEAD ASSEMBLY Sr. No DESCRIPTION DIAPHRAGM (PTFE) DIAPHRAGM “O” RING DOSING HEAD NRV BALL CAP 6mm BALL (BOROSILICATE) NRV WASHER BIG (PTFE) NRV WASHER SMALL (PTFE) NRV BODY NRV “O” RING NRV NOZZLE TUBING CAP TUBING CONNECTOR BOLT HEAD CAP DOSING HEAD BOLT (M4X40) HEAD BOLT WASHER (M4) STAR WASHER...
-
Page 7: General Assembly Drawing
GENERAL ASSEMBLY DRAWING NOTE : ALL DIMENSIONS ARE IN MM SECTION VIEW Sr. No DESCRIPTION PCB HOUSING SS PLUNGER SOLENOID ASSEMBLY SOLENOID HOUSING DOSING HEAD SS SPRING DIAPHRAGM MOUNTING BRACKET SOLENOID SPACER PAGE 6 www.initiativeengineering.com... -
Page 8: Exploded View
EXPLODED VIEW PAGE 7 www.initiativeengineering.com... -
Page 9: Part List
PART LIST SR. NO. PART NO. DESCRIPTION PAGE 8 www.initiativeengineering.com... - Page 10 Make sure the pump cannot be put back into the opera on by accident. In case of diaphragm breakage use the following step to dismantle diaphragm (refer fig. of Edose Dosing Head overview): 1.Make the system pressure less.
- Page 11 8.Remove the ball bush and o ring from NRV body. Check their safety for wear and damage. If necessary, replace them. 9.Unscrew the PCB housing and remove it. 10.Remove the spring fi ng washer and nut and PTFE washer. 11.Loosen the screws on dosing head and remove the screws. 12.Remove the diaphragm washer, plunger washer and diaphragm o ring from diaphragm-plunger assembly.
-
Page 12: Troubleshooting
TROUBLE SHOOTING Problem P ossible Causes Trouble Shooting Excessive Pump Syphoning Move injection point Output pressurized point Make sure Little or pressure injection injection check valve point Excessive strokes minute installed properly Consult factory Pump will Pump turned plugged Turn pump/plug demand the set point. -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY As manufacturer: Initiative Engineering S. No. 273, Bhatewara Nagar Hinjewadi Pune-411057 Maharashtra India Declares that the following “POSITIVE DISPLACEMENT Metering/Dosing pumps”. Brands: & Are compliant with the following directives: Ø 2014/35/EU – LVD – this is a direc ve concerning the approach the approach of the Member States rela ng to electrical material designed to be used within some voltage limits. - Page 14 +91 788 788 7531/33/38...
