Summary of Contents for Brasch GSE Generation 2

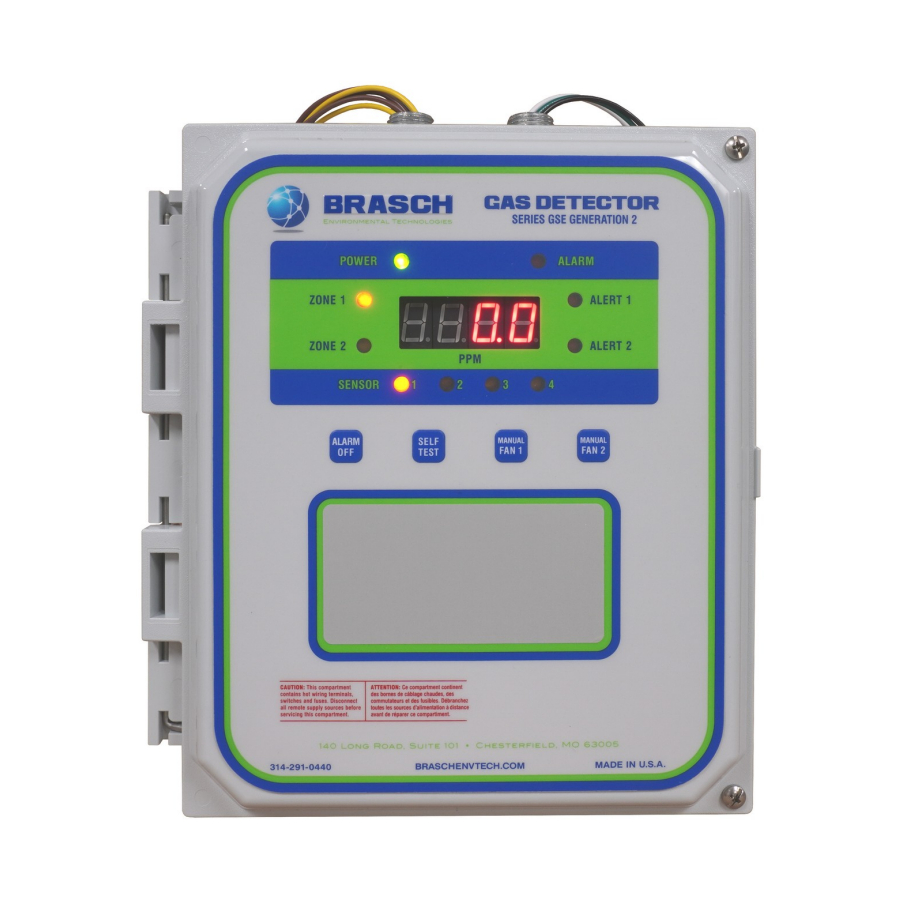

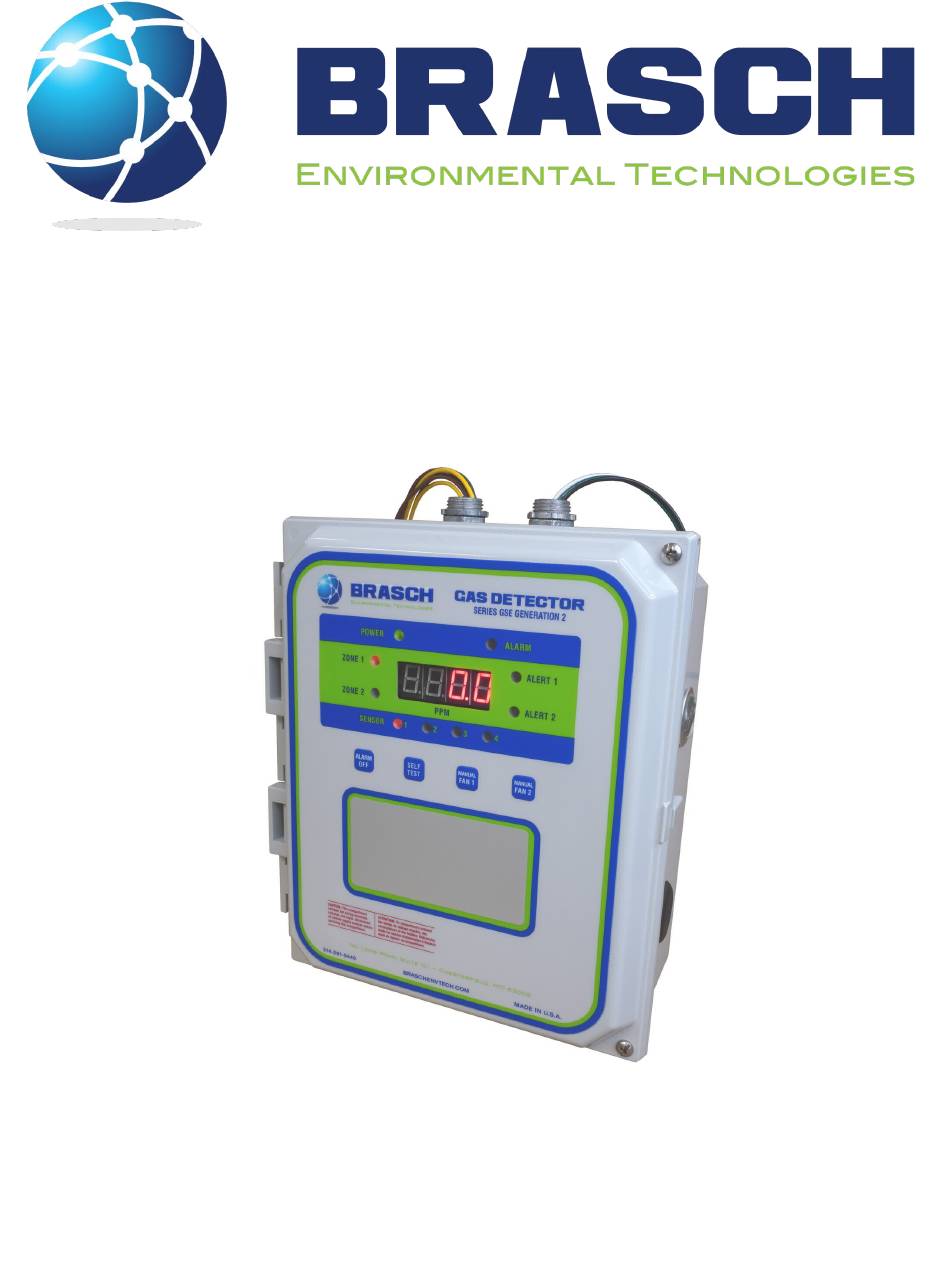

- Page 1 GSE Generation 2 Quick Start Guide Brasch Environmental Technologies, LLC 140 Long Road, Suite 101 Chesterfield, Missouri 63005 314-291-0440 www.braschenvtech.com...
- Page 2 Operation with the wrong power requirement will void the manufacturer’s warranty and the installer will be responsible for any damage that occurs. Contact Brasch Environmental Technologies, LLC before connecting power to the detector if you are unsure of the correct power requirement. SG02...
- Page 3 CAUTION It is very important that the power and signal connections between each transmitter and between the transmitters and the Brasch controller be correct. If the connections are wired incorrectly, damage to both the transmitters and the controller will occur.
- Page 4 Step 4 – Relay Wiring In most cases, wiring of the ventilation control relays can be completed without opening the front panel of the detector. Color-coded wires connected to the internal relay terminals extend outside the housing through the conduit connector located at the top, left of the unit. Use only the necessary wires required for control of the ventilation components.
- Page 5 Website: www.braschenvtech.com Technical Support Contact Information Phone: 314-291-0440 ext. 1006 Fax: 314-291-0646 Email: customerservice@braschenvtech.com Website: www.braschenvtech.com/support-for-existing-systems Revision: 1.0 Issue Date: December 22, 2020 Document Number: SG02 © Brasch Environmental Technologies, LLC All Rights Reserved SG02 Rev 1.0 – December 22, 2020...
