Part Number: 1033350-01
Rev Number: A
© Copyright Topcon Precision Agriculture
All contents in this manual are copyrighted by Topcon Agriculture. All rights reserved. The
information contained herein may not be used, accessed, copied, stored, displayed, sold, modified,
published or distributed, or otherwise reproduced without express written consent from Topcon
Agriculture.
Topcon Agriculture
this Manual;
Topcon Agriculture
appropriate ways to generally improve the product, without prejudice to its performance.
CL-55 User Manual
shall not be held responsible for possible inaccuracies due to misprints within
reserves the right to modify the Manual and the devices in

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL-55 and is the answer not in the manual?

Questions and answers

Related Manuals for Topcon CL-55

Summary of Contents for Topcon CL-55

  • Page 1 Rev Number: A © Copyright Topcon Precision Agriculture All contents in this manual are copyrighted by Topcon Agriculture. All rights reserved. The information contained herein may not be used, accessed, copied, stored, displayed, sold, modified, published or distributed, or otherwise reproduced without express written consent from Topcon Agriculture.

  • Page 2: Table Of Contents

    RF Radiation Exposure statement ..............22 Foreword The CL-55 adds cellular and Wi-Fi capability to the X-Family consoles. It allows access to the new Topcon Agriculture Platform (TAP), which is a cloud based integrated agronomic management platform. It also provides access to the XTEND feature in the Horizon console operating system.

  • Page 3: General Information

    4G/LTE modems covering different geographical areas and operators (EU/AUS/VZW/JAP). The IP66 plastic box, the industrial grade working temperature range of the electronics and the rugged mechanics, allow the use of CL-55 on any kind of agricultural or construction machine and other on-road and off-road transportation means.

  • Page 4: Hardware

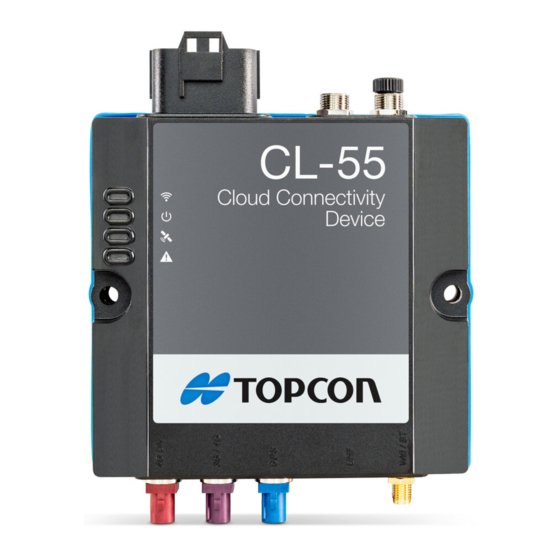

    Hardware Mechanical characteristics The Mechanical components of CL-55 are: • Back housing / aluminum carrier • Plastic front cover with integrated LED-windows • Mainboard • Antennas (external & internal) • Supporting parts (gasket, screws, M8-harness, venting membrane, Label, …) • GPS antenna connector: C TYPE BLUE CONNECTOR •...
  • Page 5 RP - SMA Plastic front cover Satel RTK optional FAKRA Connectrs M8 3 pin Sealing standard blue M8 4 pin LED - Windows Input connector J7 Aluminum carrier & back housting Figure 1 1033350-01 Rev A...

  • Page 6: Cover Characteristics

    Figure 2 Figure 3 Cover characteristics Back housing / aluminum carrier • Aluminum die cast • Supporting the venting membrane and the label field • Powder coating with structure, matte, RAL 9005 1033350-01 Rev A...
  • Page 7 Figure 4 Plastic Front Cover • Plastic molded part, visible surfaces etched & polished, no painting • 4 overmolded or assembled LED windows • Supporting the external Satel RTK • Supporting the external WiFi-Antenna • Supporting the external GPS-Connector, 3G-4G Connector, Diversity-Antenna •...
  • Page 8 Figure 5 Mass The total mass of the CL-55 including the battery and the box is 0,3 kg. Mechanical dimensions The CL-55 box board can be contained into a prism having the following dimensions: L: 150,3 mm x W: 119,5 mm x H: 32,2 mm...

  • Page 9: Technical Specifications

    Figure 6 – CL - 55 box mechanical drawing Fastening The fastening method of the CL-55 box will be in accordance with Figure 6 above with two screws or bolts/nuts. The fixation holes diameter is 5,5 mm for M5 screws/bolts. The head plane for screws has a diameter of 10mm and allows mounting with wrench socket up to 15mm diameter.

  • Page 10: Storage Temperature

    -25 °C < Top < +50 °C. Storage temperature The CL-55 will withstand an indefinite storage in an environment at a temperature range of - 40° C < Ts < +85 °C.
  • Page 11 Bands: ● Five Bands UMTS (WCDMA/FDD) Bands: 800, 850, 900, 1900 and 2100 SARA-U201(U-Blox) Global coverage ● Quad-Band GSM Bands: 850, 900, 1800 and 1900 MHz Approvals: ● 3GPP Rel.7 Compliant Protocol Stack ● RED Data speed: Modem (3G version) ●...
  • Page 12 ● 72-channel u-blox M8 engine GPS/QZSS L1C/A, GLONASS L1OF, BeiDou B1l, Galileo E1B/C, SBAS L1C/A: WAAS, EVA – M8M(uBLOX) EGNOS, MSAS, GAGAN ● FA-GPS and SBAS compliant ● PPS available ● IEEE 802.11 a/b/g/n/ac compliant ● Wi-Fi 2.4 GHz channels 1-13 EMMY-W161 (uBLOX) ●...
  • Page 13 Features Type Notes 12V – 24V SMPS Automotive Power supply ISO 7637 compliant as design goal grade TABLE 1 – Main hw characteristics TABLE 2 – Functional blocks 1033350-01 Rev A...

  • Page 14: Supply Voltage

    The nominal supply voltage will be 13,6 and 27,2 Vdc (standard +30 automotive range for 12 V and 24 V plant). The CL-55 is not intended for use during the cranking phase. The I/O lines compliance matches the supply voltage range.

  • Page 15: Label

    Label 1033350-01 Rev A...
  • Page 16 1033350-01 Rev A...
  • Page 17 Label position: Figure 11 1033350-01 Rev A...

  • Page 18: User Interface

    Red is ON for a general error to be investigated Figure 12 Product warranty Topcon Agriculture warrants that the electronic components shall be free of defects in materials and workmanship for a period of two years from the original date of shipment to the dealer. Warranty does not cover damages due to an improper use of the device and/or to the non-compliance with the indications contained in this document.

  • Page 19: Use Restrictions And Warnings (Fcc / Ised)

    1.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2.Device model CL-55 3G: CONTAINS FCC ID: 2ASVE-CL-55 IC: 24901-CL-55 CONTAINS: FCC ID: XPY1CGM5NNN IC: 8595A-1CGM5NNN CONTAINS: FCC ID: MRBSATEL-TA37 IC: 2422A-SATELTA37 Device...

  • Page 20: Rf Radiation Exposure Statement

    Street N.E., Calgary, AB T2E8W1 Canada Phone no: +1.403.450.4262 Email address: srosenegger@topcon.com 7. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
