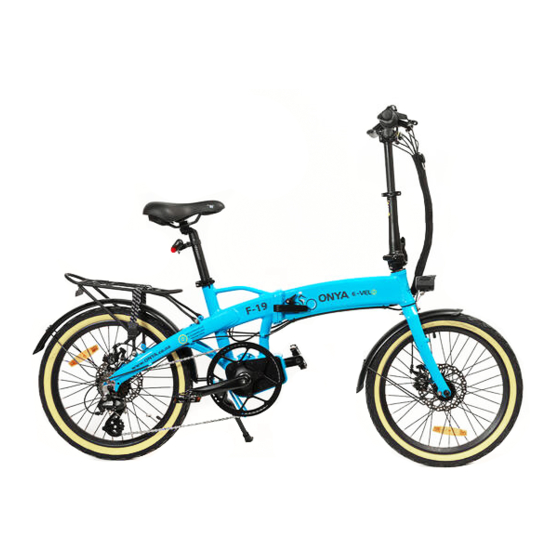

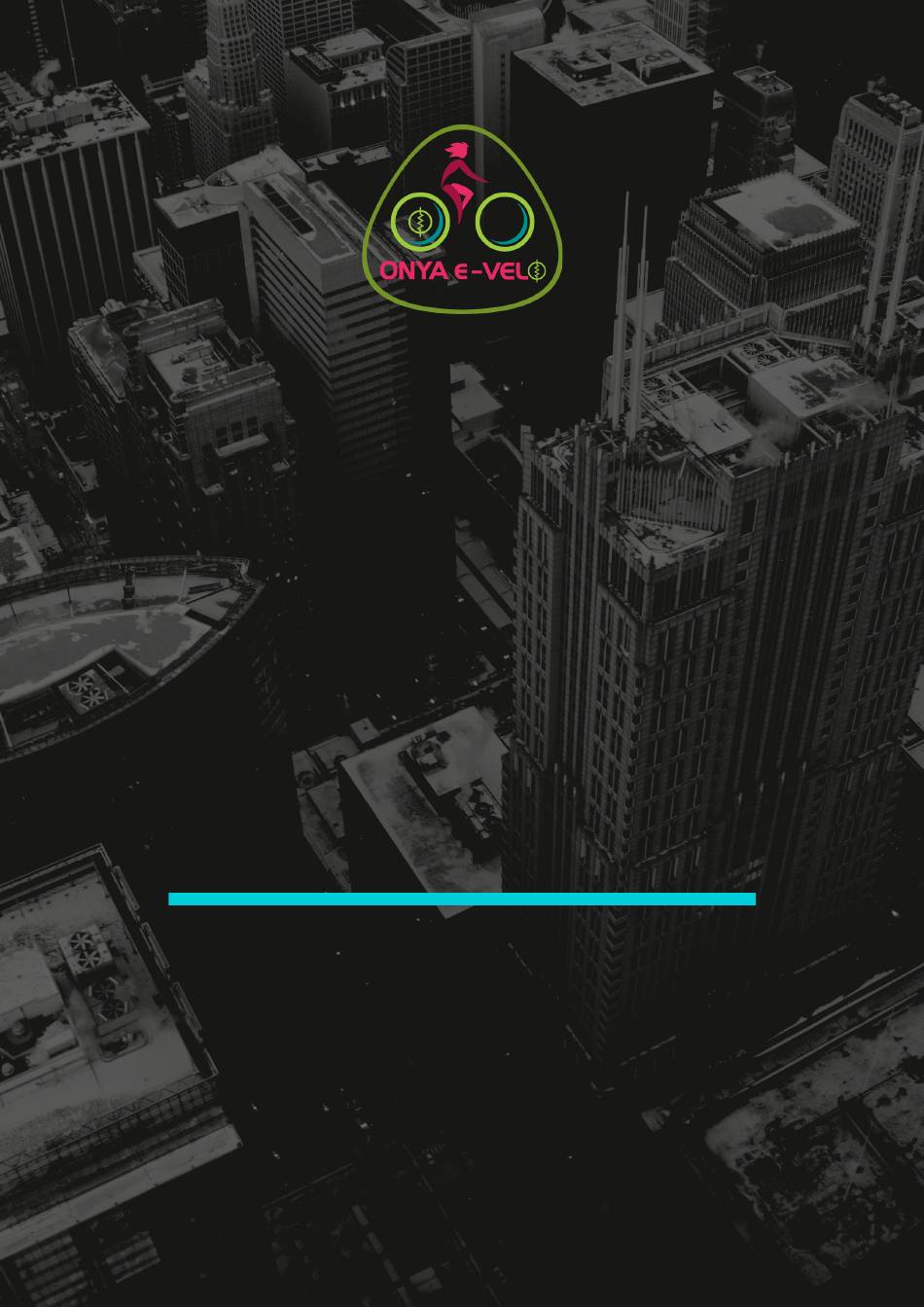

- Page 1 WARRANTY USER MANUAL ONYA F-19...
- Page 2 F-19...
-
Page 3: Warranty
WARRANTY YOUR ONYA-F19 IS COVERED BY THE FOLLOWING WARRANTY Battery: 2 years (warranted to still supply at least 60% of rated capacity after 2 years) Motor: 1 year Frame: 3 years (frame structural integrity - not including general wear and tear) - Page 4 Follow these steps to get it ready and safe for you to ride. 1. Lift your ONYA F-19 carefully out of the box. We recommend you have 2 people to do this task. Remove the nylon zip ties, bubble wrap, and packaging from the bike.
- Page 5 ASSEMBLING YOUR F-19 5. Before standing the steering column up, make sure that the column is at it’s lowest position, and certainly that it is not fully extended. If the column is too extended then you will stretch, and possibly break the gear and brake cables!! 6.
- Page 6 ASSEMBLING YOUR F-19 11. Loosen the grip on the seat column and twist the seat into forward-facing position 12. Open the side panel flap on left-hand side of the frame. Turn the master switch to ON position. See image (8). 13.
-
Page 7: Pre-Ride Checklist
Check all electronic functions are OK (see the insert: KT-LCD3 eBike Display User Manual for instructions on how to use the control panel fitted to your ONYA F-19). Check all lights and reflectors are in place and functioning correctly (detailed later in this manual). -
Page 8: Recommendations For Safe-Riding
Wear a bike helmet (on your head). If you are unfamiliar with cycling, we’d also recommend that you take a cycle proficiency course before using it, or get some advice from your local ONYA dealer. Your F-19 is a serious transport vehicle. - Page 9 Check the front and rear rim’s safety line. Replace wheel when any part of the Rim Wear Groove is not visible. Do NOT fit a child seat to your ONYA F-19. The bike is not designed to carry any child seat.
- Page 10 CONTROL PANEL REAR-WHEEL DRIVE MOTOR The rear-wheel drive F-19s are fitted with the Key Disp 21C LED displays. MID-DRIVE MOTOR The mid-drive F-19s are fitted with the DasKit C6/7 displays.
-
Page 11: Control Panel
All the electric-assist bike components (throttle, brake sensors, controller, etc) on the ONYA F-19 have isolating marine-rated plugs. If you should damage a component, replacement should be straight-forward. Take the bike to your ONYA dealer and they will order the replacement part. inspection LIGHTS - FRONT &... -
Page 12: Pedal-Assist Level Selection
OPERATING INSTRUCTIONS PEDAL-ASSIST LEVEL SELECTION Your ONYA F-19 has 5 levels of pedal-assistance: 1 to 5; level 1 being lowest level of pedal assistance. When you first ride your electric-assist bike, you will notice that after a short turn of the pedals, the motor will start working (you will both hear and feel the difference) and assisting you to ride the bike by adding power into the motor. -
Page 13: Throttle Mode
OPERATING INSTRUCTIONS ERROR CODES: REAR-WHEEL DRIVE If error codes appear on your display, take your eVelo to your Dealer to resolve. 21 - Current error 22 - Throttle error 23 - Motor error 24 - Motor Hall Signal error 25 - Brake error 30 - Communication error ERROR CODES: MID-DRIVE If error codes appear on your display, take your eVelo to your Dealer to... -
Page 14: Charging Your Battery
BATTERY Excluding the electric drive side of things, your ONYA e-Velo is a normal bicycle, with standard bicycle components. Your Dealer will be able to explain to you the general care and maintenance of these components. You should take your bike in for a check-up after about 1 months’ use as new gear, brake cables will stretch - and then every 6 months after that. -
Page 15: Removing The Battery
BATTERY REMOVING THE BATTERY Remove the black security latch to the UNLOCK position (move anti clockwise 90°). See image (1). Lift the centre brace lever and open/fold the bike frame to expose the battery. See image (2). Insert the battery key and turn to unlock the battery. See image (3). Remove the battery out from the frame. - Page 16 FOLDING YOUR F-19 1. Release the seat clamp and descend seat. See image (1). 2. Fold up the pedals: - Push pedal in towards bike frame and fold up or down - Repeat on other side. See image (2). 3. Put up the kick-stand 4.
-
Page 17: Do's And Don'ts
DO'S & DON'TS DO treat your ONYA F-19 like any bike that you would want to last well. As a minimum, keep it stored somewhere secure and out of the rain Do NOT treat your ONYA F-19 as a dirt-bike! The motor and battery are waterproof but not totally water-tight. - Page 18 DO'S & DON'TS DO take extra care on the road as you will be traveling faster than you normally do on a bike. Your bike is also power-assisted, so it will behave differently. Do NOT let others ride your electric-assist bike unless you have explained safe and appropriate use to them.
-
Page 19: Maintenance And Adjustment
MAINTENANCE & ADJUSTMENT LUBRICATION Once a month, lubricate all pivot points on your derailleur and the derailleur pulleys with suitable chain lube. Every three months, lubricate the brake lever pivots, gears and chain with suitable oil. Once a year, have your dealer re- grease the bottom bracket bearings, headset bearings, and wheel bearings. -
Page 20: Other Maintenance
MAINTENANCE & ADJUSTMENT OTHER MAINTENANCE Your bicycle must be checked out by your servicing ONYA dealer or bicycle mechanic after one month or 200km of riding (whichever comes first) to re- tension the spokes. Then every six months or 1000km (whichever comes first) for a general service and thorough inspection. -
Page 21: Frame Number
YOUR ONYA ID. FRAME NUMBER: BATTERY SERIAL NUMBER: DEALER WHERE BIKE PURCHASED: DATE OF PURCHASE:... -
Page 22: Service History
SERVICE HISTORY... - Page 23 NOTES...
- Page 24 www.onya.co.nz...
