Summary of Contents for ONYA F-19

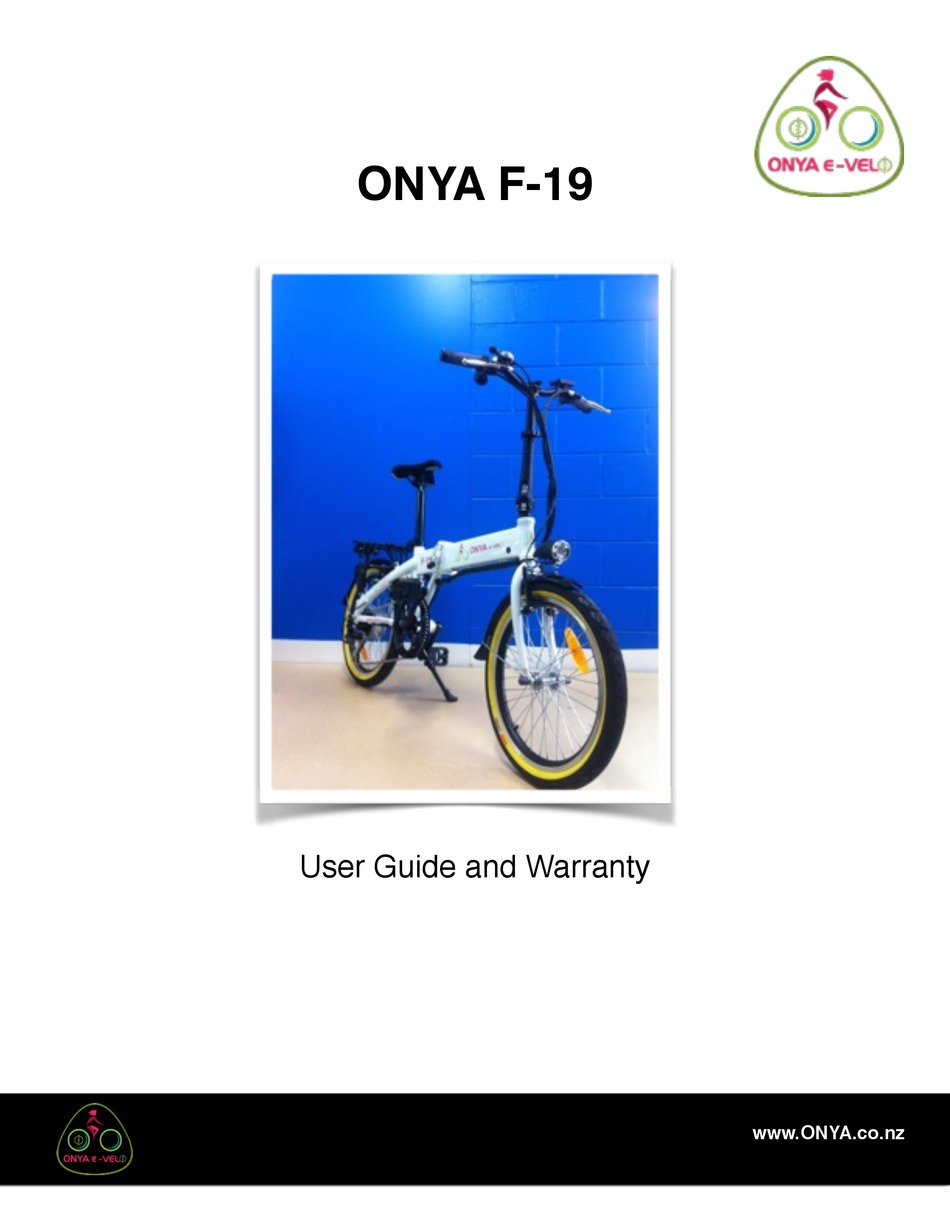

  • Page 1 ONYA F-19 User Guide and Warranty
 www.ONYA.co.nz! Page...
  • Page 2 Page...

  • Page 3: Table Of Contents

    Pre-Ride Checklist! Recommendations for Safe Riding! Maintenance and Adjustment! Lubrication! Gear Adjustment! Adjusting the Chain! Other Maintenance! Cleaning your ONYA F-19! Battery Instructions! Charging Your Battery! Removing the Battery! Power On/Off! Pedal-Assist Level Selection! Throttle Mode! Folding Your ONYA F-19! Do’s and Don’ts!

  • Page 4: Contents Of Shipping Carton

    Contents of Shipping Carton! Your brand new ONYA F-19 comes with:!
 • ONYA F-19 electric-assist bike! • Battery (36V, 8ah in bike frame)! • LI-ion battery charger! • 2 x pedals! • 2 x ignition keys! • 2 x battery keys! •...
  • Page 5 Follow these steps to get it ready and safe for you to ride.! 1. Lift your ONYA F-19 carefully out of the box. We recommend you have 2 people to do this task. Remove the nylon zip ties, bubble wrap, and packaging from the bike.! 2.
  • Page 6 6. Stand astride the front wheel and gently align the handle bars such that they are perpendicular to the frame! 7. Fold the steering column down again to access the steering column nut (Fig. 3). Tighten the steering stem nut using the nr. 5 Allen key! 8.
  • Page 7 15. Attach the pedals. NOTE: There is a pedal for the left-hand (marked L -on thread end ) side and one for the right-hand side. Insert one into position and gently turn the pedal nut into the anticlock-wise. Use the nr. 15 spanner to tighten the pedal nut tight, holding against opposite crank.!
...

  • Page 8: Pre-Ride Checklist

    Pre-Ride Checklist Important: The following steps should be performed by a qualified cycle or electric-assist bicycle technician: 1. Ensure the brake lever sequence is correct for your country before riding. In NZ, Australia,
 and UK: the left-hand brake lever is for the rear brake, and the right-hand level is for the
 front brake.

  • Page 9: Recommendations For Safe Riding

    Groove is not visible.! • Do NOT fit a child seat to your ONYA F-19. The bike is not designed to carry any child seat.! • As part of warranty conditions, we require that you service the bike at an approved ONYA e- Velo dealer:! after 1 month or 200km of riding (whichever comes first) to re-tension spokes!

  • Page 10: Maintenance And Adjustment

    Other Maintenance! Your bicycle must be checked out by your servicing ONYA dealer or bicycle mechanic after one month or 200km of riding (whichever comes first) to re-tension the spokes. Then every six months or 1000km (whichever comes first) for a general service and thorough inspection.
  • Page 11 Cleaning your ONYA F-19 Warm soapy water and a cloth can be used to clean the frame of your bike. ! DO TAKE CARE not to immerse any of the electrical components in water; they are rainproof but cannot be immersed in water. ! The motor can be cleaned with a soapy cloth but must also not be immersed in water.

  • Page 12: Battery Instructions

    Battery Instructions Excluding the electric drive side of things, your ONYA e-Velo is a normal bicycle, with standard bicycle components. ! Your Dealer will be able to explain to you the general care and maintenance of these components. You should take your bike in for a check-up after about 1 months’ use as new gear, brake cables will stretch - and then every 6 months after that.!

  • Page 13: Removing The Battery

    All the electric-assist bike components (throttle, brake sensors, controller, etc) on the ONYA F-19 have isolating marine-rated plugs. ! If you should damage a component, replacement should be straight-forward. ! Take the bike to your ONYA dealer and they will order the replacement part.! Page...

  • Page 14: Pedal-Assist Level Selection

    Pedal-Assist Level Selection Your ONYA F-19 has 3 levels of pedal-assistance: Low, Medium, and High.
 When you first ride your electric-assist bike, you will notice that after one turn of the pedals, the motor will start working (you will both hear and feel the difference) and assisting you to ride the bike by adding power into the rear wheel.
  • Page 15 Folding Your ONYA F-19 1. Release the seat clamp and descend seat fully! 2. Fold up the pedals (Figure 9):! Place pedal in palm of hand! Insert fingers in middle of pedal! Squeeze! Flip pedals upright! Repeat on other side 3.

  • Page 16: Do's And Don'ts

    Do’s and Don’ts DO treat your ONYA F-19 like any bike that you would want to last well. As a minimum, keep it stored somewhere secure and out of the rain!
 Do NOT treat your ONYA F-19 as a dirt-bike! The motor and battery are weather proof but not totally water-tight.
  • Page 17 DO give your battery a full discharge and overnight charge once every 3 months.
 DO top up your battery whenever possible. Lithium batteries actually prefer shallow discharge (the exact opposite of older types of batteries that have memory effects). Keeping your battery topped up between rides will prolong the life of your batter and give you more power too, as a full battery is better on the hills.! DO disconnect your battery from the charger when it is charged (or the next day is also fine).

  • Page 18: Warranty

    Frame: 6 years (frame structural integrity - not including general wear and tear)! Other components: 1 year (not including consumables such as tyres, cables, rubber bungees, handgrips) Only use genuine replacement parts available through your local ONYA Dealer.! Exceptions to Warranty! •...
