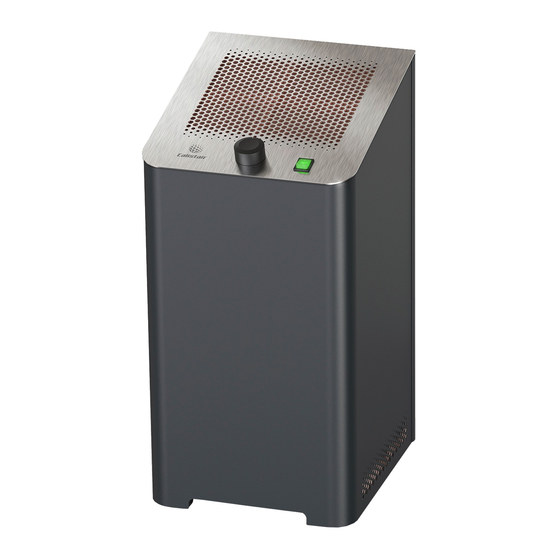

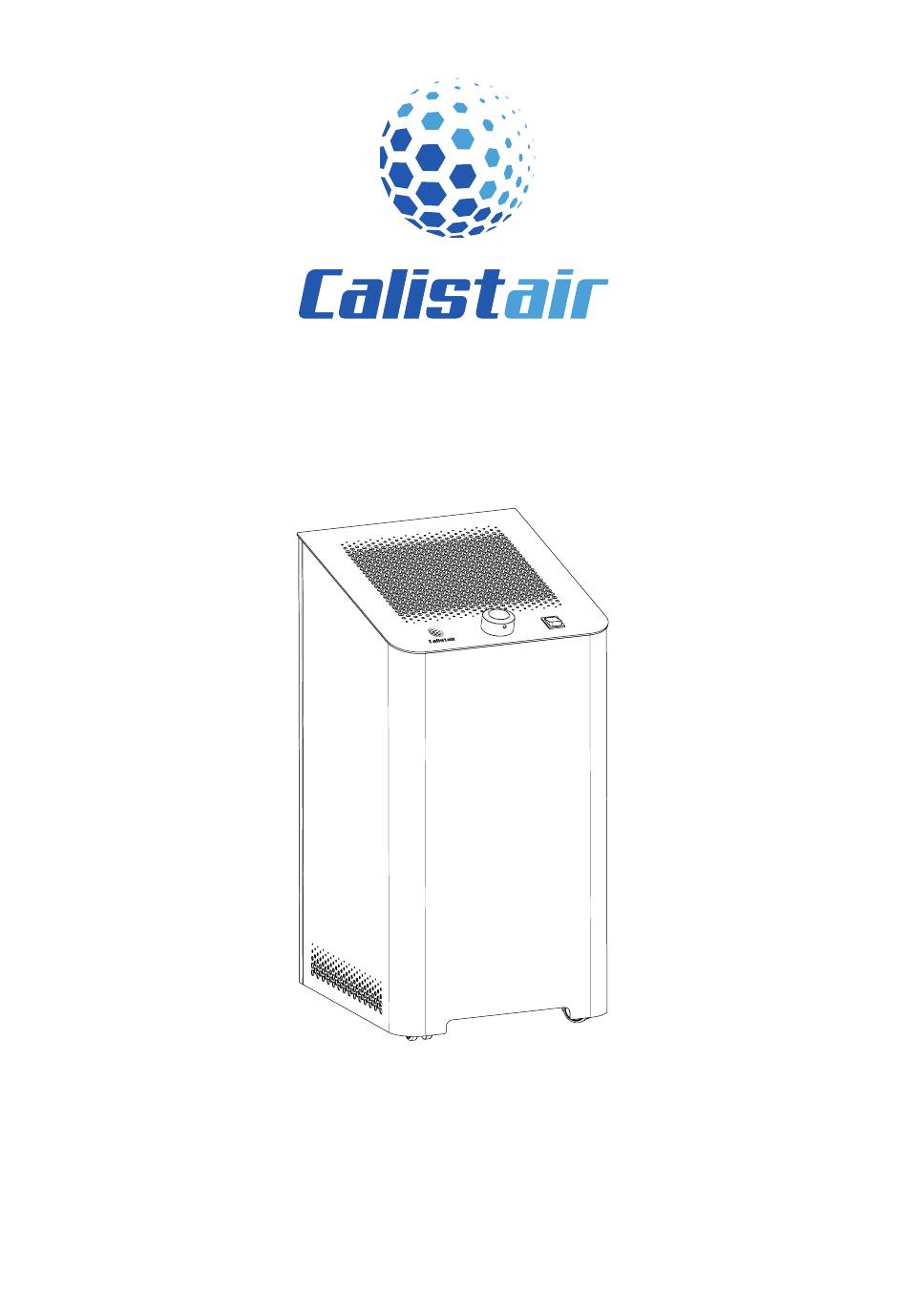

- Page 1 CALISTAIR C300 TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS Decontamination plant Read carefully before use Year of construction 2020 Made in Europe Ver. 18/12/2020...
-
Page 3: Table Of Contents
3. DEVICE OVERVIEW 3.1 Device description 3.2 Intended use 3.3 Reasonably foreseeable misuse 3.4 Nameplate 3.5 Scope of delivery 3.6 Technical data 3.7 Description of the controls and display 3.7.1 Power switch 3.7.2 Adjustment wheel Ver. 18/12/2020 | Calistair C300... - Page 4 7.2.3 Select air flow via adjustment wheel 8 MAINTENANCE 8.1 Change prefilter 8.2 Change high-performance filter (HEPA filter) 8.3 Change UVC fluorescent tubes 8.4 Replace UVC fluorescent tube in case of glass breakage 9 CLEANING AND DISINFECTION 10. TROUBLESHOOTING 11. DECOMMISSIONING 11.1 Disassembly 11.2 Disposal, scrapping ANNEX Parts lists EC Declaration of Conformity LIST OF ILLUSTRATIONS Ver. 18/12/2020 | Calistair C300...
-
Page 5: About These Instructions
• The Calistair C300 may be used by persons aged 8 years or older as well as persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they have been supervised or instructed regarding the safe use of the device and understand the resulting dangers. - Page 6 - Damage as a consequence of negligent handling, incorrect use or careless use of the device - Damage as a consequence of using parts that are not Calistair original parts or that have not been installed according to Calistair’s recommendations and instructions...
-
Page 7: Liability
1.4 Copyright Changes in construction and design as well as errors, printing and typesetting mistakes are reserved. Calistair reserves the right to change the data contained in this document at any time and without prior notice. All representations and pictures are protected by copyright. -
Page 8: Representation Conventions
Individual handling instructions without chronological sequence are presented as follows: Handling step disordered Representation of enumerations Numbered and unnumbered enumerations are shown as follows: 1. Numbered enumeration 2. Numbered enumeration • Enumeration, level 1 - Enumeration, level 2 - Enumeration, level 2 Ver. 18/12/2020 | Calistair C300... -
Page 9: Representation Of Warnings
‣ Listing of all measures that must be taken to avoid the consequences. NOTE Indicates a potentially dangerous situation, which can lead to damage to property if not avoided. ‣ Listing of all measures that must be taken to avoid the consequences. Ver. 18/12/2020 | Calistair C300... -
Page 10: Symbols Used
1.6.3 Symbols used Warning sign Mandatory sign General warning sign General mandatory sign Warning of hot Use hand protection surface Warning of UV radiation Use mask Warning of hazardous voltage Prohibition sign General prohibition sign Ver. 18/12/2020 | Calistair C300... -
Page 11: Ec Declaration Of Conformity
The declaration of conformity can be obtained from our customer service. 1.8 Manufacturer data Calistair SAS 223 rue Pasteur 77000 Vaux-le-Pénil Tel.: +33 1606 346 34 www.calistair.com Distribution: Calistair GmbH www.calistair-C300.com kontakt@calistair.com Phone: 0800 Calistair (0800 225478247) Ver. 18/12/2020 | Calistair C300... -
Page 12: Safety
Calistair C300. It is essential to observe all notes for operation and maintenance of the decontamination plant Calistair C300 listed in this chapter. 2.1 Personal qualification The user must have read and understood the operating instructions. The user must correspond to the target group definition in chapter 1.1. -
Page 13: Dangers
Do not operate the device in an environment with very strong dust or gas exposure. There is a risk of dust and / or gas explosion. • Do not leave children unattended in a room with the device or the power cable. There is a risk of personal injury. Ver. 18/12/2020 | Calistair C300... -
Page 14: Dangers During Assembly, Commissioning And Operation
• U VC fluorescent tubes are an ultraviolet product of risk group 3. These lamps emit high-power UV radiation that can cause serious injury to skin and eyes. • Avoid exposure of eyes and skin to unshielded products. • Never expose yourself directly to the radiation of UVC fluorescent tubes. • E nsure that the UVC fluorescent tubes are completely cooled down before changing (at least 30 minutes after the device is switched off). • W ash your hands carefully after touching one of the filters to avoid contamination. Ver. 18/12/2020 | Calistair C300... -
Page 15: Dangers During Final Decommissioning And Disposal
- Where has something happened? - What exactly has happened? - How many people are affected? - What type of injury / emergency exists? - Waiting for further queries. 5) Provide first aid until the first aider has arrived. - Stop bleeding. - Cool burns for a short time with lukewarm water. Ver. 18/12/2020 | Calistair C300... -
Page 16: Device Overview
Power switch Safety switch High-performance fi lter (HEPA fi lter) Housing Filter drawer UVC fl uorescent tubes Housing cover Reactor honeycomb plates Safety switch Rear air intake Lateral air intake Fixed castors Power connection Prefi lter insert Ver. 18/12/2020 | Calistair C300... -
Page 17: Intended Use
For more information on Calistair technology and cleaning performance, please visit www.calistair-C300.com. 3.2 Intended use The Calistair C300 is designed for use in private and commercial environments, e.g. in practices, law firms, companies or private rooms. The device is not intended for industrial use in excessively dirty rooms. The user must comply with the operating parameters specified in these instructions. The device may only be used for its intended purpose. Any other use beyond this is not in accordance with the intended purpose. -
Page 18: Reasonably Foreseeable Misuse
The nameplate is located on the back of the device next to the power connection. The nameplate contains the following information: Distribution Manufacturer Model / type CE marking Voltage Frequency Place of manufacture Performance Backup Disposal information Note “Read instructions” Ver. 18/12/2020 | Calistair C300... -
Page 19: Scope Of Delivery
353 mm x 372 mm x 704 mm Dimensions (WxDxH) 24.5 kg Weight 300 m³/h Air flow rate max. 60 m² Room size Electrics 220-240 V Control voltage 50-60 Hz Network frequency range 160 W Performance IP00 Protection class Continuous operation Operating mode Ver. 18/12/2020 | Calistair C300... -
Page 20: Description Of The Controls And Display
The power switch is located on the top of the device. For further information see chapter 6. 3.7.2 Adjustment wheel The adjustment wheel is located on the top of the device and is used to regulate the air flow. For further information see chapter 6. Ver. 18/12/2020 | Calistair C300... -
Page 21: Transport, Handling, Storage
Unplug the power plug of the device before transport. Let the device cool down. Transport the device on flat surfaces by moving it with the castors mounted on it. Transport the device on uneven surfaces and inclined planes by carrying it with two persons. Always transport the device upright. Ver. 18/12/2020 | Calistair C300... -
Page 22: Handling And Storage
Store the power cable as follows: • Kink-free. • Disconnected from the device. Observe the following points for storage of more than four weeks: • Pack the filter airtight. • Cover the device with the original carton / foil. Ver. 18/12/2020 | Calistair C300... -
Page 23: Assembly, Installation, Commissioning
5. ASSEMBLY, INSTALLATION, COMMISSIONING WARNING Risk of suffocation due to foil bag. Foil bag is not a toy. ‣ Keep foil bag away from babies and children. 5.1 Assembly 1) Unpack device from cardboard box. 2) Remove foil bag. 3) Select location. 4) C onnect power cable to the device as shown in the figure. Ver. 18/12/2020 | Calistair C300... -
Page 24: Place Device
The device should be placed on a stable, dry and level surface in such a way that neither the device nor the power cable presents a tripping hazard. The control panel and housing cover should be easily accessible. Ver. 18/12/2020 | Calistair C300... -
Page 25: Commissioning
The air should be able to circulate more or less unhindered in the room. Check the distances regularly for compliance. 5.3 Commissioning Before commissioning, make sure that the device is completely assembled and free of damage. 1) Place device at a suitable location (see chapter 5.2). 2) Connect power cable to device (see chapter 5.1). 3) Connect power plug to a grounded socket. 4) Switch on device (see chapter 7.2.1). 5) Select air flow via adjustment wheel (see chapter 7.2.3) Ver. 18/12/2020 | Calistair C300... -
Page 26: Factory Settings
6. FACTORY SETTINGS Adjustment wheel left = minimum air flow rate right = maximum air flow rate 0 = off = on In the factory setting, the adjustment wheel is in the left stop position. The power switch is set to 0. Ver. 18/12/2020 | Calistair C300... -
Page 27: Operation
Ensure that the measures for fresh air supply and air treatment are appropriate for the size of the room. It may be necessary to use several devices. 7.1 Operating modes The device is designed for continuous operation. Ver. 18/12/2020 | Calistair C300... -
Page 28: Switch On / Switch Off / Regulate Device
- Device is ready for operation. 7.2.2 Switch off device • Set the power switch to 0 to switch off the device. • Remove plug of the device from the socket. - Device is switched off. 7.2.3 Select air flow via adjustment wheel Select the desired air flow by turning the adjustment wheel. Adjustment wheel left = minimum air flow rate right = maximum air flow rate Ver. 18/12/2020 | Calistair C300... -
Page 29: Maintenance
‣ Operate the device only with a proper cover. ‣ Do not work on the switched-on device. ‣ D o not look into the UVC fluorescent tube. WARNING Injury due to electric shock. Open lamp socket when replacing bulbs. ‣ S witch off device before maintenance work. ‣ Pull power plug. Ver. 18/12/2020 | Calistair C300... - Page 30 Hot surfaces in operation due to heating. ‣ Let device cool down for at least 30 minutes before maintenance work. NOTE Inhalation of dusts. If the filter is dirty, dust may be emitted. ‣ Dust protection mask recommended. NOTE Contact with dusts. If the filter is dirty, dust may be emitted. ‣ Wear protective gloves. Ver. 18/12/2020 | Calistair C300...
-
Page 31: Change Prefilter
Number of people and animals in a room. • Number of air purifiers in a room. 8.1 Change prefilter NOTE Contact with dusts. If the filter is dirty, dust may be emitted. ‣ Wear protective gloves. ‣ C lean the prefilter with a vacuum cleaner in order to extend its life. ‣ D o not clean the filter with water. ‣ Clean your hands thoroughly after maintenance work. Ver. 18/12/2020 | Calistair C300... - Page 32 1) Switch off device. 2) Pull power plug. 3) L oosen screws on the housing cover with an Allen key (2.5 mm). 4) Remove housing cover (Fig. 1). 5 ) P ull the prefilter insert out of the mounting on the underside of the housing (Fig. 2). 6) P ush the new prefilter insert into the Fig. 1 mounting up to the stop. 7) Attach housing cover. 8) Tighten screws. Device is ready for operation. Fig. 2 Ver. 18/12/2020 | Calistair C300...
-
Page 33: Change High-Performance Filter (Hepa Filter)
8.2 Change high-performance filter (HEPA filter) NOTE Contact with dusts. If the filter is dirty, dust may be emitted. ‣ Wear protective gloves. ‣ A lways replace the HEPA filter, do not clean. ‣ Clean hands thoroughly after maintenance work. 1) Switch off device. 2) Pull power plug. 3) L oosen screws on the housing cover with an Allen key (2.5 mm). 4) Remove housing cover (Fig. 1). Fig. 1 Ver. 18/12/2020 | Calistair C300... -
Page 34: Change Uvc Fluorescent Tubes
CAUTION Burn due to hot surface. Hot surfaces in operation due to heating. ‣ Let device cool down for at least 30 minutes before maintenance work. NOTE Contact with dusts. If the filter is dirty, dust may be emitted. ‣ Wear protective gloves. Ver. 18/12/2020 | Calistair C300... - Page 35 ‣ Avoid touching the metal surface. ‣ Clean hands thoroughly after maintenance work. ‣ Do not dispose of lamps in household waste, see chapter 12 Disposal. 1) Switch off device. 2) Pull power plug. 3) L et device cool down for at least 30 minutes. 4) L oosen screws on the housing cover with an Allen key (2.5 mm). 5) Remove housing cover (Fig. 1). Fig. 1 Ver. 18/12/2020 | Calistair C300...
- Page 36 (Fig. 4). 11) P ush upper reactor honeycomb plate carefully into the mounting until it stops. 12) Attach housing cover. 13) Tighten screws. Fig. 3 Device is ready for operation. Fig. 4 Ver. 18/12/2020 | Calistair C300...
-
Page 37: Replace Uvc Fluorescent Tube In Case Of Glass Breakage
‣ Clean your hands thoroughly after the repair. ‣ If the device was in operation at the time of the glass breakage, replace the high-performance filter before using the device again. ‣ I nsert a new UVC fluorescent tube before using the device again. ‣ If you are using a vacuum cleaner, dispose of the vacuum cleaner bag and / or empty the bin and change the vacuum cleaner filter after the repair. Ver. 18/12/2020 | Calistair C300... - Page 38 1) Switch off device immediately. 2) Pull power plug. 3) Ventilate room well for at least 30 minutes. 4) Close doors to adjacent rooms and corridors. 5) Leave room during ventilation. 6) Continue to ventilate while removing the fragments. 7) Loosen screws on the housing cover with suitable tool. 8) Remove housing cover. 9) Remove fragments and broken fluorescent tubes with gloves. 10) Hold fluorescent tube with one hand. 11) W ith the other hand, press the red button on the lamp socket completely until the fluorescent tube can be easily removed upwards. 12) Remove fluorescent tube. 13) Put all fragments in a plastic bag and seal it airtight. 14) Carefully pull both reactor honeycomb plates out of the mounting. 15) Remove splinters from the reactor honeycomb plates. 16) R emove splinters in the lower part of the device around the fan. Use a vacuum cleaner if necessary. Ver. 18/12/2020 | Calistair C300...
- Page 39 17) P ress new UVC fluorescent tubes with the contact pins into the lamp sockets from above until they audibly click into place. 18) Push both reactor honeycomb plates carefully into the mounting until it stops. 19) Attach housing cover. 20) Tighten screws. Device is ready for operation. Ver. 18/12/2020 | Calistair C300...
-
Page 40: Cleaning And Disinfection
‣ Make sure that no moisture enters the device. The cleaning of the device is limited to the external cleaning of the surfaces. Due to the prefilter and the sterilising technology, neither cleaning nor disinfection should be necessary inside. Please observe the following procedure: 1) Switch off device. 2) Pull power plug. 3) Let device cool down for at least 30 minutes. 4) Wipe external surfaces with a dry or slightly damp cloth. Device is cleaned. Ver. 18/12/2020 | Calistair C300... -
Page 41: Troubleshooting
Housing cover not mounted ensure that seals are correctly correctly. Low air flow at air outlet. seated. Remove blocking. Air intake blocked. Observe minimum distance (see chapter 5.2). For other problems, please contact our customer service. Calistair GmbH www.calistair-C300.com Email: kontakt@calistair.com Phone: 0800 Calistair (0800 225478247) Ver. 18/12/2020 | Calistair C300... -
Page 42: Decommissioning
2002/96/EC and national laws. This can be done by returning it when purchasing a similar device or by handing it in at an authorised collection point for the recycling of waste electrical and electronic equipment. Dispose of old or damaged UVC fluorescent tubes at a suitable collection point for energy-saving lamps. Used filter inserts can be disposed of in household waste in an airtight plastic bag. Ver. 18/12/2020 | Calistair C300... -
Page 43: Ec Declaration Of Conformity
• Filter Wear parts • UVC fluorescent tube • Filter EC Declaration of Conformity The EC Declaration of Conformity can be obtained from our customer service. List of illustrations: All graphics used are property of Calistair GmbH. Ver. 18/12/2020 | Calistair C300... - Page 44 Version status: 18/12/2020 Made in Europe Manufacturer: Calistair SAS 223 rue Pasteur 77000 Vaux-le-Pénil Tel.: +33 1606 346 34 www.calistair.com Contact: Calistair GmbH www.calistair-C300.com kontakt@calistair.com Phone: 0800 Calistair (0800 225478247) Science for healthy air.
