- Page 1 All products are designed, developed and manufactured by Pan Acoustics in Germany. MADE IN GERMANY Pan Acoustics reserves the right to modify products without prior notice. www.pan-acoustics.de SINCE 2002 Pan Acoustics GmbH │ Schweigerstr. 13d │ D-38302 Wolfenbüttel │ Germany │ Tel.: +49 (0) 5331 900 95 70 │ E-mail: contact@pan-acoustics.de...
- Page 2 If the product is resold, the document must be handed over to the new owner in printed or electronic form. Pan Acoustics reserves the right to change / update the document without prior notice. The latest version of this document can be downloaded from the Pan Acoustics website.
-
Page 3: Table Of Contents
17.4.5. Status 17.4.6. Pan Net (AES/EBU) to Dante interface 17.4.7. Dante LED status indicator 17.4.8. Alarm contact (alarm loop) in connection with Dante 17.4.9. Dante media controller 18. Technical data © Pan Acoustics GmbH V 1.0 Page 3 of 22... -
Page 4: Product Description

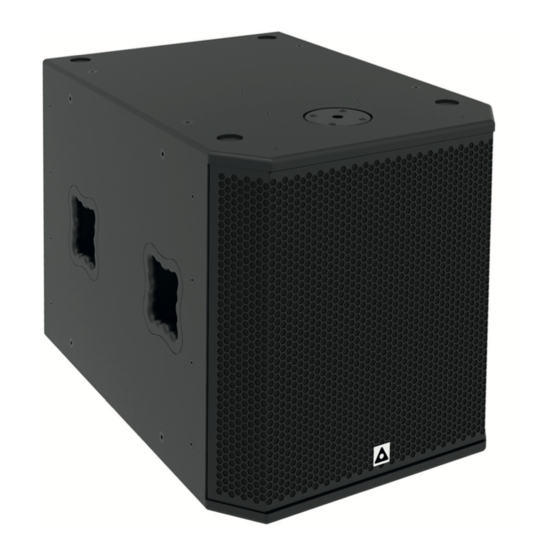

Manual 1. Product description Thank you for choosing a product from Pan Acoustics. The active subwoofer P SW-118 | SP from the Pan Subwoofer series with DSP technology combines an architecturally appealing design with fl exible audio connections (Line, AES/EBU, DANTE /AES67). -
Page 5: General Safety Regulations
• only accessories off ered and approved by Pan Acoustics for the product must be used for mobile applications and fi xed installations. To avoid injuries such as hearing damage due to excessive volume levels, persons should •... -
Page 6: Safety Instructions
The device must be protected against vibrations. 5. Safety instructions All products from Pan Acoustics are developed and manufactured in Germany according to the lat- est safety regulations. Each product is thoroughly inspected prior to shipping according to in-house quality guidelines. -
Page 7: Scope Of Delivery
Product-specifi c accessories such as protective covers, transport castors and spacer bars are not part of the scope of delivery and can be obtained from a Pan Acoustics trade partner or distributor. For safe operation of the device, only accessories from Pan Acoustics may be used. -
Page 8: Connections
Describes a platform-independent connection between devices from diff erent manufacturers Pan Net is Pan Acoustics’ control and audio distribution network. Depending on the Pan Net interface, one or more daisy chain cables or other cable types are supported. Depending on the interface, the Pan Net cabling supports two-channel analogue and digital (AES3) audio. -
Page 9: P Sw-118 | Sp | D Connector Panel
The warnings on the connector panel must be observed. 9.2. Mounting plate and stacking recesses Description Mounting plate with M20 thread for spacer bar Stacking recesses © Pan Acoustics GmbH V 1.0 Page 9 of 22... -
Page 10: System Creation With Pb 08 From The Pan Beam Series
Pan Beam PB 08 (variant) Only accessories approved by Pan Acoustics may be mounted and used on the mounting plate with M20 thread in order not to endanger the stability. When a spacer bar is used to mount a top, the device’s centre of gravity changes. -
Page 11: Initial Operation
The number of devices per mains phase depends on the maximum possible current load of the phase. The latter must not be exceeded. If the full output power of the device is needed, it is strongly recommended to operate only one device per mains phase. © Pan Acoustics GmbH V 1.0 Page 11 of 22... -
Page 12: Connection - Audio And Control Data
STP network cables must be used for the Pan Net cabling. At least CAT6 network cables with appropriate shielding must also be used for the cabling of IP networks. For more information on Pan Net, see the Pan Net manual. © Pan Acoustics GmbH V 1.0 Page 12 of 22... -
Page 13: Connection - Additional Passive Subwoofer System
The active P SW-118 | SP subwoofer system can drive one passive P SW-118. An NL4 loudspeaker cable must be used for the connection between the active subwoofer and the passive sub- woofer. © Pan Acoustics GmbH V 1.0 Page 13 of 22... -
Page 14: Error Description
Pan Beam Setup program program launch Media controller does not Pin assignment incorrect Check pin assignment work Baud rate incorrect Set correct baud rate Faulty instruction set Check instruction set © Pan Acoustics GmbH V 1.0 Page 14 of 22... -
Page 15: Service And Repair
For contact details, see chapter 16. 12. Service and repair Service and repair work may only be carried out by Pan Acoustics or by persons and partners authorised and instructed by Pan Acoustics. No service or repair work may be carried out on the device beyond the stated maintenance measures. -
Page 16: Appendix
If the Pan Net is tunneled via Dante / AES67 networks, it is also possible to evaluate the alarm con- tact at the loudspeaker with Dante interface. This is done via the Pan Net Link connection. For the assignment, see chapter 17.1. © Pan Acoustics GmbH V 1.0 Page 16 of 22... -
Page 17: Control Via Media Controller
The indicated timing must be taken into account. There is no feedback about the exe- cution of the command to the controller. All active Pan Acoustics loudspeakers with Pan Net support that are in the same Pan Net area execute the command. -
Page 18: Dante
The latest version of the Dante Controller software must be installed accordingly. Link for download: https://www.audi- nate.com 17.4.2. Routing A Pan Acoustics loudspeaker appears in the Dante network under the “Dante Receivers” tab. The loudspeaker has two inputs, Input A and Input B. audio... -
Page 19: Network Configuration
Dante network with a second network cable. 17.4.5. Status Via the “Status” tab, information on the device, fi rmware and software version, clock status and network interface can be called up. © Pan Acoustics GmbH V 1.0 Page 19 of 22... -
Page 20: Pan Net (Aes/Ebu) To Dante Interface
17.4.6. Pan Net (AES/EBU) to Dante interface [1] Pan Net Link Via the Pan Net Link etherCON port on the loudspeaker, additional Pan Acoustics loudspeakers with AES/EBU interface can be connected in daisy chain. Attention must be paid to the correct sequence (input / output). -
Page 21: Alarm Contact (Alarm Loop) In Connection With Dante
50 41 4e 41 43 4f 55 53 54 49 43 53 02 46 46 46 45 52 1c 30 35 1c 30 32 30 36 0d 18. Technical data For technical data of the products mentioned in this manual, see the latest data sheets of the prod- ucts. These are available on the Pan Acoustics website under “Downloads”. © Pan Acoustics GmbH V 1.0... - Page 22 CONTACT: Pan Acoustics GmbH | Schweigerstr. 13d | D-38302 Wolfenbüttel | Germany Tel: +49 (0) 5331 900 95 70 | Fax: +49 (0) 5331 900 95 79 | E-mail: contact@pan-acoustics.de QUALITY MADE IN GERMANY SINCE 2002 www.pan-acoustics.de...
