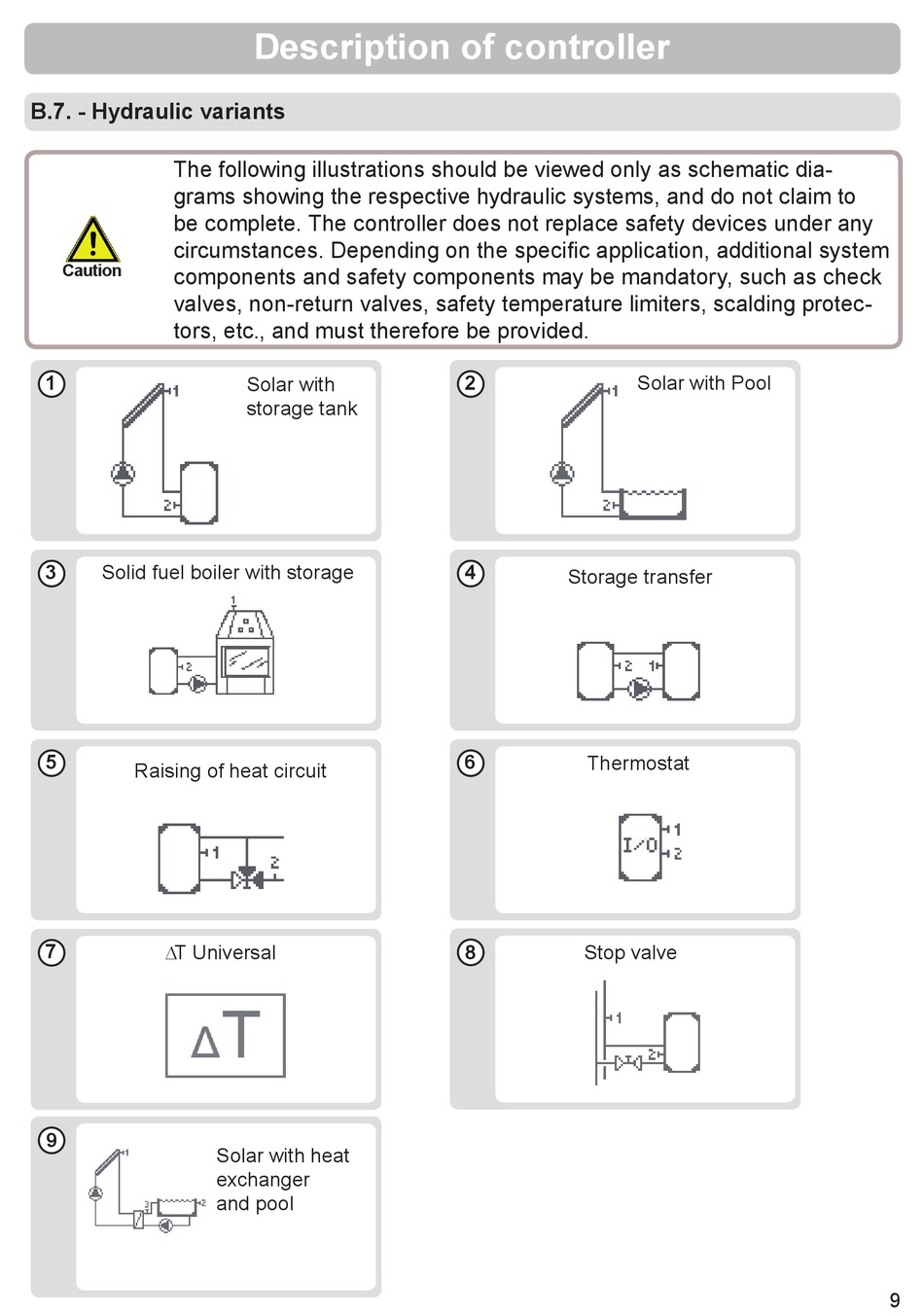

B.7. - Hydraulic variants
The following illustrations should be viewed only as schematic dia-
grams showing the respective hydraulic systems, and do not claim to
be complete. The controller does not replace safety devices under any
circumstances. Depending on the specifi c application, additional system
Caution
components and safety components may be mandatory, such as check
valves, non-return valves, safety temperature limiters, scalding protec-
tors, etc., and must therefore be provided.
1
3 Solid fuel boiler with storage
5
Raising of heat circuit
T Universal
7
9
Description of controller
Solar with
storage tank
Solar with heat
exchanger
and pool
2 Solar with Pool
4
Storage transfer
6
Thermostat
8 Stop valve
9
