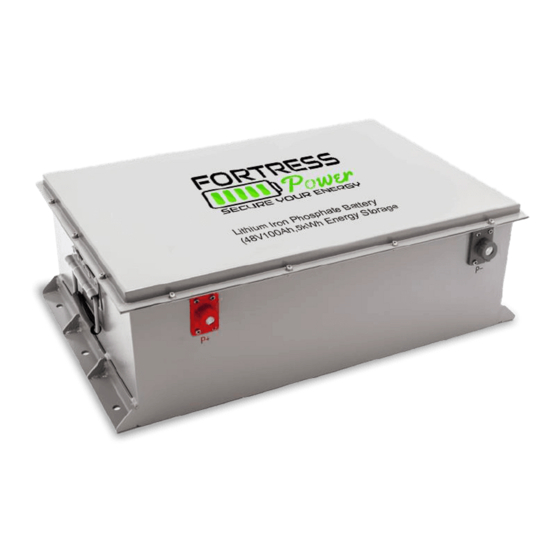

FORTRESS LITHIUM BATTERY INSTALLATION MANUAL LFP-5
SECURE YOUR ENERGY WITH FORTRESS LITHIUM BATTERY SYSTEMS
Fortress battery systems utilize the industry's most environmentally benign chemistry- Lithium Ferro
Phosphate, which eliminates operating temperature constraints, toxic coolants and the risk of thermal
runaway and fire. The built-in smart Battery Management System (BMS) integrates multilevel safety
concepts: Overcharge and Deep Discharge Protection; Voltage and Temperature Observation.
Fortress High-performance Lithium Batteries are manufactured at the highest quality standard. It comes
with large power capacity and a fast charging and continuous discharge power. The proprietary
architecture and BMS eliminate the need for cooling or ventilation, which creates an efficient round-trip
conversion.
Fortress Lithium Battery is safe, easy to install, consistently reliable, highly efficient. It provides you the
lowest lifetime energy cost.
This installation manual contains information concerning important procedures and features of Fortress
Power Lithium batteries. Read all the instructions in this manual before installation, operation,
transportation, storage and maintenance.
.
.
.
505 Keystone Rd, Southampton, PA 18966, USA
(877) 497 6937
sales@fortresspower.com
www.fortresspower.com
1
Advertisement
Table of Contents
Related Manuals for Fortress Power LFP-5
Summary of Contents for Fortress Power LFP-5
- Page 1 FORTRESS LITHIUM BATTERY INSTALLATION MANUAL LFP-5 SECURE YOUR ENERGY WITH FORTRESS LITHIUM BATTERY SYSTEMS Fortress battery systems utilize the industry’s most environmentally benign chemistry- Lithium Ferro Phosphate, which eliminates operating temperature constraints, toxic coolants and the risk of thermal runaway and fire. The built-in smart Battery Management System (BMS) integrates multilevel safety concepts: Overcharge and Deep Discharge Protection;...
-
Page 2: Table Of Contents
Table of Contents: 1. SAFETY 1.1 General safety precautions and Safety instructions ..............3 2. TRANSPORTATION, HANDLING AND STORAGE 2.1 Transportation and Handling……………………………………….……..…….…………..……………4 2.2 Storage………………………………………………………………………………..…….………………4 2.3 Response to emergency situations ....................5 3 PRODUCT INTRODUCTIONS 3.1 Technical data ..........................5 4. INSTALLATION 4.1 Tools and material list for installation…………………………..…………….……...…..………….……6 4.2 Inspection before installation………………………………………………….……..…….…….…….6-7 4.3 Installation Location…………………………………………………………………..……………………7 4.4 Installation Steps…………………………………………………..…………….…..……….…..……..7-8... - Page 3 1. SAFETY 1.1 General safety precautions ❖ All types of breakdown of the product may lead to a leakage of electrolyte or flammable gas. ❖ During installation of the battery, the utility grid, solar input must be disconnected from the Battery Pack wiring. Wiring must be carried out by qualified personnel. Battery Pack is not user serviceable.
-
Page 4: Transportation, Handling And Storage
Wearing insulated gloves, clothing and footwear and using electrically insulated tools are required when working with Fortress Power Lithium Batteries. Cover, restrain or remove jewelry or conductive objects (metal bracelets, rings, belt buckles, metal snaps, zippers, etc.) when working with any electrical or mechanical device. -
Page 5: Response To Emergency Situations
2.3 Response to emergency situations The battery pack comprises multiple batteries that are designed to prevent hazards resulting from failures. However, Fortress Power cannot guarantee their absolute safety. ❖ Leaking Batteries If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to the leaked substance, immediately perform the actions described below. -
Page 6: Installation
Safe and reliable installation requires trained and certified technicians. The following discussion of Fortress Power Battery configurations is a basic primer. Due to the variety of systems and components in the field, all possible scenarios are not covered. This is not the purpose of this section of the manual. -
Page 7: Installation Location
4.2 Inspection • To check the battery package, type, quantity, appearance and other components • Check if there is any damage on the battery box • Check the battery terminals and connections to make sure they are clean, free of dirt, fluids and corrosion •... -
Page 8: Connection Terminals
4.6 Mounting Hardware The Fortress LFP-5 battery is designed to sit on the floor or mount on the wall. It’s recommended to put the Batteries on the wall to avoid flooding or in some cases earthquake vibrations. Please refer to the Fortress Lithium Battery Data Sheet for weight and dimension. - Page 9 In some instances, after a prolonged shut down, a charge might need to be manually applied to the energy storage bank. Should this occur, please contact Fortress Power for technical support. Fortress Lithium Batteries are designed to remain robust and safe under most circumstances.
-
Page 10: Final Connection Of The Installation
Fortress Power technicians and sales staff are available to provide any additional information on the Fortress Lithium Batteries as needed. Please be aware of the potential electrical hazards before interacting with any and all electrical or mechanical devices. -
Page 11: Retrofitting
Never attempt to charge a battery without first reviewing and understanding the instructions for the charger being used. Only use a Fortress Power Approved Lithium Ferro Phosphate (LFP) charger if ancillary charging is required before installation, testing or troubleshooting. Failure to use a Fortress Power approved LFP charger will damage the battery and void the warranty CAUTION! Do not attempt to charge the battery below 32 F (0 degrees C). -
Page 12: Charging Stage
Ferro Phosphate batteries do not require Float Charge Charger/Inverter configuration recommendation for best Performance: Schneider/outback/ SMA/Sol-Ark 3000 Cycles 6000 Cycles (90% DoD) (80% DoD) Equalized Support LFP-5:100 Ah Capacity Limit Equalized Voltage 51.5V Recharge Voltage 54.6V 54.4V Bulk Voltage 54.6V 54.4V... -
Page 13: Trouble Shooting
In some instances, after a prolonged shut down, a charge might need to be manually applied to the energy storage bank. Should this occur, please contact Fortress Power for technical support. Fortress Lithium Batteries are designed to remain robust and safe under most circumstances. - Page 14 PLEASE CONTACT US FOR TECHNICAL SUPPORT Fortress Power, LLC 505 Keystone Road, Southampton, Pennsylvania, 18966 877.497.6937 sales@fortresspower.com www.FortressPower.com 505 Keystone Rd, Southampton, PA 18966, USA (877) 497 6937 sales@fortresspower.com www.fortresspower.com...
