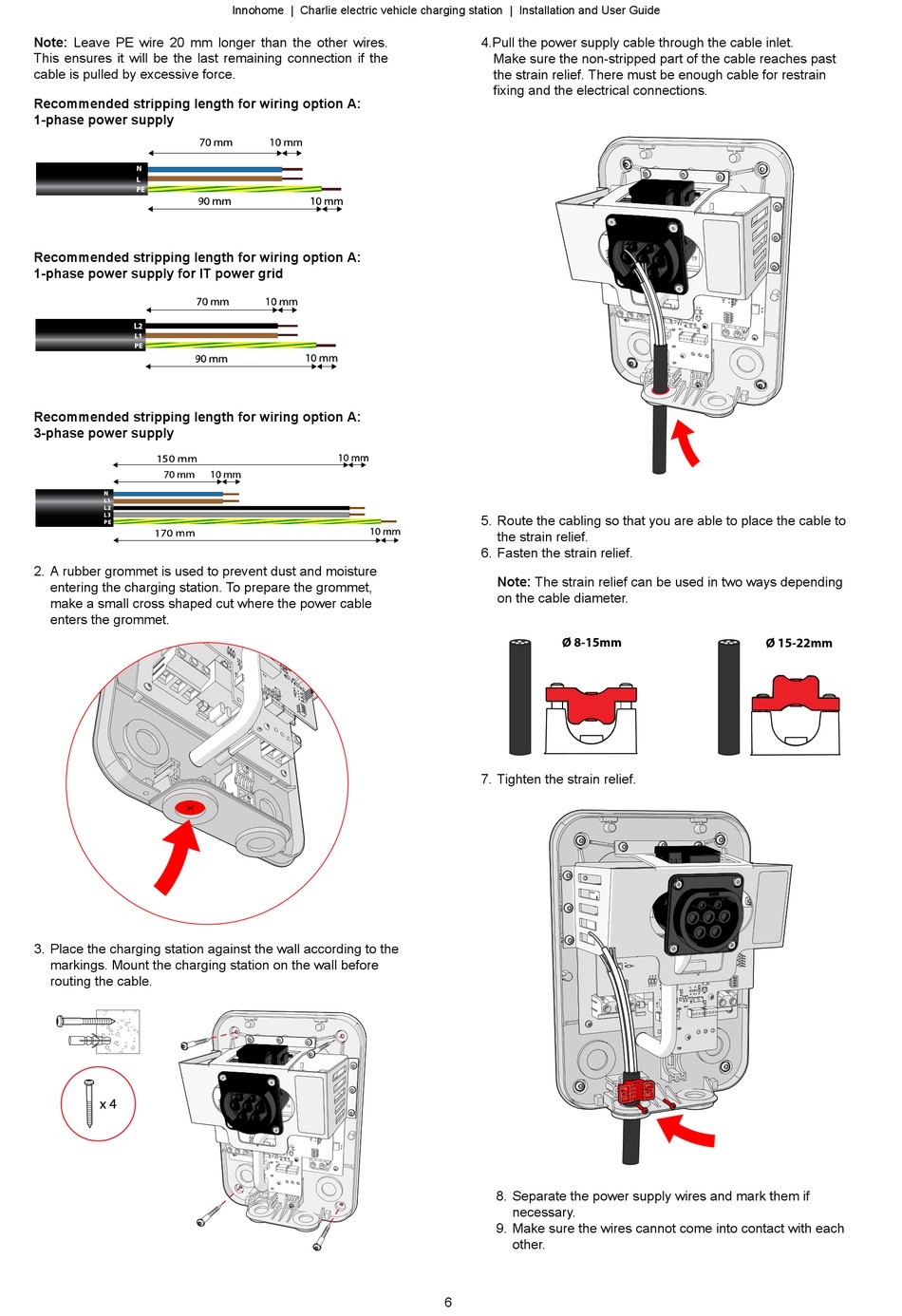

Inno home Charlie Installation And User Manual page 6

Note: Leave PE wire 20 mm longer than the other wires.
This ensures it will be the last remaining connection if the
cable is pulled by excessive force.
Recommended stripping length for wiring option A:
1-phase power supply
Recommended stripping length for wiring option A:
1-phase power supply for IT power grid
Recommended stripping length for wiring option A:
3-phase power supply
2. A rubber grommet is used to prevent dust and moisture
entering the charging station. To prepare the grommet,
make a small cross shaped cut where the power cable
enters the grommet.
3. Place the charging station against the wall according to the
markings. Mount the charging station on the wall before
routing the cable.
Innohome | Charlie electric vehicle charging station | Installation and User Guide
4.Pull the power supply cable through the cable inlet.
Make sure the non-stripped part of the cable reaches past
the strain relief. There must be enough cable for restrain
fixing and the electrical connections.
5. Route the cabling so that you are able to place the cable to
the strain relief.
6. Fasten the strain relief.
Note: The strain relief can be used in two ways depending
on the cable diameter.
Ø 8-15mm
7. Tighten the strain relief.
8. Separate the power supply wires and mark them if
necessary.
9. Make sure the wires cannot come into contact with each
other.
6
Ø 15-22mm
