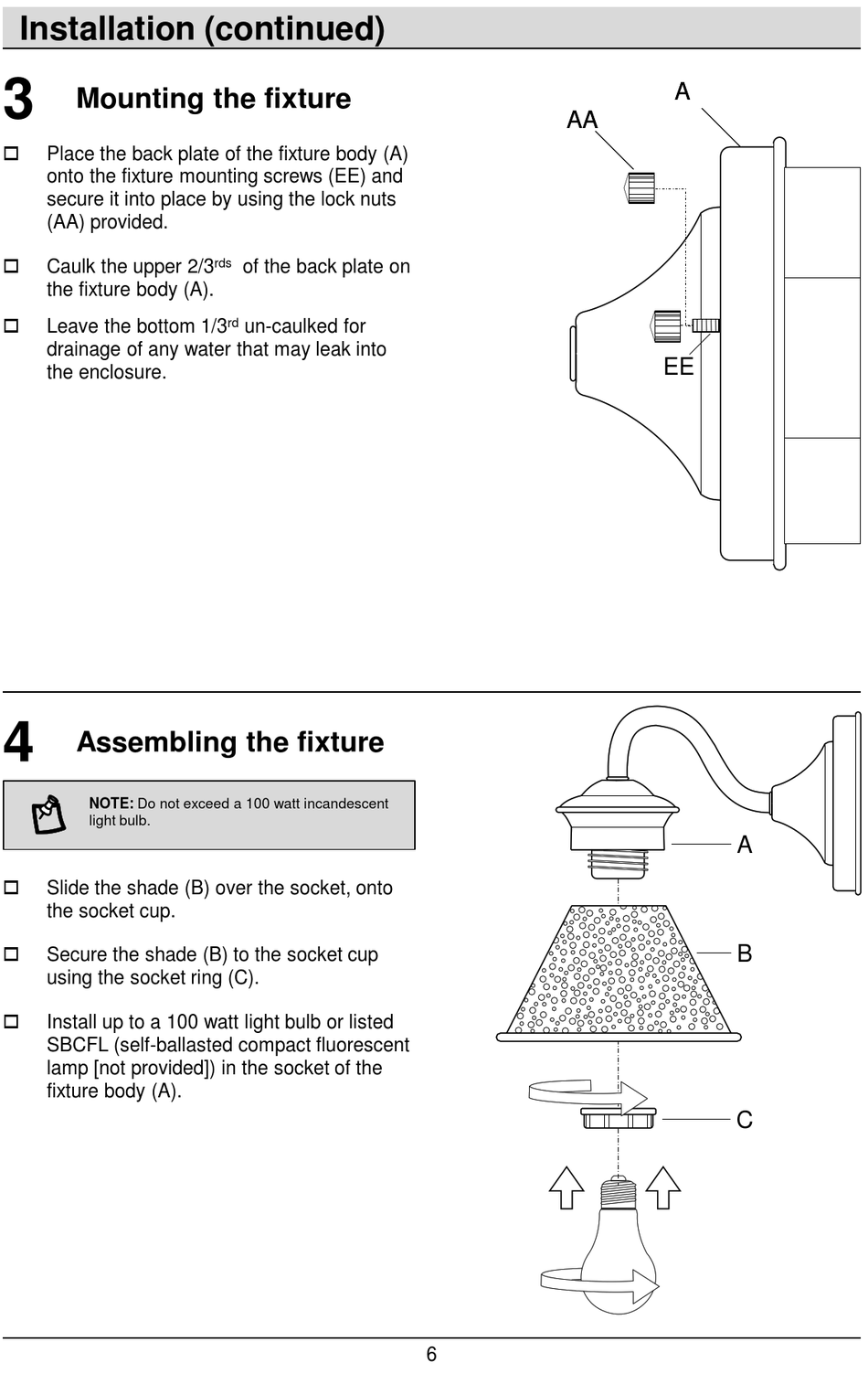

Installation (continued)
3
Mounting the fixture

Place the back plate of the fixture body (A)
onto the fixture mounting screws (EE) and
secure it into place by using the lock nuts
(AA) provided.

Caulk the upper 2/3
the fixture body (A).

Leave the bottom 1/3
drainage of any water that may leak into
the enclosure.
4
Assembling the fixture
NOTE: Do not exceed a 100 watt incandescent
light bulb.

Slide the shade (B) over the socket, onto
the socket cup.

Secure the shade (B) to the socket cup
using the socket ring (C).

Install up to a 100 watt light bulb or listed
SBCFL (self-ballasted compact fluorescent
lamp [not provided]) in the socket of the
fixture body (A).
rds
of the back plate on
rd
un-caulked for
AA AA
6
A A
EE
A
B
C
