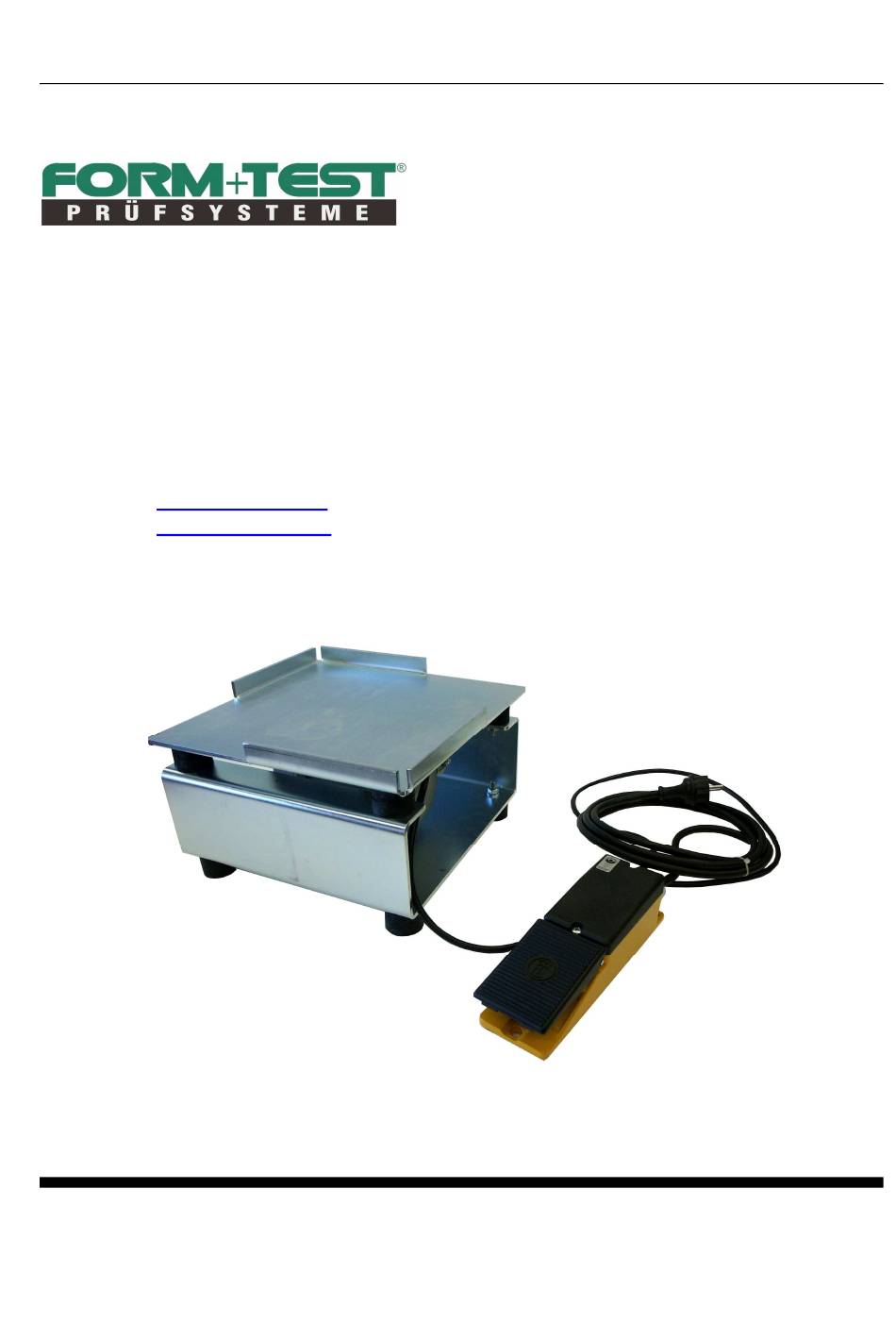

- Page 1 Form + Test Seidner & Co. GmbH Zwiefalter Straße 20 D-88499 Riedlingen Tel.: 00 49 / 73 71 / 93 02- 0 Fax : 00 49 / 73 71 / 93 02- 99 E-Mail: info@formtest.de Internet: www.formtest.de Instruction manual Item number B17134...

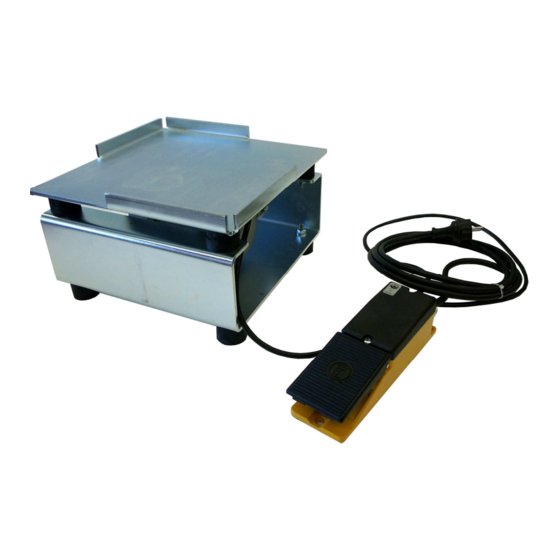

- Page 2 Vibrating table 3000 RPM page: 2 310 x 310 mm Acceptance Test outside conditions of delivery. The delivery should be compared to the bill of lading and checked whether all is complete. It is also to check whether all regular accessories are included in the delivery. This is to see in this booklet under "general data", in the machine card or on a special page.
-
Page 3: General Informations
Vibrating table 3000 RPM page: 3 310 x 310 mm General informations The information of this product is published regardless of protection by a patent. The names of the goods are used without warranty regarding the free usability. The used trade marks are the registered trade marks of the respective company. We bestowed great care upon making up this manual;... - Page 4 Vibrating table 3000 RPM page: 4 310 x 310 mm Application The vibrating table is only suited for compression of ready-mixed concrete in specimens. All demands, limits and security devices declared in this instruction manual have to be maintained absolutely. Every usage further on is not conventional.
- Page 5 Vibrating table 3000 RPM page: 5 310 x 310 mm Basic security manifestation Only persons who were instructed to the use of the machine are allowed to operate with the table independently. The vibrating table is built to the state-of-art and to the accredited technical norms.
-
Page 6: Incorrect Use
Vibrating table 3000 RPM page: 6 310 x 310 mm Incorrect use Not intended and thereby impermissible are o operation of the vibrating table for other intentions o positioning on ground which is uneven or isn’t able to take a load Warranty Our general vending and delivery conditions count on principal. -
Page 7: Technical Data
Vibrating table 3000 RPM page: 7 310 x 310 mm Technical data Voltage: 230V – 50Hz; 013 kW; 0,60 A Out-of-balance: 0,44 kN; 3000 UPM Size (L x D x H): 320 x 320 x 200mm Size of table: 310 x 310mm Weight: 17, 5 kg Maintenance... - Page 8 Vibrating table 3000 RPM page: 8 310 x 310 mm Spare parts and after sale-service If you need further information, please do not hesitate to contact us. Form + Test Seidner & Co. GmbH Zwiefalter Straße 20 D-88499 Riedlingen Tel.: 00 49 / 73 71 / 93 02- 0 Fax : 00 49 / 73 71 / 93 02- 99...
- Page 9 Vibrating table 3000 RPM page: 9 310 x 310 mm...
