Summary of Contents for Superlux UK82

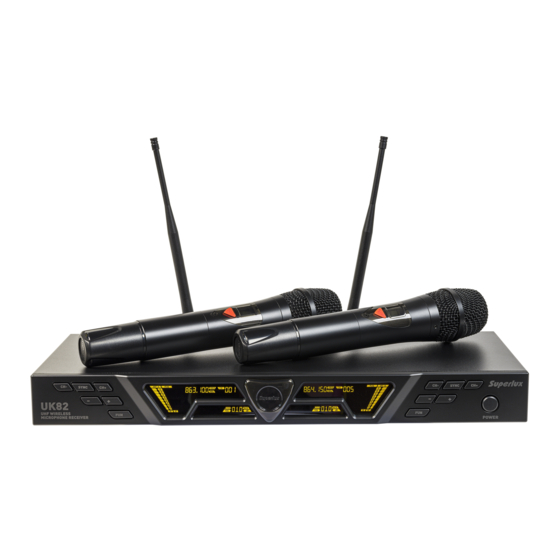

- Page 1 UK82 PROFESSIONAL MANUFACTURER OF ENTERTAINMENT VOCAL SYSTEM Contact Marketing and sales Goang-Fann Co., Ltd. +886-2-26931323 sales@superlux.com.tw support@superlux.com.tw Manufacturing & logistics Superlux Enterprise Development ( Shanghai ) Co., Ltd. English...
- Page 2 • UK82 features digital frequency-hopping spread spec-trum (FHSS) technique. With up to 200 selectable fre-quencies in 640MHz - 690MHz (20 selectable frequen-cies in 748MHz - 758MHz / 8 selectable frequencies in 863MHz - 865MHz). UK82 allows multi-sets of systems to work at the same time without interference.
-
Page 3: Led Description
LED DESCRIPTION ① ② ③ ④ ⑤ ⑥ ① Frequency ② Volume Adjustment ③ Channel ④ Lock ⑤ AF Signal Intensity ⑥ RF Signal Intensity PANEL FUNCTION DESCRIPTION CH-A Frequency - CH-B Setting CH-B Automatically Scan CH-A Setting CH-B Frequency + CH-B Volume - CH-A Frequency + CH-A Volume -... -
Page 4: Rear Panel Description
REAR PANEL DESCRIPTION ① ② ③ ④ ⑤ ⑥ ① CH-B Antenna socket ② CH-B Audio balanced output: Suitable for long-distance connection to reduce the noise derived from the cable effectively ③ Power socket: DC12V 1000mA power input socket. The central electrode of the socket is connected to the positive pole ④... -
Page 5: Receiver Operation
RECEIVER OPERATION 1. Power ON / OFF Power ON: Press the power “ON / OFF” button to turn on the power. The LCD lights Power OFF: Press the power ON / OFF button for 3 secs to turn off the power. The LCD lights out. -
Page 6: Microphone Description
MICROPHONE DESCRIPTION Microphone LCD Screen Description ① Battery bar indicator. When the battery shows 1 grid, it means it is in low battery. Please change the battery immediately. ② Channel Display. ① ② Microphone Main Parts Description ① Microphone LCD screen. ②... - Page 7 HANDHELD WIRELESS MICROPHONE OPERATION 1. High-Low power switch In order to adapt to different occasions, the wireless handheld microphone features the high-low power switch. When the switch is at “H” (high power) position, the trans- mit power of the microphone is the highest, the distance is farthest, and the power consumption is much larger.
- Page 8 OFF” button for around 3 seconds, the LCD screen shows “OFF” and the micro- phone will be turned off after that. If the microphone will not be used for a long time, please take out the battery to avoid the alkaline battery leakage and corrode the PCB and the microphone.
-
Page 9: Specifications
SPECIFICATIONS *Note:Specifications are subject to change. Modulation Type FM + Digital Auxiliary Channel 95 dB (A-weighted, 1kHz 1%) 0.57% 1KHz Max. SPL 130 dB SPL Operation Distance 50m (Outdoor, within visual range) Audio Frequency Response 80-16,000Hz 640MHz - 690MHz / 200 Channels Carrier Frequency Range / Numbers of Channel 748MHz - 758MHz / 20 Channels 863MHz - 865MHz / 8 Channels... -
Page 10: Safety Use
SAFETY USE • For safety, please do not pull the cables but hold the plug when operation. Please do not damage the power cable to ensure the safety. • Please use the adaptor furnished only. Please make sure the power voltage meets the furnished adaptor (provide 12V DC). -
Page 11: Precautions For Use
PRECAUTIONS FOR USE 1. How to use the wireless handheld microphone properly • Please hold the center of the microphone. Please do not hold too close to the grille parts or it will affect the pickup effect of the microphone. If holding too close to the end antenna area, it will decrease the transmit efficiency of the antenna and decrease the using distance. -
Page 12: Limited Warranty
In the validity period, if there’s any material, producing quality, or any function unavailable, Superlux will repair or replace the parts. This warranty is only for the product which selling by distribu- tor or agent which authorized by Superlux. However, the situation below is excluded in the warranty :...
