Contact
Marketing and sales
Superlux Taiwan
+886-2-26931323
sales@superlux.com.tw
support@superlux.com.tw
Manufacturing & logistics
Superlux Enterprise
Development(Shanghai)Co., Ltd.
www.superlux.com.tw
Windscreen System
专业防风避震系统
連絡我們
中国地区营销和业务
旭广企业发展 ( 上海 ) 有限公司
021-69223756
shsales@superlux.com.tw
support_cn@superlux.com.tw
国际营销和业务
Superlux 舒伯乐 台湾
+886-2-26931323
sales@superlux.com.tw
WSK1
User Manual
使用说明书
Advertisement
Table of Contents
Related Manuals for Superlux WSK1
Summary of Contents for Superlux WSK1

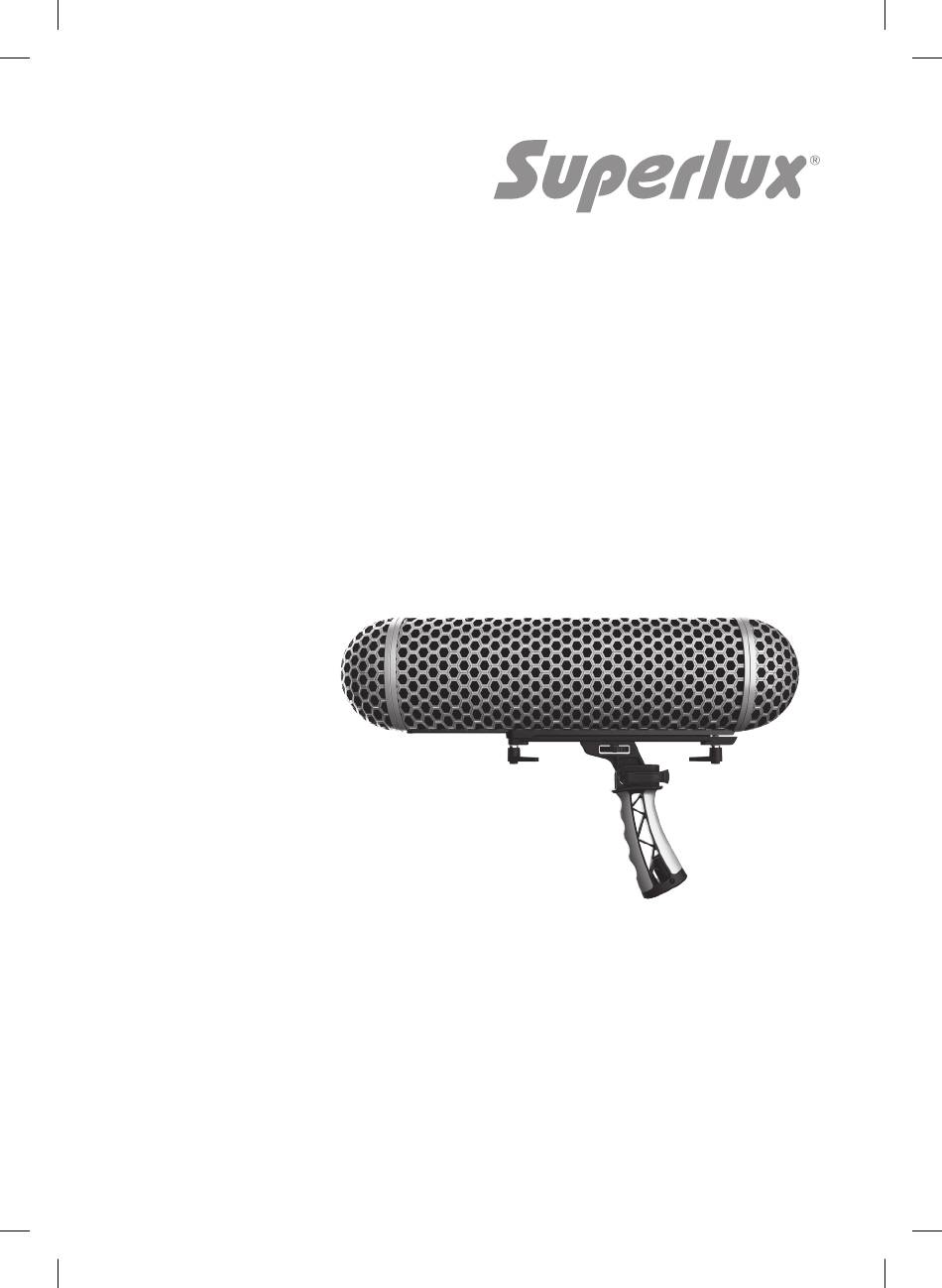

- Page 1 WSK1 Windscreen System User Manual 专业防风避震系统 使用说明书 連絡我們 Contact 中国地区营销和业务 旭广企业发展 ( 上海 ) 有限公司 Marketing and sales 021-69223756 Superlux Taiwan shsales@superlux.com.tw +886-2-26931323 support_cn@superlux.com.tw sales@superlux.com.tw support@superlux.com.tw 国际营销和业务 Superlux 舒伯乐 台湾 Manufacturing & logistics +886-2-26931323 Superlux Enterprise sales@superlux.com.tw Development(Shanghai)Co., Ltd. www.superlux.com.tw...
- Page 2 长筒型的飞船造型，能置入不同长度的枪型麦克 Different length of shotgun microphones can be 风，如 CM9HL, E525S, E525L 等，便利的把手及 installed in WSK-1, like Superlux CM9HL, E525S/L. 内置的防震架，可防止手持的摇晃振动噪声，手把 Convenient rubber handle and shock mount system will ensure handling noise will not appear in your 上并另有...
- Page 3 Windscreen System User Manual 专业防风避震系统 使用说明书 Main WSK1 housing Handle locking dial WSK1 主外壳 手柄锁盘 Front dome Rear dome 前圆顶盖 后圆顶盖 Front rail clamping lever 前导轨固定杆 Rear rail clamping lever 后导轨固定杆 Quick release angle clamp 快速释放扣环 Lightweight handle assembly 轻量化把手...
- Page 4 Shock clips 避震夹 Spacing guide Rail dampening rubber 间距刻度 轨道减震橡胶 Slide rails 滑轨 Rear cable clip 后导线夹 XLR Male / Boom pole thread adaptor XLR 公头 / Boom 杆接口...
- Page 5 Adjusting the handle 手把调整 Quick release angle clamp 快速释放扣环 As the Superlux WSK1 shipped with the handle folded, please follow below instruction to do the setting when received. It is recommended to fold the handle during transportation and storage. 1. Open the "quick release angle clamp on the left hand side of the handle, and adjust the handle to the desired angle.
- Page 6 1. To relocate the handle, first turn the handle locking. Make sure that you are supporting the WSK1 housing so that it does not become unstable if the locking dial is overly lossened. 2. The handle can be easily slid up or down the rail to achieve the desired balance.
- Page 7 2. Loosen the front and rear rail clamping levers. 3. Slide the suspension boby out of the main WSK1 housing. (To achieve optimum balance and isolation, you may need to adjust the location of the shock clips.) 4. Place your microphone above the shock...
- Page 8 Fitting a cable 安装线材 1. Plug the WSK1 XLR cable into the XLR socket of your microphone. Taking care to align the rails with the main WSK1 housing, slide the suspension assembly back in to the main WSK1 housing. 2. Tighten the front and rear rail clamping levers.
