OWNER'S
MANUAL
Model No.
390.307060
CAUTION:
Read and Follow
All Safety Rules and
Operating Instructions
Before First Use of
This Product.
Save This Manual For
Future Reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PRINTED IN U.S.A.

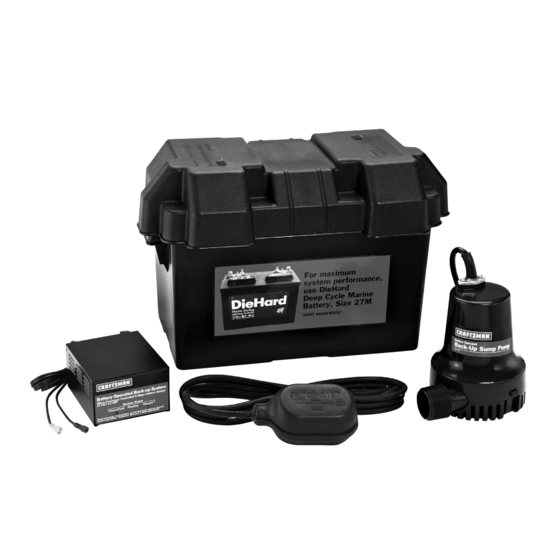

BATTERY OPERATED
BACKUP SUMP PUMP
• Safety Instructions
• Operation
• Installation
• Troubleshooting
• Repair Parts
®
F642-9901
Form No.
(Rev. 3/12/07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Craftsman 390.307060 and is the answer not in the manual?

Questions and answers

Related Manuals for Sears Craftsman 390.307060

Summary of Contents for Sears Craftsman 390.307060

  • Page 1 Before First Use of This Product. • Safety Instructions Save This Manual For • Operation Future Reference. • Installation • Troubleshooting • Repair Parts Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PRINTED IN U.S.A. F642-9901 Form No. (Rev. 3/12/07)

  • Page 2: Important Safety Instructions For Battery Charger

    ® BATTERY BACK-UP SUMP PUMP After one year and through two years from the date of purchase, Sears will furnish, free of charge, a replacement part for any de- fective part. You pay for labor. This warranty does not cover repairs on replacement parts necessary because of abuse or negligence including failure to install, adjust and operate this pump according to the instructions in the owner’s manual.

  • Page 3: General Information

    BATTERY BACKUP SYSTEM Hazardous voltage. Can cause severe or INSTALLATION AND fatal electrical shock. Do not plug in or unplug battery charger while standing on a wet floor or in water. Be sure OPERATION one hand is free when plugging in or unplugging charger. If NOTICE: Install this system during a time when the primary basement floor is wet, disconnect power to basement be- pump will not be needed.
  • Page 4 5.Hold the coupling (Key No. 6, Page 9) with the channel Risk of pinching hands or fingers. To avoid locks, insert the screwdriver into the tee for leverage and a hand injury from a collapse of plumbing, support the pipe tighten the tee with the screwdriver.

  • Page 5: Electrical Connections

    Trial Assembly of Double Pump Assembly in 4.Take the tee assembly off of the primary discharge pipe. Do not take the tee off of the threaded assembly. Sump Pit: 5.Clean all the PVC pipe ends with the PVC cleaner. 1.Connect the pump discharge pipe to the exterior dis- charge pipe with the rubber coupling and clamp kit (Key Hazardous fumes.
  • Page 6 CHARGER/BATTERY 4.With the charger properly connected and plugged in, the panel on the front of the charger will show one of the fol- INSTALLATION lowing conditions (See Figure 6). NOTICE: An alarm, located in the junction box, automati- cally sounds when the system runs if the alarm is in the Red LED “Enable”...

  • Page 7: Charger Operation

    Test the Assembly: 3. Continuous Yellow LED light: Constant voltage charge stage. Cells are being equalized. 1.Plug the primary pump into a properly grounded 3-prong 4. Green LED light: Float charge stage. Battery terminal outlet. voltage has been regulated and system is ready for use. 2.Fill the sump with water to start the primary pump.

  • Page 8: Battery Maintenance

    3340 1198 Figure 7 – Battery Hold-down Strap Threading BATTERY MAINTENANCE Severe burn hazard. A filled battery contains sulfuric acid. Avoid contact with skin, eyes or clothing. NOTICE: To protect battery case from chipping and goug- ing, do not let battery sit on concrete floor. Install battery on a shelf or protective pad (plywood, 2x4s, etc.).

  • Page 9: Repair Parts List

    Craftsman Battery Backup Sump Pump Model 390.307060 To order parts, call: Sears Product Service 1-800-366-7278 – T IO W IT – T IO IT H T IN T IO & D IS – D IB D IS L IT 3465 0799 SRS REPAIR PARTS LIST Key No.
  • Page 12 9 am - 5 pm, Monday-Saturday 1-800-827-6655 1-800-827-6655 • Model Number • Part Number • Part Description REPAIR SERVICES REPAIR SERVICES America's Repair Specialists America's Repair Specialists Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
