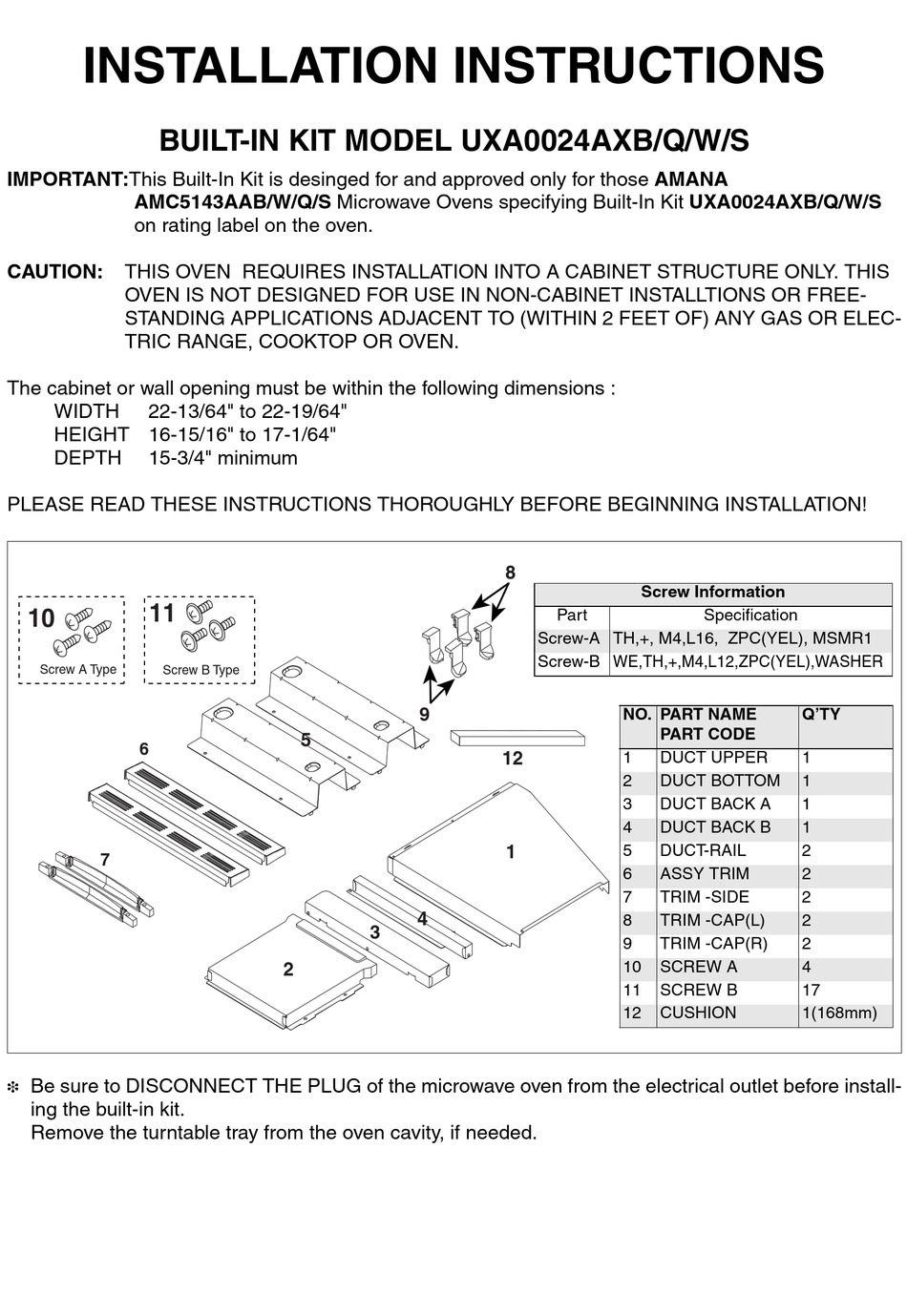

INSTALLATION INSTRUCTIONS
BUILT-IN KIT MODEL UXA0024AXB/Q/W/S
IMPORTANT:This Built-In Kit is desinged for and approved only for those AMANA
AMC5143AAB/W/Q/S Microwave Ovens specifying Built-In Kit UXA0024AXB/Q/W/S
on rating label on the oven.
CAUTION:
THIS OVEN REQUIRES INSTALLATION INTO A CABINET STRUCTURE ONLY. THIS
OVEN IS NOT DESIGNED FOR USE IN NON-CABINET INSTALLTIONS OR FREE-
STANDING APPLICATIONS ADJACENT TO (WITHIN 2 FEET OF) ANY GAS OR ELEC-
TRIC RANGE, COOKTOP OR OVEN.
The cabinet or wall opening must be within the following dimensions :
WIDTH
22-13/64" to 22-19/64"
HEIGHT 16-15/16" to 17-1/64"
DEPTH
15-3/4" minimum
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION!
11
10
Screw A Type
Screw B Type
6
7
❉
Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before install-
ing the built-in kit.
Remove the turntable tray from the oven cavity, if needed.
9
5
4
3
2
8
Screw Information
Part
Screw-A TH,+, M4,L16, ZPC(YEL), MSMR1
Screw-B WE,TH,+,M4,L12,ZPC(YEL),WASHER
NO. PART NAME
PART CODE
12
1
DUCT UPPER
2
DUCT BOTTOM
3
DUCT BACK A
4
DUCT BACK B
1
5
DUCT-RAIL
6
ASSY TRIM
7
TRIM -SIDE
8
TRIM -CAP(L)
9
TRIM -CAP(R)
10
SCREW A
11
SCREW B
12
CUSHION
Specification
Q'TY
1
1
1
1
2
2
2
2
2
4
17
1(168mm)
Advertisement
Table of Contents
Related Manuals for Amana AMC5143AAS
Summary of Contents for Amana AMC5143AAS
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS BUILT-IN KIT MODEL UXA0024AXB/Q/W/S IMPORTANT:This Built-In Kit is desinged for and approved only for those AMANA AMC5143AAB/W/Q/S Microwave Ovens specifying Built-In Kit UXA0024AXB/Q/W/S on rating label on the oven. CAUTION: THIS OVEN REQUIRES INSTALLATION INTO A CABINET STRUCTURE ONLY. THIS... - Page 2 STEP 1 : CABINET OR WALL OPENING Provide an opening in the wall or cabinet, as indicated in SKETCH 1. The depth should be a minimum of 15-3/4". The floor of the opening should be constructed of plywood strong and thick enough to support the weight of the oven <about 50 lbs.> and installa- tion job.
-
Page 3: Step 3 : Duct Installation
STEP 3 : DUCT INSTALLATION a. Duct Bottom Installation First, place the oven upside-down. Attach the DUCT BOTTOM to the oven base using Screw B(4EA) as shown in SKETCH 3. Carefully return the oven to it's original position. b. Duct Upper & Back A, B Installation 1. -
Page 4: Electric Supply
3. Unscrew the Outer-Panel screw of position P. After unscrewing, screw the Duct-Back B using Screw B(2EA). Refer to the SKETCH 6. STEP 4 : INSERTION OF MICROWAVE OVEN TO CABINET Insert the Microwave Oven into the Cabinet and coincide the foot & Duct-Rain foaming holes. Put it on the rail. -
Page 5: Instrucciones De Instalación
INSTRUCCIONES DE INSTALACIÓN MODELO DE KIT INTEGRADO UXA0024AXB/Q/W/S IMPORTANTE: Este kit integrado está diseñado y homologado exclusivamente para hornos microondas AMANA AMC5143AAB/W/Q/S que exhiban la etiqueta de kits integrados UXA0024AXB/Q/W/S. ADVERTENCIA: ESTE HORNO SE DEBE INSTALAR EXCLUSIVAMENTE EN BASTIDORES. ESTE HORNO NO ESTÁ CONCEBIDO PARA INSTALACIONES SIN BASTIDOR O AUTÓNOMAS EN LAS INMEDIACIONES DE (A MENOS DE MEDIO METRO... - Page 6 PASO 1: BASTIDOR O RECEPTÁCULO DE PARED Acondicione un bastidor o receptáculo de pared como se muestra en el ESQUEMA 1. La profundidad de éste debe ser de 38-7,5/10 cm. como mínimo. El suelo del receptáculo debe ser de madera contrachapada lo bastante resistente y gruesa como para soportar el peso del horno <unos 22 kilos>...
- Page 7 PASO 3: INSTALACIÓN DE CUBIERTAS a. Instalación de cubiertas inferiores Para empezar, coloque el horno boca abajo. Fije la CUBIERTA INFERIOR a la base del horno utilizando el tornillo B (4EA) como se muestra en el ESQUEMA 3. Teniendo cuidado, vuelva a colocar el horno en su posición inicial. b.
-
Page 8: Alimentación Eléctrica
3. Extraiga el tornillo del panel externo de la posición P. Una vez desatornillado, fije la cubierta posterior B con el tornillo B (2EA). Consulte el ESQUEMA 6. PASO 4: INSERCIÓN DEL HORNO MICROONDAS EN EL BASTIDOR Inserte el hondo microondas en el bastidor y haga coincidir los orificios almohadillados del pie y las cubiertas.
