Amana Smoke Control Grill ACS200 Instructions

Smoke Control Grill™ Cartridge and Griddle Accessory Instructions
!
To avoid risk of personal injury, all controls must be in
OFF position before removing or installing cartridges.
A
B
C
A—Grill
B—Burner cartridge
C—Drip pan
D—Griddle accessory (Not included with Grill Cartridge)

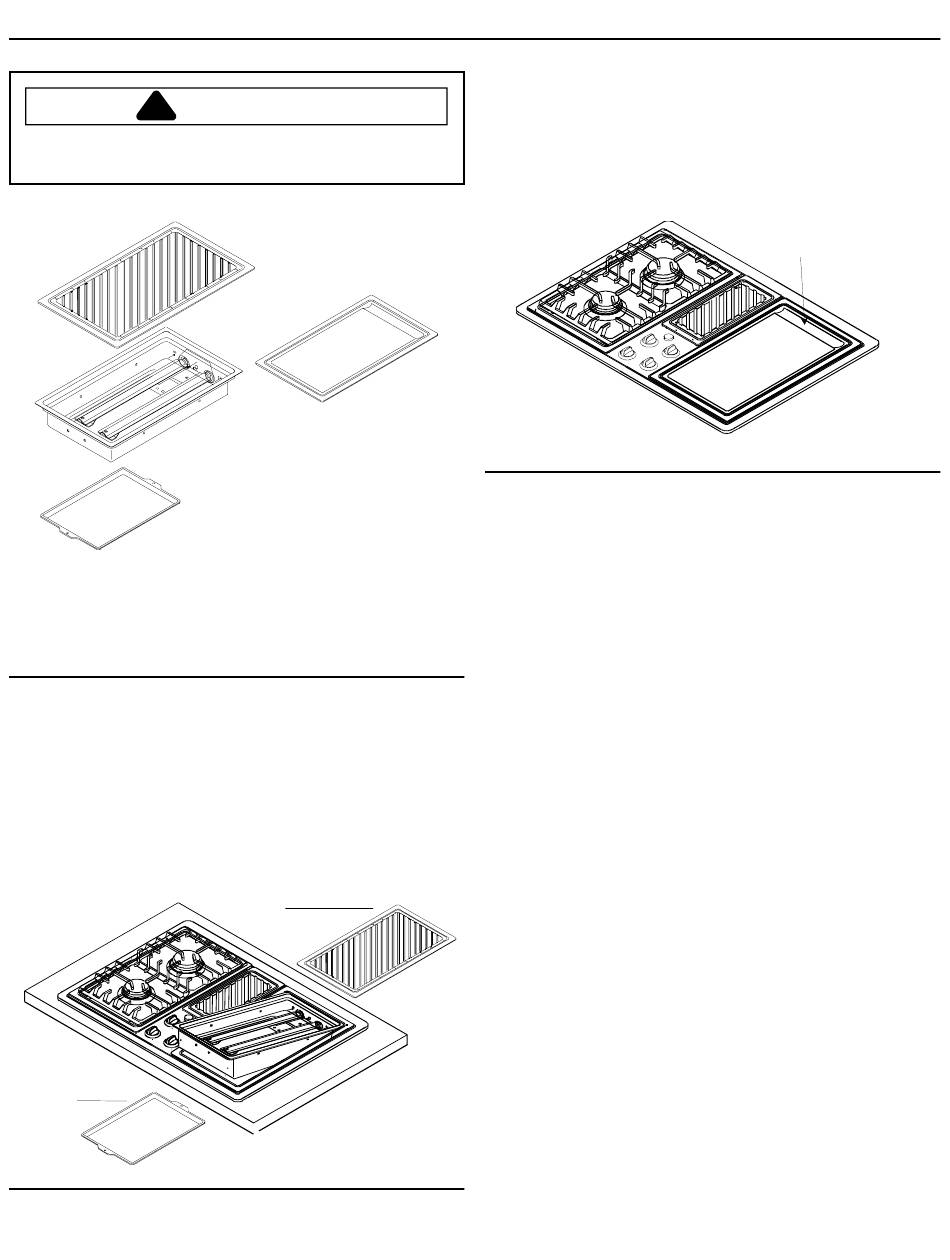

Grill Cartridge Components and Griddle Accessory
Installing Smoke Control Grill™ Cartridge
Install on right side only.
1. Turn controls to OFF position.
2. Place drip pan in well.
3. Place end of burner cartridge into cooktop with air
shutter holes facing rear of well. Lower front of
cartridge.
4. Place grill on cartridge.
Drip pan
Installing Smoke Control Grill™
WARNING
D
Grill
Installing Griddle Accessory
1. Turn controls to OFF position.
2. Install cartridge according to "Installing Smoke Control
Grill™ Cartridge" section.
3. With grease trap toward rear of cooktop, place griddle
over burner.
Installing Griddle
Removing Cartridge
1. Turn all controls to OFF . Make sure cartridge is cool.
2. Using tab on front of cartridge, lift up cartridge until the
botttom clears the cooktop.
• Do not lift cartridge too high. Lifting cartridge too high
can cause damage to orifices.
3. Pull cartridge toward the front of cooktop and carefully
lift it out.
Grease Trap
