BOSST60 IAX2 Phone User Manual
1.
BOSST60 IP PHONE APPEARANCE INTRODUCTION.......................... 3
1.1
Function Keys of BOSST60 IP Phone Introduction (Normal State):.................... 4
2.
FEATURES ....................................................................................................... 5
2.1
Hardware.................................................................................................................... 5
2.2
Software..................................................................................................................... 5
2.3
Standard and Protocol ............................................................................................. 6
2.4
Operating requirements ........................................................................................... 7
2.5
Electric requirements ............................................................................................... 7
2.6
Size............................................................................................................................. 7
2.7
Installation ................................................................................................................. 7
3.
CONFIGURATION ......................................................................................... 8
3.1
Phone Keypad setup ................................................................................................ 8
3.1.1
Function Keys Introduction: .................................................................................... 8
3.1.2
Keypad setup step by step: ..................................................................................... 13
3.2
Configured by WEB ................................................................................................ 14
3.2.1
3.2.2
3.2.3
3.2.4
3.2.5
Other settings:........................................................................................................ 24
3.3
Configured by PalmTool ........................................................................................ 29
3.4
Telnet Configuration............................................................................................... 30
3.4.1
BOSST60 Telnet Commands Explanation .............................................................. 30
4.
UPGRADE BOSST60 IP PHONE ............................................................. 46
4.1
Use IE browse to upgrade the IP phone............................................................... 46
4.2
Use the PalmTool to upgrade the IP phone.......................................................... 46
4.3
Use FTP to upgrade the phone.............................................................................. 47
5.
USAGE OF THE PHONE ............................................................................. 48
5.1
Receiving calls........................................................................................................ 48
5.2
Place a call............................................................................................................... 49
5.3
View Records .......................................................................................................... 51
6.
RESET BOSST60 TO FACTORY DEFAULT............................................. 52
：
.................................................................................................. 15
：
...................................................................................................... 17
：
................................................................................................ 20
：
....................................................................................... 23
BOSST60 IAX2 Phone User Manual (V1.43)
Advertisement
Table of Contents
Related Manuals for Bosslan BOSST60
Summary of Contents for Bosslan BOSST60
-
Page 1: Table Of Contents
BOSST60 IAX2 Phone User Manual (V1.43) BOSST60 IAX2 Phone User Manual BOSST60 IP PHONE APPEARANCE INTRODUCTION......3 Function Keys of BOSST60 IP Phone Introduction (Normal State):....4 FEATURES ....................... 5 Hardware........................5 Software........................5 Standard and Protocol ..................... 6 Operating requirements ................... 7 Electric requirements .................... - Page 2 BOSST60 IAX2 Phone User Manual (V1.43) FAQ........................54 For two ports of the BOSST60, what is the function for the other port? ..54 Why I can’t see the complete setting page when access the BOSST60 by IE?54 How to use the PalmTool to upgrade the IP phone?........... 54 Why the Palmtool shows “can’t connect to palm1”...
-
Page 3: Bosst60 Ip Phone Appearance Introduction

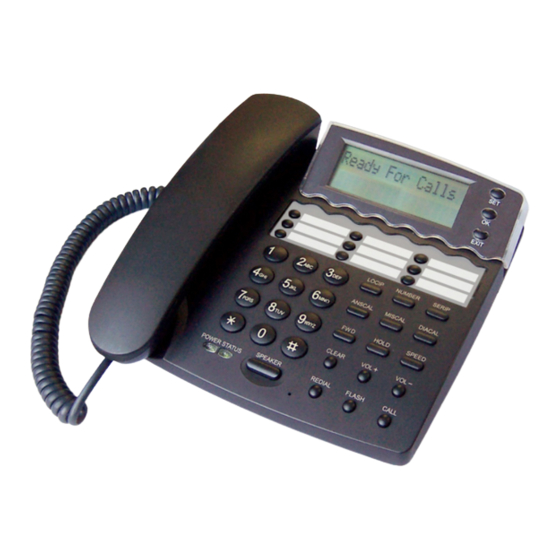

BOSST60 IAX2 Phone User Manual (V1.43) BOSST60 IP phone Appearance Introduction ● BOSST60 IP Phone Front Illustration (Refer to Fig 1.1): Fig 1.1 BOSST60 IP Phone Illustration... -
Page 4: Function Keys Of Bosst60 Ip Phone Introduction (Normal State)
BOSST60 IAX2 Phone User Manual (V1.43) Function Keys of BOSST60 IP Phone Introduction (Normal State): Keys Function LOCIP With handset hung, press this key to get local IP address of the phone With handset hung, press this key to get phone number... -
Page 5: Features
BOSST60 IAX2 Phone User Manual (V1.43) Features Hardware ● Main chip—PA1688 50MHz ● Data Memory—16MB SDRAM ● Program Memory—8 MB Flash memory ● Ethernet Jack—1/2 10/100M jacks ● AC/DC adapter—Output 12V DC, 450mA Software ● DHCP support for LAN or Cable modem ●... -
Page 6: Standard And Protocol
● Hotline ● Support adjustable user password and super password Standard and Protocol BOSST60 IP Phone supports following standard and protocol: ● IEEE 802.3 /802.3 u 10 Base T / 100Base TX ● Major G.7XX; GSM610 iLBC audio Codec ● IAX2 (Inter-Asterisk-eXchange V2) ●... -
Page 7: Operating Requirements
BOSST60 IAX2 Phone User Manual (V1.43) Operating requirements ● Operation temperature: 0 to 40° C (32° to 104° F) ● Storage temperature: -30° to 65° C (-22° to 149° F) ● Humidity: 10 to 90% no dew Electric requirements ● Voltage: 9V~24V ●... -
Page 8: Configuration
BOSST60 IAX2 Phone User Manual (V1.43) Configuration Four different ways can be used to configure BOSST60 IP phone: phone keypad, web browser, Telnet commands and PalmTool configuration tool on computer. Phone Keypad setup 3.1.1 Function Keys Introduction: When using keypad and LCD to configure the settings of IP phone,... - Page 9 “VOL+” or “VOL-” to page the menu up or page the menu down; When “exit settings” submenu item is selected, press “OK/speaker” key to confirm, BOSST60 IP phone will reboot and be used the current settings.
- Page 10 BOSST60 IAX2 Phone User Manual (V1.43) setting. Refer to above operation; you can reach any menu to modify any value. Please refer to following structure illustrations to learn the values of each menu item. As for the meaning of each item and value, please refer to Browser Setting chapter.
- Page 11 BOSST60 IAX2 Phone User Manual (V1.43) Menu Structure:...
- Page 12 BOSST60 IAX2 Phone User Manual (V1.43)
-
Page 13: Keypad Setup Step By Step
BOSST60 IAX2 Phone User Manual (V1.43) 3.1.2 Keypad setup step by step: For example, you want to setup jack’s number 56712389 as speed dial number, you can: Step 1. Enter setup mode: press “Speaker” key enter “1234#” you can see LCD display “password” enter “1234” press “Speaker” key to confirm. -
Page 14: Configured By Web
BOSST60 IAX2 Phone User Manual (V1.43) Configured by WEB Double click icon to open the IE browser. Input the IP address of the phone into address bar ( ), and then input password of the phone into the following page. Default password 1234 is ordinary password and super password is 12345678. -
Page 15: Network Setting
Select this item to enable DHCP mode. With this system, your LAN or router automatically assigns all the required network parameters to any device connected to it when the device log on. BOSST60 IP phone is shIPped from the factory with DHCP on. So, if your LAN or router is configured to use DHCP addressing, the IP phone’s LAN... - Page 16 ● dns 2: With static IP selected in IPtype drop down list, please enter IP address of backup DNS server here. ● mac: MAC address is the physical address supplied by the Ethernet NIC. BOSST60 phone is shIPped from the factory with a unique...
-
Page 17: Audio Setting
BOSST60 IAX2 Phone User Manual (V1.43) algorism MAC address printed on the back of the base. Note To avoid colliding with other device in network, please don’t change the MAC address arbitrarily. If you have use “* and power on twice” method to enter the safe mode of your phone, remember to change the phone’s MAC... - Page 18 BOSST60 IAX2 Phone User Manual (V1.43) ● codec5: Set the priority 6 of the audio compression algorithm. The options are g729，g7231，g711u，g711a , gsm and iLBC. ● vad: Enable/disable VAD (voice activity detection). ● agc: Enable/disable AGC. ● aec: Enable/disable AEC.
- Page 19 BOSST60 IAX2 Phone User Manual (V1.43) ● ring type: Set ring type by selecting corresponding item from drop down list. dtmf: Set ring as ordinary rings in different frequency not disturb: Set the phone do not ring by selecting this item.
-
Page 20: Dial Plan Setting
BOSST60 IAX2 Phone User Manual (V1.43) 3.2.3 Dial plan Setting： Fig 3.4 Dial Plan Setting ● use dialplan: Set whether use dial plan or use dial number by selecting the corresponding item in drop down list. disable: Do not use dial plan or dial number by selecting this item. - Page 21 ● innerline: Enable/disable multi-settings by selecting corresponding items from dropdown list. BOSST60 IP phone allows saving 5 settings totally. disable: Disable multi-settings by selecting this item, then the phone will call out using current setting.
- Page 22 BOSST60 IAX2 Phone User Manual (V1.43) field; If the IP phone used with modem, with modem item selected in IPtype list box, and then fill ISP number into this field. ● fwd poweroff: Forward calls if power off by checking this box. Please enter receiving forwarded calls phone number into fwd number field.
-
Page 23: Iax2 Protocol Settings
BOSST60 IAX2 Phone User Manual (V1.43) 3.2.4 IAX2 Protocol Settings： Fig 3.5 IAX2 Protocol Settings ● service addr: Please set the URI (domain name/IP address : service port) of the asterisk server into “service addr”. When the default service port 4569 is used, “: service port”... -
Page 24: Other Settings
BOSST60 IAX2 Phone User Manual (V1.43) ● dtmf: Set DTMF signal sending way by selecting inband audio, outband audio from list box. ● tos: Set the TOS field of the IP header of the RTP packets. The bigger this value is 0, the higher priority the packet is . - Page 25 BOSST60 IAX2 Phone User Manual (V1.43) ● password: Set the password of the phone. (Default password is 1234). ● upgradetype: Set the auto-upgrade type of the phone. disable : Disable auto-upgrade . all: AT320 will find matching firmware binary file and configuration file of the hardware type only at the FTP server specify by upgradeaddr item .
- Page 26 BOSST60 IAX2 Phone User Manual (V1.43) Internet connect, Fill special IP address 255.255.255.255. ● use daylight: Enable/disable daylight. ● timezone: Select correct time zone in list box. When debug set as 0[disable], if input ordinary password (default one is 1234), then following page will pop up after clicking .
- Page 27 BOSST60 IAX2 Phone User Manual (V1.43) Note After entering set page, if save settings button is not clicked within 10 minutes, then when you click it again, the index page asking for pin will pop up again. Then please input the password again to enter the set page and then click save settings button to confirm the modification.
- Page 28 BOSST60 IAX2 Phone User Manual (V1.43) Fig 3.9 Upgrade firmware Illustration...
-
Page 29: Configured By Palmtool
BOSST60 IAX2 Phone User Manual (V1.43) Configured by PalmTool PalmTool is a tool designed especially to configure and upgrade the BOSST60 IP phone. On a PC double click icon to open the PalmTool. The index page of PalmTool will popup. -
Page 30: Telnet Configuration
If you type super password, then you will see: Password : ******** P:\> Above information indicates that IP phone is under setting mode, and then you can set the BOSST60 IP phone by using the telnet commands. 3.4.1 BOSST60 Telnet Commands Explanation BOSST60 Telnet Commands Command... - Page 31 Load designated settings to current position exit Exit from the setting mode without saving the configuration write Exit with saving all configurations and restart BOSST60 ping Ping other net parameter The phone connects to FTP server and then get the files...
- Page 32 Usage: Display basic parameters of BOSST60 IP phone Relevant usage: None Detailed descrIPtion: Display basic running parameters of the BOSST60 IP phone. Input ordinary password without debug being set as 0[disable], or input super password with debug set as 0[disable], then following parameters of IP phone will be displayed: PA168X V1.43 settings...
- Page 33 BOSST60 IAX2 Phone User Manual (V1.43) ***************Other Settings*************** superpassword 12345678 debug 1[output] password 1234 upgradetype 0[disable] upgradeaddr [empty] sntpIP 0.0.0.0 daylight 0[disable] timezone 55[(GMT+08:00)Beijing,Hong Kong,Urumqi] Input ordinary password with debug set as 0[disable], following information will be seen: PA168X V1.43 settings Password:**** P:\>get...
- Page 34 BOSST60 IP phone is shIPped from the factory with DHCP on. So, if your LAN or router is configured to use DHCP addressing, the IP phone’s LAN parameters will automatically be configured as soon as it is connected to the LAN or router and powered up;...
- Page 35 BOSST60 IAX2 Phone User Manual (V1.43) With IPtype set as 2, use this command to set ADSL pin; with IPtype set as 3, use this command to set Modem pin. set IP XXX.XXX.XXX.XXX With IPtype set as 0, use this command to set IP address of BOSST60 IP phone.
- Page 36 BOSST60 IAX2 Phone User Manual (V1.43) from 0 through 4: 0: g729; 1:g7231; 2: g711u; 3: g711a; 4: gsm. set codec2 X Set the priority 2 of the audio compression algorithm. X is range from 0 through 4: 0: g729; 1:g7231; 2: g711u; 3: g711a; 4: gsm.
- Page 37 BOSST60 IAX2 Phone User Manual (V1.43) set aec X Enable/disable AEC. X is ranged from 0 through 1: 0: disable AEC; 1: disable AEC. set audioframes X Set audio frames in RTP package. X is Arabic numerals between 0 and 7.
- Page 38 BOSST60 IAX2 Phone User Manual (V1.43) system (need system support). set speakerin X Set initial volume of microphone of the base. X is ranged from 0 through 15. set speakerout X Set initial volume of speaker out. X is ranged from 0 through 31.
- Page 39 BOSST60 IAX2 Phone User Manual (V1.43) example, the country code of China is 86; the country code of USA is 1, etc. Parameter xxxx must be an Arabic numeral and no longer than 4 characters. set iddprefix XX Set IDD service prefix number when set dialplan value set as 1 or 2.
- Page 40 BOSST60 IAX2 Phone User Manual (V1.43) set fwdnumber XXXXXXX Set receiving forwarded calls phone number. XXXX must be an Arabic numeral and no longer than 16 characters set fwdalways X Enable/disable forward all calls. X is ranged from 0 through 1. 0: do not forward all calls;...
- Page 41 Set register TTL. X is range from 10 through 65535 Sec. Default value is 60 Sec. set phonenumber XXXXXXXX Set a local ID of BOSST60 IP Phone. Value xxxxx must be an Arabic numeral and no longer than 16 characters. set account XXXXXX Set the account;...
- Page 42 3: save the bug information into SDRAM; 4: disable checks the mark. set password XXXX Set password of the BOSST60 IP phone. XXX must be ASCII characters. set upgradetype X Set auto-upgrade matching type，X is range from 0 through 5，...
- Page 43 Relevant Usage: load 1 Command exit Syntax descrIPtion: no keyword and parameter Usage: Exit from Telnet command window without saving the configuration. Relevant usage: None Command write Syntax descrIPtion: No keyword and parameter Usage: Save the configuration and restart the BOSST60 IP phone.
- Page 44 BOSST60 IAX2 Phone User Manual (V1.43) Command ping Syntax descrIPtion: ping IP address Usage: ping IP address of other NAT device Relevant usage: In telnet window, input ping xx.xxx.xx.xx（an IP address） and return, then the result will be displayed. If the address is effective, “ping OK”...
- Page 45 So if nothing is displayed after too long time, it means that ftp is fail. Note All the Telnet commands of BOSST60 IP phone should be written in low case and the password is case sensitive.
-
Page 46: Upgrade Bosst60 Ip Phone
BOSST60 IAX2 Phone User Manual (V1.43) Upgrade BOSST60 IP phone Use IE browse to upgrade the IP phone Step 1: Fill the AT320’s IP in the IE browse (you can obtain AT320 IP through the “Local IP” button of keypad) Step 2:Use super password to access the AT320 setting page and choose the debug caption to the item except “no output”. -
Page 47: Use Ftp To Upgrade The Phone
BOSST60 IAX2 Phone User Manual (V1.43) Use FTP to upgrade the phone Set FTP server FTP server can be supplied by the server provider as well as setup by the users in LAN. Please set the IP address of FTP server. -
Page 48: Usage Of The Phone
Usage of the phone Receiving calls BOSST60 IP phone can receive incoming calls from other BOSST60 IP phone and devices that support the IAX2 protocol. It works just like an ordinary phone for incoming calls. When it rings, you can receive the call by following methods: ①... -
Page 49: Place A Call
BOSST60 IAX2 Phone User Manual (V1.43) Place a call Call another IP phone under the same Gatekeeper: ● 1. Handset: Pick up the handset and listen for the Internet dial tone. Then ＃ Call dial the phone number you wish to call and press end the dialing. - Page 50 BOSST60 IAX2 Phone User Manual (V1.43) dialed number has been saved into the buffer. ● Place a call without login the Gatekeeper If BOSST60 IP phone does not login the Gatekeeper, you can place a Speaker call by lifting the handset or pressing and then inputting the IP ＃...
-
Page 51: View Records
● When you hear the number you want to dial, please press place a call directly. Note BOSST60 IP phone supports saving 80 entries unanswered call, dialed call and received call ranged from 1-80 at best. When the entries arrives 80, the latest record will cover the first one. -
Page 52: Reset Bosst60 To Factory Default
Reset BOSST60 to factory default AT- 320 has its default factory setting, Changing the firmware version or setting frequently may make the AT320 in a chaos status, In this case, you can restore the BOSST60 to its factory default through the following procedure. - Page 53 BOSST60 IAX2 Phone User Manual (V1.43) Power off, then press“*” and power on (Don’t lose the * until the LCD shows “page0 running ”or“*”), press “#5*5”...
-
Page 54: Faq
BOSST60 IAX2 Phone User Manual (V1.43) For two ports of the BOSST60, what is the function for the other port? A: The other port can be connected with other network equIPments,such as Hub, switch, PC, IP phone. Why I can’t see the complete setting page when access the BOSST60 by IE? A: Pls. -
Page 55: Q4 Why The Palmtool Shows "Can't Connect To Palm1" Message Box
A: there are several reasons that palmtool shows “can’t connect to palm1” when user try to use palmtool to configure the phone. 1. BOSST60 was not connected to the computer. 2. The IP address you have filled in the Palmtool is not the IP address of your phone. -
Page 56: Q6 After Updating Bosst60, The Lcd Shows
(3) If you can’t solve the problem , pls. return the phone to the reseller for repairment . Why is the local IP 0.0.0.0? A:If the BOSST60 “IPtype” is set to “DHCP” and your network doesn’t support DHCP function.The BOSST60 will shows “0.0.0.0”. Pls. Check your network in this case. -
Page 57: Q9 How To Reset The Bosst60 To The Factory Default
BOSST60 IAX2 Phone User Manual (V1.43) How to reset the BOSST60 to the factory default? A: Power off ,then press“*” and power on(Don’t lose the * until the LCD shows “page0 running”or“*”) , press “#5*5” How to use the fast dial-up function? A: Use Palmtool or IE to enter into the setting page, find the address book, fill the name and the full number in the right blank. -
Page 58: Q12 Why Does The Other Side Feel My Voice Is Very Weak
Why does the other side feel my voice is very weak? A: Pls. adjust the input volume larger, but pls. note the maximum is 15. Why do BOSST60 IP phone and AG-168V gateway disconnect while calling each other, but it rings? A: Pls. - Page 59 BOSST60 IAX2 Phone User Manual (V1.43) prefix"=0. If the number dialed is 00-1-4089821818, the number sent will be 1-4089821818. If the number dialed is 021-82378008, the number sent will be 8621-82378008. If the number dialed is 82378008, the number sent will be 861082378008.
-
Page 60: Q15 What Is "Inner Line
BOSST60 IAX2 Phone User Manual (V1.43) What is "inner line"? A:Parameters "inner line"and "inner line prefix"help to distinguish whether the number dialed is an inner line number. "inner line"contains 3 options: 1."disable" No distinction among numbers. The number sent is the number converted according to parameter "use dial plan". -
Page 61: Q17 How To Set Tos Field
BOSST60 IAX2 Phone User Manual (V1.43) domain name, program will visit DNS to resolve this domain name into IP address. Besides, if local IP address is allocated by DHCP, we will check if the allocated IP address conflicts with other devices. All these work will cost some time to complete, which causes the delay of registration. -
Page 62: Q18 How To Use Call Transfer Function
BOSST60 IAX2 Phone User Manual (V1.43) Bit 6-7: Unused TOS is just a hint to the routing algorithm that helps it choose among various paths to a destination. An internet does not guarantee the type of transport requested. How to use call transfer function? Two types of call transfer are implemented. - Page 63 BOSST60 IAX2 Phone User Manual (V1.43) Reserves the right to make changes in technical and product specification without prior notice. BOSST60 IAX2 Phone User Manual (V1.43) All rights reserved...
