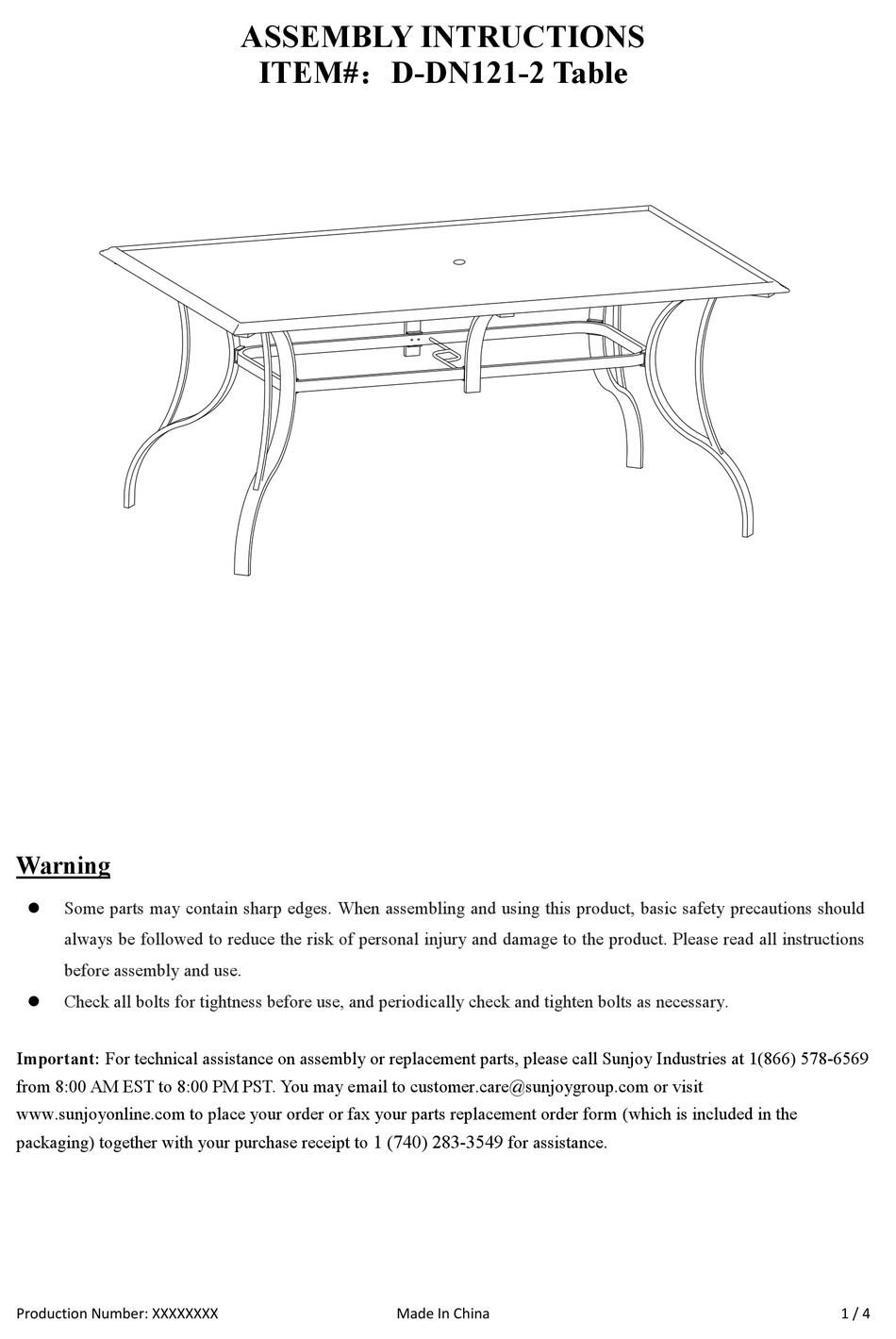

Tractor Supply D-DN121-2 Assembly Intructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to customer.care@sunjoygroup.com or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the
packaging) together with your purchase receipt to
Production Number: XXXXXXXX
ASSEMBLY INTRUCTIONS
ITEM#：D-DN121-2 Table
1 (740) 283-3549
Made In China
for assistance.
1 / 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-DN121-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Tractor Supply D-DN121-2

Summary of Contents for Tractor Supply D-DN121-2

  • Page 1 ASSEMBLY INTRUCTIONS ITEM#：D-DN121-2 Table Warning  Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions before assembly and use.

  • Page 2: Parts List

    PARTS LIST Label Description Umbrella hole cover Top glass Top frame Below fixed frame Support HARDWARE PACK Label Description Bolt M6× 25 M6 Flat washer Hex key M6 ASSEMBLY STEPS Step 1: Put bolt (AA) through flat washer (BB), attach below fixed frame (E) to leg (D) by hex key (DD).
  • Page 3 Fig1 Fig 2 Step 3: As Fig 1 shows, put bolt (AA) through flat washer (BB), attach below fixed frame (E) to support (F) by hex key (DD). As Fig 2 shows, put bolt (AA) through flat washer (BB), attach support (F) to top frame (C) by hex key (DD). Lock all bolts tightly, then put on cap (CC).
  • Page 4 Care & Maintenance: Before using, clean the product completely with a soft dry towel.  When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse  thoroughly and dry completely. Do not use strong detergent or abrasive cleaners. Steel components of garden accessories and furniture are treated with rust inhibiting paint.
