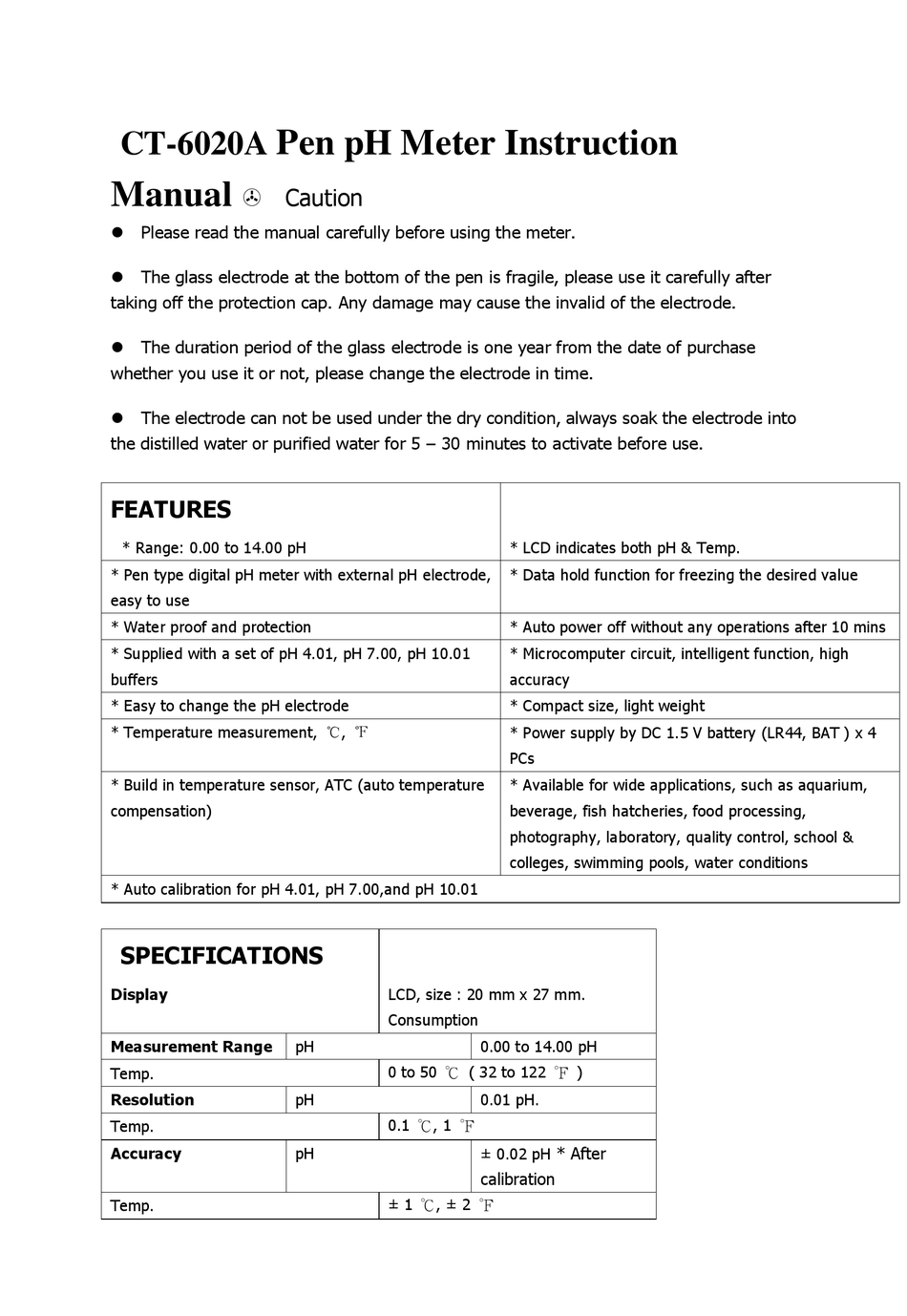

Kedida CT-6020A Instruction Manual

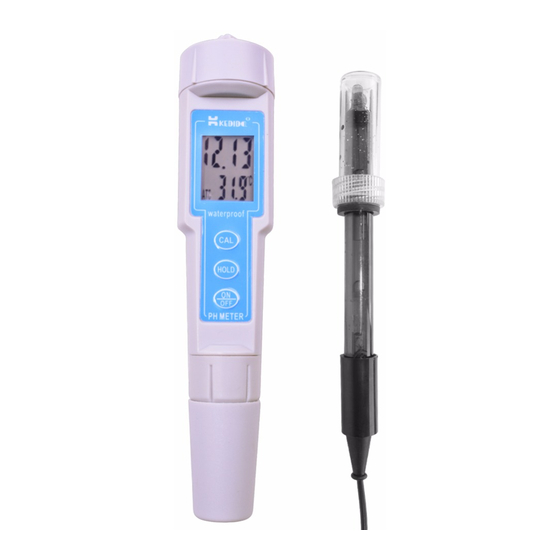

Pen pH Meter Instruction
CT-6020A
Manual
Caution
Please read the manual carefully before using the meter.
The glass electrode at the bottom of the pen is fragile, please use it carefully after
taking off the protection cap. Any damage may cause the invalid of the electrode.
The duration period of the glass electrode is one year from the date of purchase
whether you use it or not, please change the electrode in time.
The electrode can not be used under the dry condition, always soak the electrode into
the distilled water or purified water for 5 – 30 minutes to activate before use.

FEATURES

* Range: 0.00 to 14.00 pH
* Pen type digital pH meter with external pH electrode,
easy to use
* Water proof and protection
* Supplied with a set of pH 4.01, pH 7.00, pH 10.01
buffers
* Easy to change the pH electrode
* Temperature measurement, ℃, ℉
* Build in temperature sensor, ATC (auto temperature
compensation)
* Auto calibration for pH 4.01, pH 7.00,and pH 10.01

SPECIFICATIONS

Display
Measurement Range
Temp.
Resolution
Temp.
Accuracy
Temp.
LCD, size : 20 mm x 27 mm.
Consumption
pH
0 to 50 ℃ ( 32 to 122 ℉ )
pH
0.1 ℃, 1 ℉
pH
± 1 ℃, ± 2 ℉
* LCD indicates both pH & Temp.
* Data hold function for freezing the desired value
* Auto power off without any operations after 10 mins
* Microcomputer circuit, intelligent function, high
accuracy
* Compact size, light weight
* Power supply by DC 1.5 V battery (LR44, BAT ) x 4
PCs
* Available for wide applications, such as aquarium,
beverage, fish hatcheries, food processing,
photography, laboratory, quality control, school &
colleges, swimming pools, water conditions
0.00 to 14.00 pH
0.01 pH.
* After
± 0.02 pH
calibration
