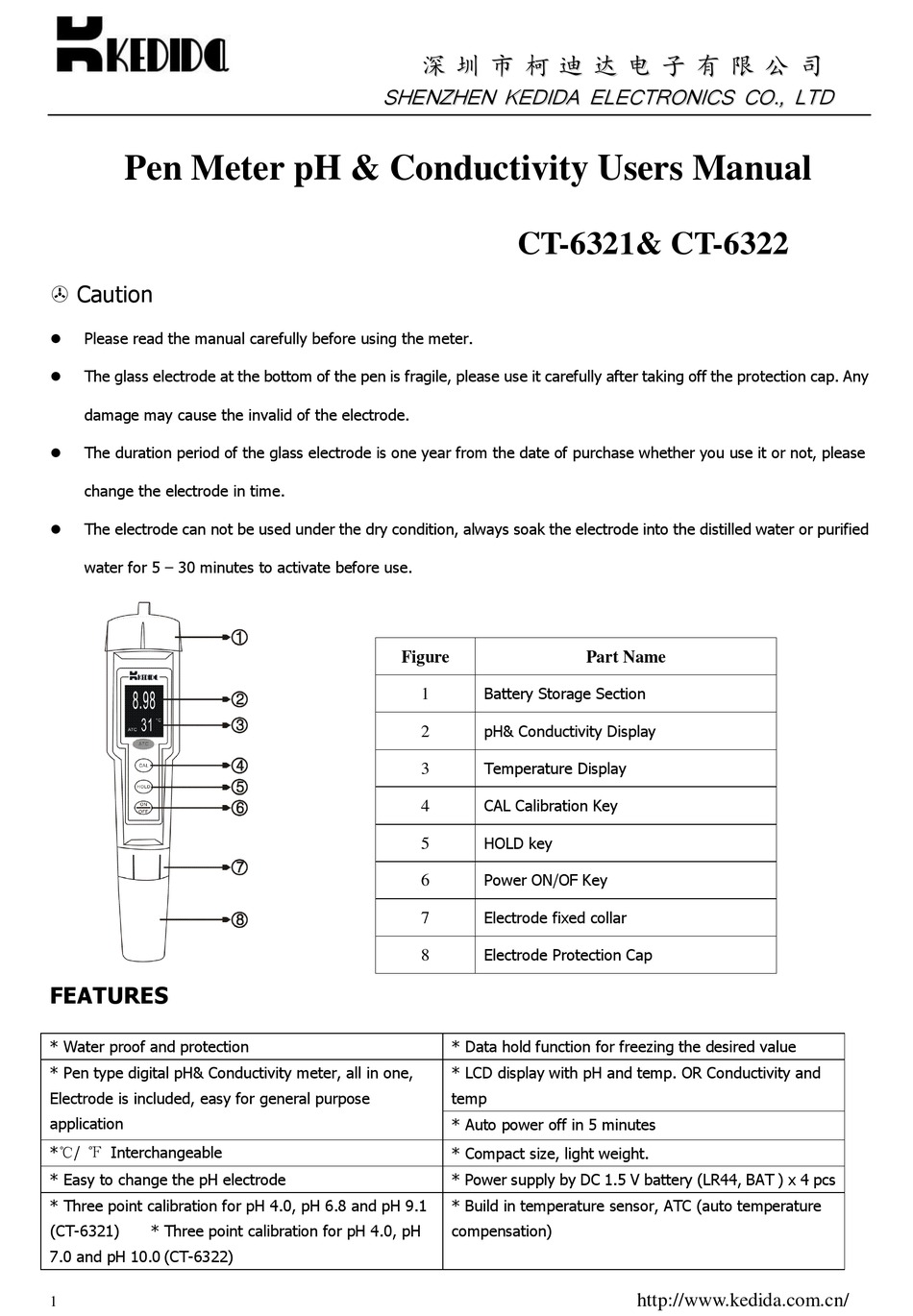

Kedida CT-6321 User Manual

Pen Meter pH & Conductivity Users Manual
 Caution
Please read the manual carefully before using the meter.

The glass electrode at the bottom of the pen is fragile, please use it carefully after taking off the protection cap. Any

damage may cause the invalid of the electrode.
The duration period of the glass electrode is one year from the date of purchase whether you use it or not, please

change the electrode in time.
The electrode can not be used under the dry condition, always soak the electrode into the distilled water or purified

water for 5 – 30 minutes to activate before use.

FEATURES

* Water proof and protection
* Pen type digital pH& Conductivity meter, all in one,
Electrode is included, easy for general purpose
application
*℃/ ℉ Interchangeable
* Easy to change the pH electrode
* Three point calibration for pH 4.0, pH 6.8 and pH 9.1
(CT-6321) * Three point calibration for pH 4.0, pH
7.0 and pH 10.0 (CT-6322)
1
深 圳 市 柯
深 圳 市 柯
S H E N Z H E N K E D I D
S H E N Z H E N K E D I D
CT-6321& CT-6322
Figure
Battery Storage Section
1
pH& Conductivity Display
2
Temperature Display
3
CAL Calibration Key
4
HOLD key
5
Power ON/OF Key
6
Electrode fixed collar
7
Electrode Protection Cap
8
* Data hold function for freezing the desired value
* LCD display with pH and temp. OR Conductivity and
temp
* Auto power off in 5 minutes
* Compact size, light weight.
* Power supply by DC 1.5 V battery (LR44, BAT ) x 4 pcs
* Build in temperature sensor, ATC (auto temperature
compensation)
迪 达 电 子 有 限
迪 达 电 子 有
A E L E C T R O N I C S
A E L E C T R O N I C S
Part Name
