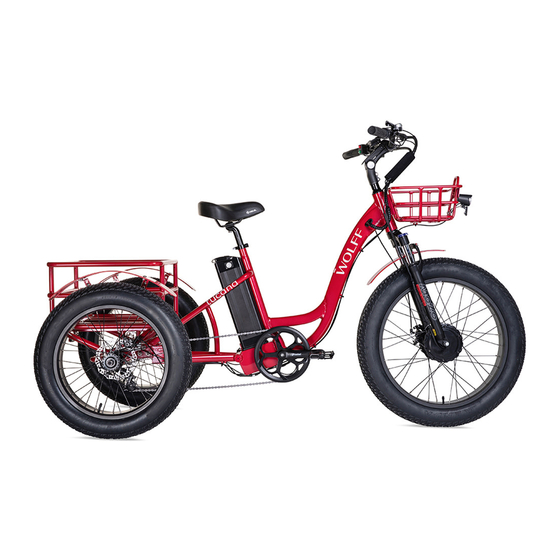

- Page 1 TUCANA E-BIKE MANUAL...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Introduction Warning Your Wolff Bike Information Component Diagram Carton Contents Assembly Instructions Required assembly tools Assembly steps Adjustments After Assembly Cockpit Seatpost & saddle Disc brakes Drivetrain Suspension fork and suspension seat Care & Maintenance... -
Page 3: Introduction
Please familiarize yourself with the traffic laws in the areas that you will ride your bicycle in. Wolff e-bike riders assume the potential risk of personal injuries and damage to e-bike parts or system resulting from using an e-bike. -
Page 4: Your Wolff Bike Information
Your Wolff e-bike information Bicycle serial number: Battery serial number: Model: Color: Dealer: Purchase Date:... -
Page 5: Component Diagram
Component Diagram Battery Chainring with crank arm Motor Chain Control Buttons Fork On/off Button Disc Brake Charging Port Tires (inner tubes inside) Brake Lever(s) Rack/Carrier Derailleur Lever Front Light Pedals Rear Light Seat Fenders Seatpost Rear Derailleur... -
Page 6: Carton Contents
Carton Contents 1. Assembled bicycle wrapped with padding and packaging material 2. Front fender 3. Box with one pair of pedals and front lamp 4. Box with the charger and cord Assembly Instructions Required Assembly Tools 3mm Allen key 4mm Allen key 5mm Allen key 6mm Allen key #2 Phillips screwdriver... - Page 7 The pedals will be marked L (Left) and R (Right). The R pedal is for the crank arm with the chainring. This threads on with a narrow 15mm wrench in a clockwise direction. The L pedal is for the non-chain side and threads on in a counter-clockwise direction.
-
Page 8: Adjustments After Assembly
Adjustments After Assembly Cockpit • All the controls and levers on the handlebar are adjustable left, right, up and down. These controls may take a screwdriver or Allen key to adjust. • Make sure that all levers, buttons, and controls are visible and within reach. •... -
Page 9: Disc Brakes
• If the lever has to be pulled too far in then a brake adjustment may be needed. This is best performed by your authorized Wolff dealer. Do not delay in getting service. Drivetrain •... -
Page 10: Care & Maintenance
Care and Maintenance Taking proper care of your e-bike can prolong its lifespan by many years, so it’s important to remember a few basic methods of maintaining your e-bike. 1) Pump your tires E-bikes are on average heavier than regular bikes, so it’s important to remember to keep your tires inflated. - Page 11 Instead, use a damp cloth and a bike-friendly cleaner. Every few months bring your e-bike to a registrered Wolff dealer to perform safety check ups, and tune ups if necessary.
-
Page 12: Operating Procedures
US and Canada. The battery has a jack type plug that fits Wolff batteries. The charger has a LED light. This light indicates the battery is charging when it is Red. When the charge is complete the light is Green. This is an easy visual indicator that it is time to unplug the charger. -
Page 13: Battery Storage
These steps are explained below. The Tucana needs a key, like an ignition, to be placed in the battery and turned to the ‘On’ position. After this step push and hold the lower right-side button on the display until it lights up. -
Page 14: Display
Display Product TFT LCD display Model APT TFT 850C Electrical parameters • 3.2inch TFT screen • 24V/36V/48V battery supply • Rated operating current: 40mA • Max operating current: 100mA (36V battery, with USB equipment changed) • USB changing port: 5V 500mA •... - Page 15 Features • Suitable for low temperature: min -20C • High-contrast 3.2inch IPS colorful matrix screen • Ergonomic external button design, easy to operate • Speed display: AVG SPEED, MAX SPEED, SPEED (real-time) • Kilometer / Mile: can be set according to customers’ habits •...
-
Page 16: Functional Description
Functional Description Power On/Off Press and hold POWER button for 1 second can turn on/off the display. The Display can automatically shut down when there is no operate & ride for X minutes (X could be 0~9). *If the display has been set password power on, you need to input the right password before start. - Page 17 Speed & Mileage mode switch Short press POWER button can change the speed and mileage mode, TRIP -> TIME -> ODO -> AVG SPEED -> MAX SPEED. *If there is no operation for 5 seconds, display will return Speed (Real-Time) display automatically.
- Page 18 Data cleanup Press and hold UP & DOWN buttons together for 1 second can reset several temporary data, temporary data include AVG Speed / MAX Speed / Trip / Time. * These temporary data can’t be erased by power off. Walking mode (6km) Press and hold DOWN button for 2 second can get into walking mode, out of the mode when release the button.
-
Page 19: Parameter Setting
Parameter setting Double press POWER button (press interval less than 0.3 second) can get into setting menus, press UP/DOWN buttons to change the parameter setting, press POWER button can switch to next item. Double press POWER button will exit from menu. •... -
Page 20: Error Codes
Error codes 850C can show warning message, icon shows on the screen, and show error code at the bottom of the screen, error code from 21~30, and the definition see the table below. Error Code Error description Handle 0x21 Current protection Check controller 0x22 Throttle error... -
Page 21: Riding The Bicycle
Riding The Bicycle Assist Modes Changing Assist Mode: Your Wolff bicycle turns on at assistance level 1. To select a different level simply push the Up/Plus or Down/Minus buttons on the display. This can be selected and left before you start your ride, or it can be selected while riding. -
Page 22: Warranty
Warranty Five-Year Limited Warranty Each part of a Wolff bicycle frame and fork is warranted for up to five (5) years from the Date of Purchase to be free from defects in materials and workmanship as clarified below. This warranty is limited to the repair or replacement of a defective part and is the sole remedy of the warranty. - Page 23 Wolff; if a part has been misused, or has sustained physical damage from any cause other than its intended use; has been subjected to fire, flood, accidental breakage, improper actions by third parties, and/or any event outside Wolff’s control;...
-
Page 24: Faq's
How far can an e-bike go? Your e-bike range will vary depending on many different conditions, from your battery size to weather. Some of the most common factors include battery size and age, rider’s weight, average biking speed, level of assistance used, hilly terrain, wind, tire pressure, and outside temperature. - Page 25 What care/maintenance does the battery need? Batteries are built to last and can be recharged 600 or more times. Even if you’re an avid cyclist, you’d still get several years out of your battery until you have to replace it. Make sure to follow e-bike’s manual instructions for proper attachment and removal of the battery.
- Page 26 Can I bring it to a regular bike shop for a tune up? Electric bikes are more complex than regular bikes as they have electric components and wiring. We strongly recommend checking in advance whether the bike shop you’re planning to bring your e-bike to for a tune up has experience with servicing your e-bike brand or type.
- Page 27 Wolff Pedelec Inc. 9665 Rue Clément LaSalle, H8R 4B4 Quebec, Canada + 1 438 28 WOLFF (438 289 6533) + 1 888 30 WOLFF (888 309 6533) (toll free) wolffebikes.com To order Wolff e-bikes: order@wolffebikes.com For bike tech support: techsupport@wolffebikes.com For all other inquires: info@wolffebikes.com...
