DISTRIBUTED BY
ACP Sentry Barrier TL-4 ThrieBeam
Product and Installation Manual
Ref: IM 031 Rev 00
Date: 15/07/2021
Page 1/17
RiderPro
Motorcycle Protection for
System
Property of
Margaritelli Ferroviaria S.p.A.
06135 Ponte San Giovanni - Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RiderPro and is the answer not in the manual?

Questions and answers

Related Manuals for ACP RiderPro

Summary of Contents for ACP RiderPro

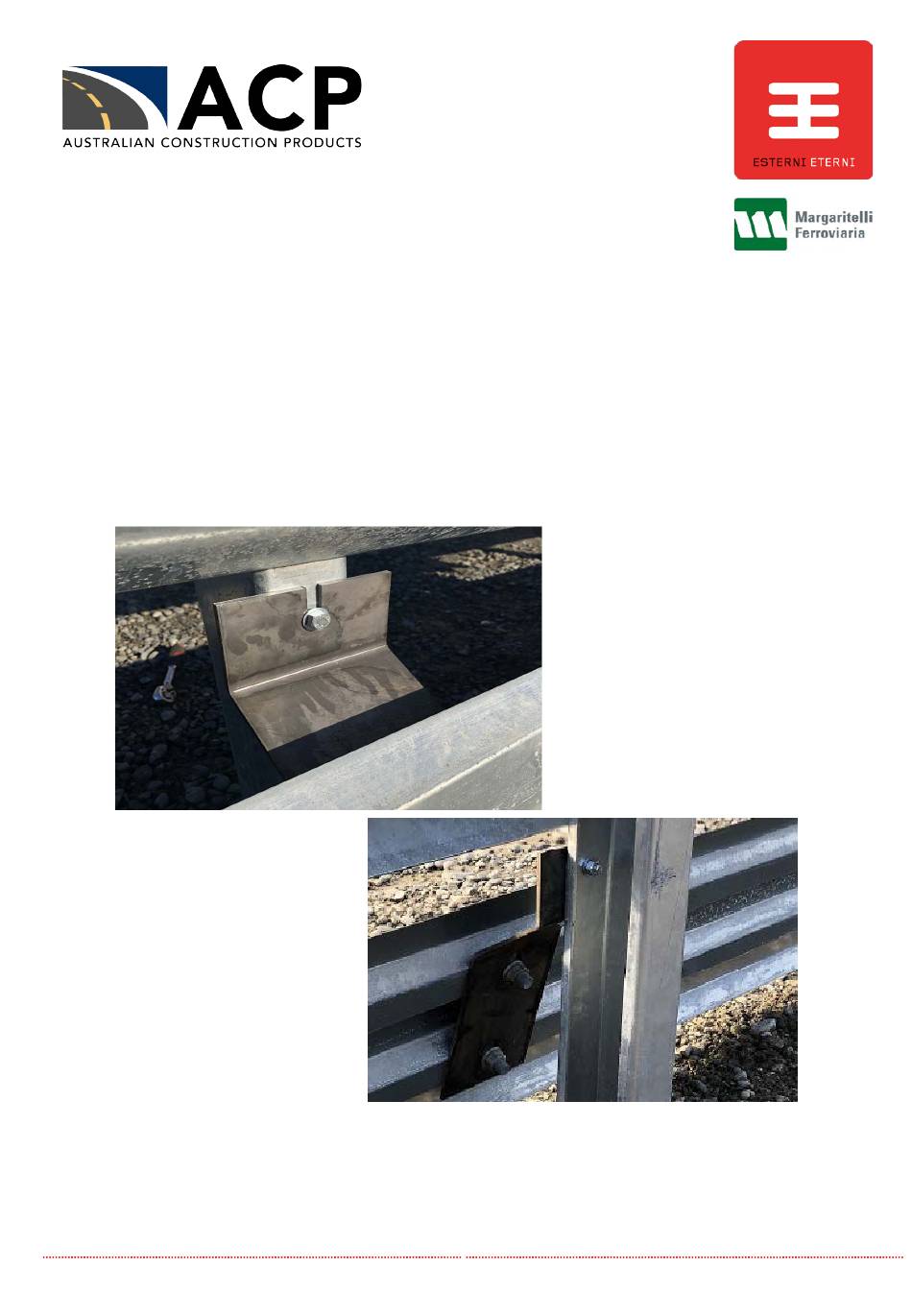

  • Page 1 DISTRIBUTED BY RiderPro Motorcycle Protection for ACP Sentry Barrier TL-4 ThrieBeam System Product and Installation Manual Ref: IM 031 Rev 00 Property of Date: 15/07/2021 Margaritelli Ferroviaria S.p.A. Page 1/17 06135 Ponte San Giovanni - Italy...

  • Page 2: Table Of Contents

    Placement within Guardrail End Terminals ..................5 Minimum Horizontal Radius (Installation curvature radius)............5 End Termination ..........................5 RiderPro Components Identification......................6 Components for ACP Sentry TL4 ThrieBeam Barrier System ............6 Tools Required..............................7 Recommended PPE.........................7 Site Establishment............................7 Traffic Control ..........................7 Overhead Obstructions ........................7...
  • Page 3 Compatibility Sentry Barrier. Easy Assembly Can be installed in a new guardrail installation or retrofitted to existing guardrails. RiderPro is easy to assemble and fast to install in all its applications. Ref: IM 031 Rev 00 Property of Date: 15/07/2021 Margaritelli Ferroviaria S.p.A.

  • Page 4: Introduction

    How RiderPro Works. Introduction RiderPro is adapted to be installed as a motorcycle RiderPro is a motorcyclist restraint system designed restraint system for the ACP Sentry Barrier either in a to reduce the impact severity for riders when new installation or as retrofitting to existing colliding with a roadside thrie beam guardrail barrier.

  • Page 5: Design Considerations

    Kerbs Placing kerbs in front of the barrier is not recommended. As an alternative subsurface grated drainage should be considered. Figure 2. ACP Sentry Barrier and RiderPro Sentry: Minimum Horizontal Radius Retrofitting End Termination The RiderPro mounting bracket connection to the...

  • Page 6: Riderpro Components Identification

    6.1 Components for the ACP Sentry TL4 ThrieBeam Barrier System Before starting the installation of the RiderPro to an ACP Sentry Barrier ThrieBeam System, check the bill of materials to ensure that all the following components have been identified and delivered on site with the quantity required for the length to install.

  • Page 7: Tools Required

    7.1 Recommended PPE Tools Required In order to ensure the safety of the operations in the The installation of RiderPro requires the following installation of the RiderPro, it is recommended to wear tools: the following ordinary personal protective equipment (PPE): Hammer •...

  • Page 8: Installation To The Acp Sentry Thriebeam Barrier System

    Sentry Post has a RiderPro 12mm mounting hole located 600mm from the top of the Sentry Post. If the RiderPro mounting hole is not present in these post be prepared to drill a 12mm hole 600mm from the top of the Sentry Post.

  • Page 9: Attaching The Beams

    (see § 9.7). in Figure 4) using standard nuts and round washers, but do not fully tighten them yet. Figure 4. Attachment of the RiderPro Beams to the ACP Sentry Thrie Beam Barrier System. Ref: IM 031 Rev 00 Property of Date: 15/07/2021 Margaritelli Ferroviaria S.p.A.

  • Page 10: Attaching The End Terminals

    Align the 18 mm wide slots of the end post bracket with the 18 x 50 mm centered slots of the RiderPro beam and attach them with two M16 x 35 mm guardrail bolts () standard nuts and round washers.
  • Page 11 The RiderPro mounting brackets have been connected to the Sentry Post with the ❑ M10x25 hardware with the appropriate torque apply. The RiderPro beams are secured to each mounting bracket with a M16 x 35mm bolt, standard ❑ nut and round washer.

  • Page 12: Maintenance

    10 Maintenance 11 Repair RiderPro is a low maintenance protection device. In the event of an impact, damage to the RiderPro Except for repairs due to impacts, it is recommended system is to be assessed in accordance with Table 1.
  • Page 13 AUSTRALIAN CONSTRUCTION PRODUCTS S.B TL-4 - RIDERPRO...
  • Page 14 AUSTRALIAN CONSTRUCTION PRODUCTS S.B TL-4 - R.PRO DETAIL...
  • Page 15 4,25 kg EE00500017 RiderPro Mounting Bracket 2,24 kg Scale Rev. Date of issue Designer EE00590002 RiderPro Sentry Terminal Mounting Bracket Assembly 5,44 kg EE00700005 Round head bolt M16x35 Gr. 8.8 28/06/2021 1 : 30 su A3 Verified by EE00710000 M16 nut...
  • Page 16 Client Description Minimum curve installation Radius Weight Material Project reference RiderPro MPS DRW no. Coating EE 005 99003 Scale Rev. Date of issue Designer 1 : 50 su A3 26.11.2020 Verified by Issued by In replacement of DRW no. References...
  • Page 17 DISTRIBUTED BY Australian Construction Products Pty Limited ABN 63 091 618 781 H.office: 339 Horsley Road, Milperra, NSW 2214 Mail: P.O. Box 565, Panania, NSW 2213 Tel: +61 2 8708 4400 Fax: +61 2 9792 6272 Email: sales@acprod.com.au Web: www.acprod.com.au...
